Power Door Systems Component Views

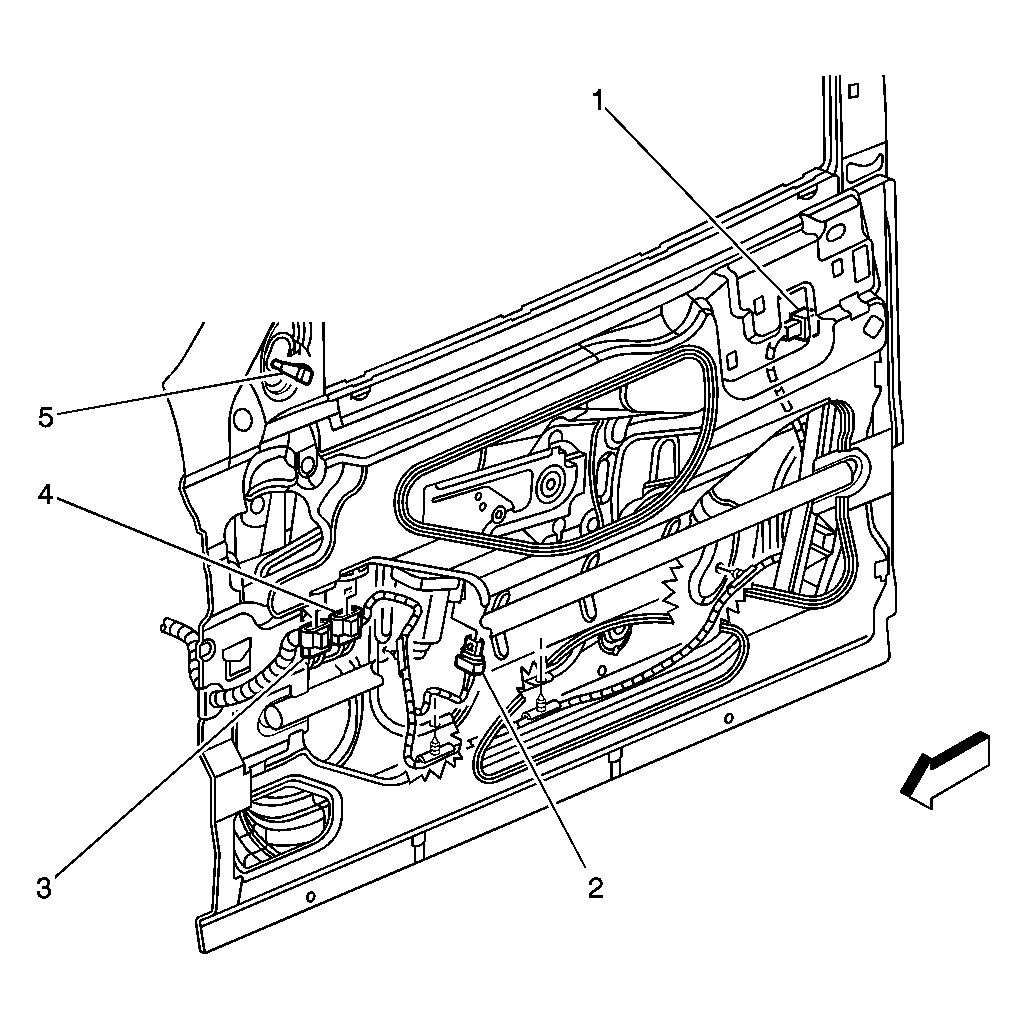

Fig 1: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Driver - Front Passenger Similar
2	Window Motor - Driver - Front Passenger Similar
3	Outside Rearview Mirror Switch Connector
4	Door Lock Switch - Driver - Front Passenger Similar
5	Outside Rearview Mirror - Driver Connector - Front Passenger Similar

Fig 2: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Driver - Front Passenger Similar
2	Window Motor - Driver - Front Passenger Similar
3	Outside Rearview Mirror Switch Connector
4	Door Lock Switch - Driver - Front Passenger Similar
5	Outside Rearview Mirror - Driver Connector - Front Passenger Similar

Fig 3: Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP103
2	Fuse Block - Underhood
3	SP104
4	SP105
5	Fuse Block - I/P - Right
6	Window Motor - Front Passenger
7	Window Switch - RR
8	SP401
9	SP300
10	Window Switch - Front Passenger
11	Window Switch - Driver
12	Cigar Lighter
13	Window Switch - LR
14	Data Link Communication (DLC) Connector
15	Dimmer/Rear Compartment Lid Release Switch
16	Window Motor - Driver
17	Fuse Block - I/P - Left
18	SP191

Fig 4: Left Side of the Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - LR - RR Similar
2	Inflatable Restraint Side Impact Sensor (SIS) - Left Connector - Right Similar)
3	C800 - C700 Similar
