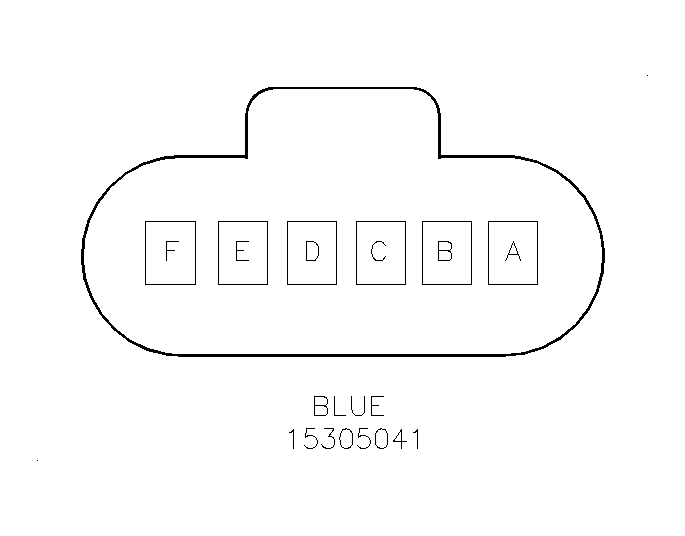

Cooling Fan Control Module Connector End View C2

Cooling Fan Control Module C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305041 6 Way F Metri-Pack 280 Series (BU)
Pin	Wire Color	Circuit Number	Function
A	GY	535	Medium Speed Cooling Fan Motor Supply Voltage
B	RD	1202	Battery Positive Voltage
C	D-BU	473	High Speed Cooling Fan Signal
D	L-BU	409	Cooling Fan Motor Supply Voltage
E	WH	504	Cooling Fan Low Reference
F	D-GN	335	Low Speed Cooling Fan Signal
