J2 - I/P

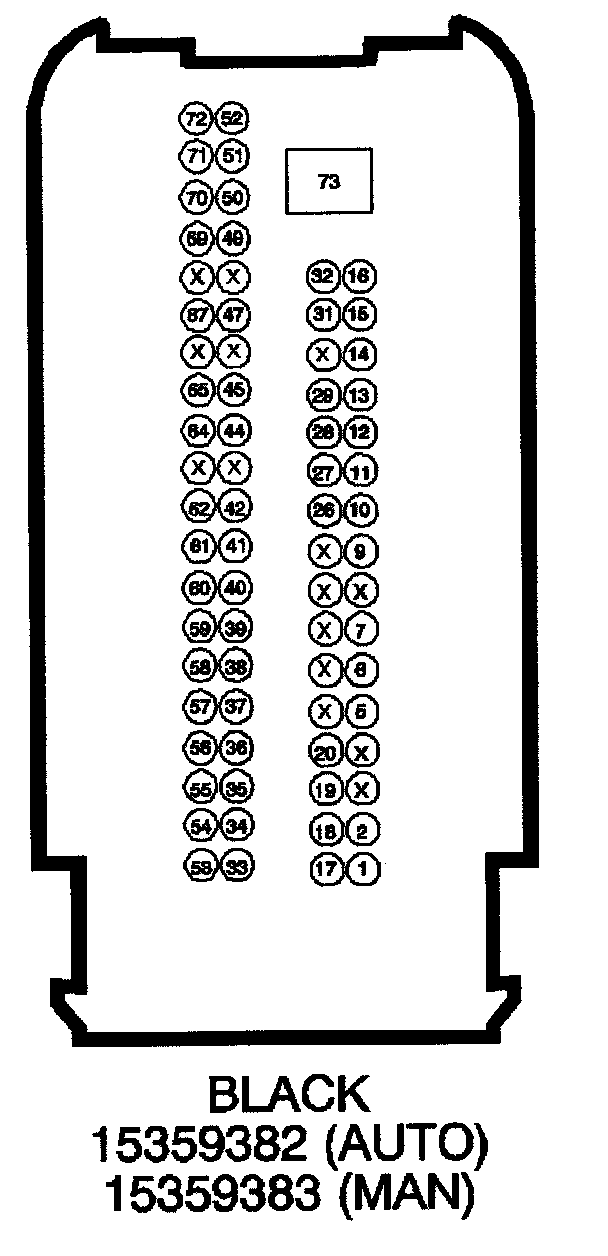

Connector C2:

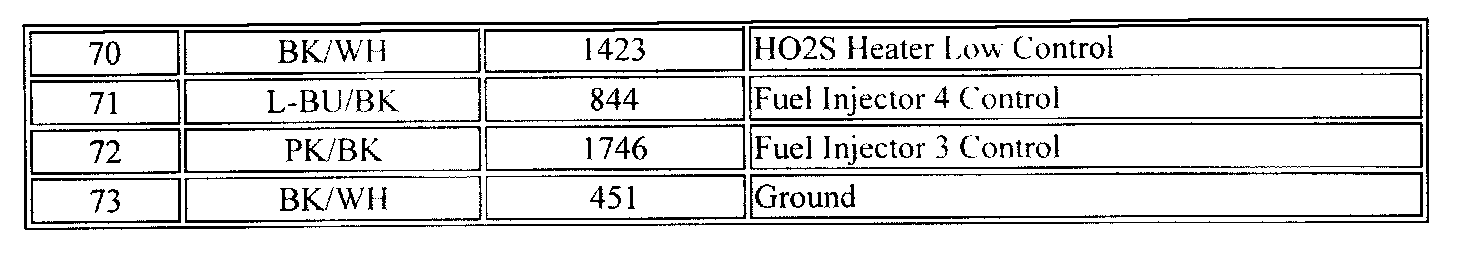

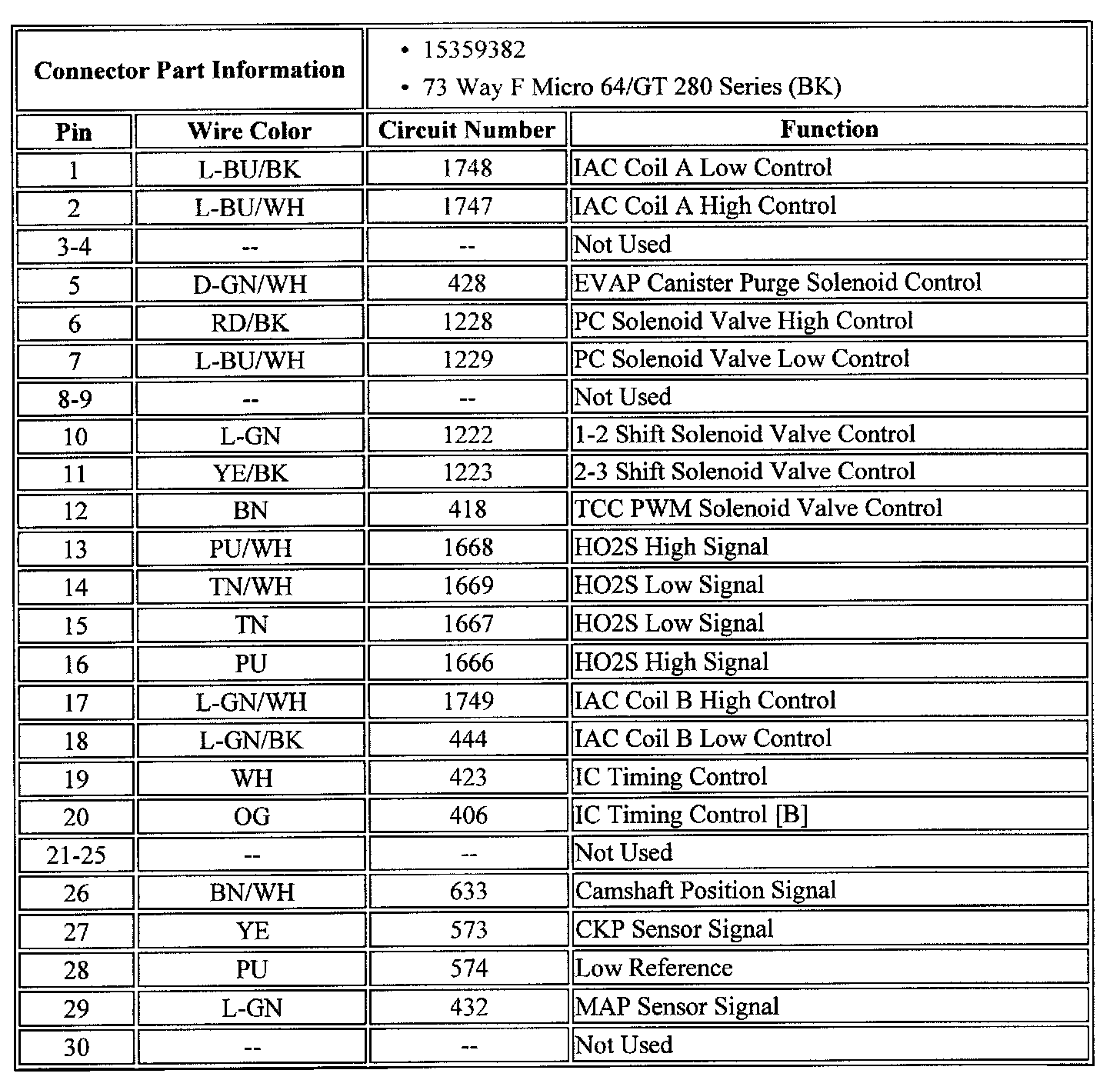

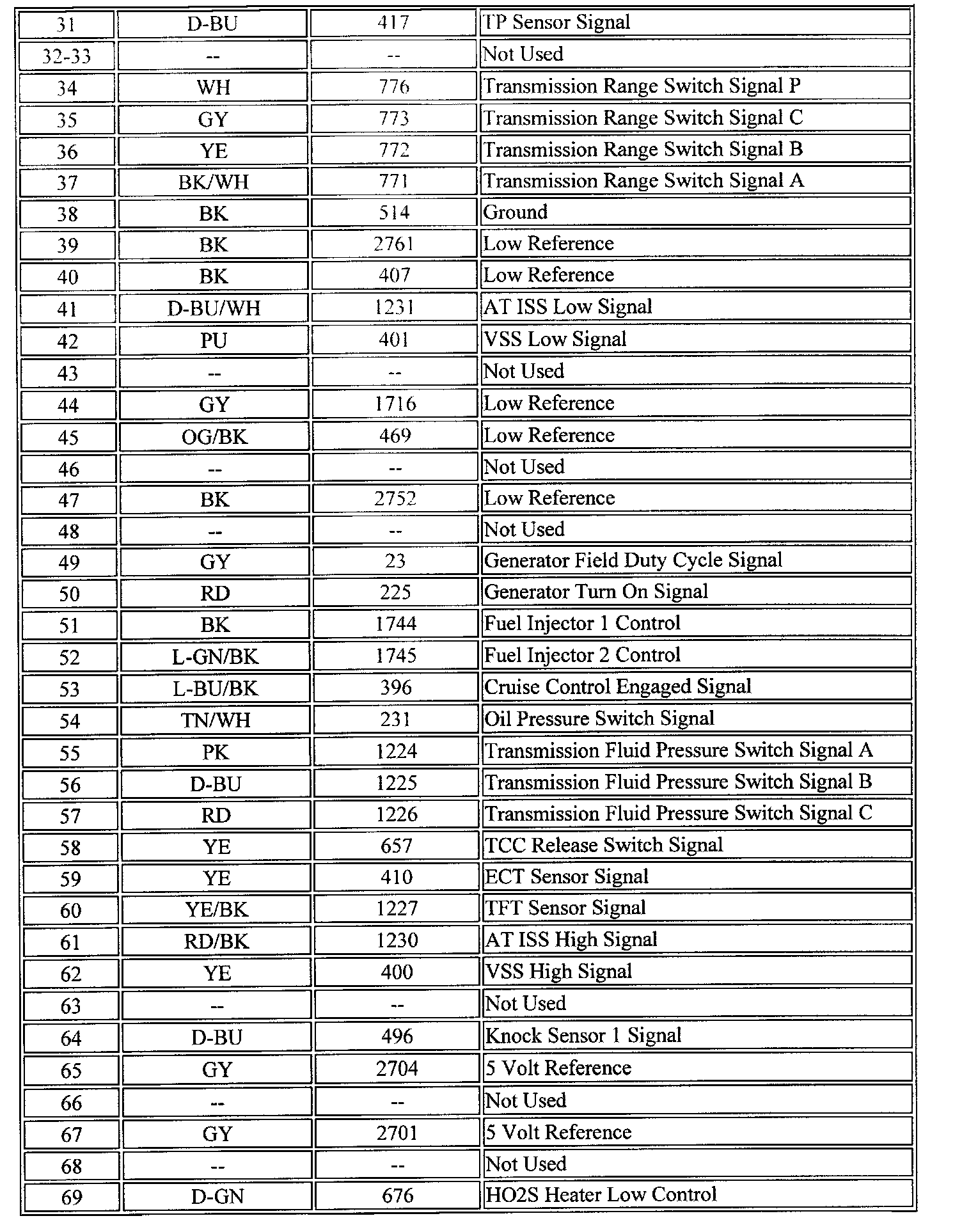

Automatic Transmission:
Automatic Transmission:
Automatic Transmission:

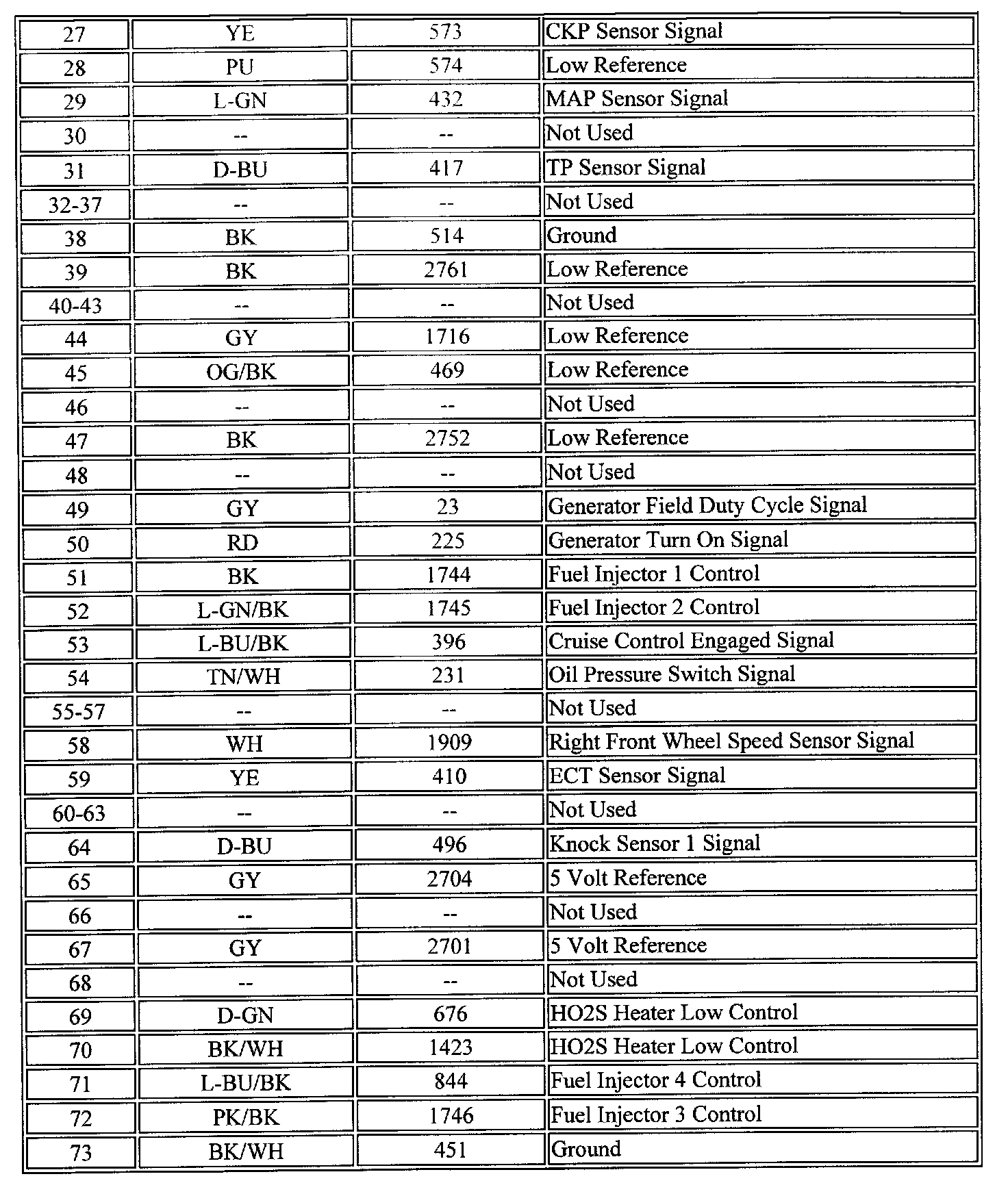

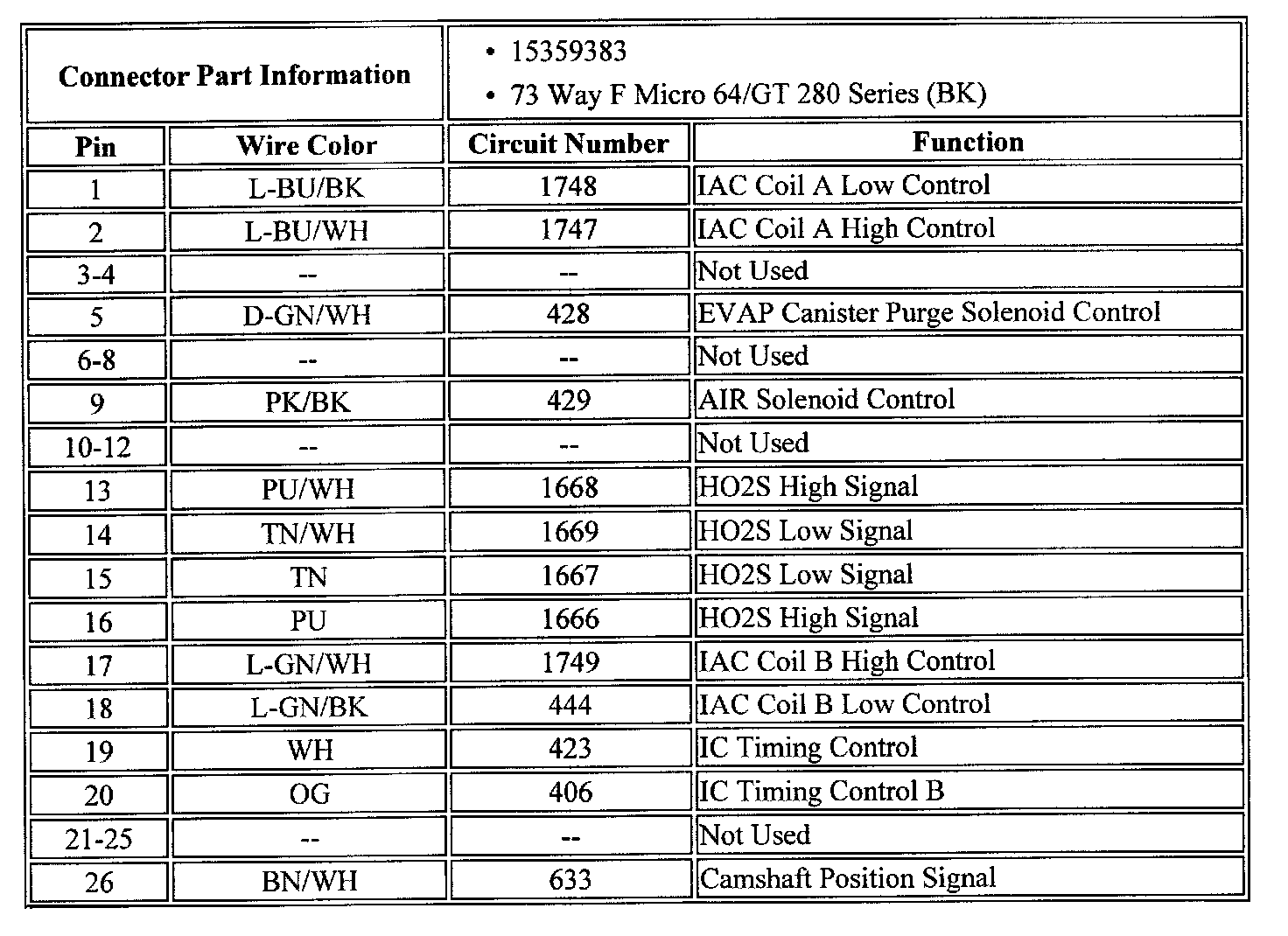

Manual Transmission:
Manual Transmission:
