Powertrain Control Module (PCM) Connector Descriptions
>>
J1 - Engine
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
J1 - Engine

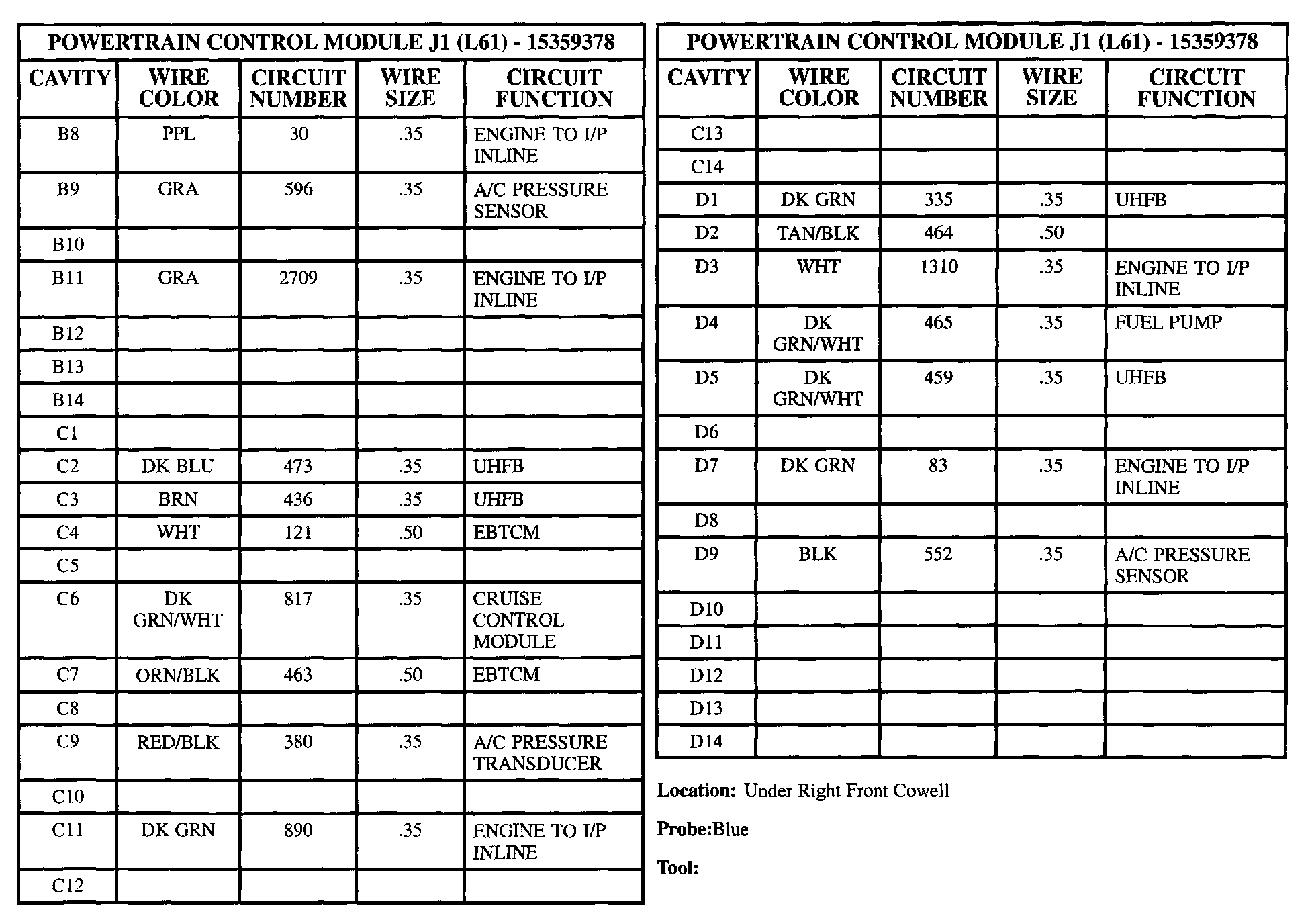

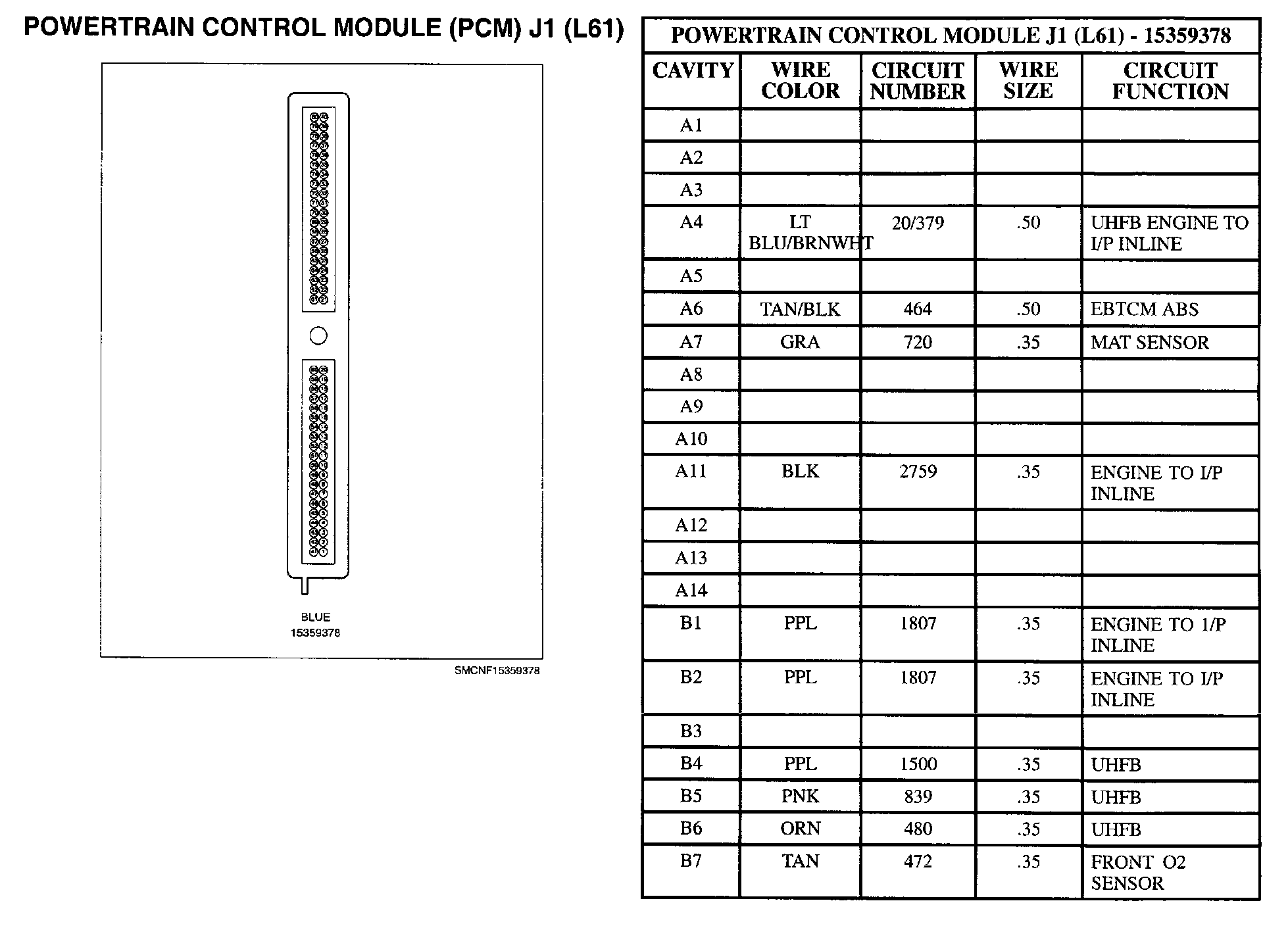

Powertrain Control Module (PCM) J1 Part 1:
Powertrain Control Module (PCM) J1 Part 2:
