Instrument Panel Gauges

Instrument Panel Gauges:




The instrument panel gauges are controlled by the Body Control Module (BCM) via the serial data link to the Instrument Panel Cluster (IPC).

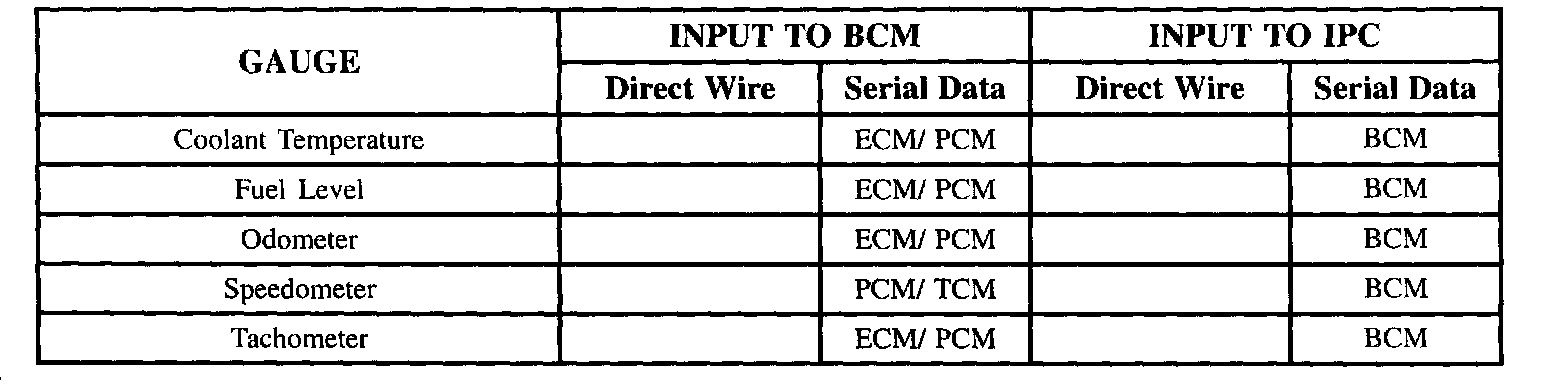

The table gives the information source for each gauge:
