CONTROL VALVE BODY ASSEMBLY AND TFP SWITCH INSTALLATION

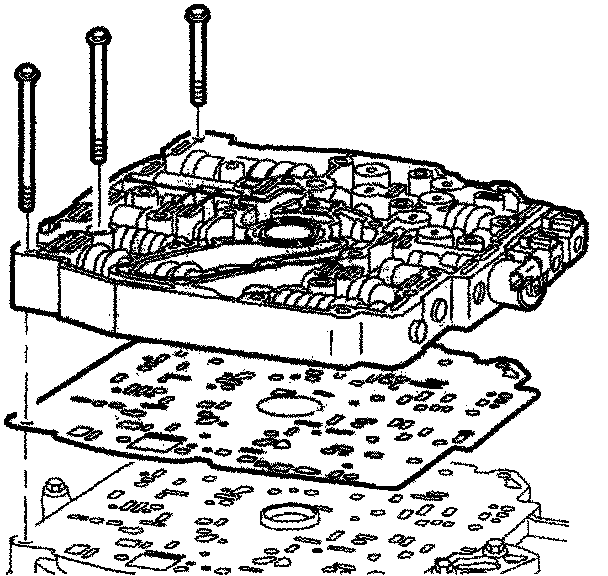

1. Install control valve body-to-spacer gasket onto spacer plate.
2. Install control valve body assembly onto gasket.

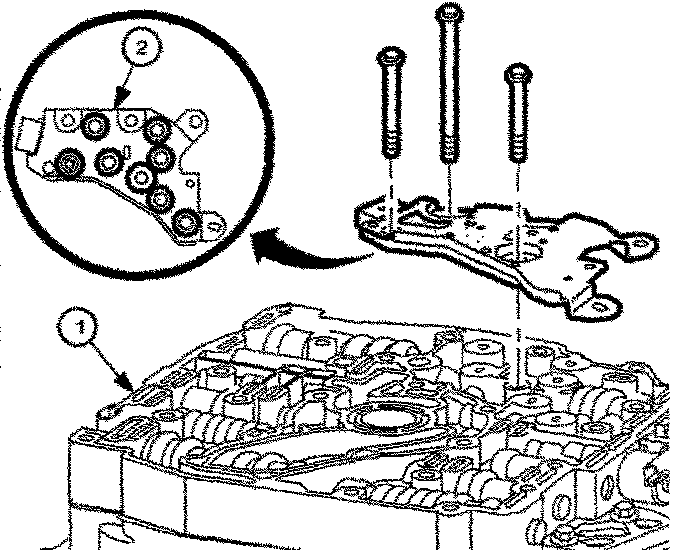

3. Inspect Transaxle Fluid Pressure (TFP) switch assembly in order to verify the condition and correct location of TFP O-rings.
4. If necessary, replace TFP switch O-rings.

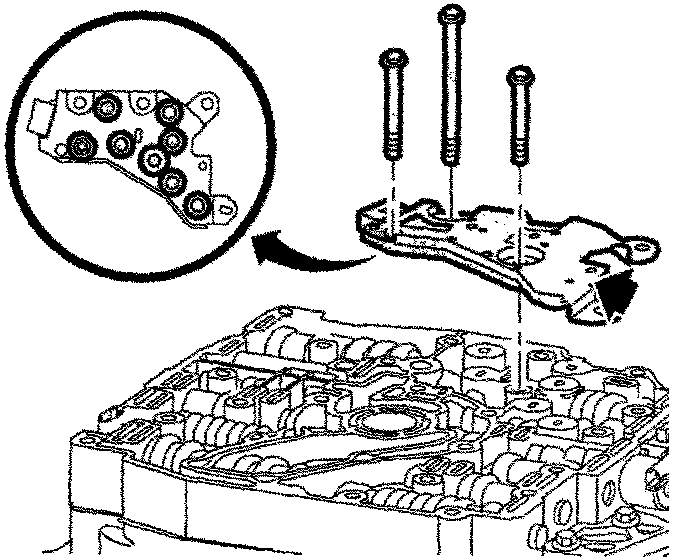

5. Install TFP switch assembly onto control valve body assembly and hand start bolts.

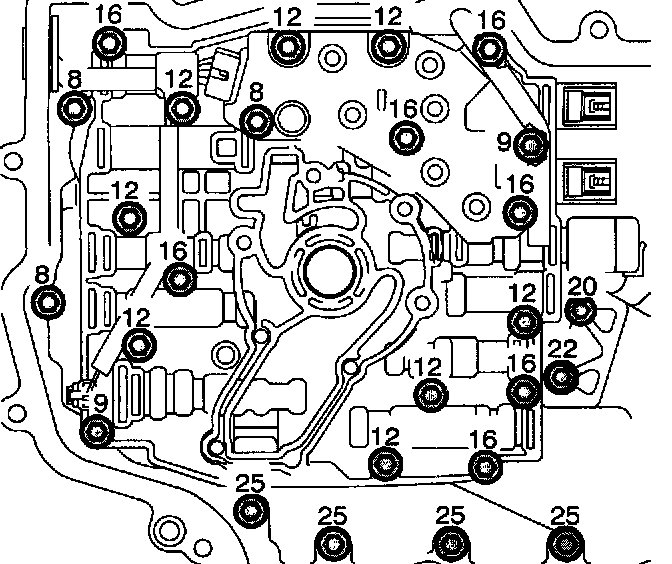

6. Install control valve body assembly bolts.





7. Hand start bolts.
Torque:
Control Valve Body Bolts: 12 Nm (9 ft. lbs.)
