Removal (3.0L)

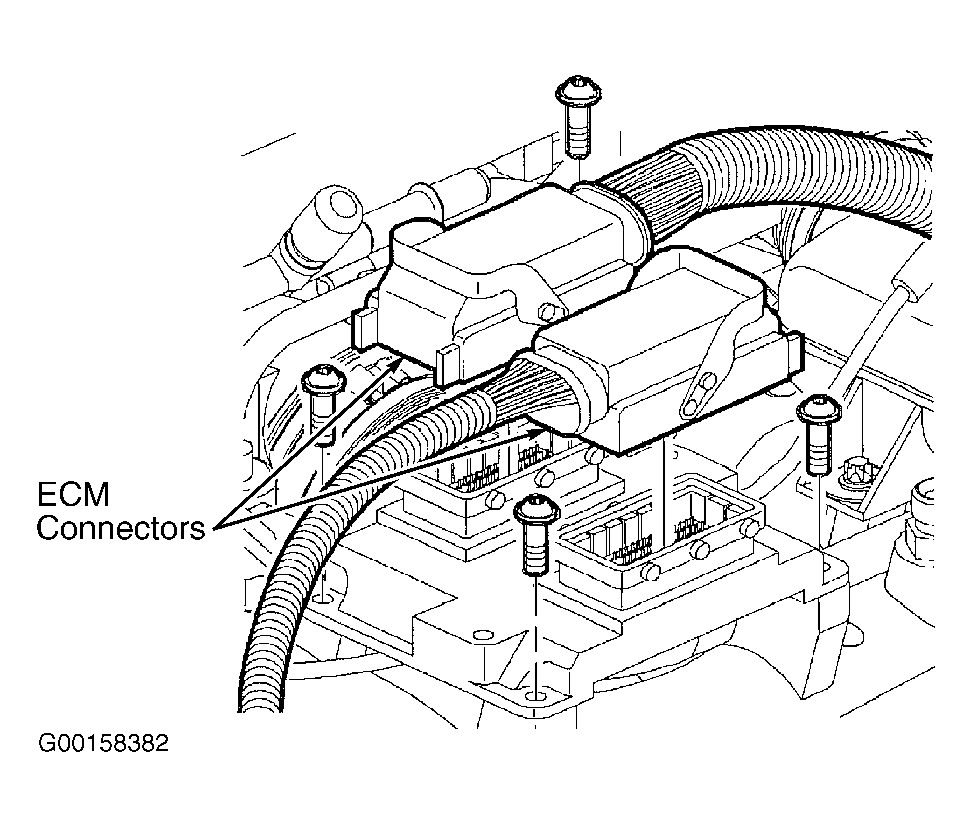

Turn OFF the ignition for at least 10 seconds. Disconnect ECM J1 and J2 harness connectors. See Figure . Remove ECM attachment bolts and remove ECM.
