Removal (2.2L)

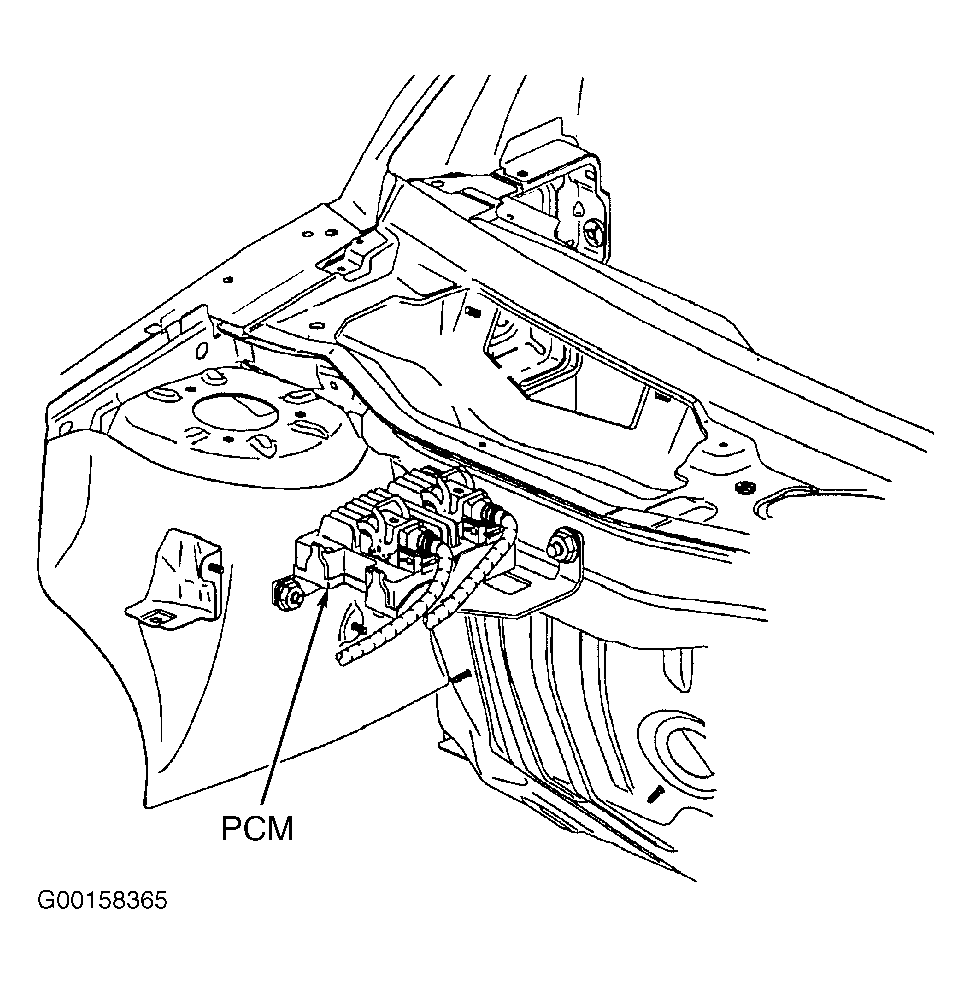

Record preset radio stations. Turn ignition off. Disconnect negative battery cable. Disconnect PCM J1 and J2 harness connectors. See Figure . Release 2 retaining clips on forward edge of PCM mounting bracket. Remove PCM by lifting forward edge of PCM and slide towards front of vehicle.
