Removal Procedure

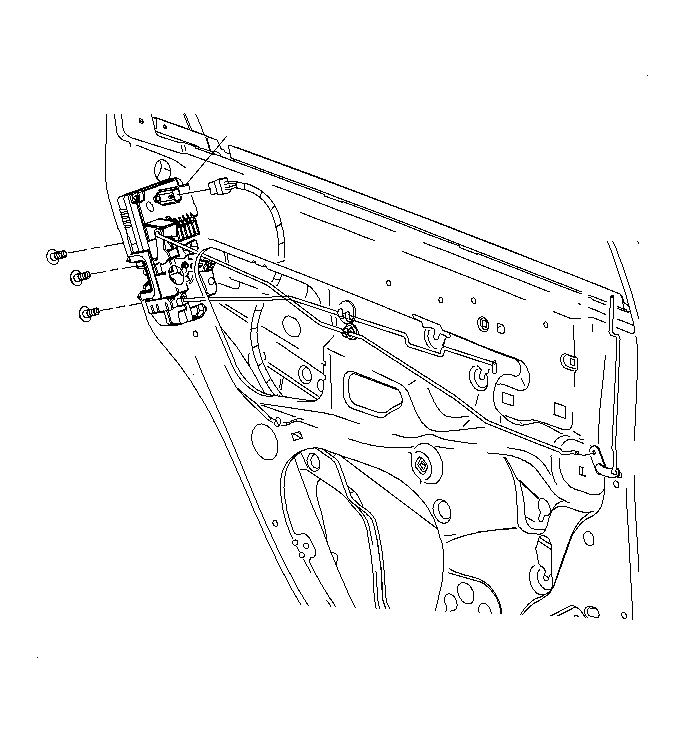

    Fig 1: Removing & Installing Rear Door Latch
    GM893704Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Pull back the rear portion of the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Partially remove the rear door window weatherstrip from the rear of the door. Refer to Weatherstrip Replacement - Rear Door Window (New Style)  or Weatherstrip Replacement - Rear Door Window (Old Style) .
  4. Remove the rear window run channel. Refer to Window Run Channel Replacement - Rear Door .
  5. Run the window to the 3/4 up position.
  6. Remove the screws from latch mechanism.
  7. Remove the latch mechanism from the rear door.
  8. Disconnect the power door lock electrical connector.
  9. Remove the 2 lock rods from the latch mechanism
