ABS Component Views

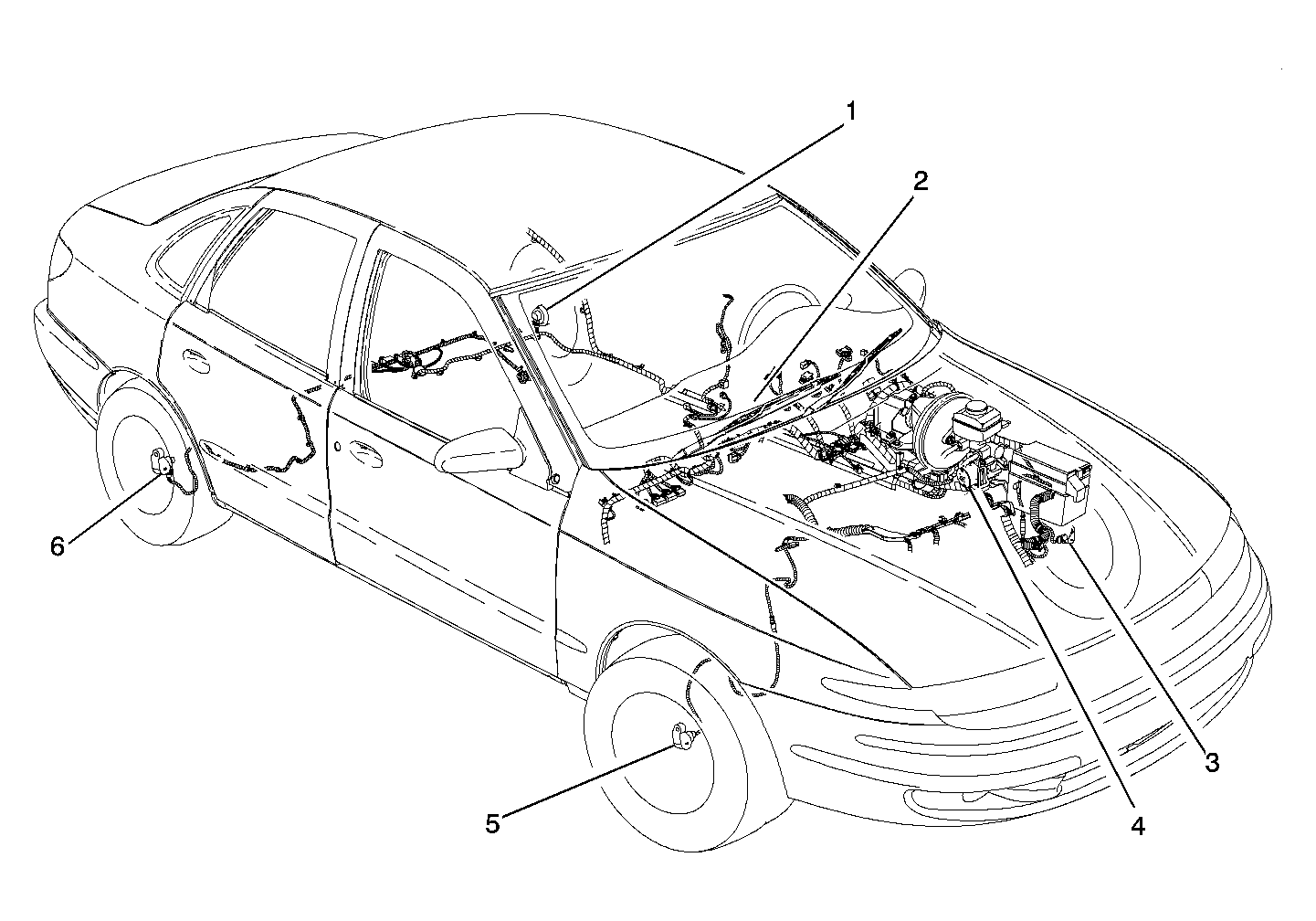

Fig 1: ABS Component View
GM1255463Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS)- LR
2 Right Heated Seat/Traction Switch
3 Wheel Speed Sensor (WSS)- LF
4 Electronic Brake Control Module (EBCM)
5 Wheel Speed Sensor (WSS)- RF
6 Wheel Speed Sensor (WSS)- RR
