ABS Connector End Views

Electronic Brake Traction Control Module (EBCM

Courtesy of GENERAL MOTORS CORP.

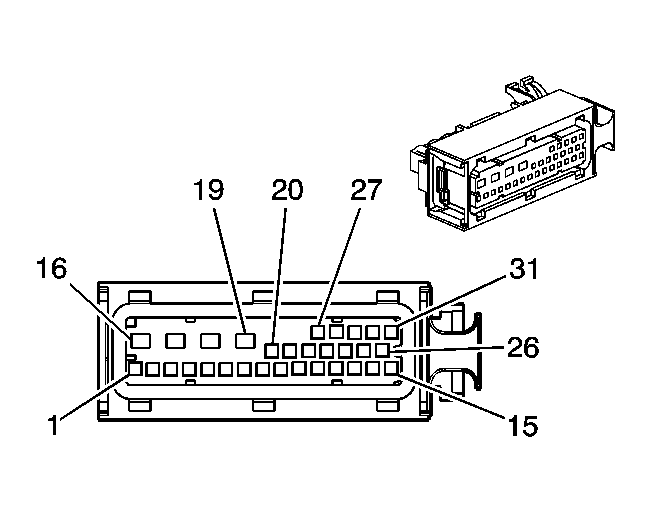

Connector Part Information		15326596 31 Way F Mixed Series (BK)
Pin	Wire Color	Circuit Number	Function
1	WH	883	Right Rear Wheel Speed Sensor Low Reference
2	BN	882	Right Rear Wheel Speed Sensor Signal
3	TN	833	Right Front Wheel Speed Sensor Low Reference
4	--	--	Not Used
5	D-GN	872	Right Front Wheel Speed Sensor Signal
6	YE	873	Left Front Wheel Speed Sensor Low Reference
7	L-BU	830	Left Front Wheel Speed Sensor Signal
8	BK	885	Left Rear Wheel Speed Sensor Low Reference
9	RD	884	Left Rear Wheel Speed Sensor Signal
10	--	--	Not Used
11	L-BU	1276	ABS Serial Data K-Line
12	--	--	Not Used
13	OG/BK	463	Requested Torque Signal
14	L-BU	20	Stop Lamp Supply Voltage
15	PK	339	Ignition 1 Voltage
16	BK	150	Ground
17	RD	702	Battery Positive Voltage
18	RD	1002	RAP [X] Fuse Supply Voltage
19	BK	150	Ground
20	L-BU	832	Traction Control Active Signal
21	L-GN	867	ABS Indicator Failure Control
22-25	--	--	Not Used
26	WH	1909	Right Front Wheel Speed Sensor Signal (M/T)
27	TN/BK	464	Delivered Torque Signal
28	WH	2192	Traction Ready Indicator Control
29	--	--	Not Used
30	WH	121	Engine Speed Signal
31	L-BU	1788	Traction Control Switch Signal

Right Heated Seat/Traction Switch

Courtesy of GENERAL MOTORS CORP.

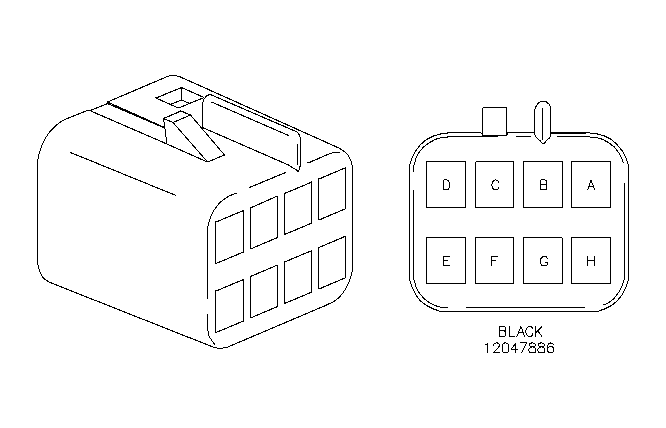

Connector Part Information		12047886 8-Way F Metri-Pack Series (BK)
Pin	Wire Color	Circuit Number	Function
A	BN	641	Ignition 3 Voltage
B	D-BU	1660	Traction Control Indicator Control
C	L-BU	1788	Traction Control Switch Signal
D	GY	8	Instrument Panel Lamp Supply Voltage
E	BK	550	Ground
F	PK/BK	1503	Passenger Heated Seat High/Low Signal
G	L-GN	559	Passenger Heated Seat On Signal
H	--	--	Not Used

Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

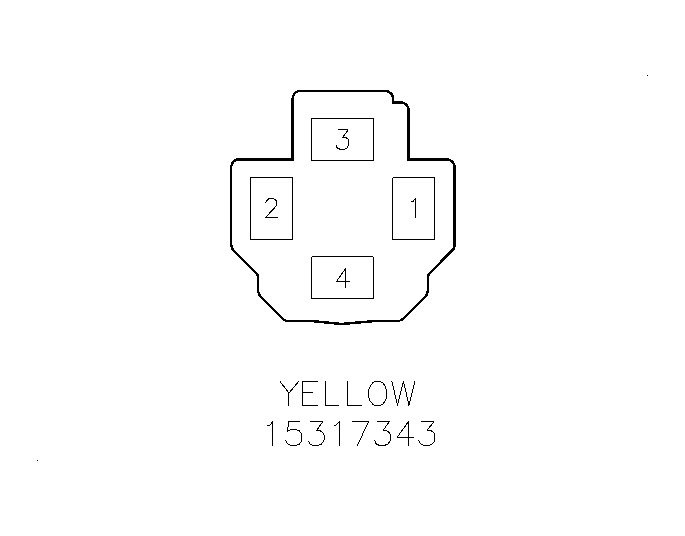

Connector Part Information		15317343 4 Way F (BK)
Pin	Wire Color	Circuit Number	Function
1	--	--	Not Used
2	--	--	Not Used
3	L-BU	20	Stop Lamp Supply Voltage
4	OG	540	Battery Positive Voltage

Wheel Speed Sensor (WSS)- LF

Courtesy of GENERAL MOTORS CORP.

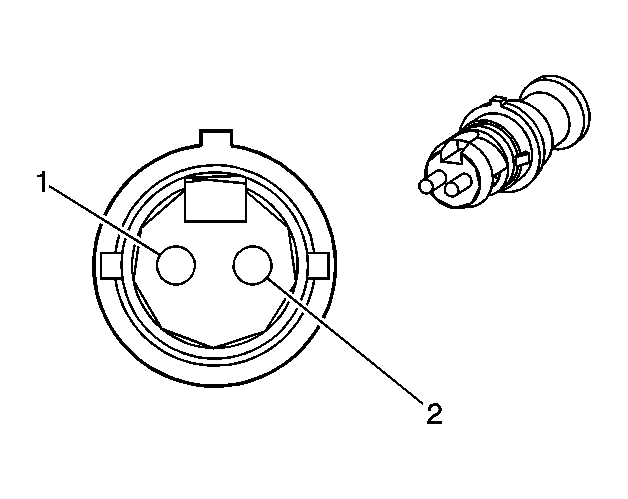

Connector Part Information		15358647 2 Way (NA)
Pin	Wire Color	Circuit Number	Function
1	YE	873	Left Front Wheel Speed Sensor Low Reference
2	D-GN	830	Left Front Wheel Speed Sensor Signal

Wheel Speed Sensor (WSS)- LR

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052644 2 Way (GN)
Pin	Wire Color	Circuit Number	Function
A	BK	884	Left Rear Wheel Speed Sensor Low Reference
B	RD	885	Left Rear Wheel Speed Sensor Signal

Wheel Speed Sensor (WSS)- RF

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15358648 2 Way (NA)
Pin	Wire Color	Circuit Number	Function
1	TN	833	Right Front Wheel Speed Sensor Low Reference
2	D-GN	872	Right Front Wheel Speed Sensor Signal

Wheel Speed Sensor (WSS)- RR

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052644 2 Way (GY)
Pin	Wire Color	Circuit Number	Function
A	BN	882	Right Rear Wheel Speed Sensor Low Reference
B	WH	883	Right Rear Wheel Speed Sensor Signal
