Door Lock/Indicator Schematics

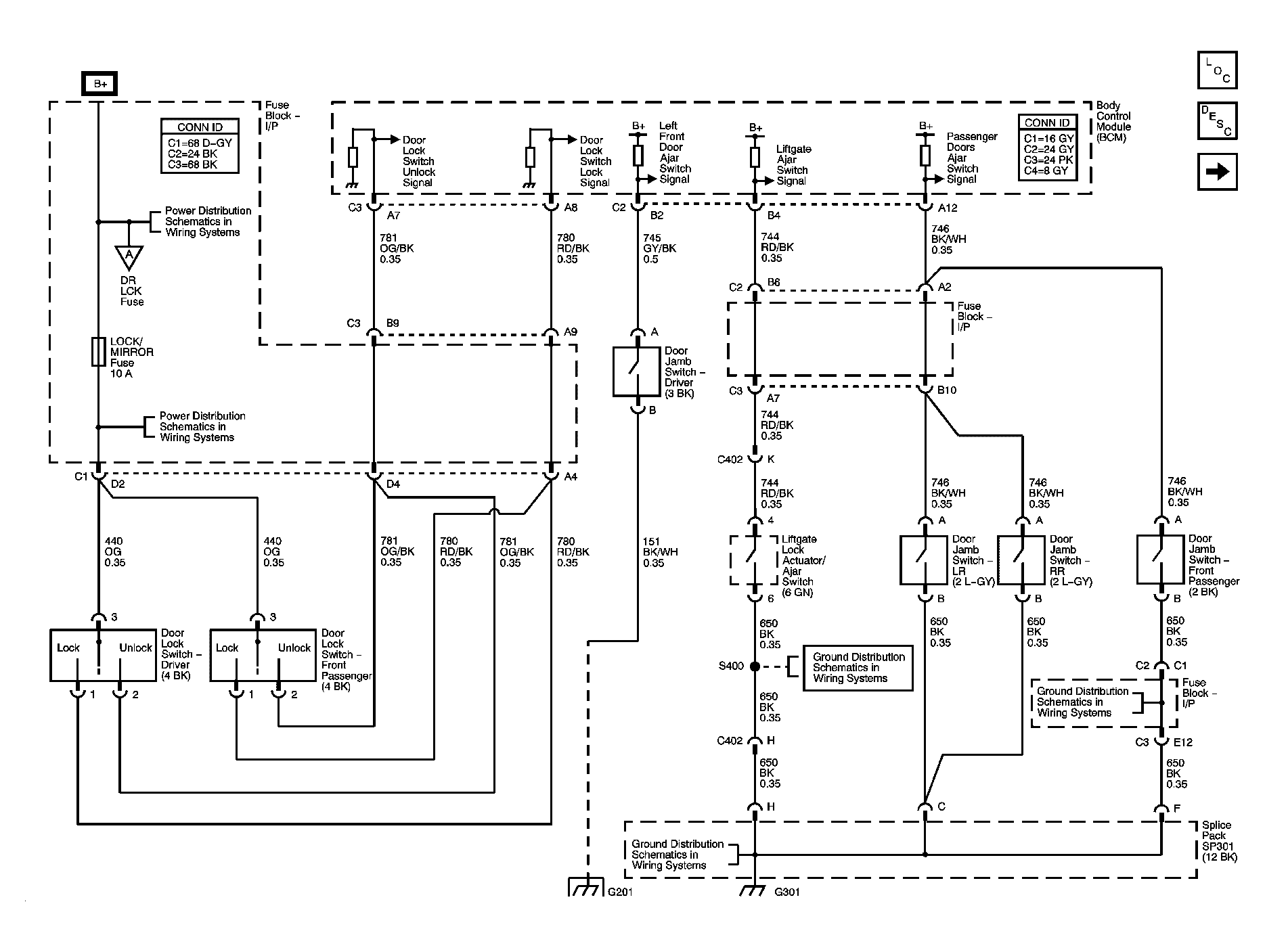

Fig 1: Door Lock & Jamb Switches
GM1218087Courtesy of GENERAL MOTORS CORP.

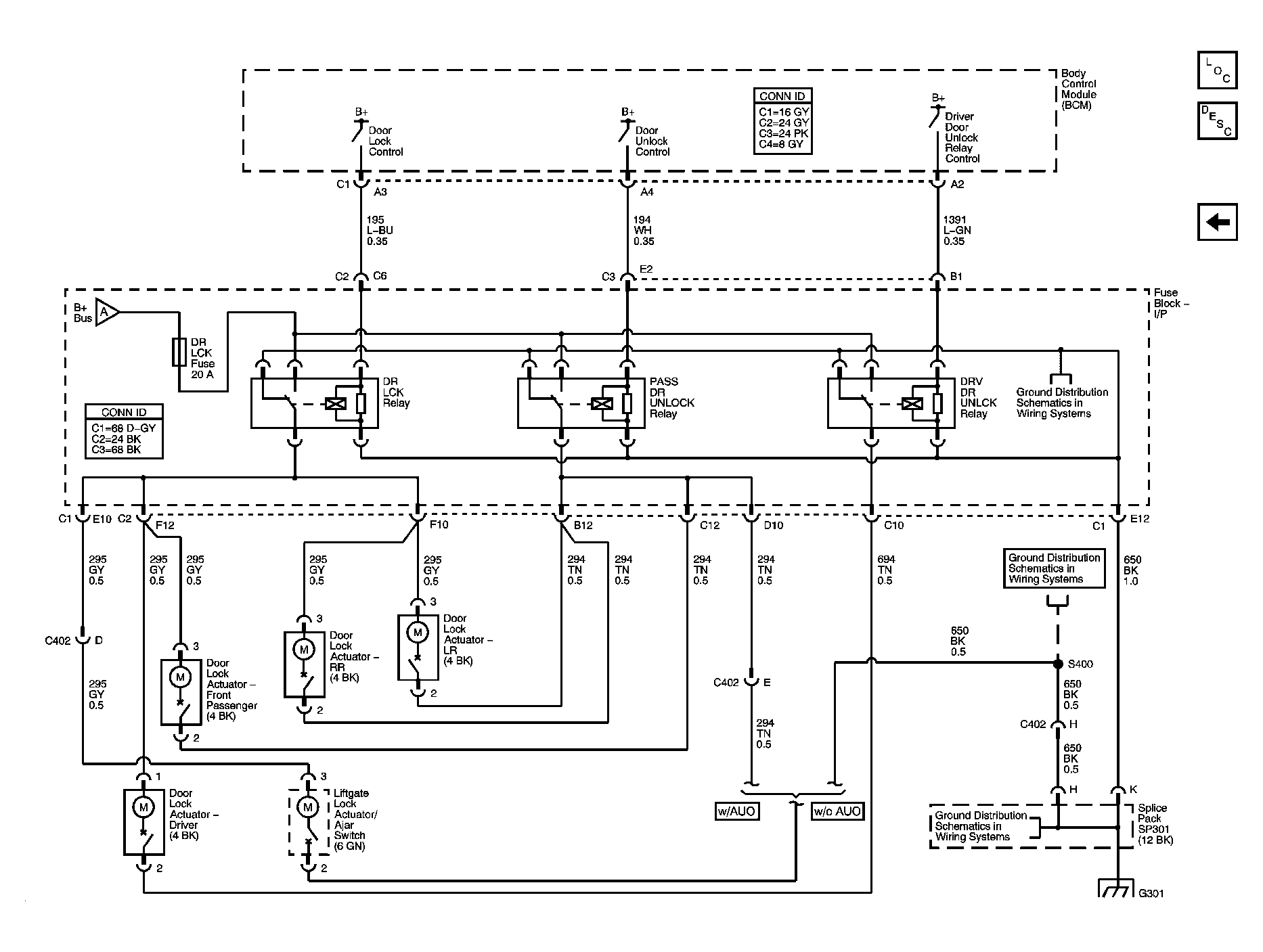

Fig 2: Door Lock Actuators
GM1218084Courtesy of GENERAL MOTORS CORP.
