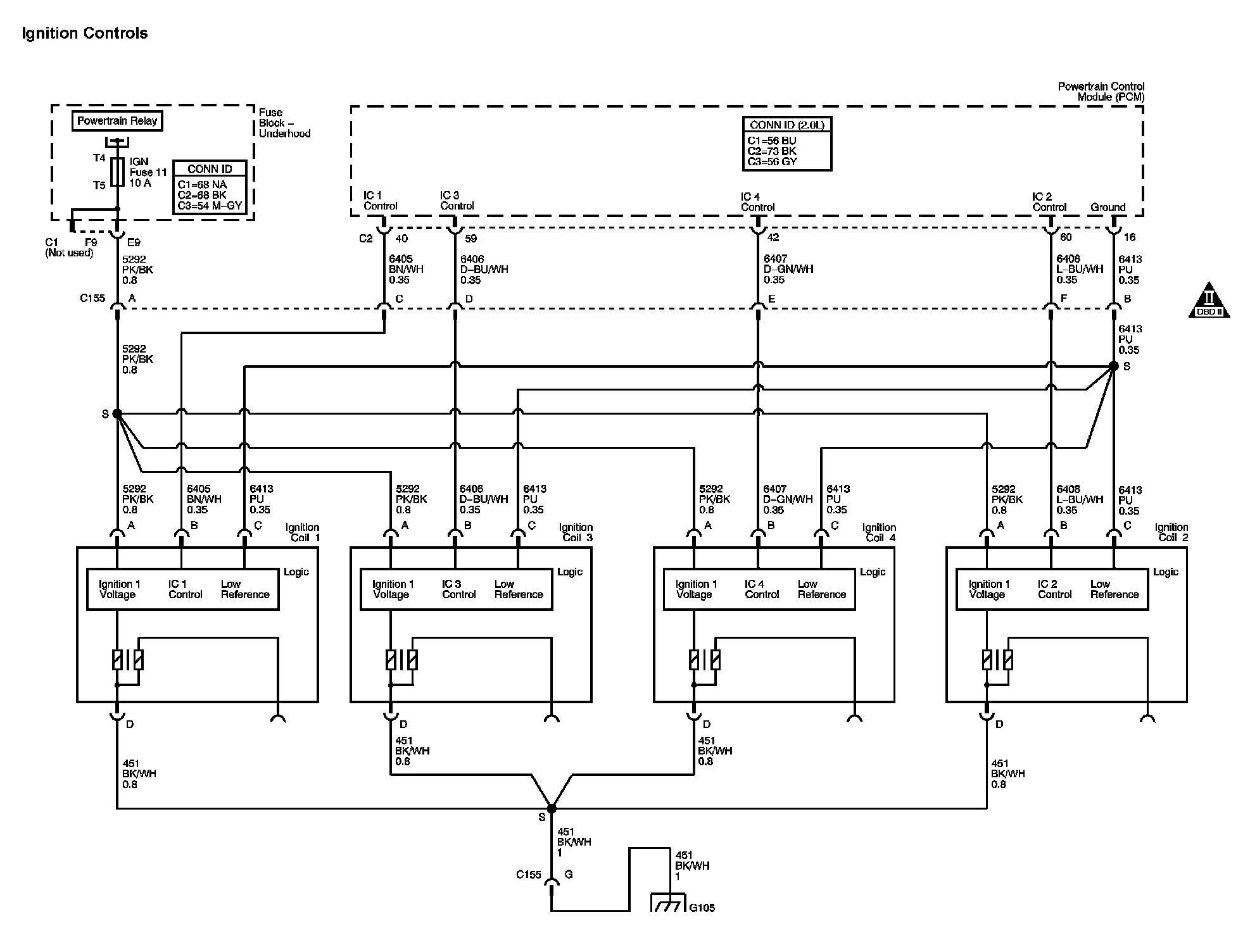

Engine Controls Diagram 7

Engine Controls Diagram 7:






Next Diagram Engine Controls Diagram 8

Previous Diagram Engine Controls Diagram 6
