Electronic Brake Control Module: Locations

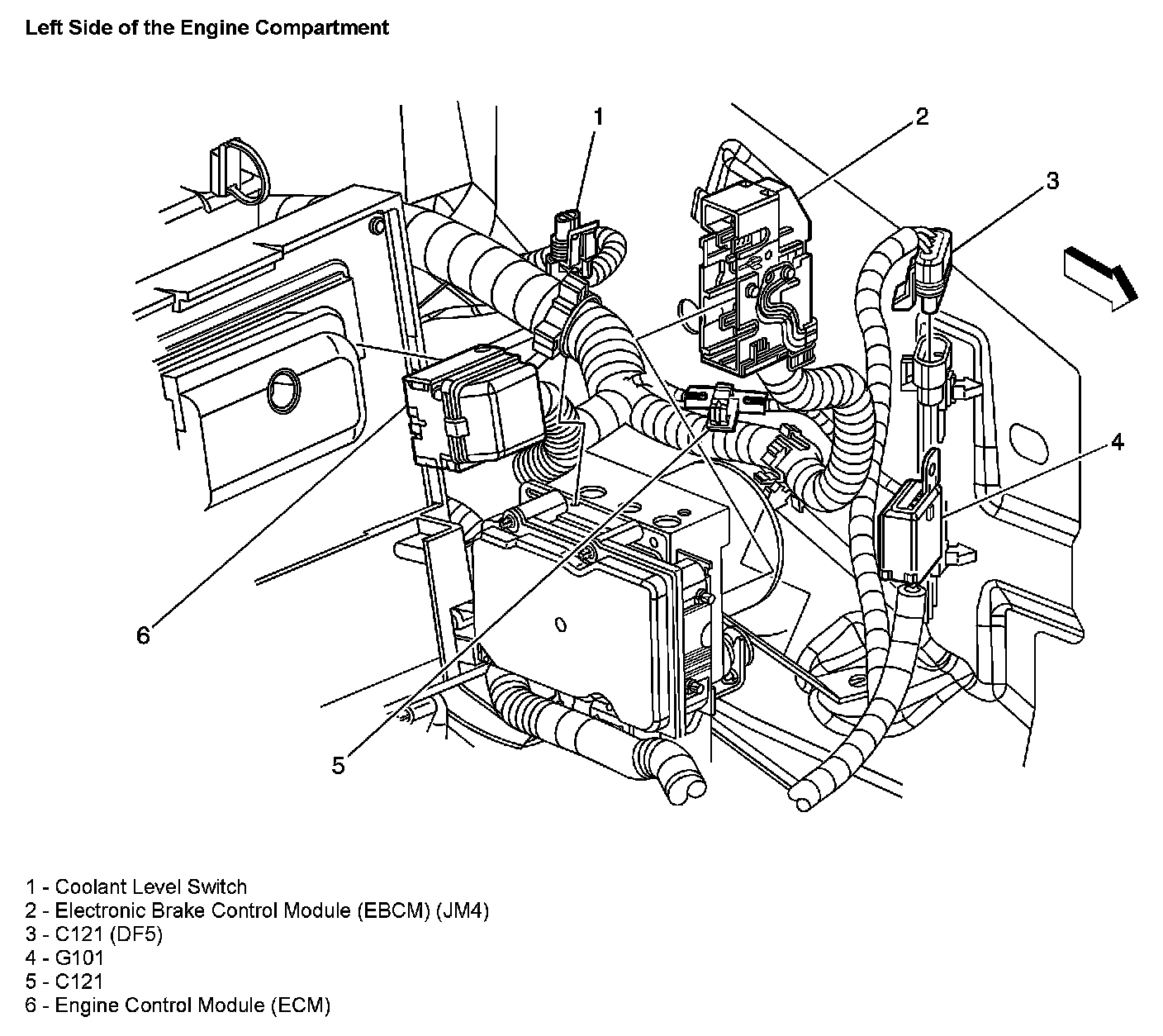

Left Side of the Engine Compartment:

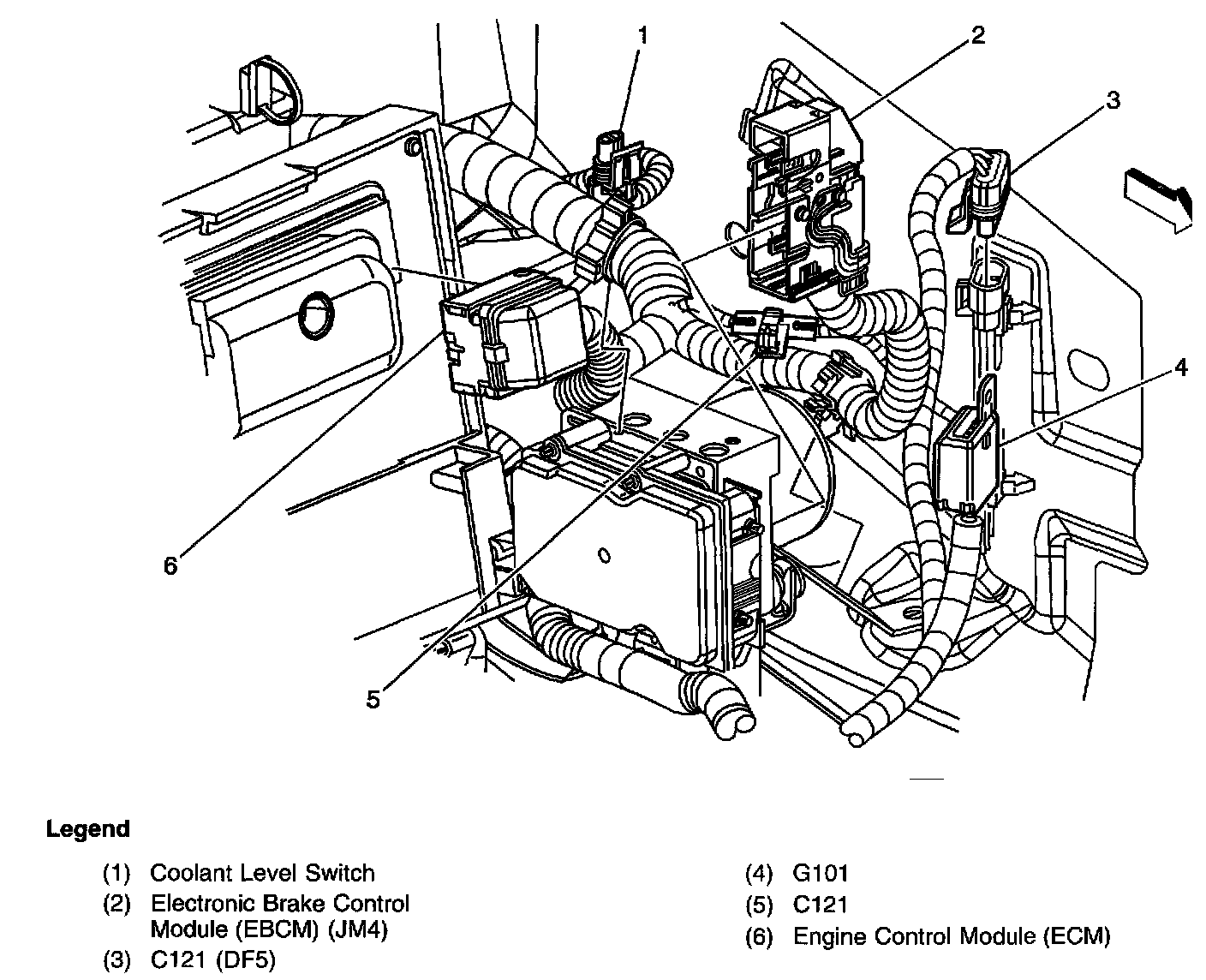

Left Side Of The Engine Compartment:
