Air Temperature Sensor ( Ambient / Intake ): Service and Repair

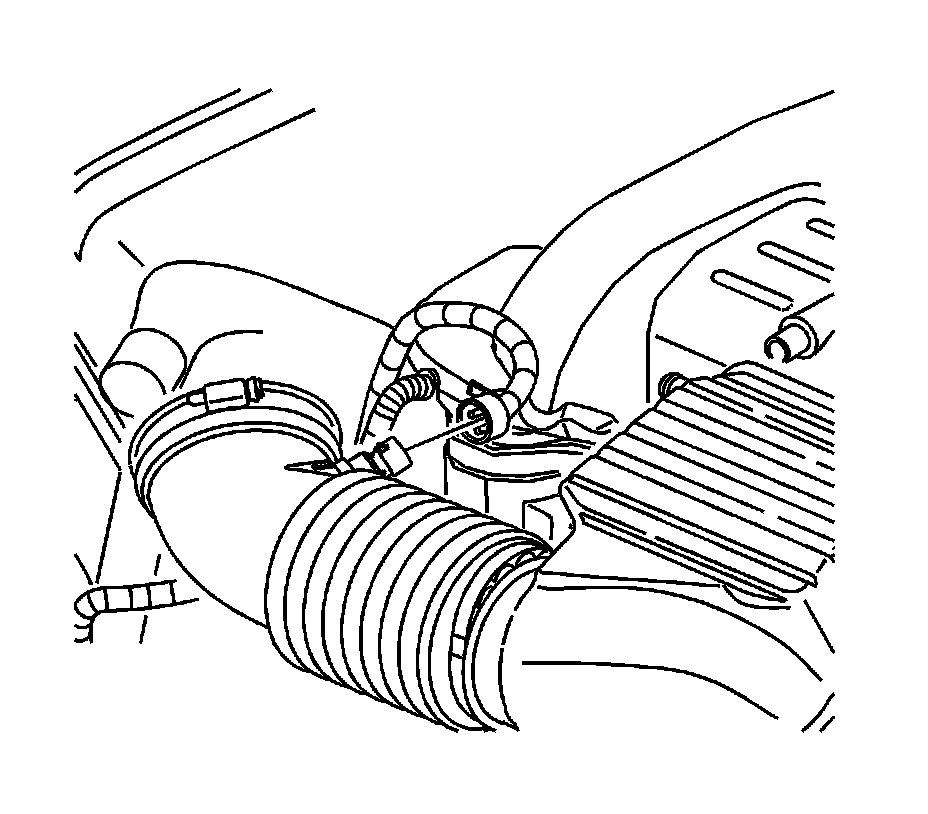

INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the IAT sensor harness connector.
2. While twisting the IAT sensor, pull the sensor from the air cleaner resonator.

INSTALLATION PROCEDURE




1. Press the IAT sensor into the air cleaner resonator.
2. Connect the IAT sensor harness connector.
