Wiper/Washer System Component Views

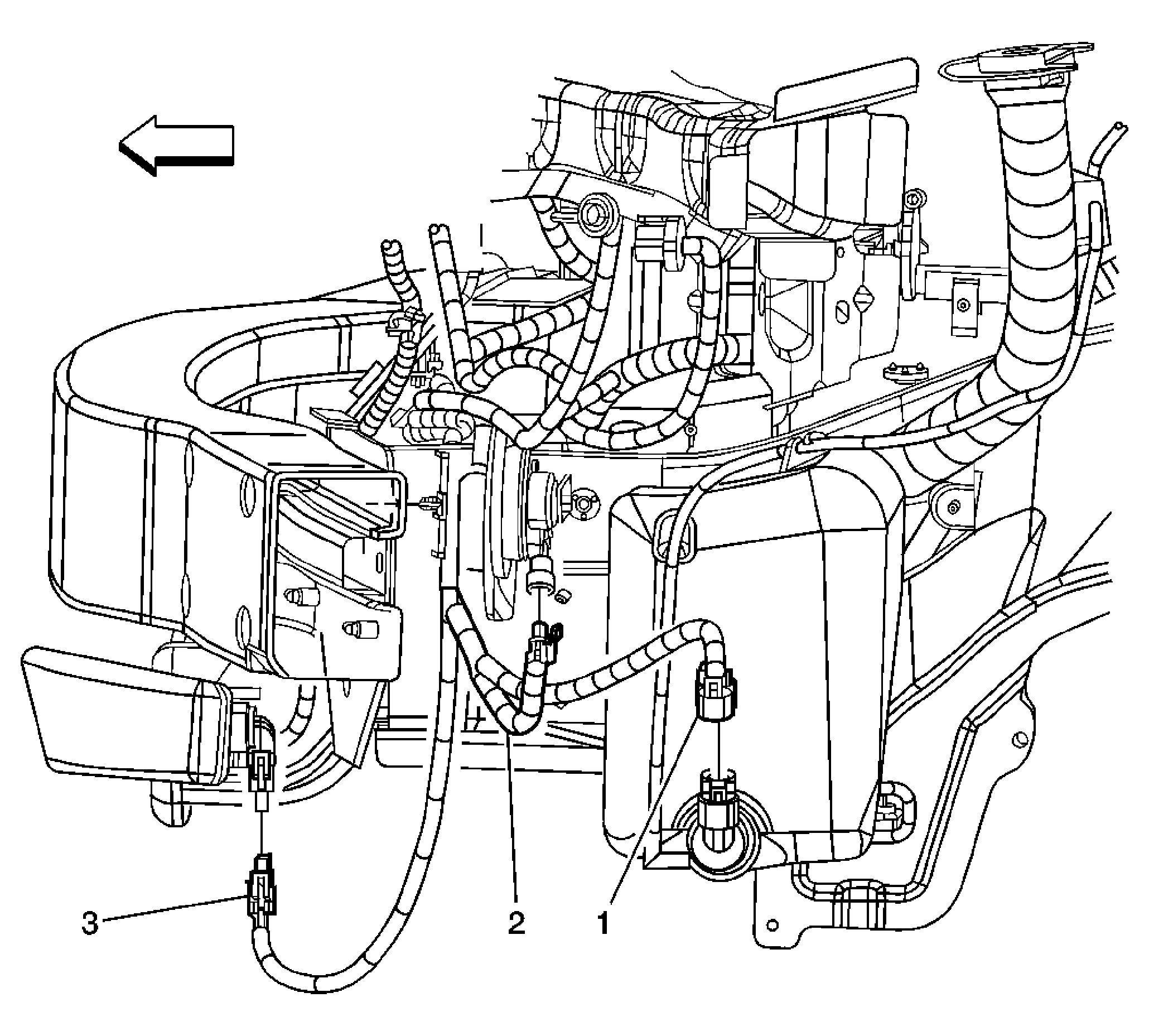

Fig 1: Left Front Side Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Horn
3	Fog Lamp - LF

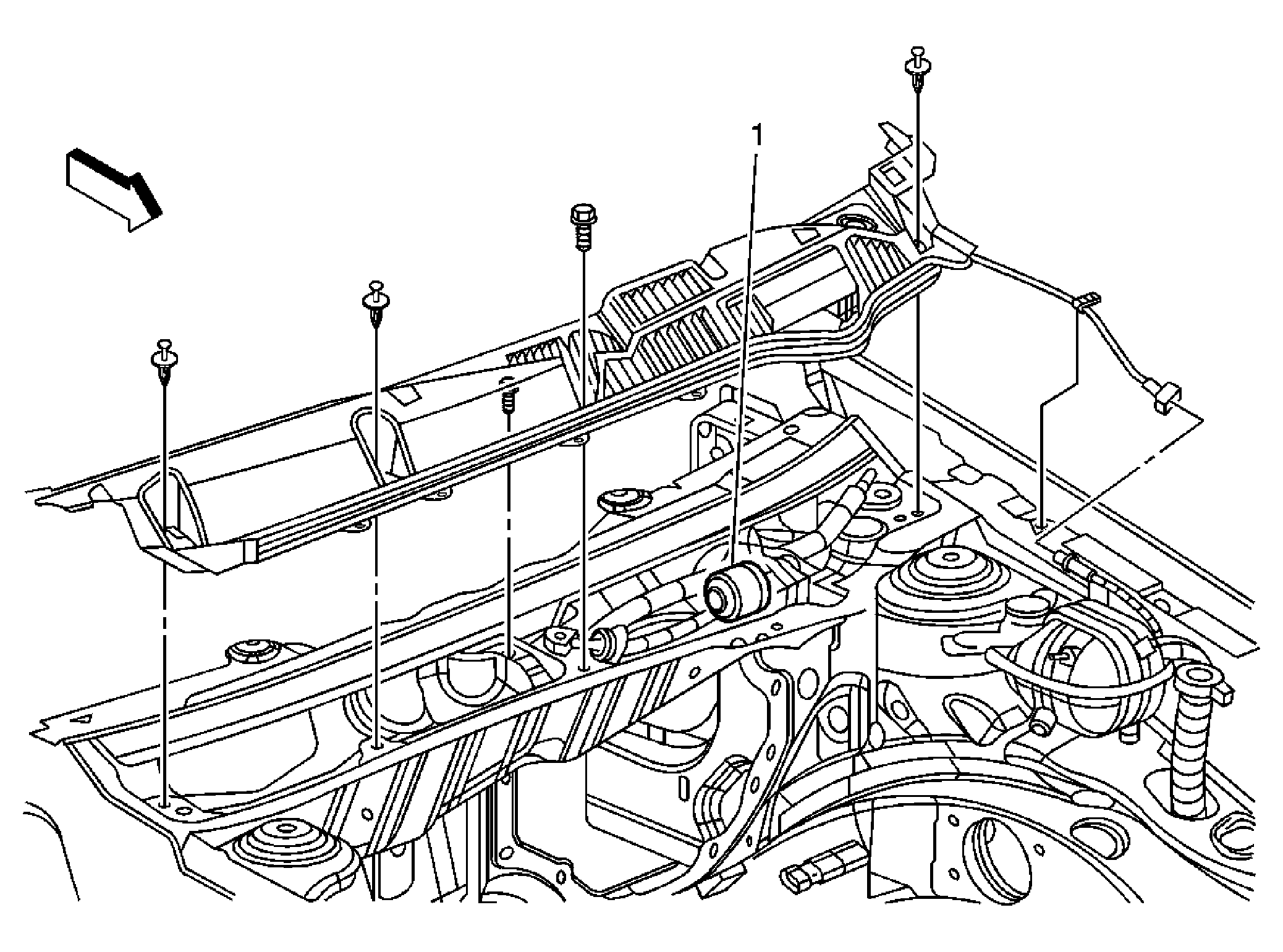

Fig 2: Front Left Side Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor Assembly

Fig 3: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (M75/M43)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch
