Body Control Module/Junction Block

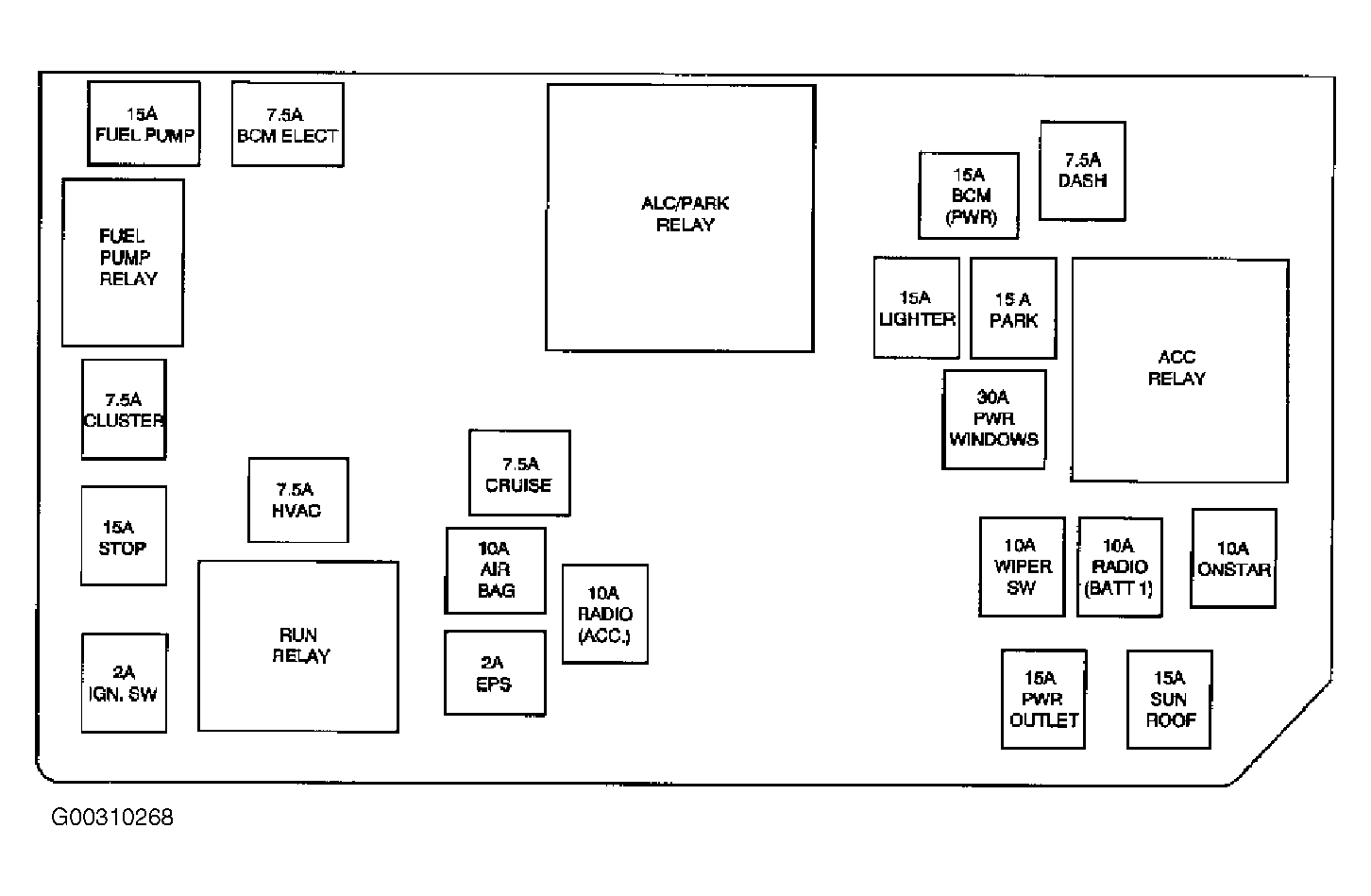

Body Control Module/Junction Block is located at lower center of instrument panel. See Fig 1.
BODY CONTROL MODULE/JUNCTION BLOCK LEGEND
| Fuse | Rating | Description |
|---|---|---|
| AIR BAG Fuse | 10A | SDM |
| ALC/PARK Relay | - | Marker/Park Lamps |
| ACC Relay | - | Body Control Module PWR OUTLET, PWR WINDOWS, WIPER SW, SUN ROOF, and RADIO (ACC.) Fuses |
| BCM ELECT Fuse | 7.5A | BCM |
| BCM (PWR) Fuse | 15A | BCM and Rear Compartment Lid Release Switch |
| CLUSTER Fuse | 7.5A | IPC |
| CRUISE Fuse | 7.5A | ECM, CCM (K34), and Clutch Start Switch (M86) |
| DASH Fuse | 7.5A | BCM |
| EPS Fuse | 2A | EPS Assembly and Steering Wheel Controls-Left (K34) |
| FUELPUMP Fuse | 15A | Body Control Module FUEL PUMP Relay |
| FUEL PUMP Relay | - | Fuel Pump |
| HVAC Fuse | 7.5A | HVAC Control Assembly |
| IGN SW Fuse | 2A | Ignition Switch |
| LIGHTER Fuse | 15A | Cigar Lighter and DLC |
| ONSTAR Fuse | 10A | VCIM (UE1) |
| PARK Fuse | 15A | ALC/PARK Relay and Turn Signal/Multifunction Switch |
| PWR OUTLET Fuse | 15A | Auxiliary Power Outlet |
| PWR WINDOWS Fuse | 30A | Window Switch-Driver (A31) and Window Switch-Front Passenger(A31) |
| RADIO (ACC.) Fuse | 10A | Radio |
| RADIO (BATT 1) | 10A | Radio |
| RUN Relay | - | HVAC Control Assembly and Body Control Module HVAC Fuse |
| STOP Fuse | 15A | Stop Lamp Switch-Upper |
| SUN ROOF Fuse | 15A | Inside Rearview Mirror and Sunroof Switch (CF5) |
| WIPER SW Fuse | 10A | Windshield Wiper/Washer Switch and Ignition Lock Cylinder Control Solenoid (M43 or M75) |
