Procedures

HEATED SEAT CONTROL MODULE REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Remove the seat assembly.

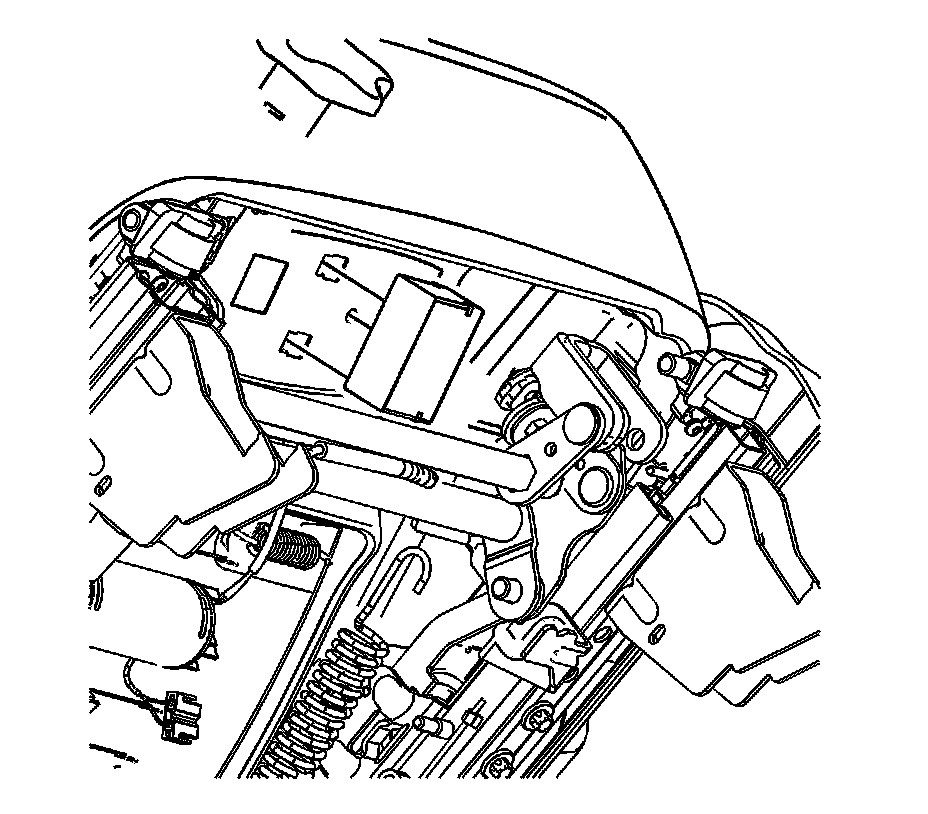

2. Disconnect the electrical connectors from the heated seat module.

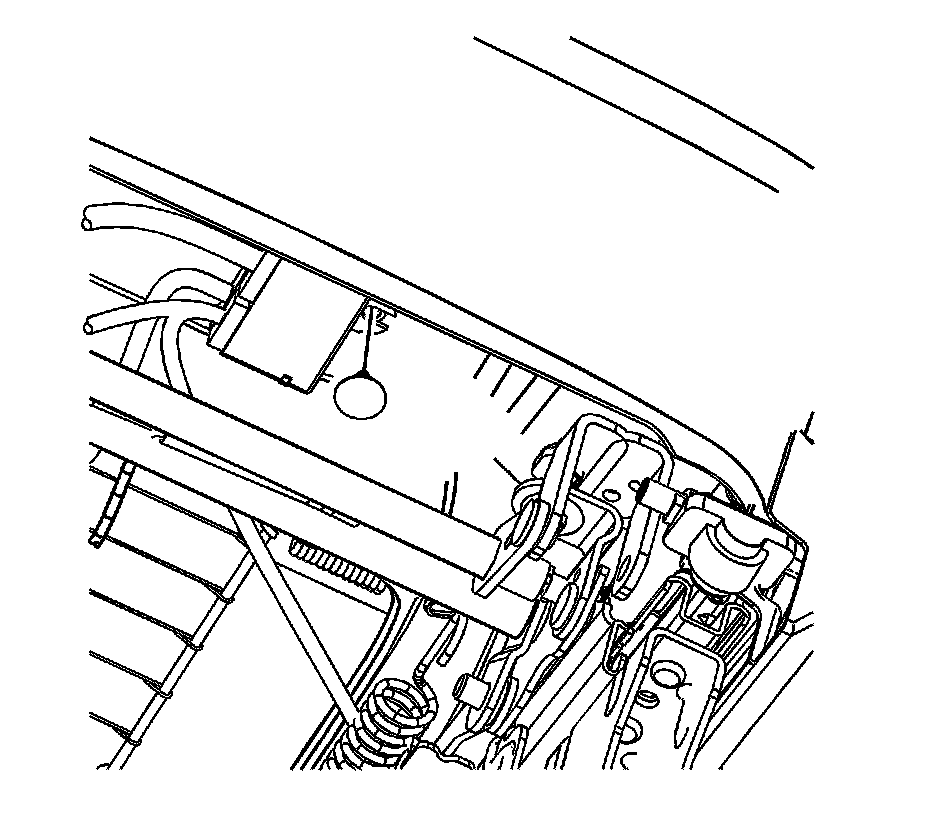

3. Remove the heated seat module retainer.

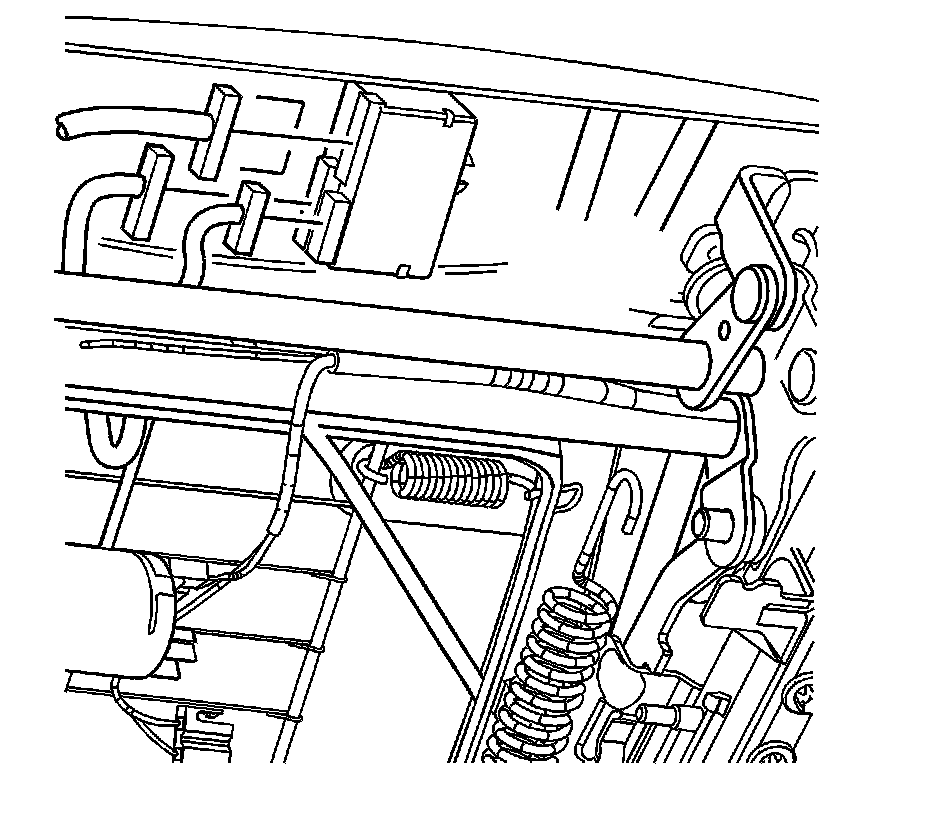

4. Remove the module.

INSTALLATION PROCEDURE




1. Position the module on the seat.




2. Install the retainer to the module.




3. Connect the electrical connectors to the heated seat module.
4. Install the seat assembly.
