Global Positioning System Module

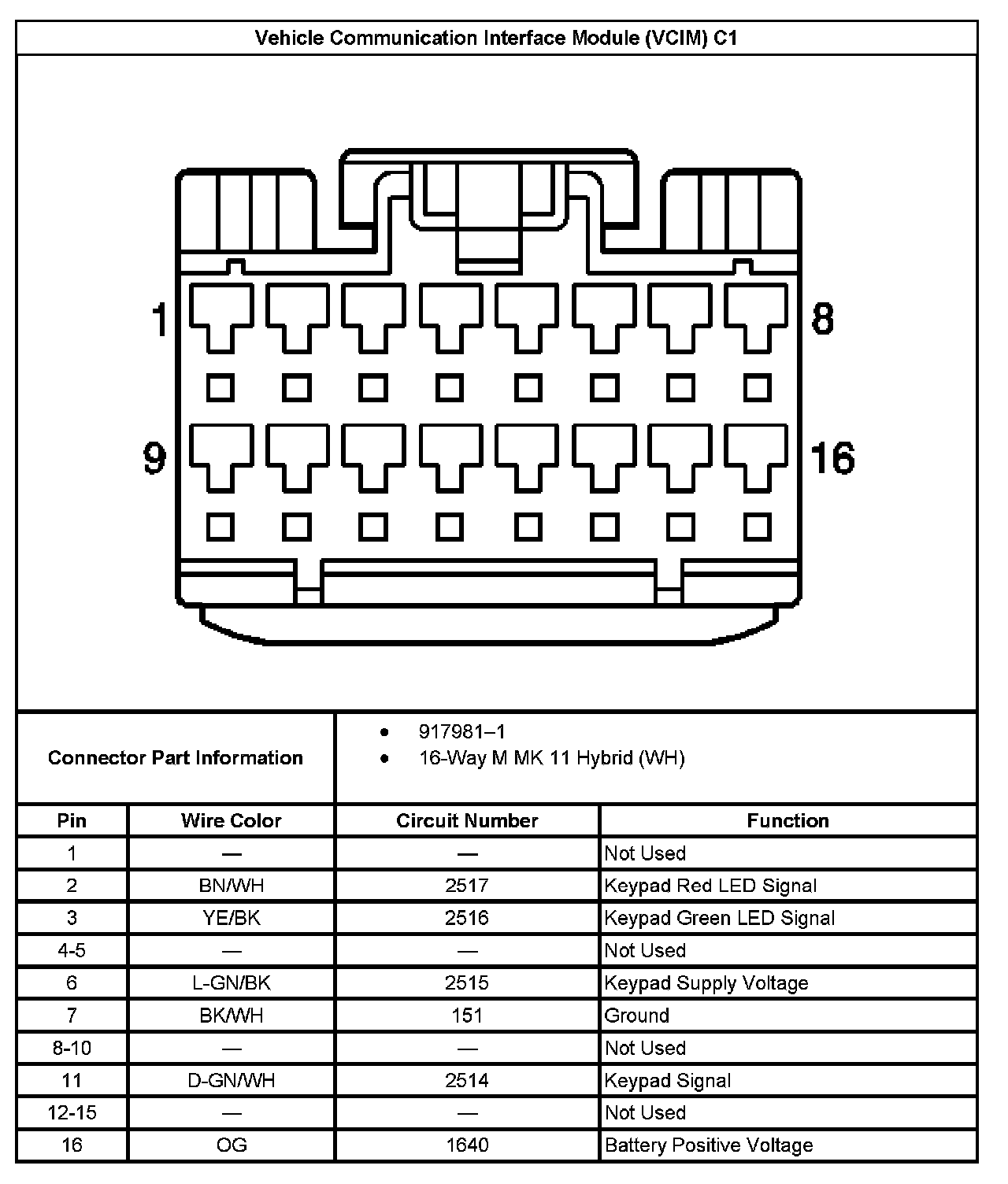

Vehicle Communication Interface Module (VCIM) C1:

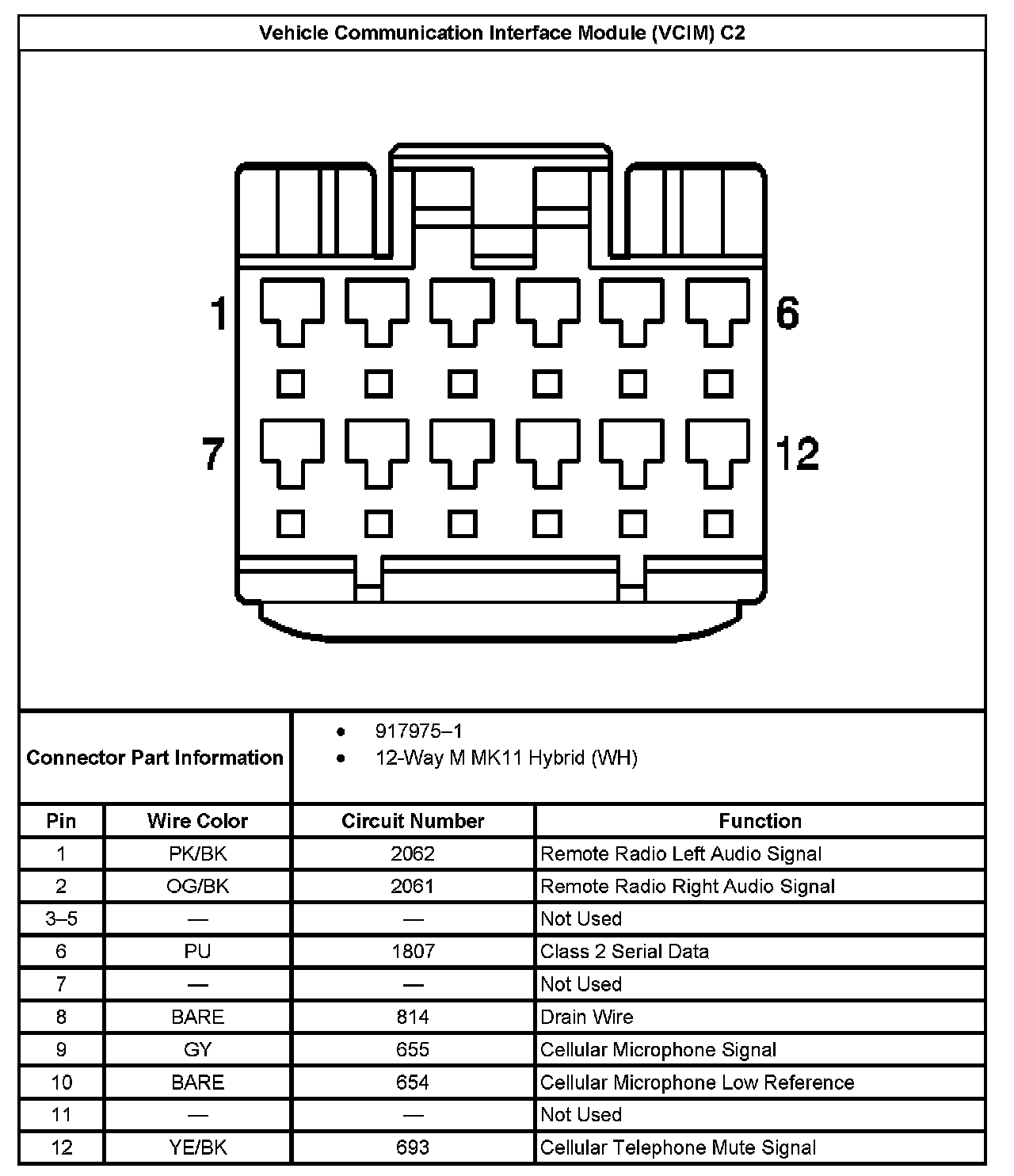

Vehicle Communciation Interface Module (VCIM) C2:
