Heated Seat Module - Driver

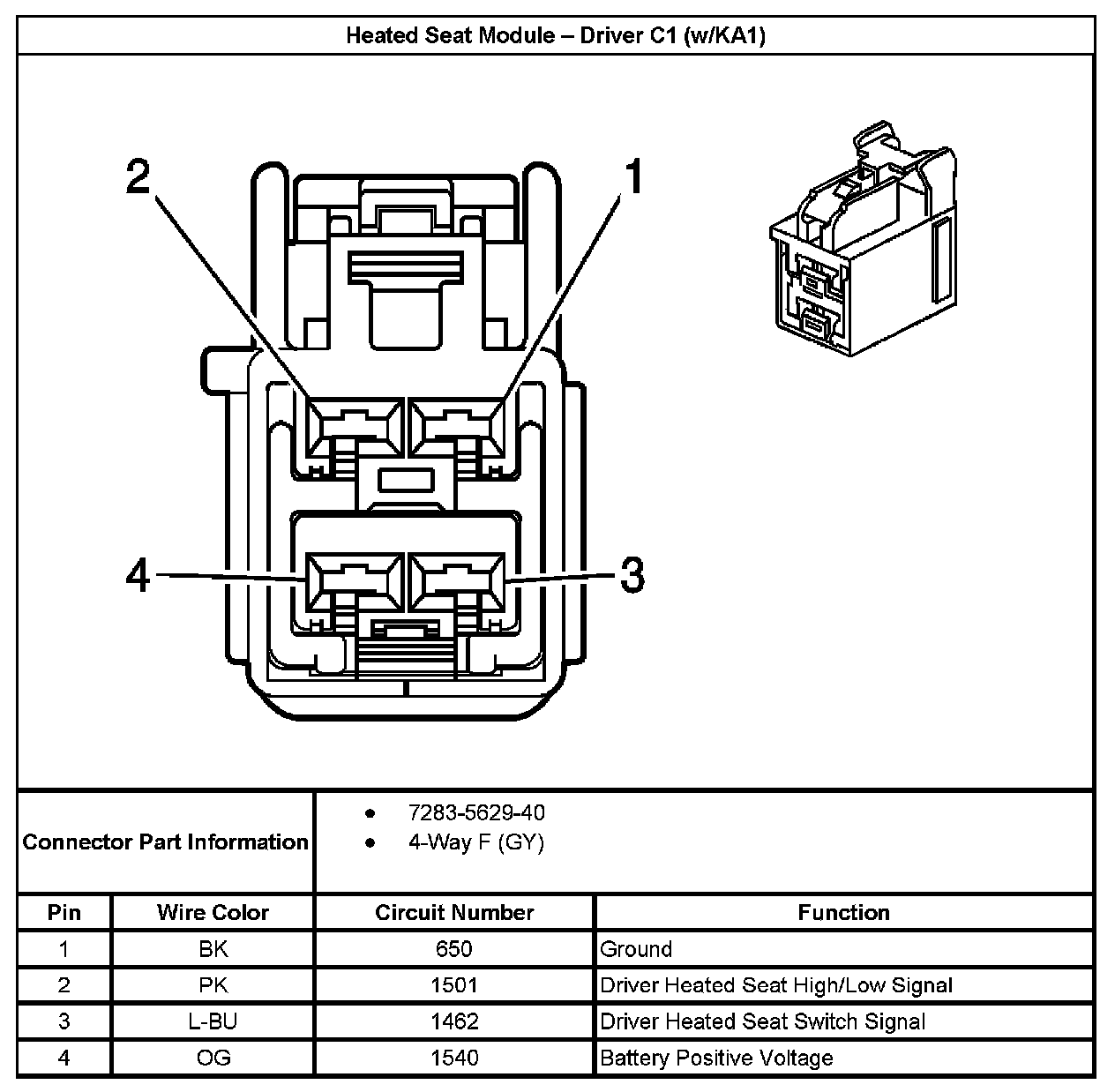

Heated Seat Module - Driver C1 (With RPO Code KA1):

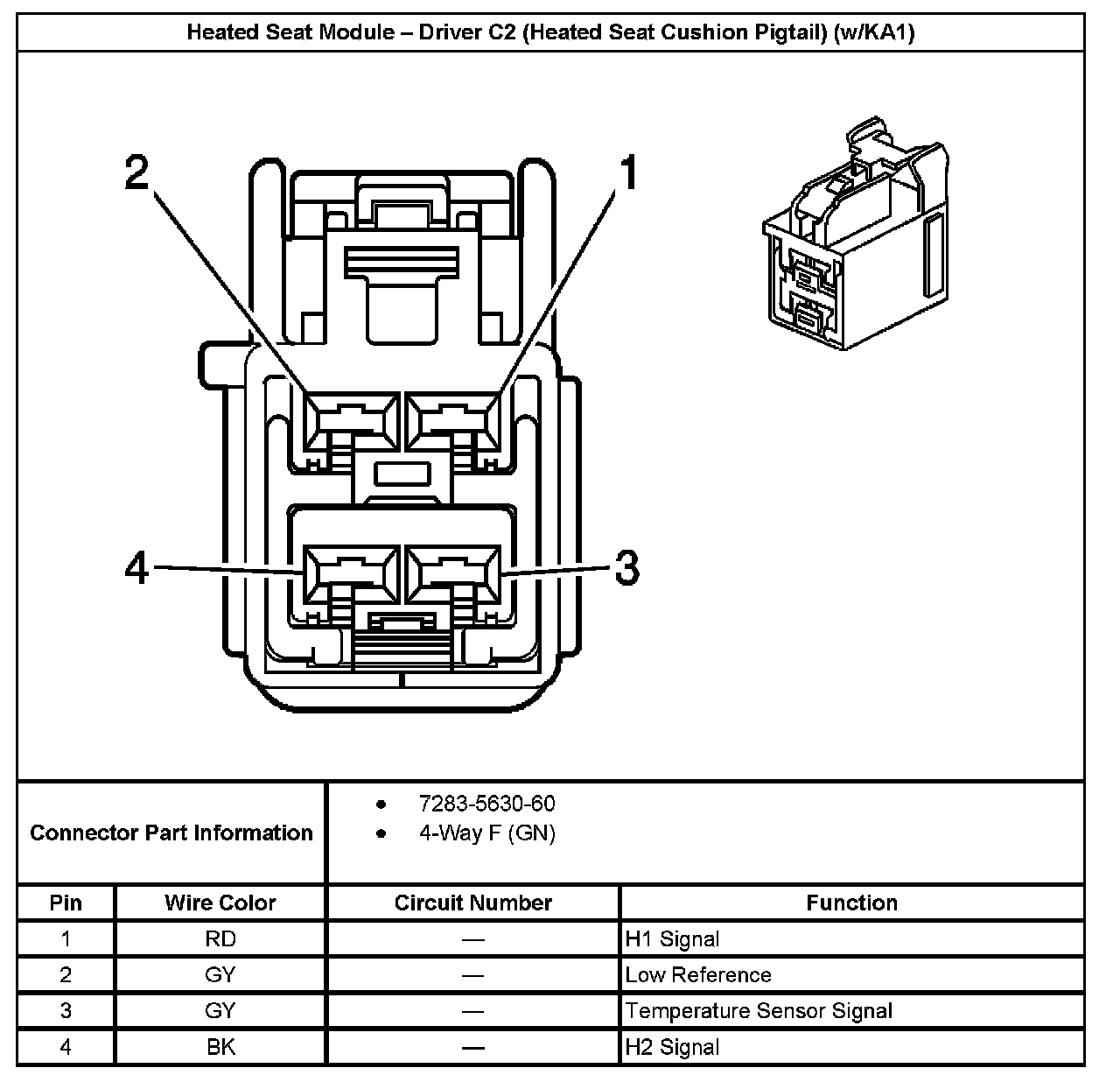

Heated Seat Module - Driver C2 (Heated Seat Cushion Pigtail) (With RPO Code KA1):

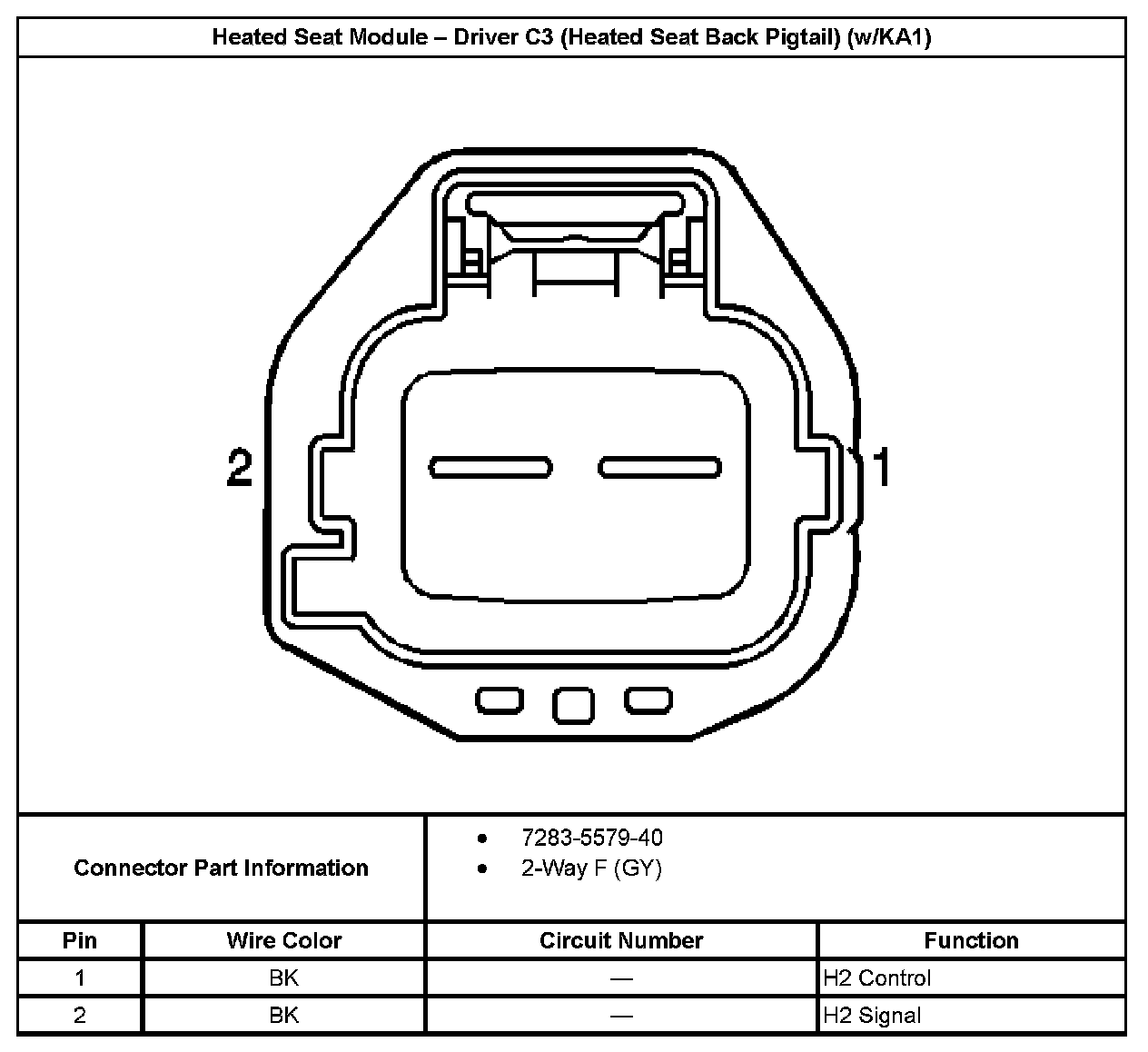

Heated Seat Module - Driver C3 (Heated Seat Back Pigtail) (With RPO Code KA1):
