Heated Seat Module - Front Passenger

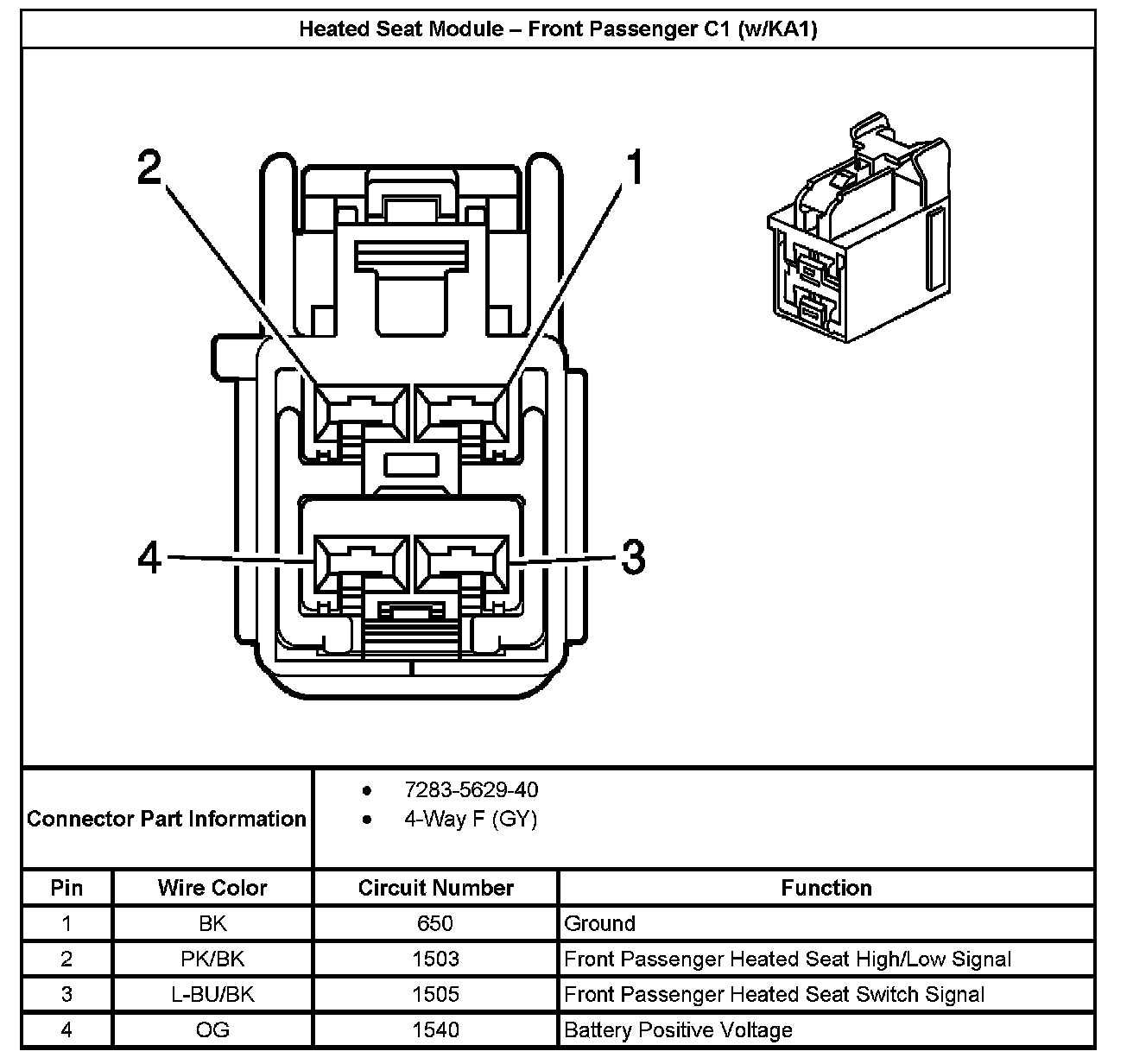

Heated Seat Module - Front Passenger C1 (With RPO Code KA1):

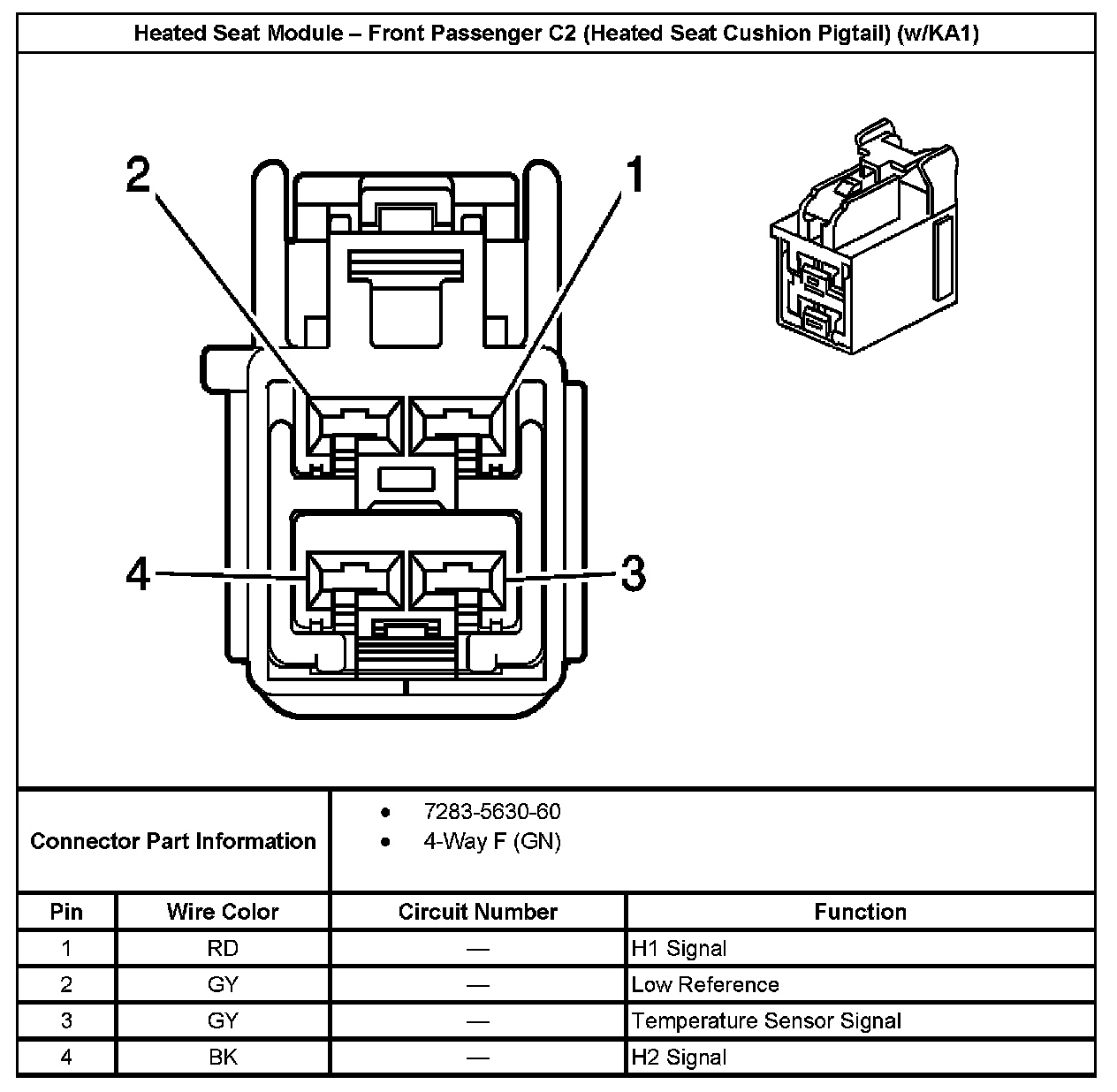

Heated Seat Module - Front Passenger C2 (Heated Seat Cushion Pigtail) (With RPO Code KA1):

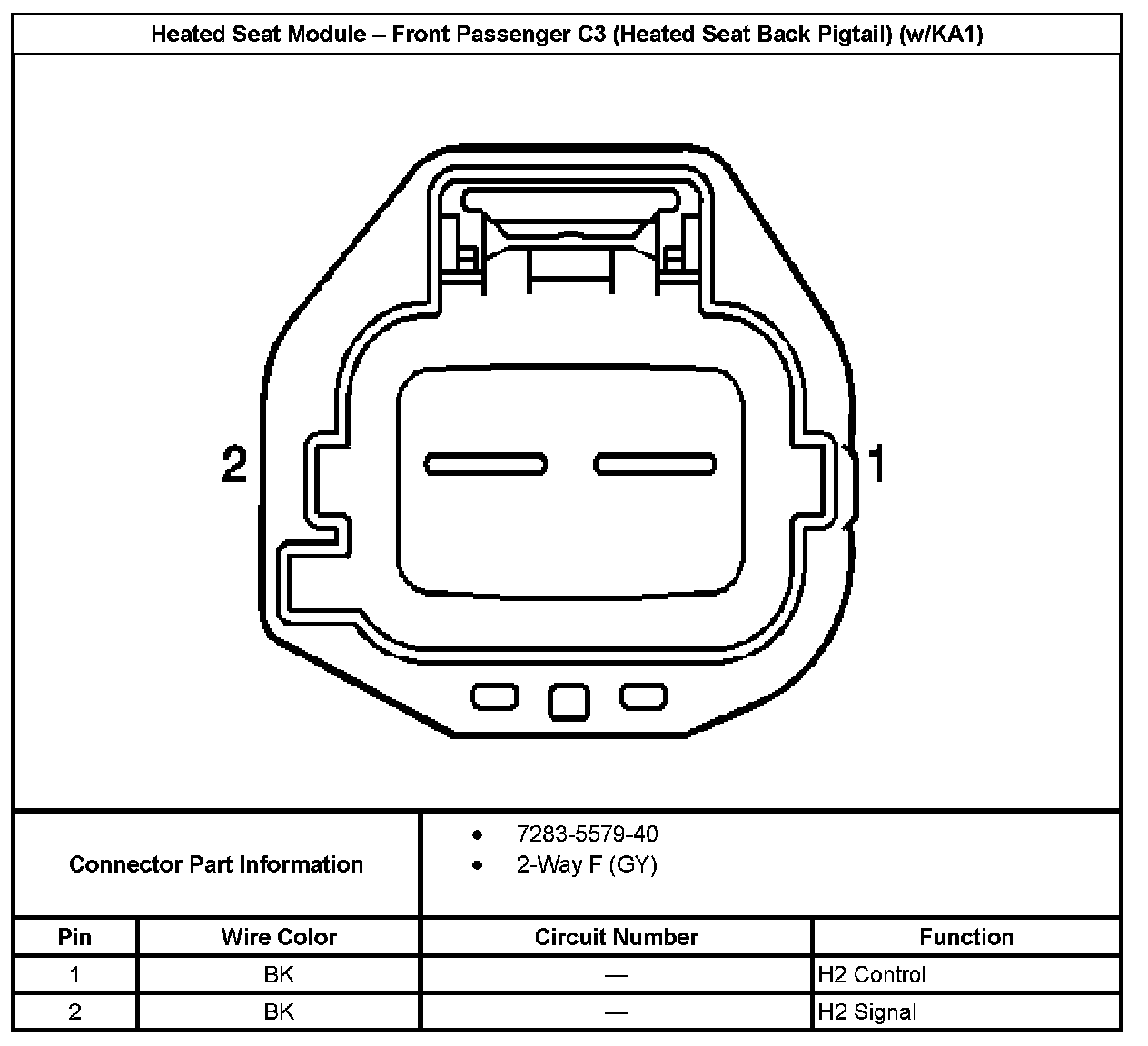

Heated Seat Module - Front Passenger C3 (Heated Seat Back Pigtail) (With RPO Code KA1):
