Wiper/Washer System Connector End Views

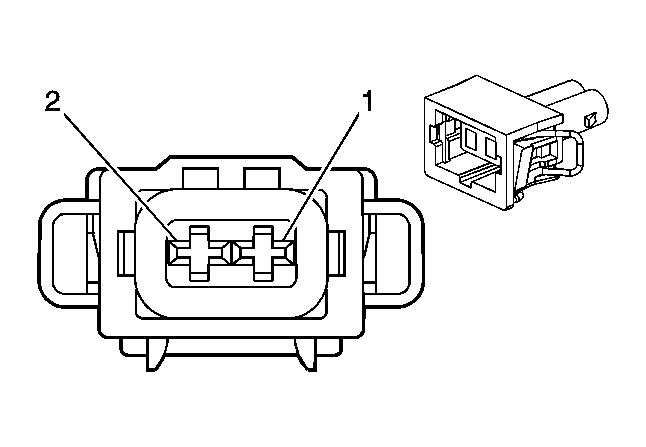

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305325 2-Way F Mini Timer (BK)
Pin	Wire Color	Circuit Number	Function
1	D-GN	392	Rear Window Washer Pump Control
2	RD	228	Windshield Washer Pump Control

Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12084891 5-Way F Metri-Pack 280 Series Sealed (GY)
Pin	Wire Color	Circuit Number	Function
A	YE	343	Accessory Voltage
B	YE	196	Windshield Wiper Motor Park Switch Signal
C	BK	650	Ground
D	PU	92	Windshield Wiper Motor High Speed
E	D-GN	95	Windshield Wiper Motor Low Speed

Windshield Wiper/Washer Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336888 12-Way F GT 150 280 (BK)
Pin	Wire Color	Circuit Number	Function
A	BK	550	Ground
B	D-GN	392	Rear Window Washer Pump Control
C	D-GN	113	Windshield Wiper Switch Signal
D	GY	112	Low Reference
E	PK	94	Rear Wiper Switch Signal
F	YE	343	Accessory Voltage
G	PU	92	Windshield Wiper Motor High Speed
H	D-GN	95	Windshield Wiper Motor Low Speed
J	L-BU	97	Windshield Wiper Switch Mist/Off/Low Signal
K	BN	96	Windshield Wiper Switch Pulse Delay Signal
L	-	-	Not Used
M	RD	228	Windshield Washer Pump Control

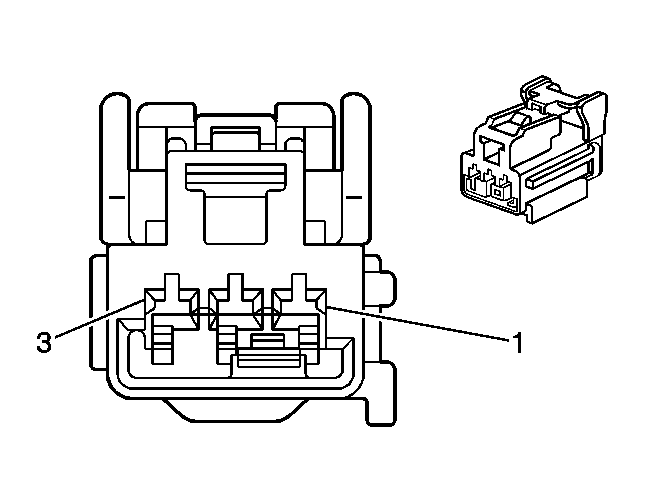

Wiper Motor - Rear Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5539-40 3-Way F (L-GY)
Pin	Wire Color	Circuit Number	Function
1	WH	393	Rear Window Wiper Motor Control
2	BK	650	Ground
3	YE	143	Accessory Voltage
