Control Units
CONTROL UNITS LOCATION

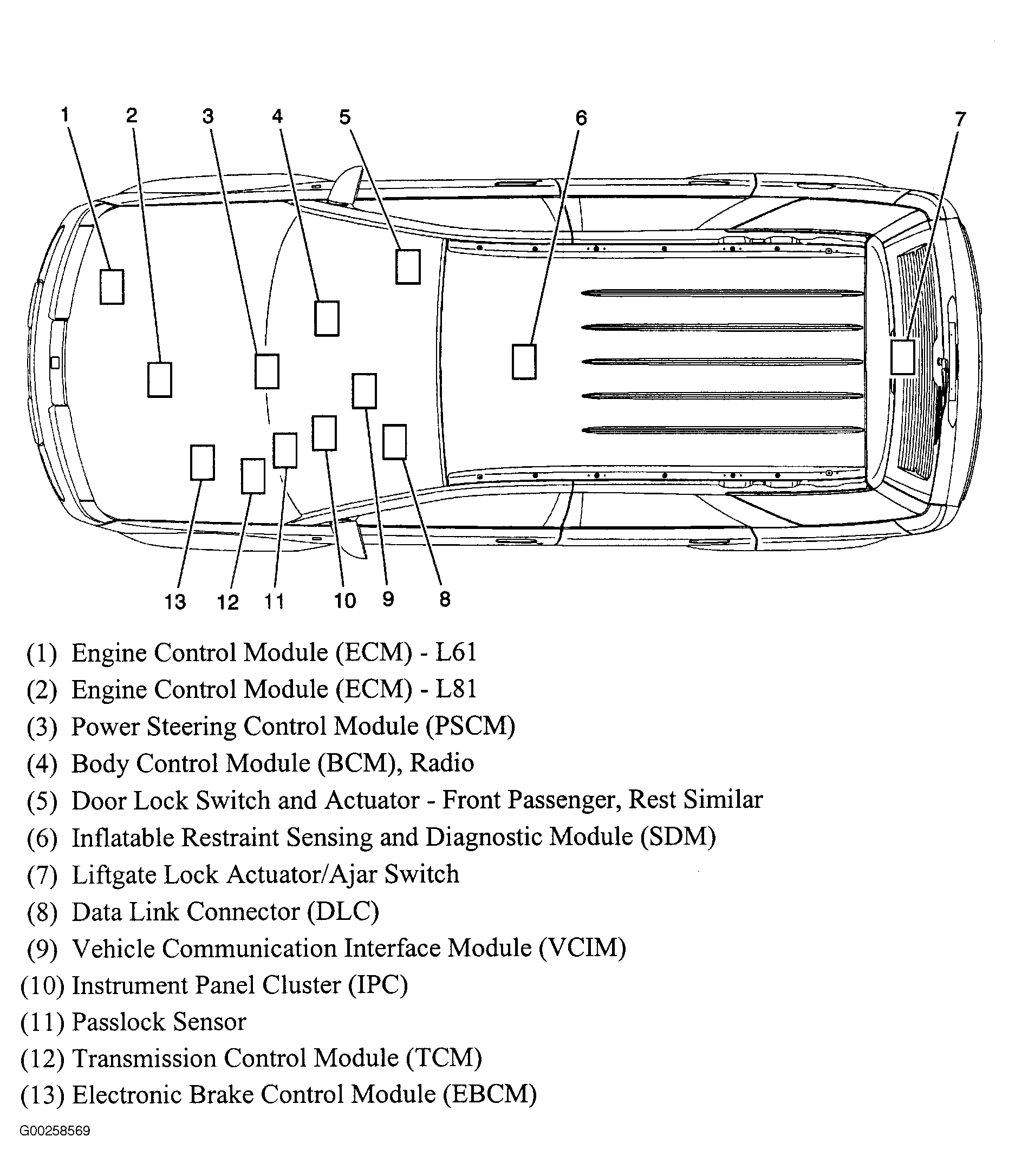

| Component | Location |
|---|---|
| Body Control Module (BCM) | Below front of center floor console. See Figure . |

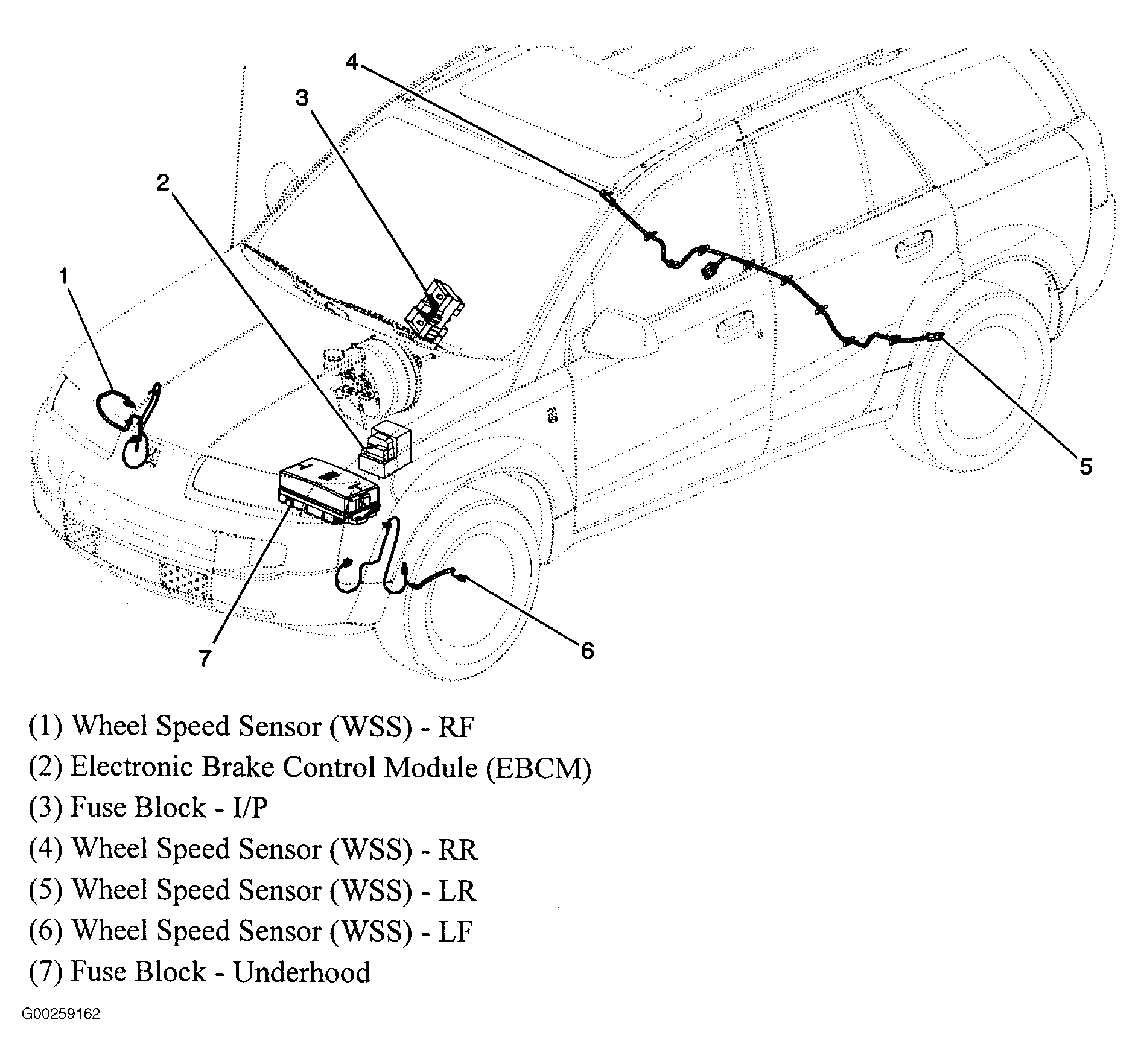

| Electronic Brake Control Module (EBCM) | Near left front shock tower. See Figure . |

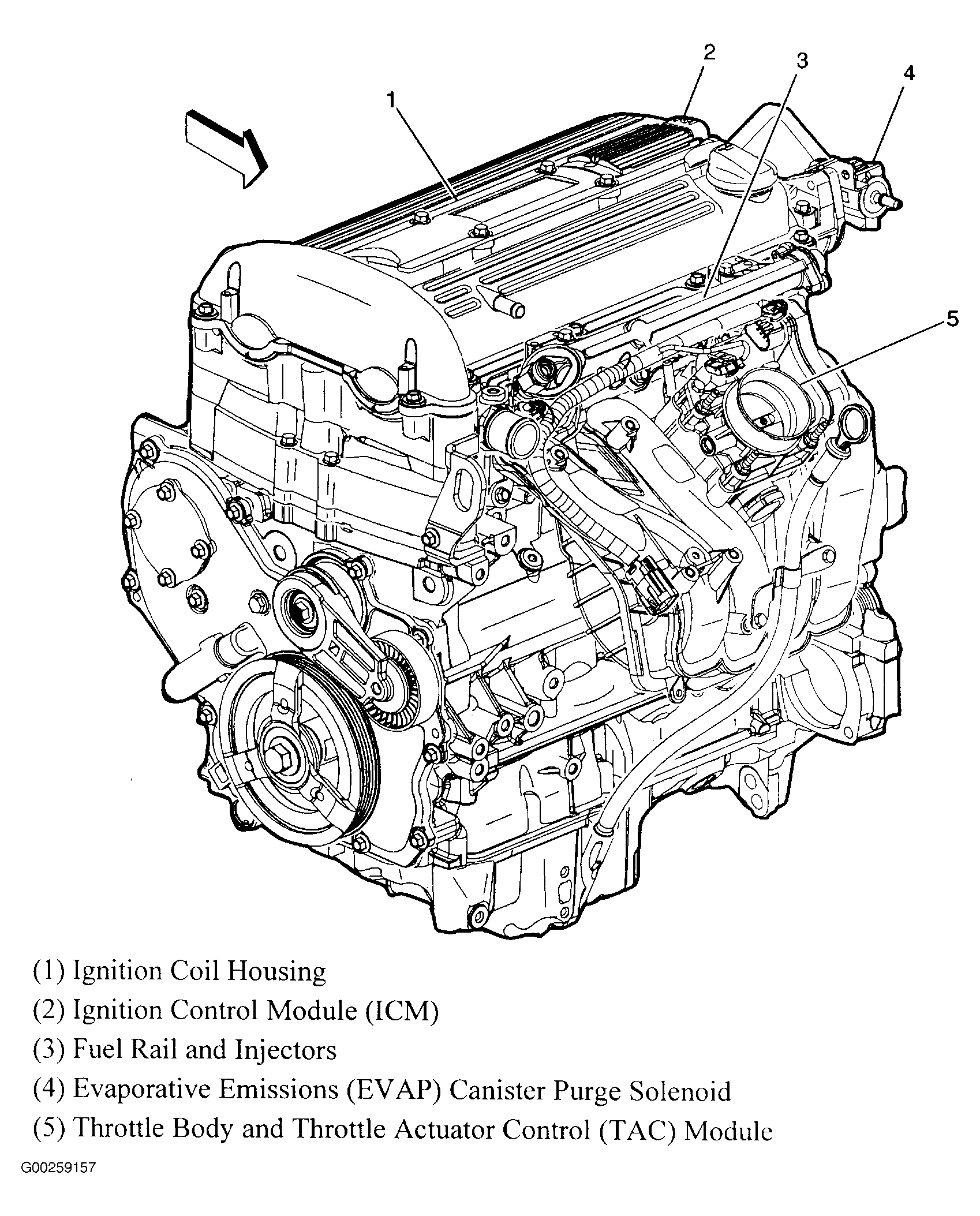

| Engine Control Module (ECM) (2.2L) | On intake manifold, under ignition coil housing. See Figure . |
| Heated Seat Module - Driver | Under left front seat. |
| Heated Seat Module - Front Passenger | Under right front seat. |
| HVAC Module | At center of dash. |

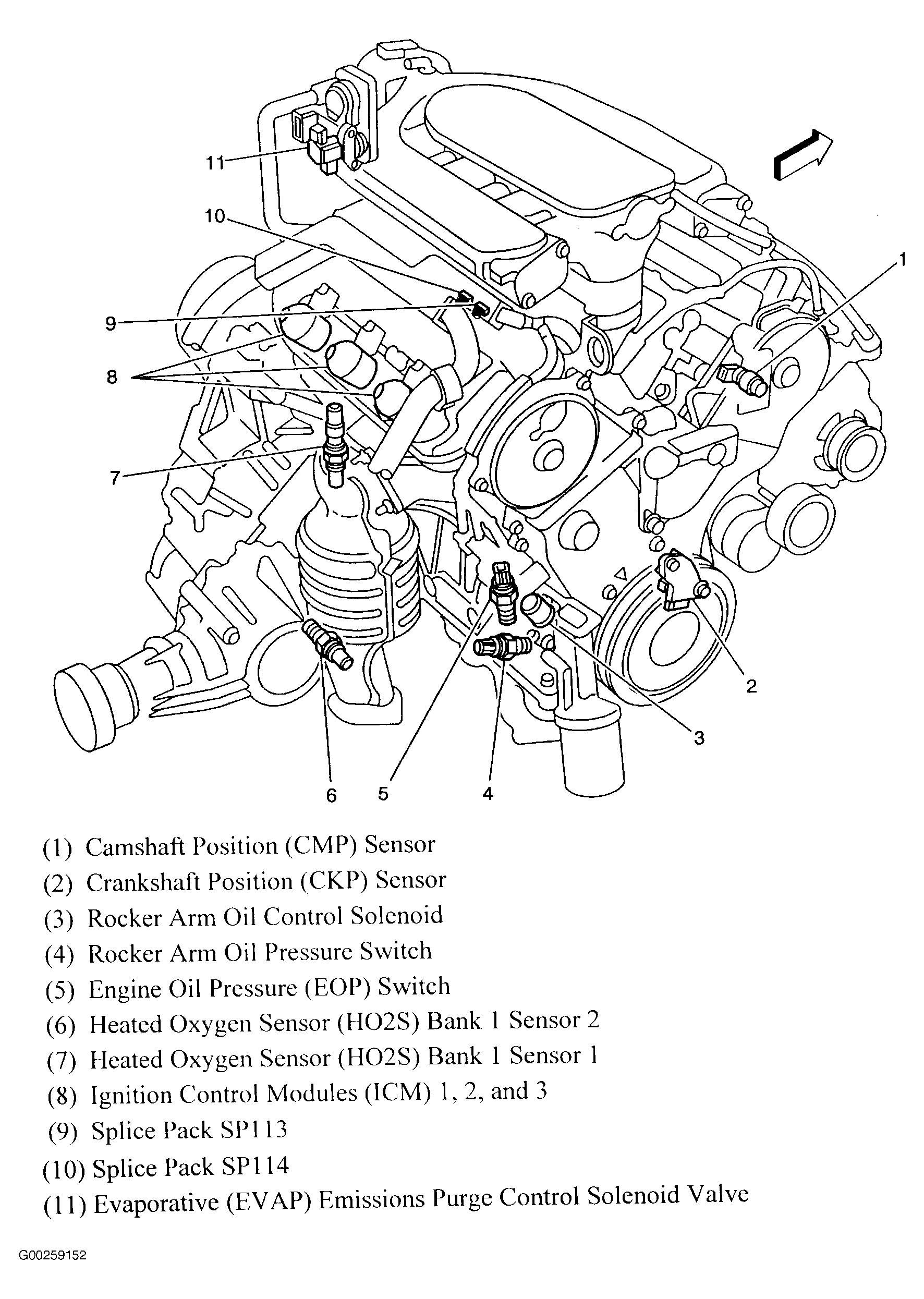

| Ignition Control Modules (ICM) 1, 2 & 3 | At top of engine, above corresponding cylinder. See Figure . |

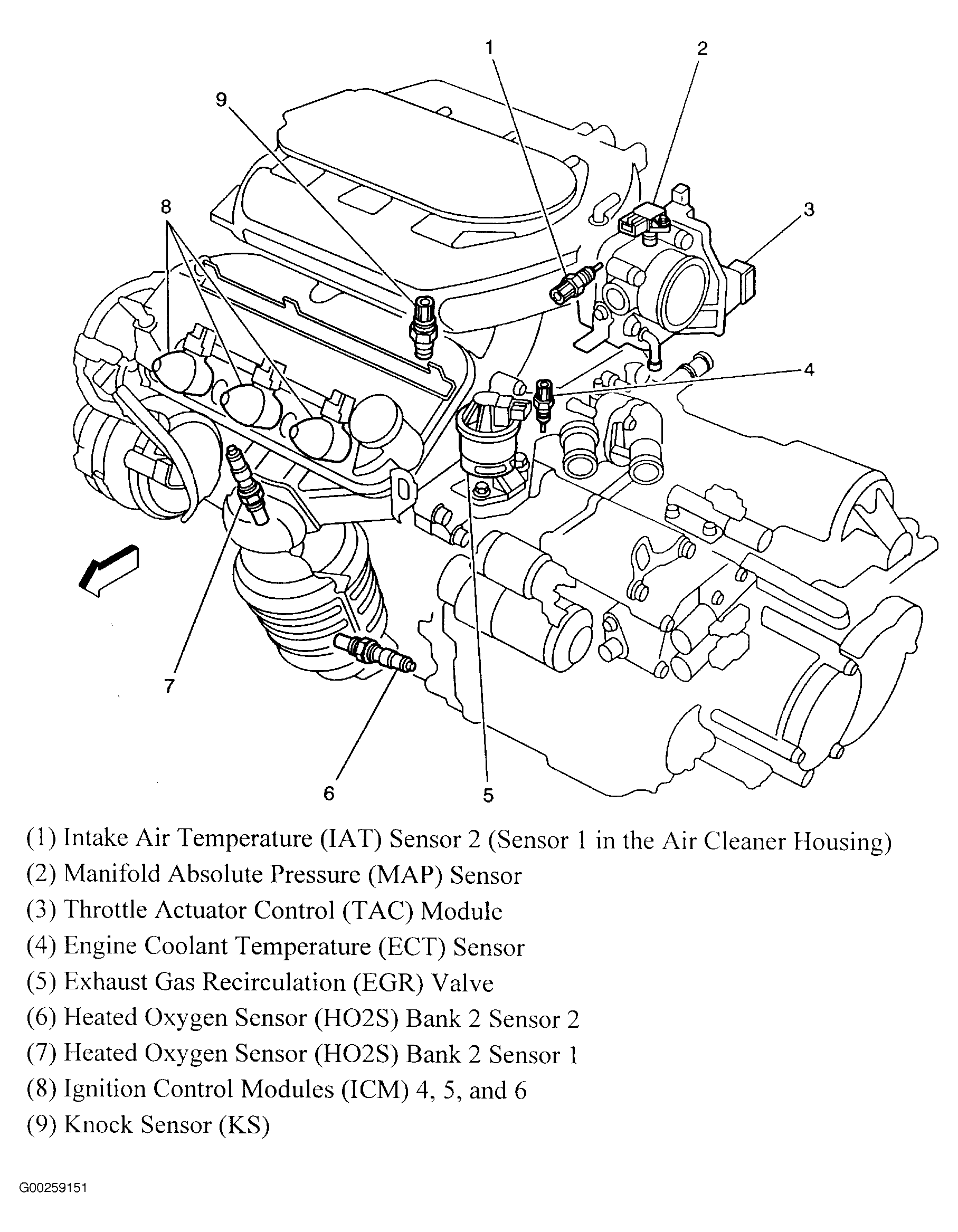

| Ignition Control Modules (ICM) 4, 5 & 6 | At top of engine, above corresponding cylinder. See Figure . |

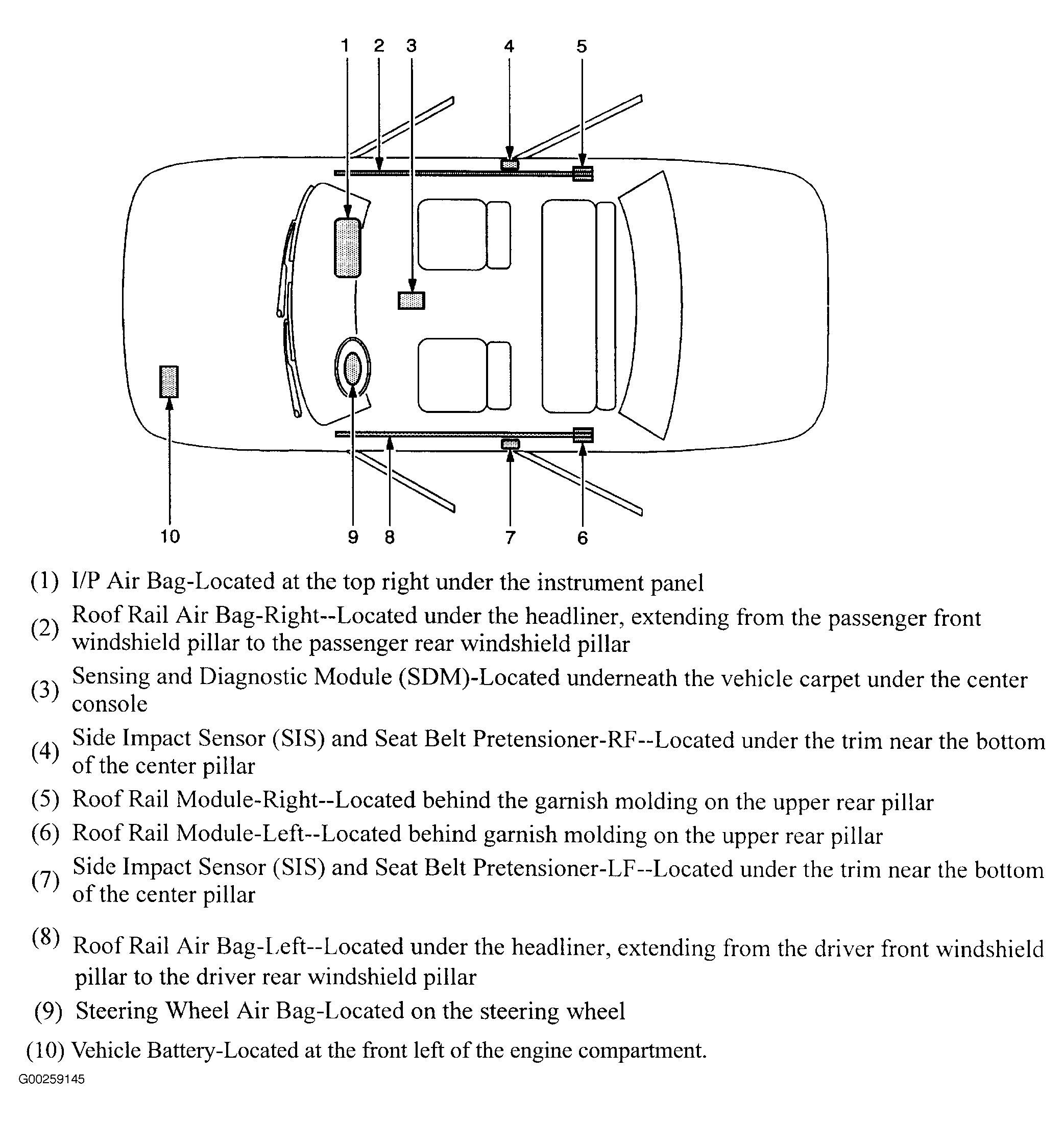

| Inflatable Restraint I/P Module | Behind top right side of dash. See Figure . |

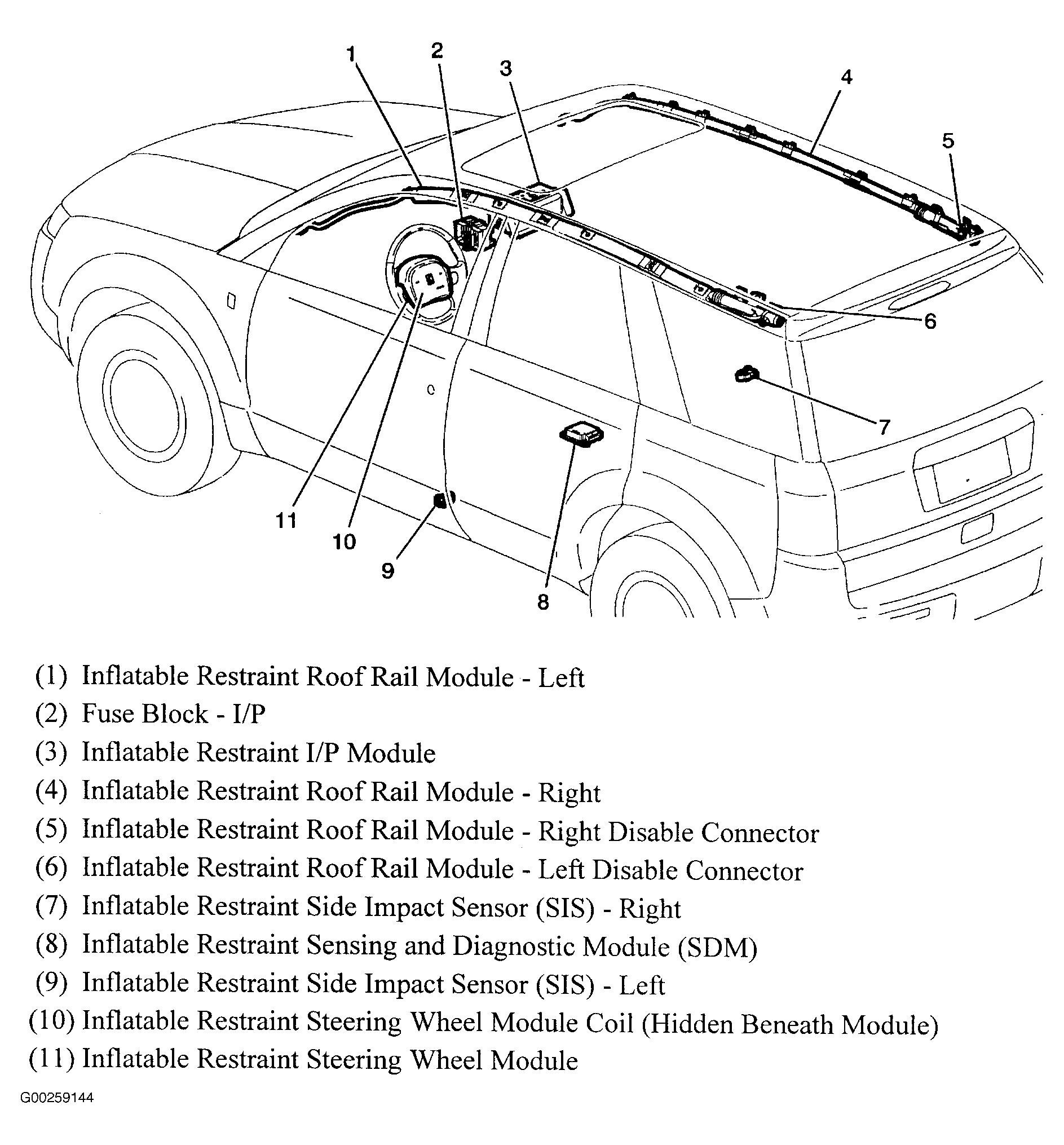

| Inflatable Restraint Roof Rail Module - Left | Behind headliner, above driver. See Figure . |
| Inflatable Restraint Roof Rail Module - Left Disable Connector | Behind headliner, above left rear window. See Figure . |
| Inflatable Restraint Roof Rail Module - Right | Behind headliner, above front passenger. See Figure . |
| Inflatable Restraint Roof Rail Module - Right Disable Connector | Behind headliner, above right rear window. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under rear of center console. See Figure . |
| Inflatable Restraint Steering Wheel Module | In center of steering wheel. See Figure . |
| Power Steering Control Module (PSCM) | On bottom of steering column. See Figure . |
| Powertrain Control Module (PCM) | In engine compartment, mounted near right strut tower. |
| Roof Rail Module - Left | At top of left "C" pillar. See Figure . |
| Roof Rail Module - Right | At top of right "C" pillar. See Figure . |
| Sensing & Diagnostic Module (SDM) | Under center floor console. See Figure . |
| Sunroof Control Module | At left front of sunroof module. |
| Throttle Actuator Control (TAC) Module (2.2L) | At left rear side of engine , on throttle body. See Figure . |
| Throttle Actuator Control (TAC) Module (3.5L) | At rear of engine , on throttle body. See Figure . |
| Transmission Control Module (TCM) | At left side of engine compartment. See Figure . |

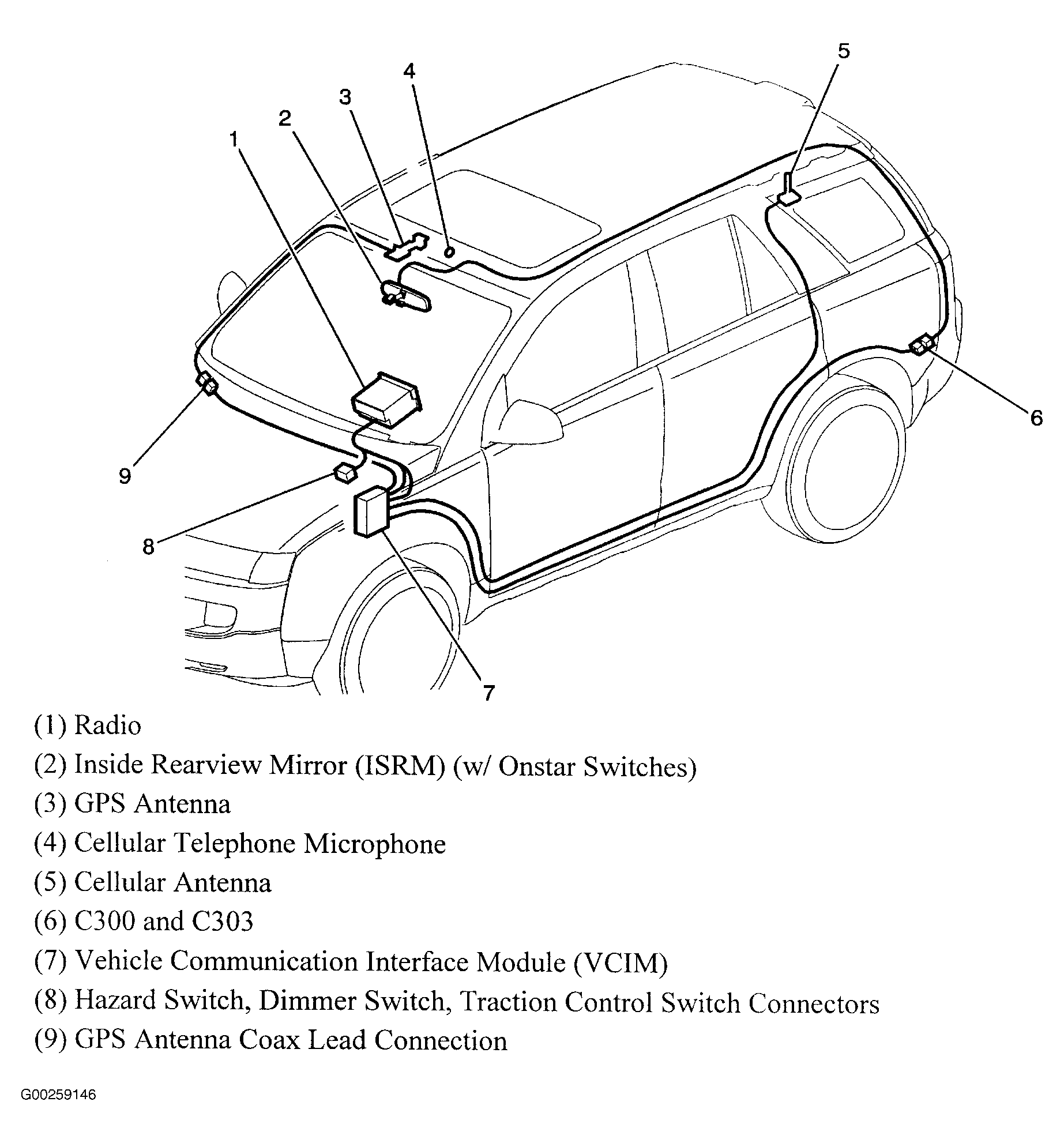

| Vehicle Communication Interface Module (VCIM) | Under left side of dash. See Figure . |
