Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment & Center Of Dash
Courtesy of GENERAL MOTORS CORP.

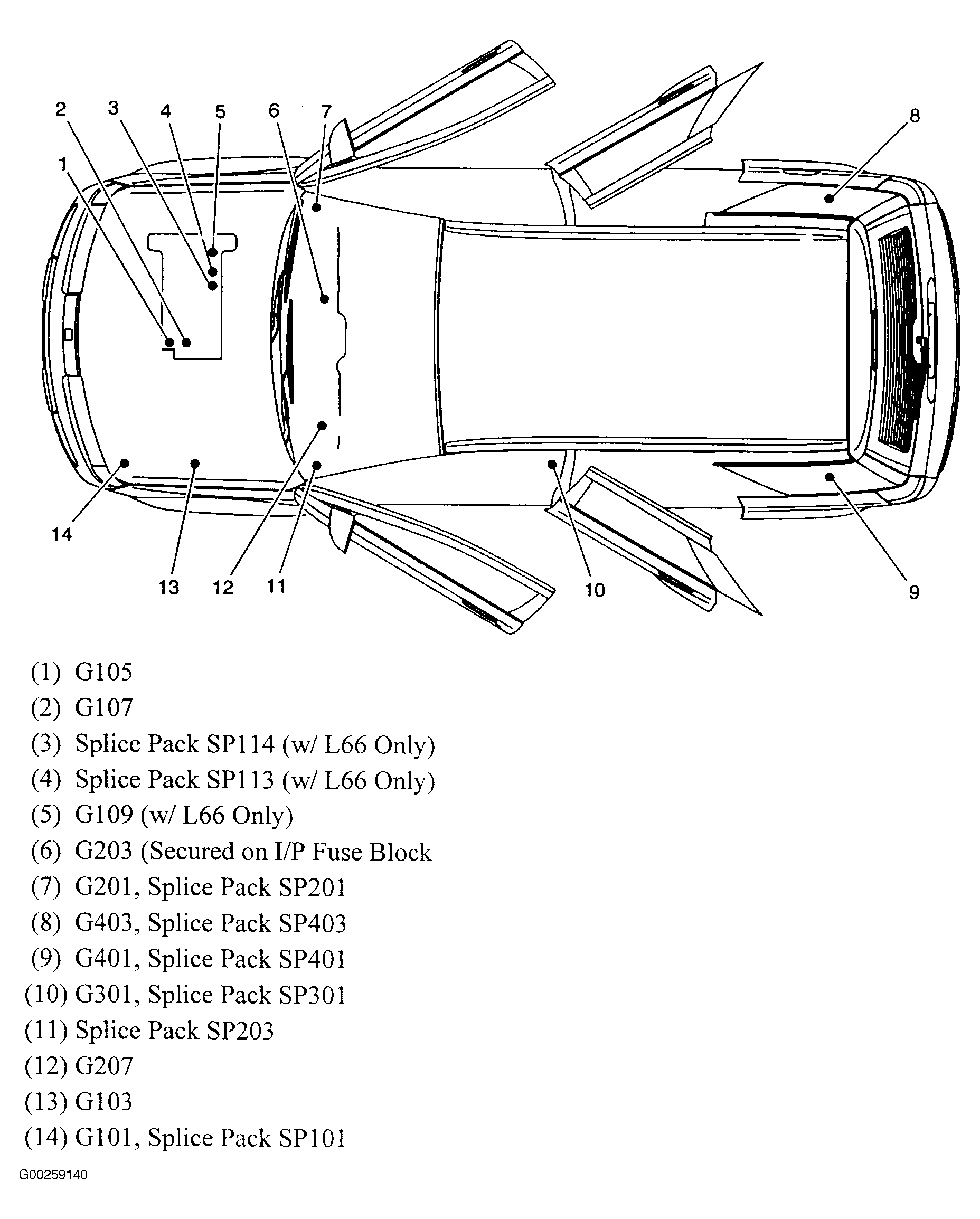

Fig 2: Ground & Splice Locations
Courtesy of GENERAL MOTORS CORP.

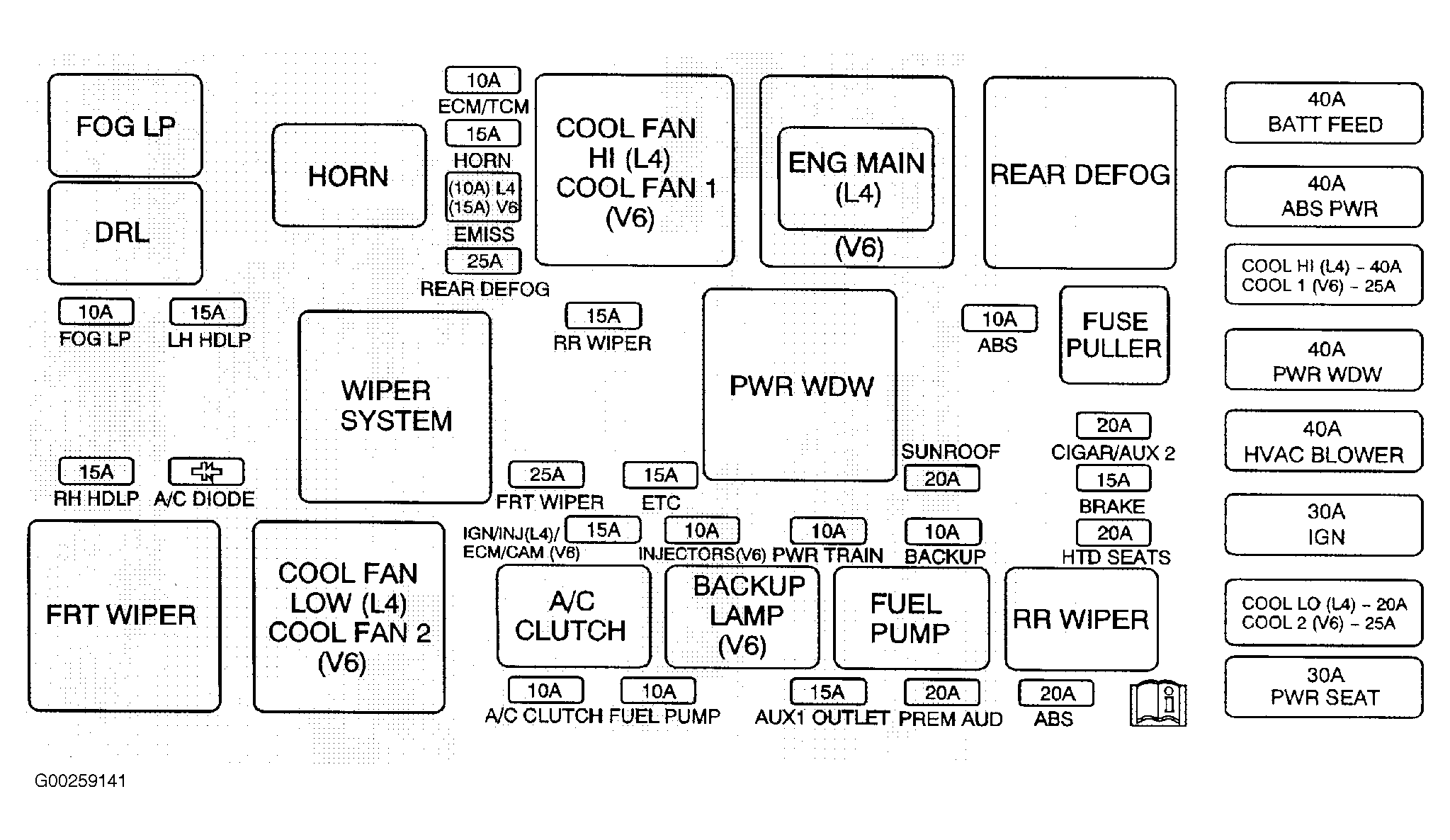

Fig 3: Fuse Block - Underhood
Courtesy of GENERAL MOTORS CORP.

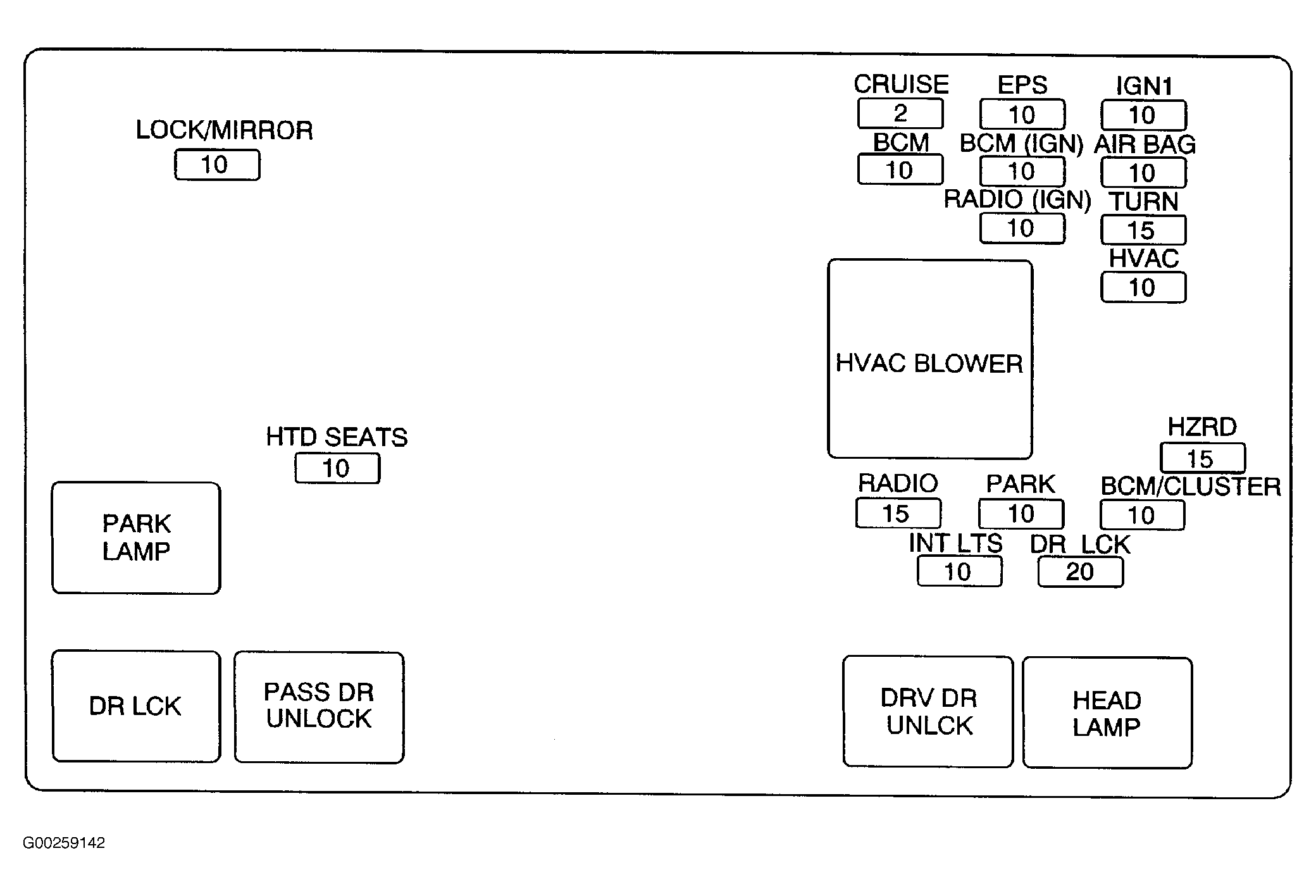

Fig 4: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

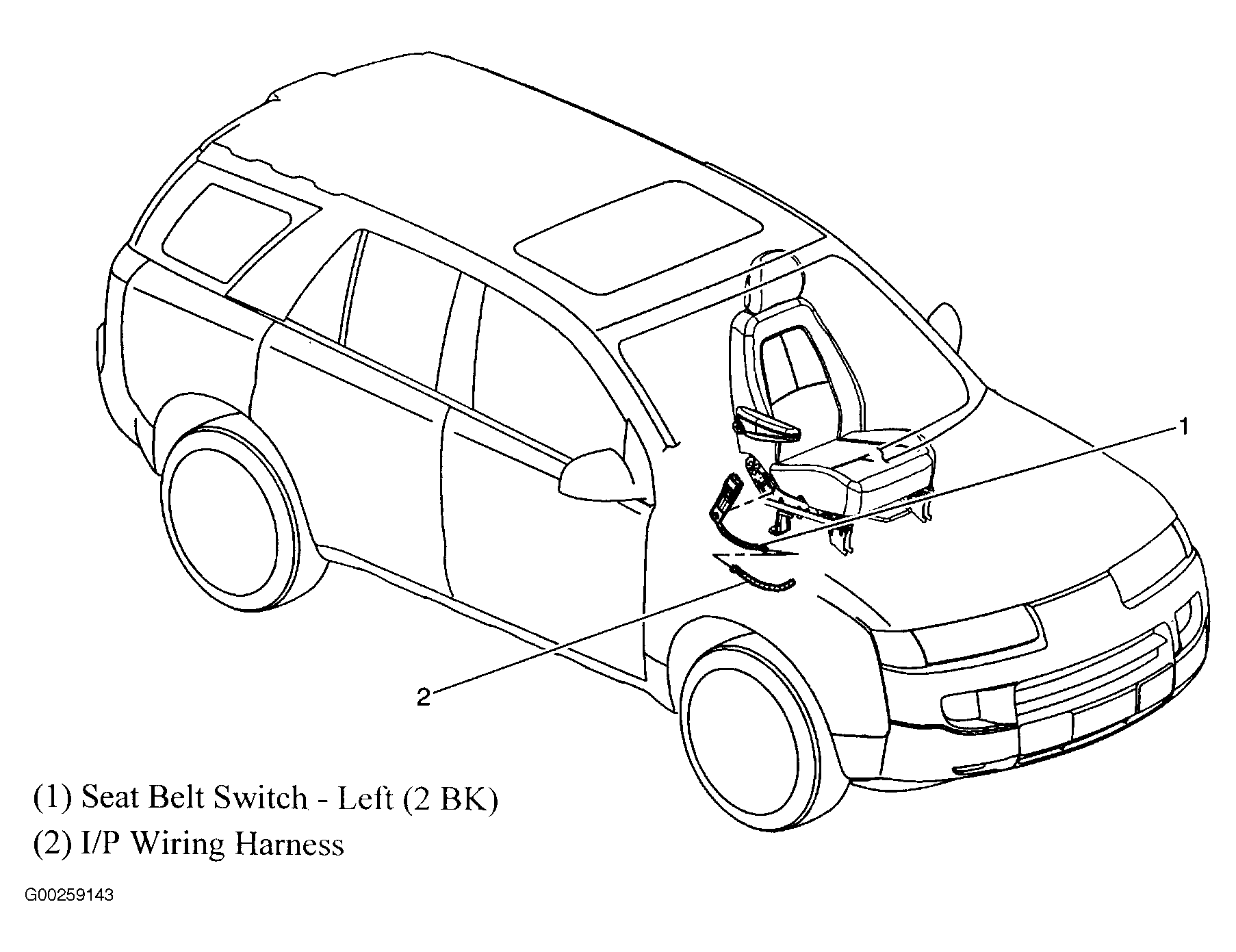

Fig 5: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 6: SIR Component Views (Wagon)
Courtesy of GENERAL MOTORS CORP.
Fig 7: SIR Component Views (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Cellular Communication Components
Courtesy of GENERAL MOTORS CORP.

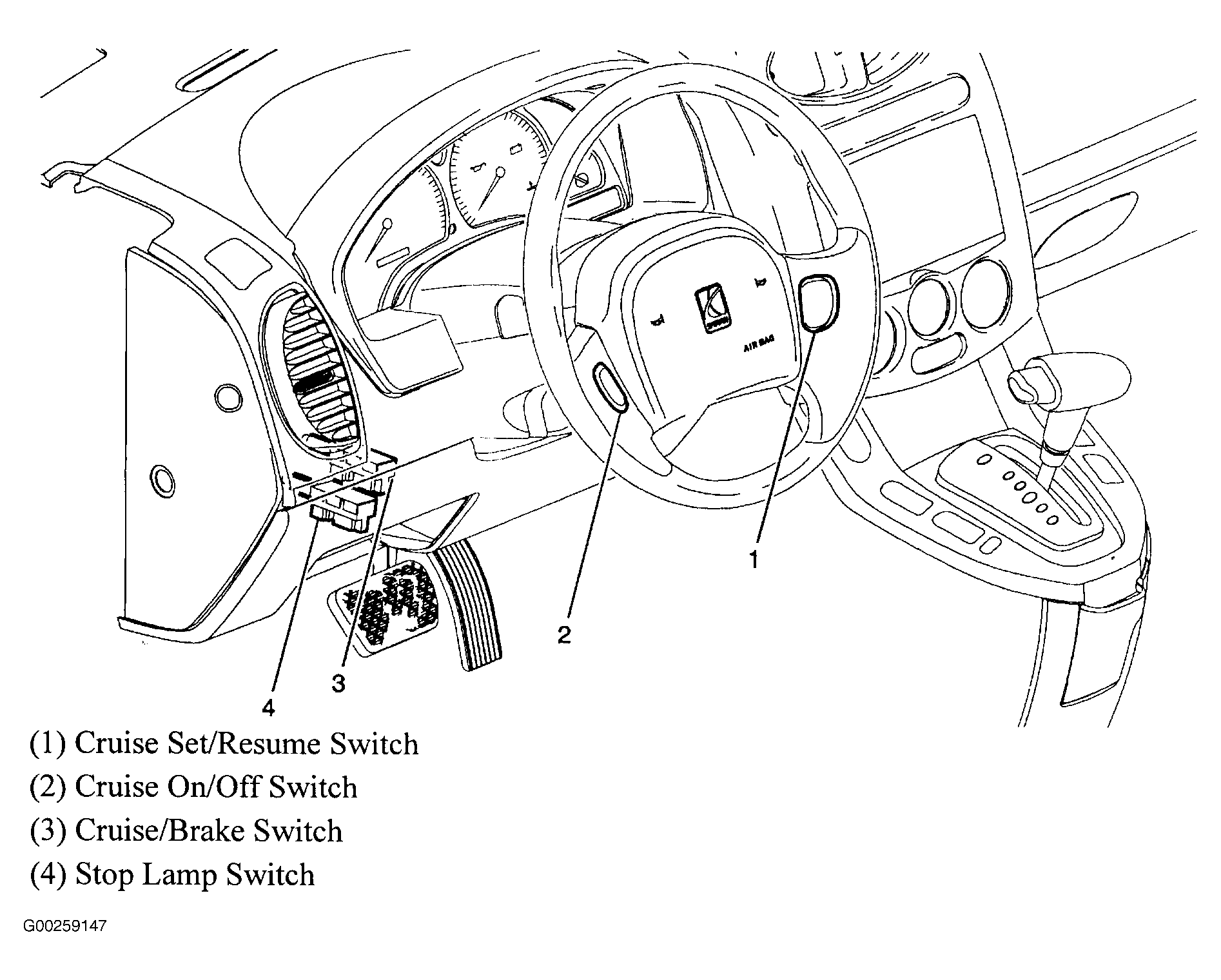

Fig 9: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

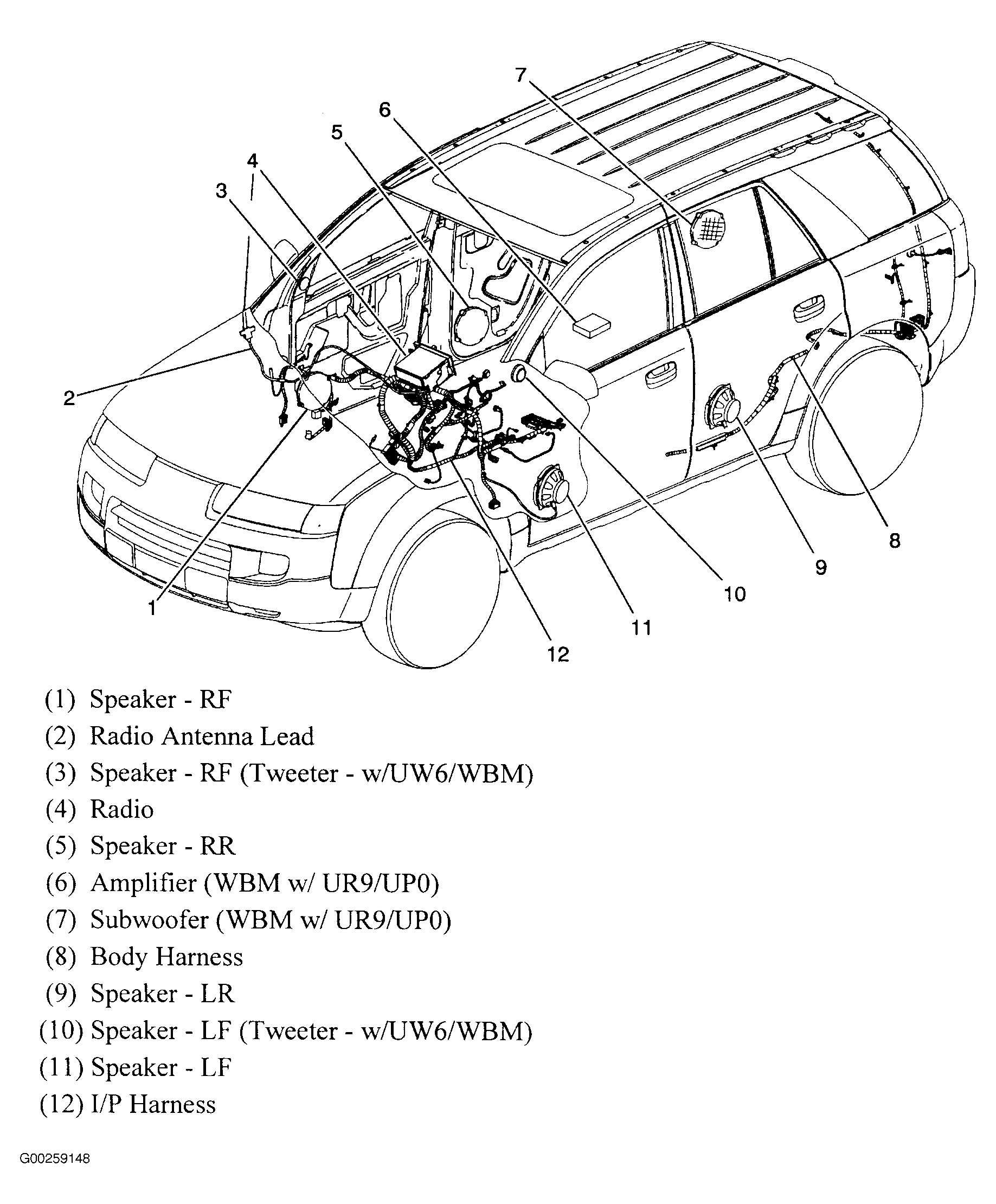

Fig 10: Stereo System Components
Courtesy of GENERAL MOTORS CORP.

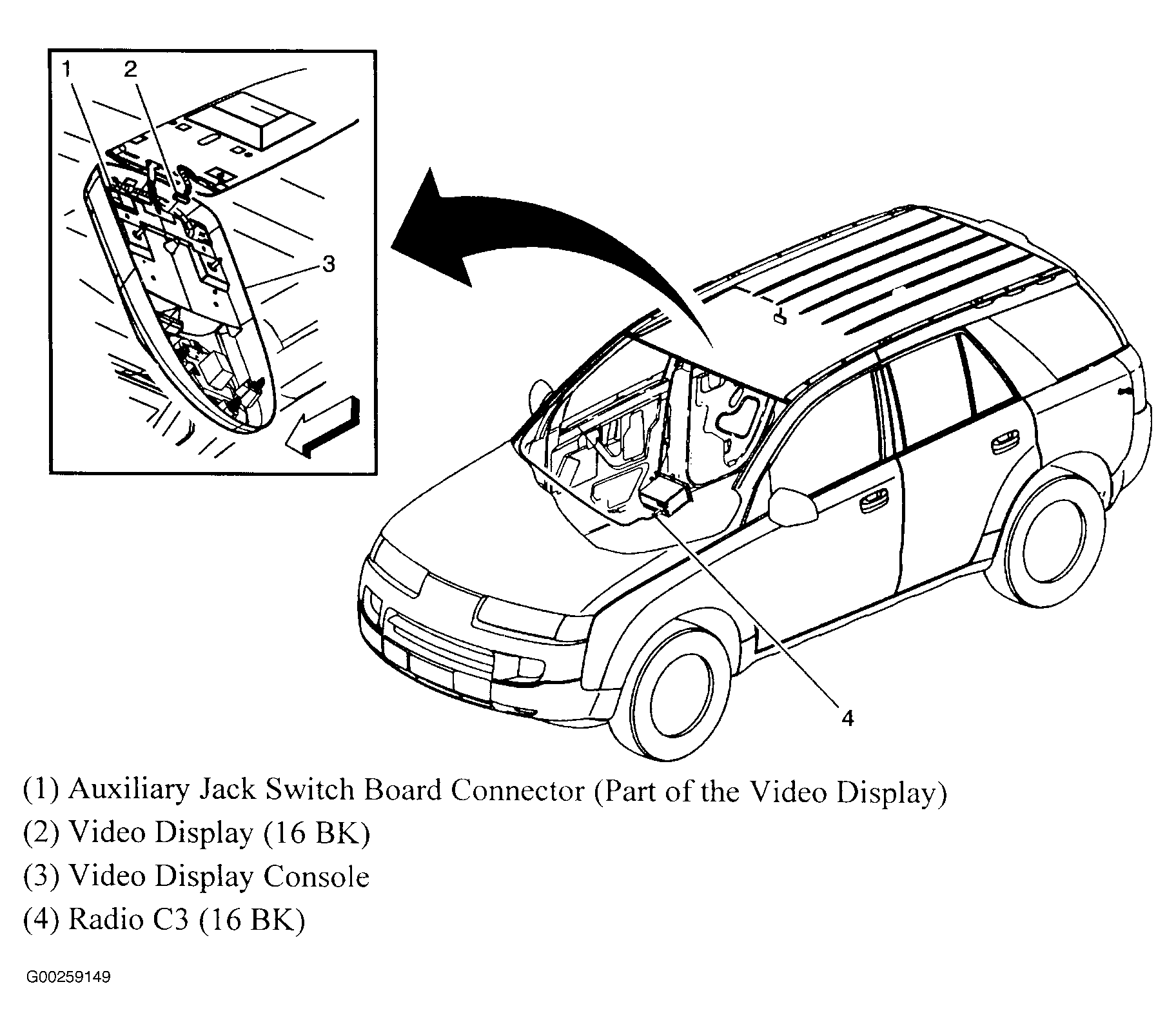

Fig 11: Center Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 12: Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left Rear Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Front Of Engine (3.5L)
Courtesy of GENERAL MOTORS CORP.

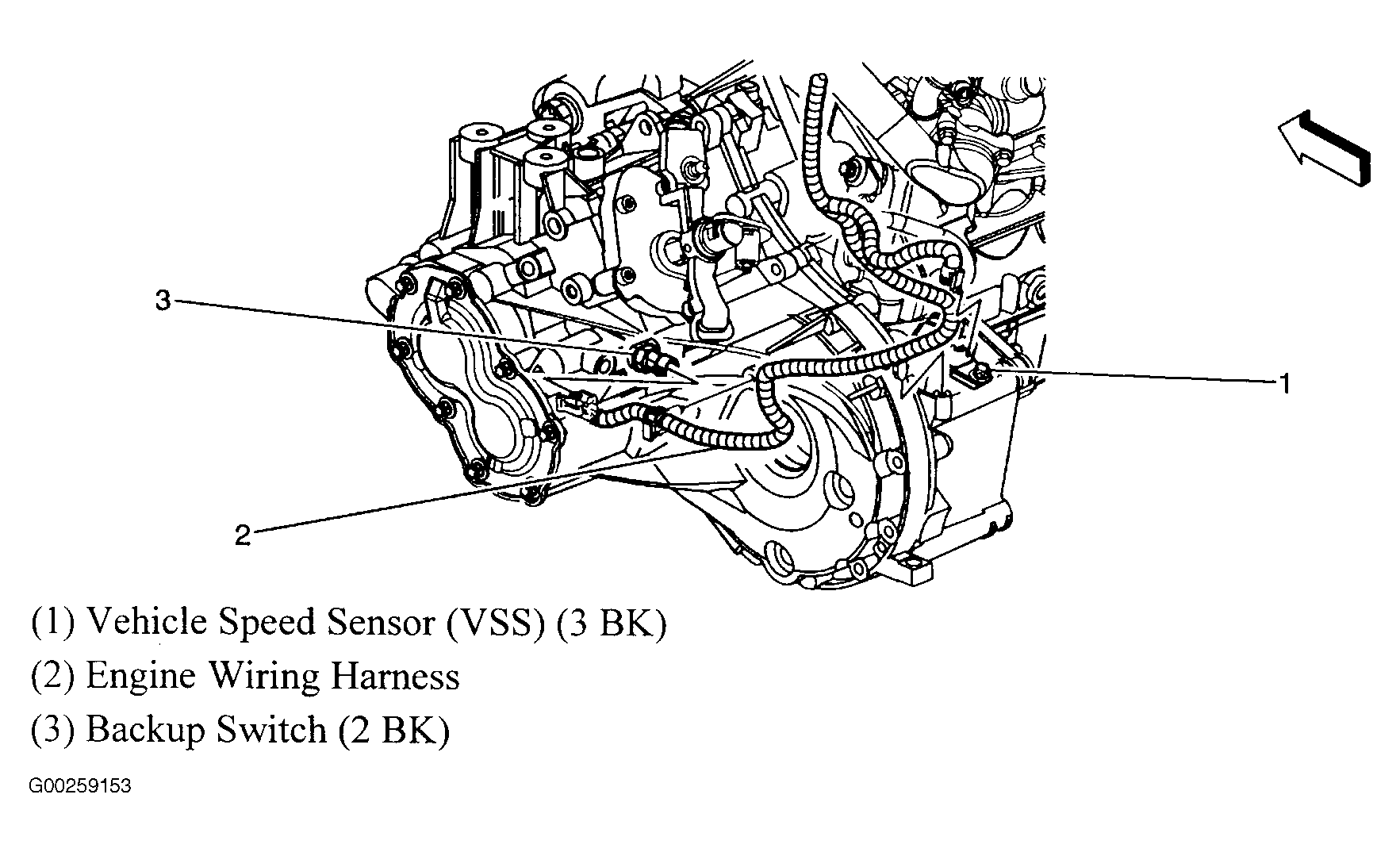

Fig 15: Left Side Of Manual Transmission
Courtesy of GENERAL MOTORS CORP.

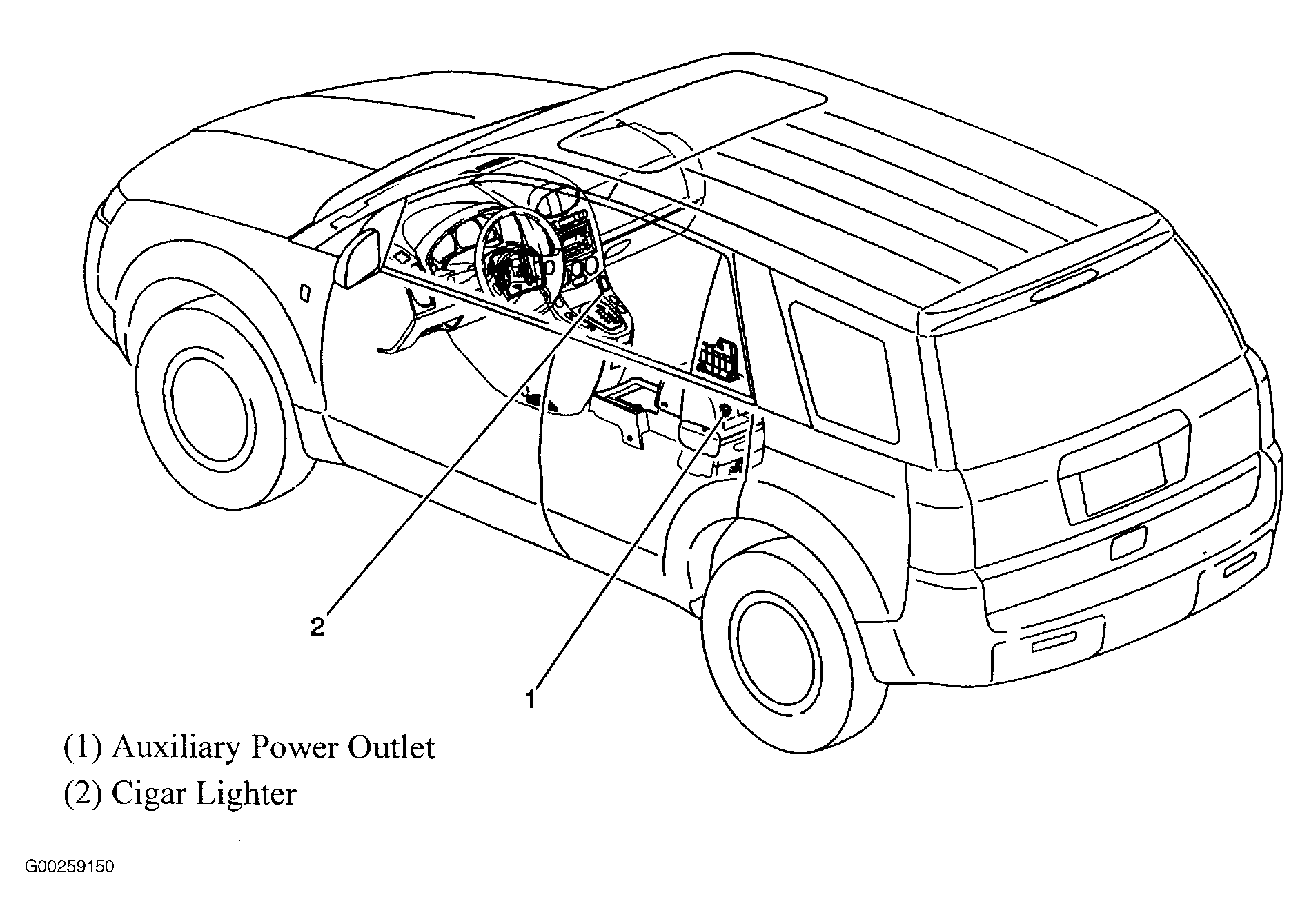

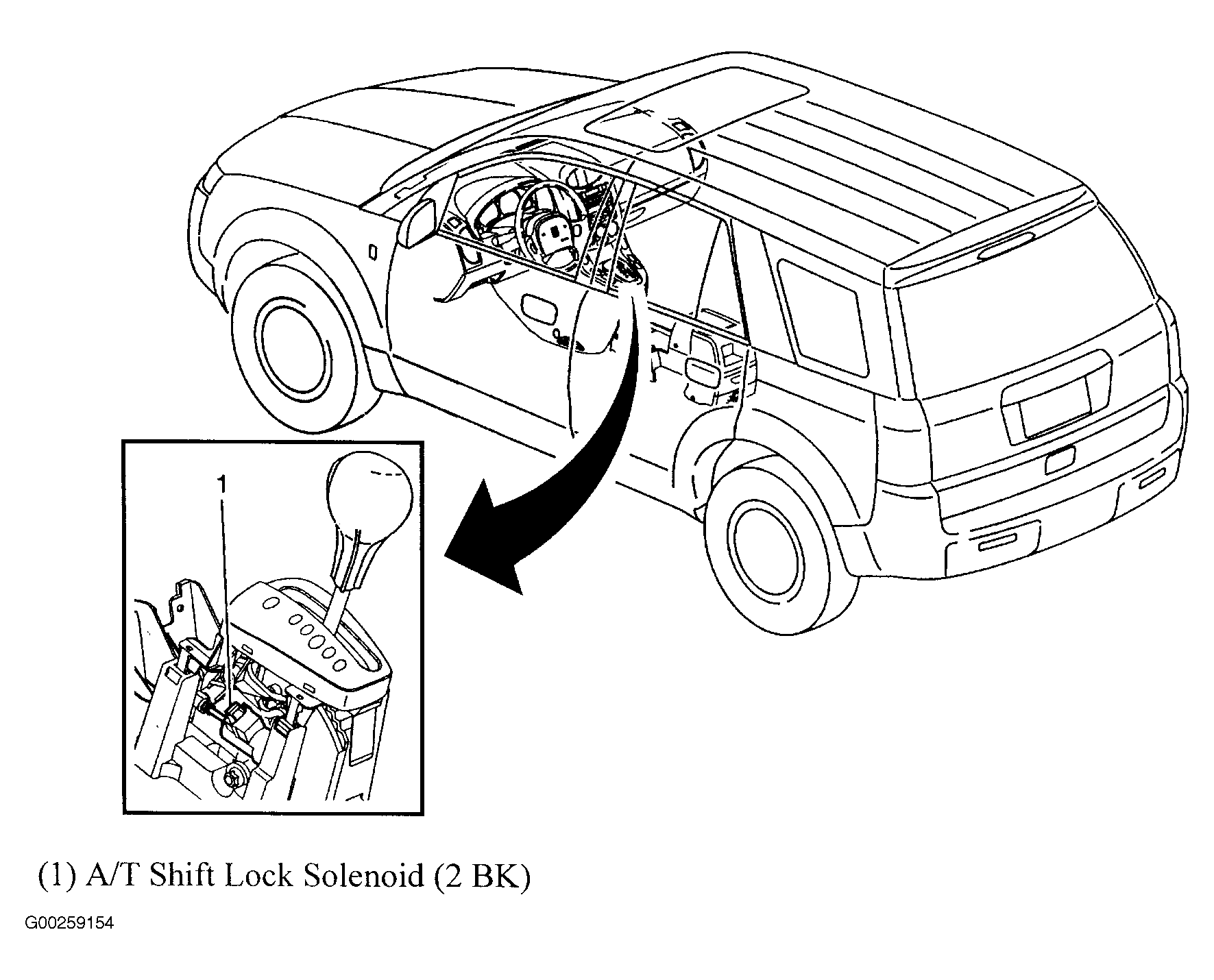

Fig 16: Front Center Console
Courtesy of GENERAL MOTORS CORP.

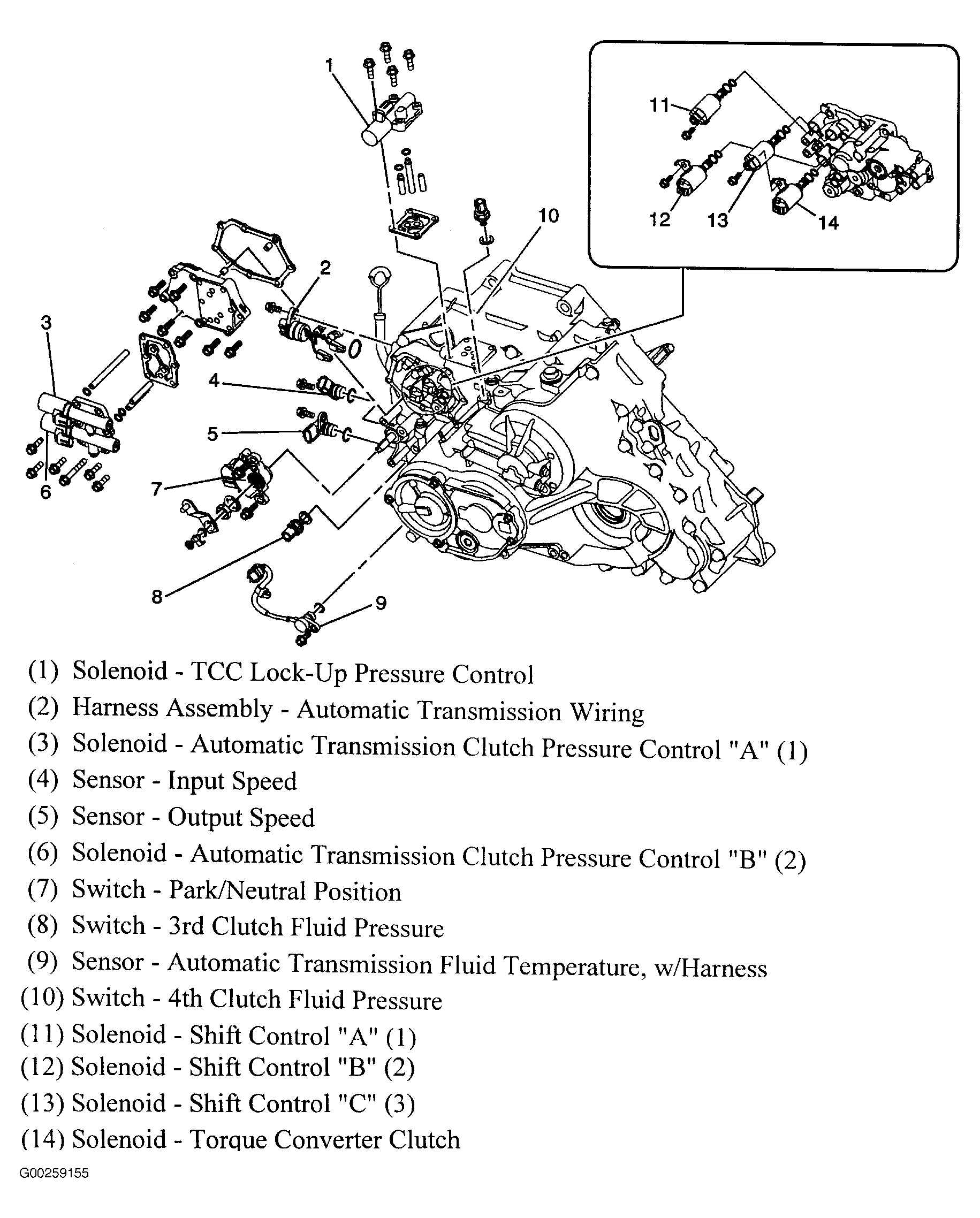

Fig 17: Automatic Transmission (5AT)
Courtesy of GENERAL MOTORS CORP.

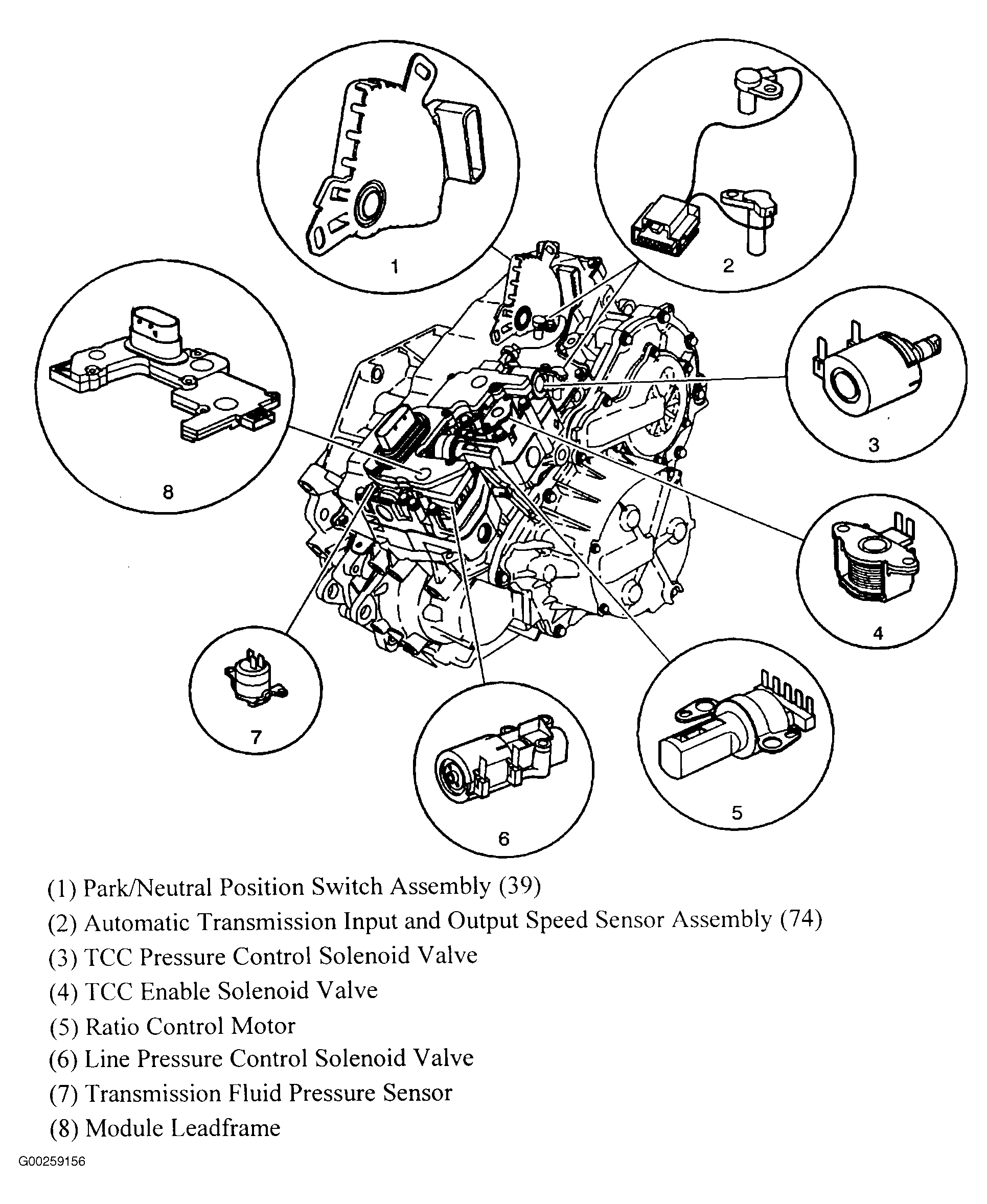

Fig 18: Automatic Transmission (VT25-E)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

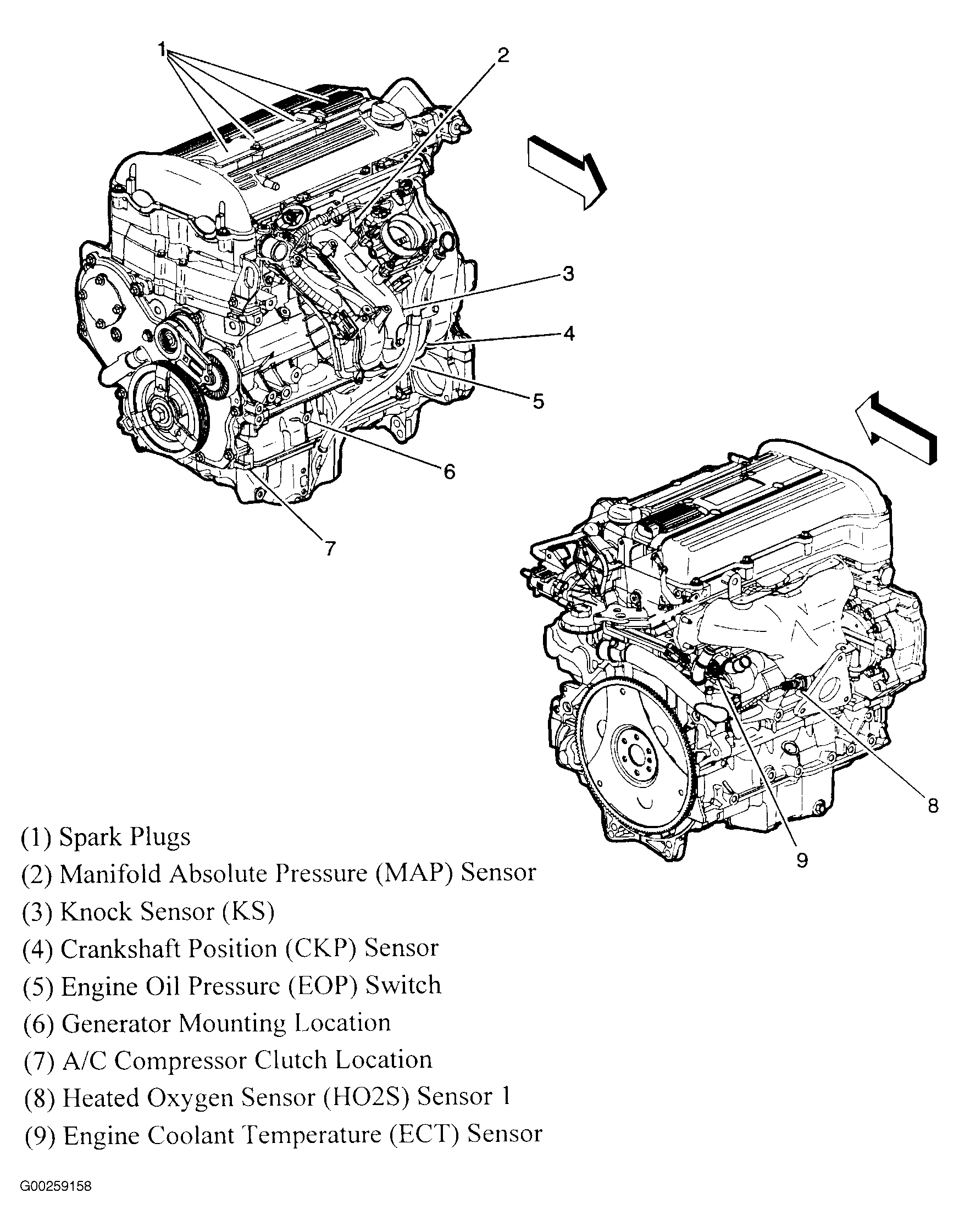

Fig 20: Left & Right Side Of Engine (2.2L)
Courtesy of GENERAL MOTORS CORP.

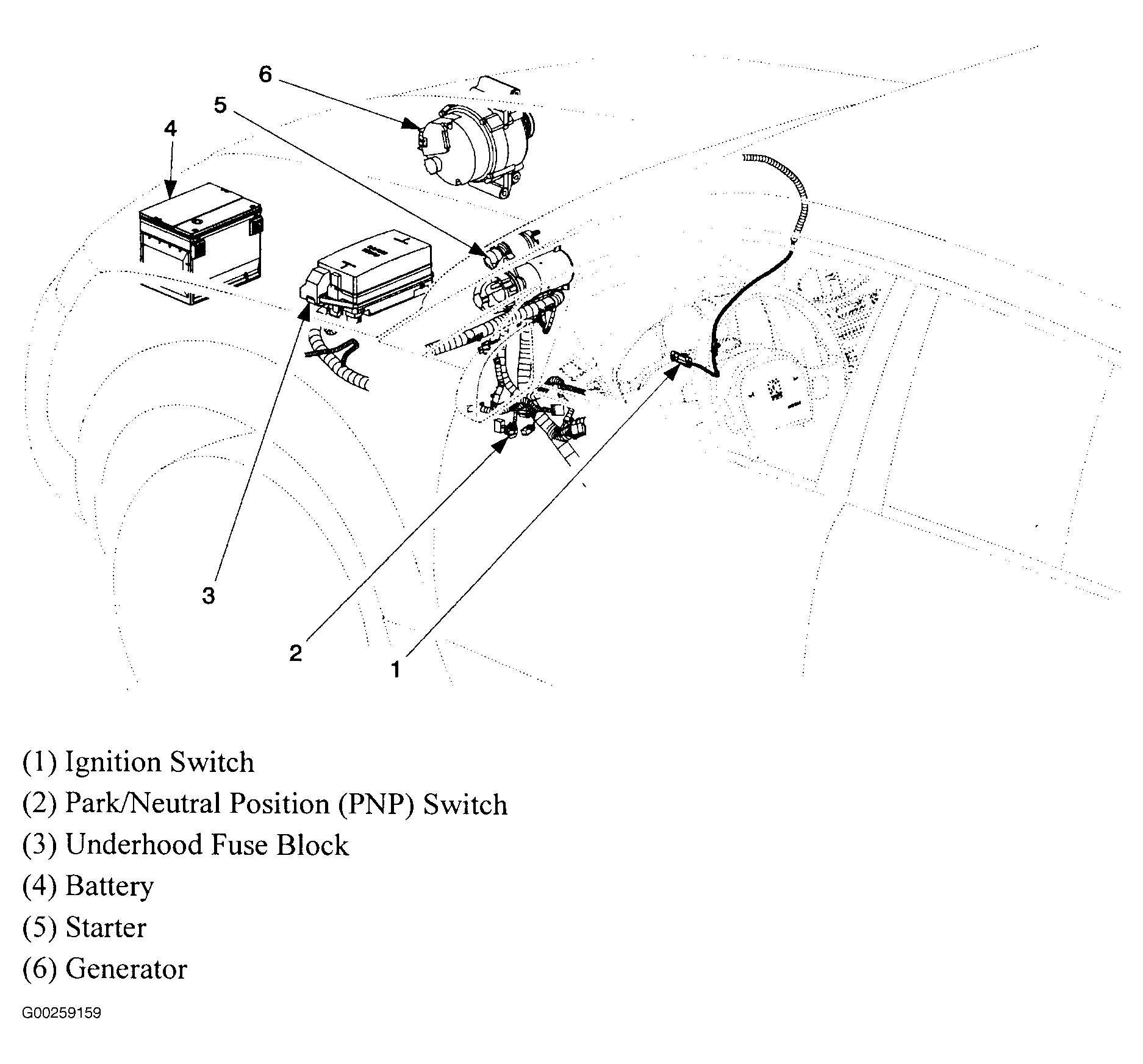

Fig 21: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 22: Front Of Engine Compartment (2.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Front Of Engine Compartment (3.5L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: ABS Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 25: Left Rear Of Engine Compartment & Under Center Console
Courtesy of GENERAL MOTORS CORP.

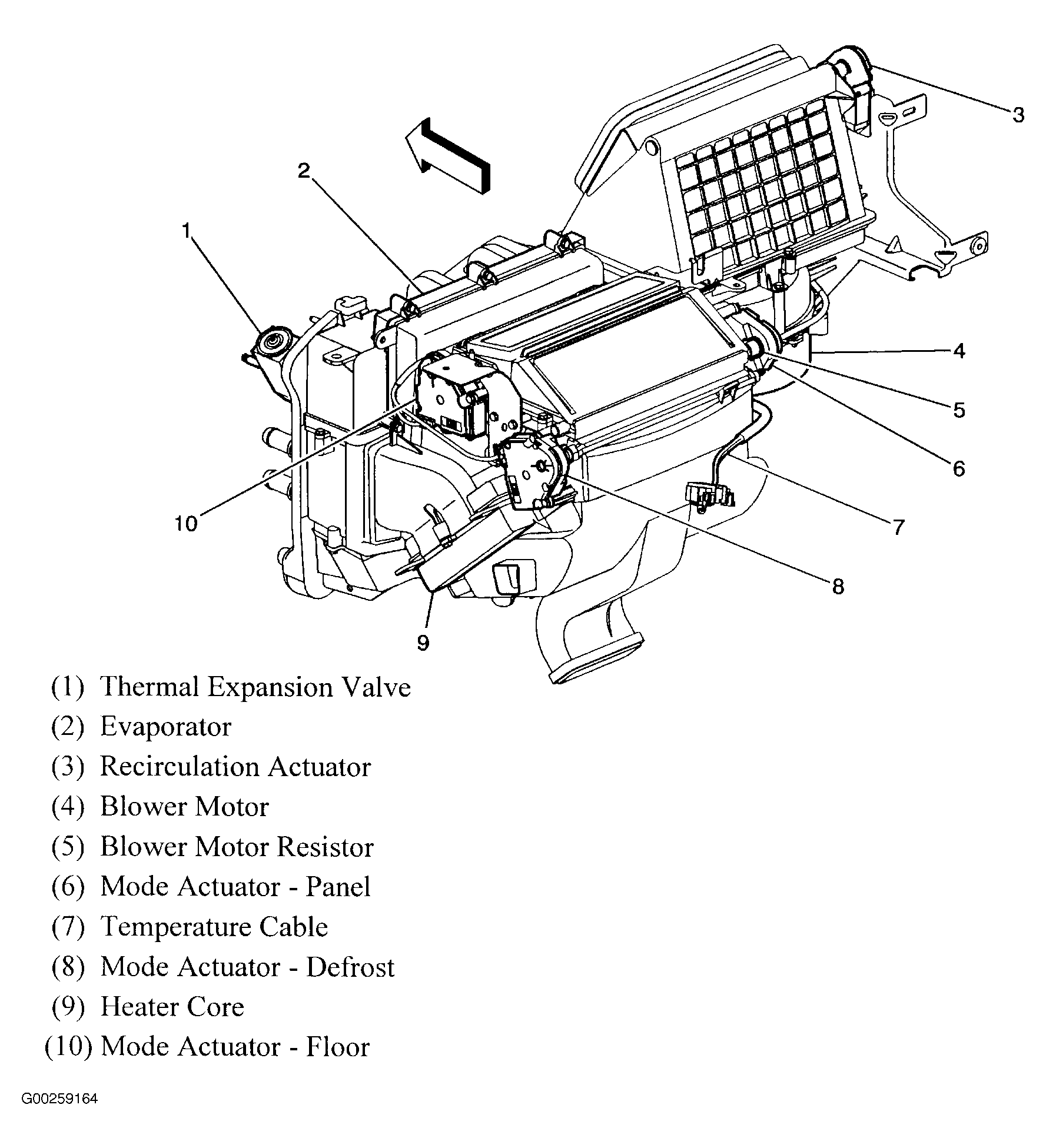

Fig 26: Left Side Of HVAC
Courtesy of GENERAL MOTORS CORP.

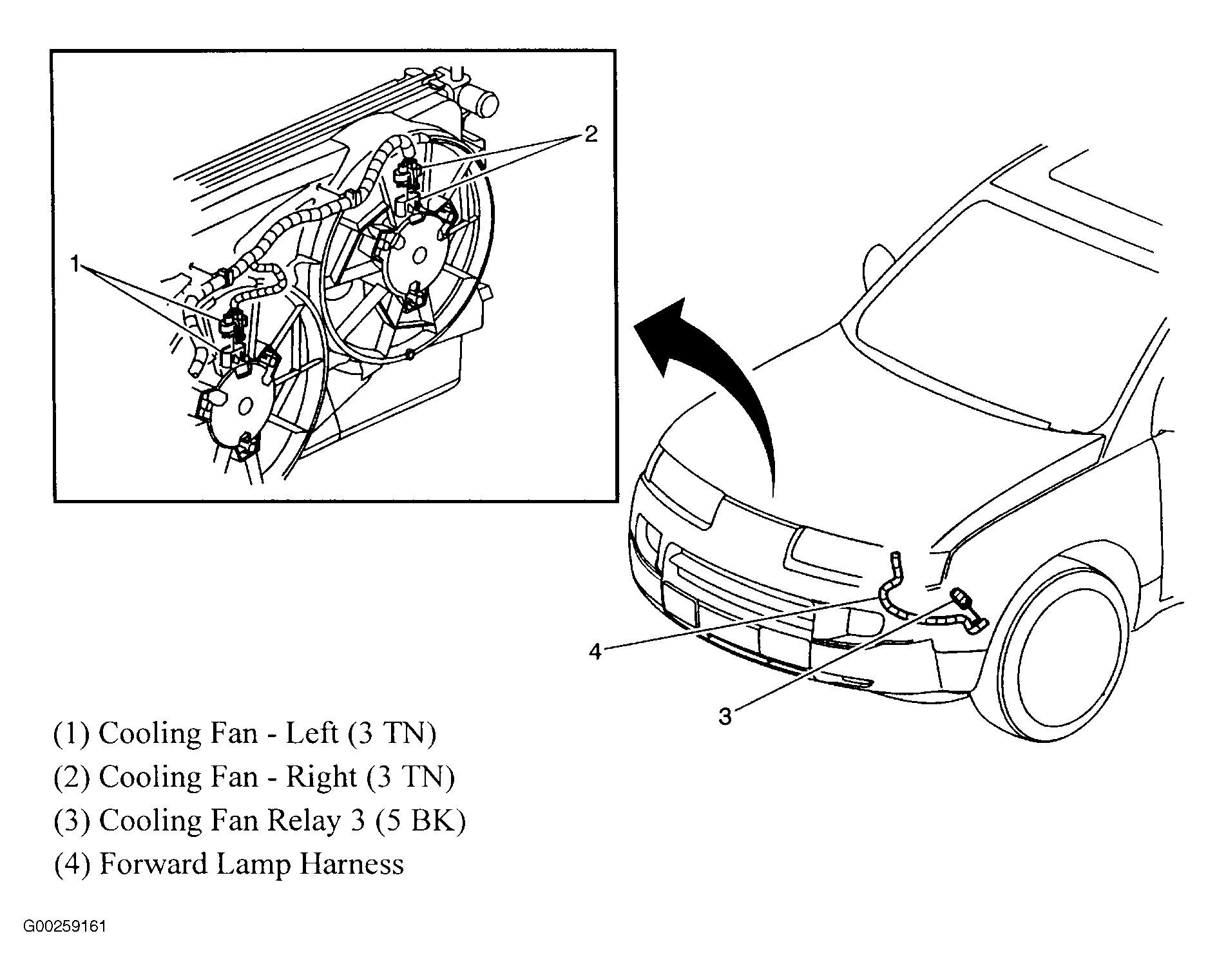

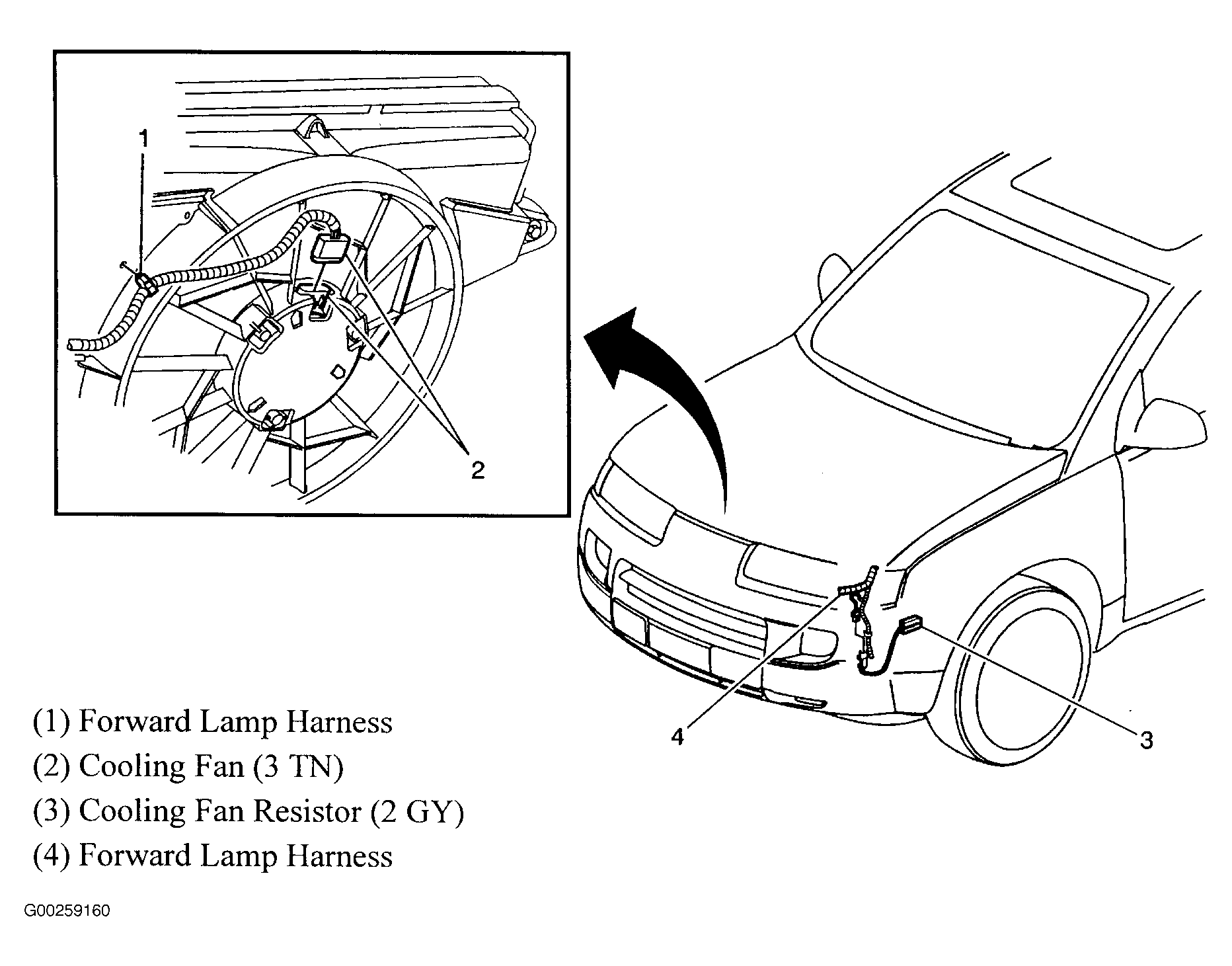

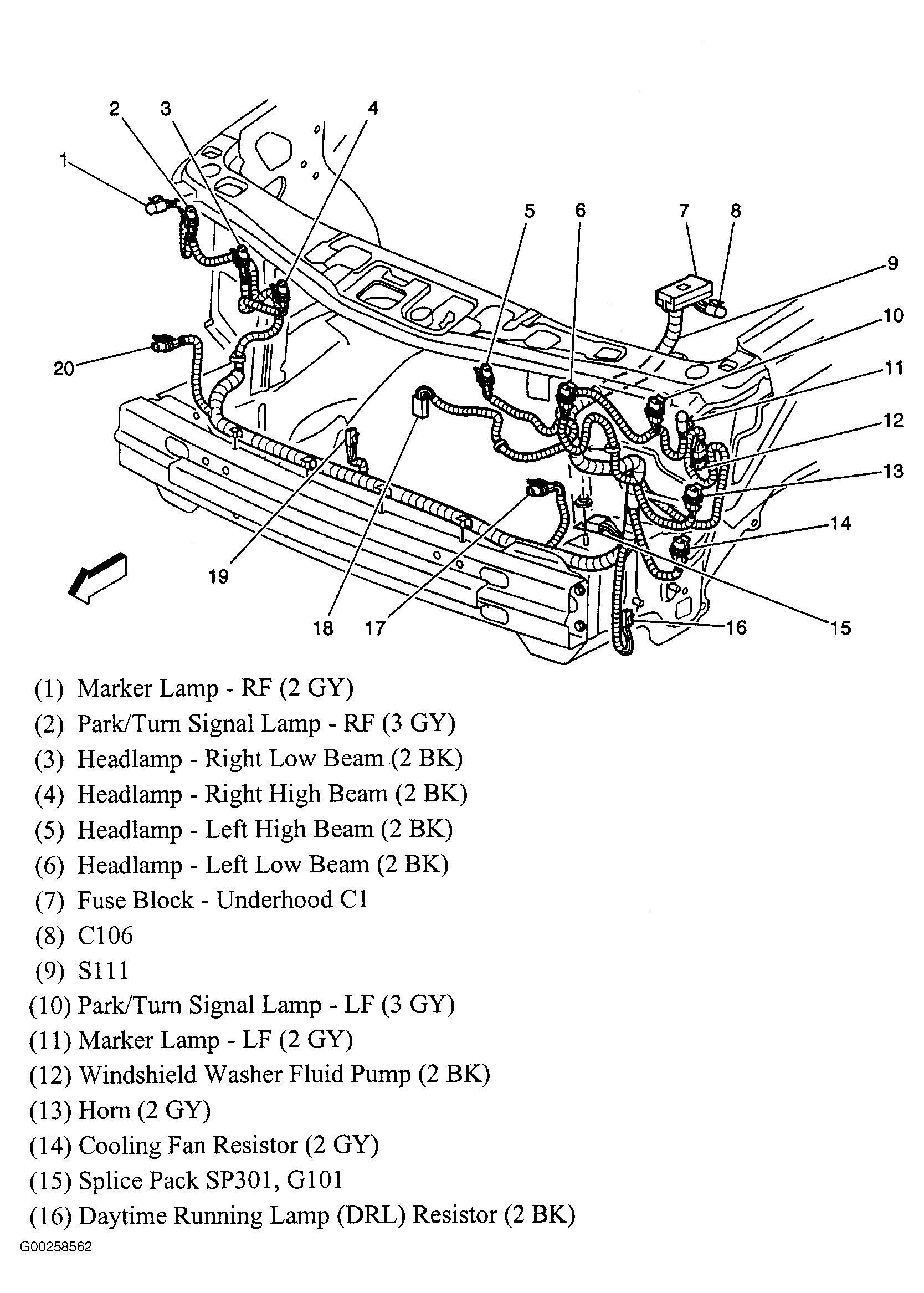

Fig 27: Front Of Vehicle (1 Of 2) (2.2L)
Courtesy of GENERAL MOTORS CORP.

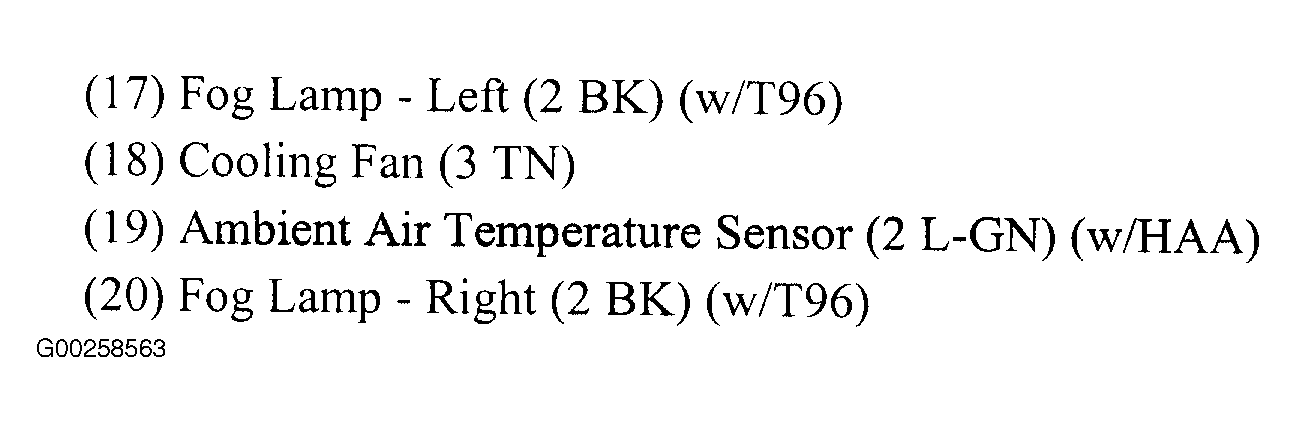

Fig 28: Front Of Vehicle (2 Of 2) (2.2L)
Courtesy of GENERAL MOTORS CORP.

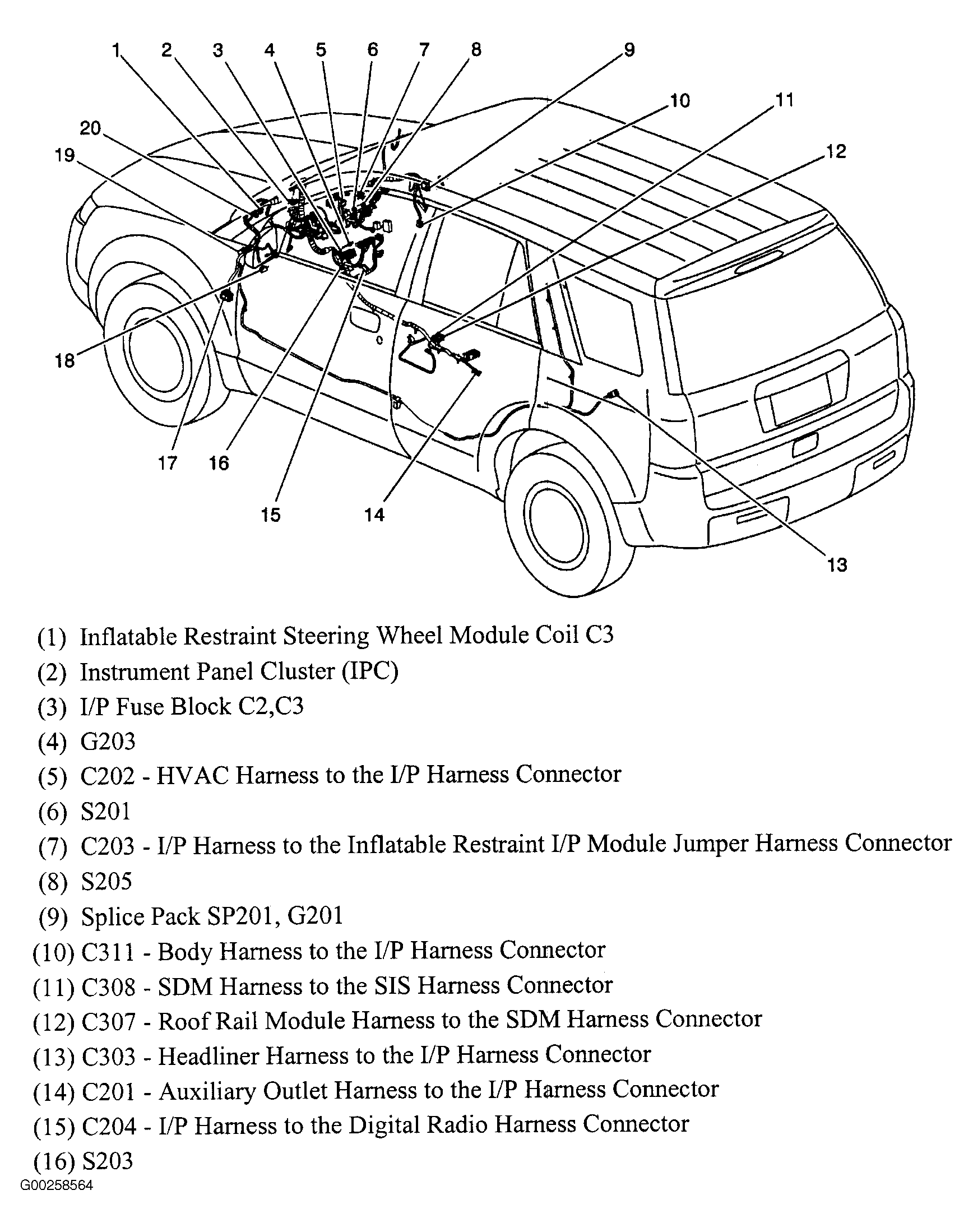

Fig 29: Instrument Panel Harness Routing (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Instrument Panel Harness Routing (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

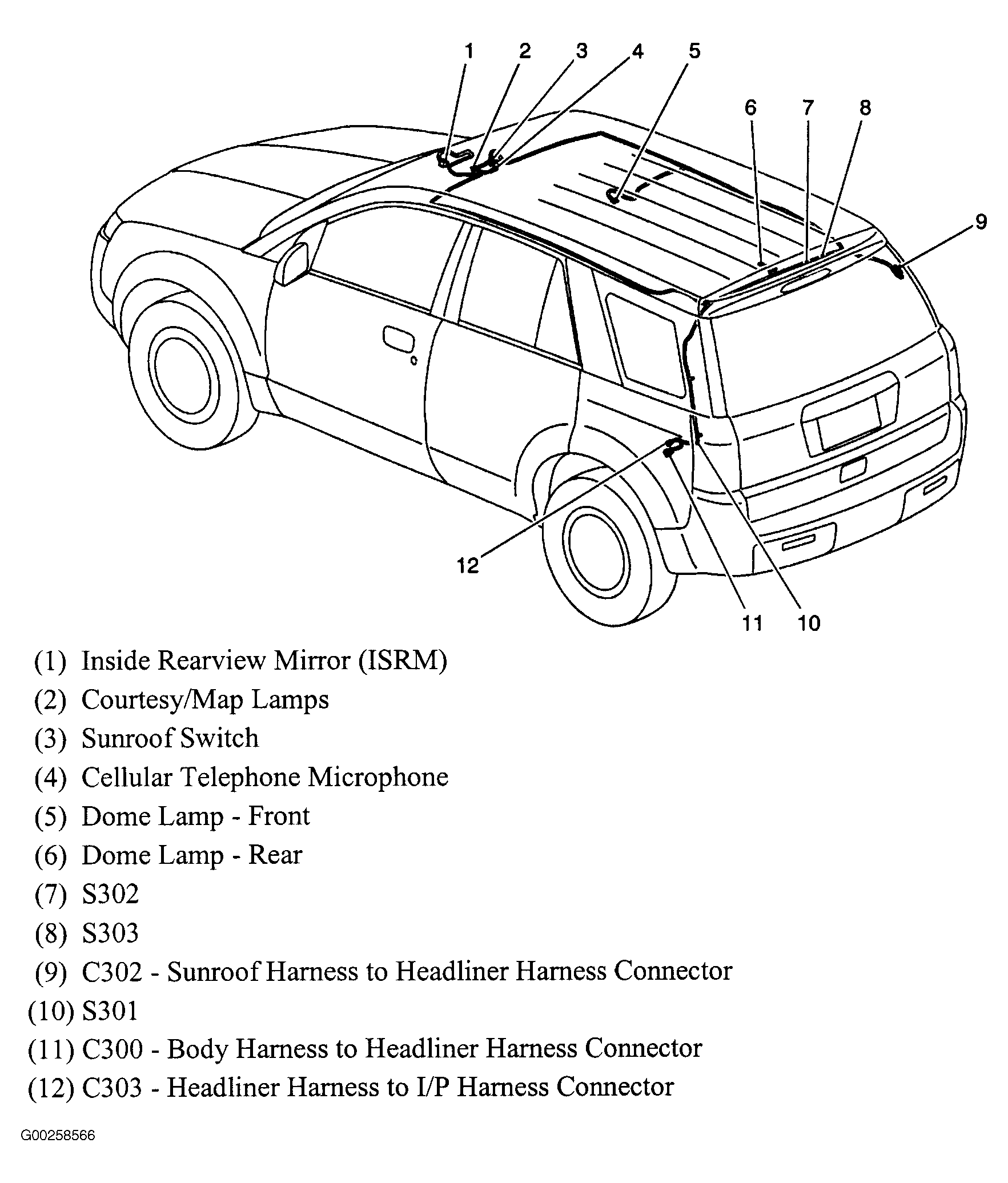

Fig 31: Roof
Courtesy of GENERAL MOTORS CORP.

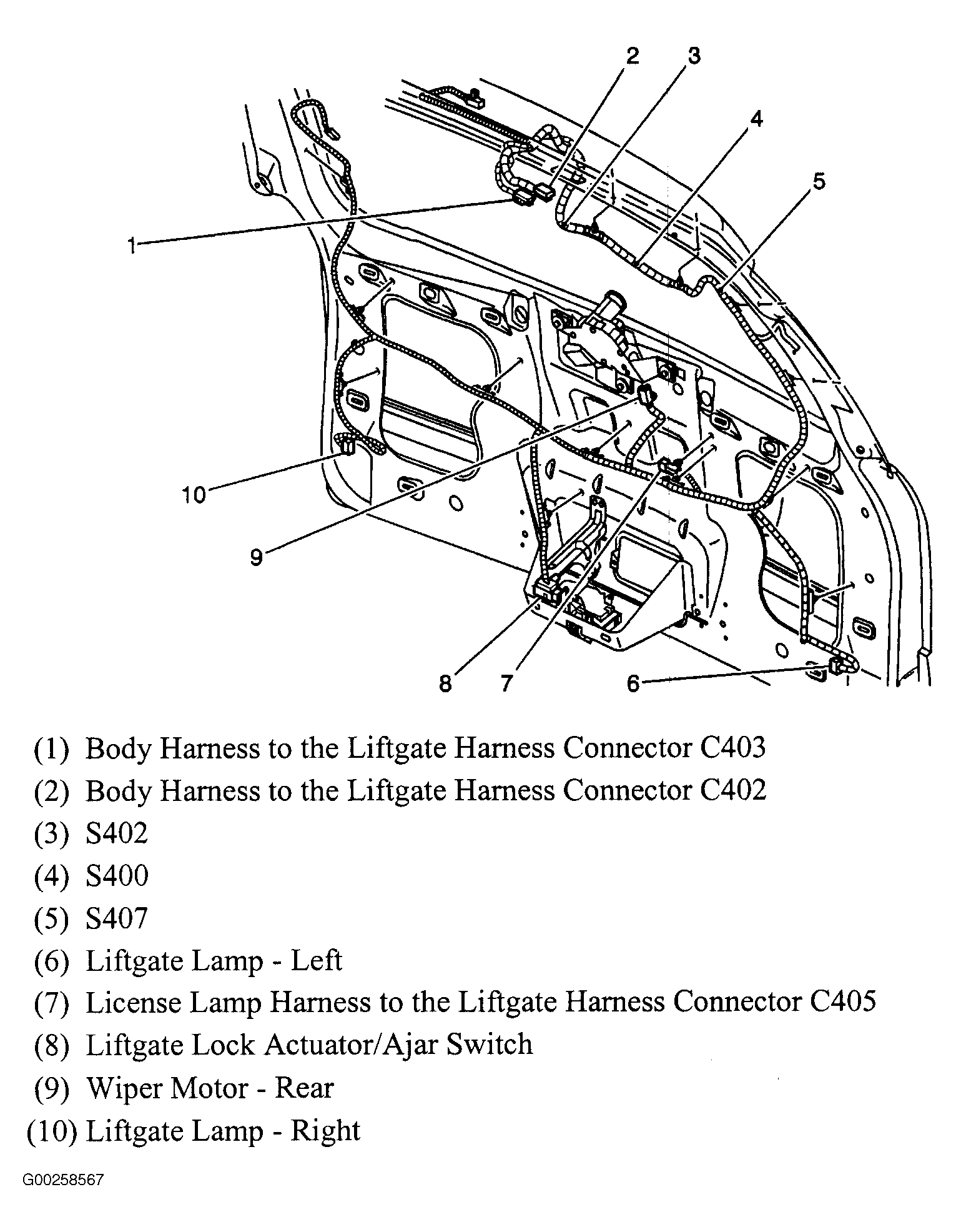

Fig 32: Liftgate
Courtesy of GENERAL MOTORS CORP.

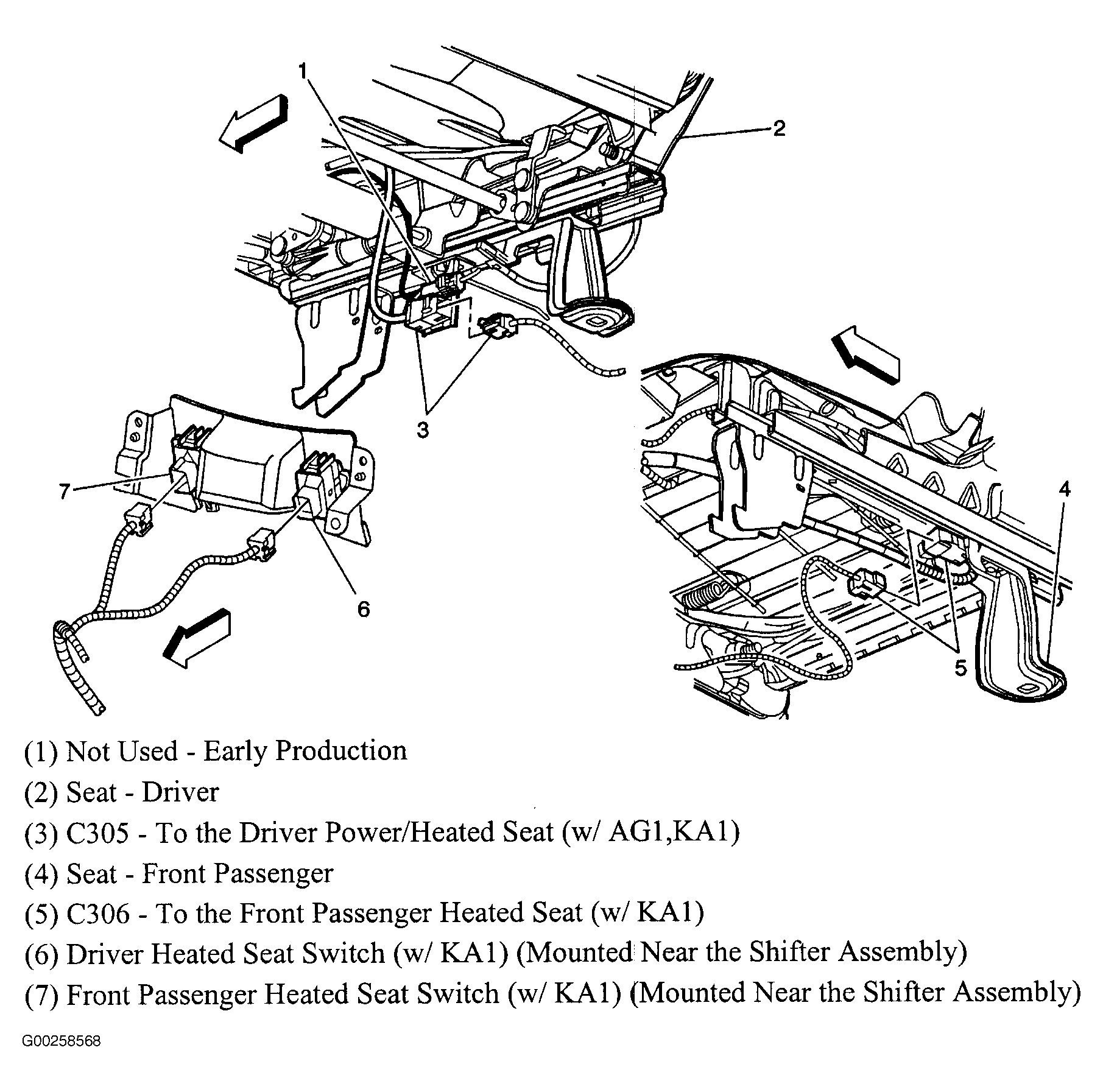

Fig 33: Bottom Of Driver/Passenger Seats
Courtesy of GENERAL MOTORS CORP.
Fig 34: Data Link Communications Component View
Courtesy of GENERAL MOTORS CORP.
