Power Window Schematics (Coupe)

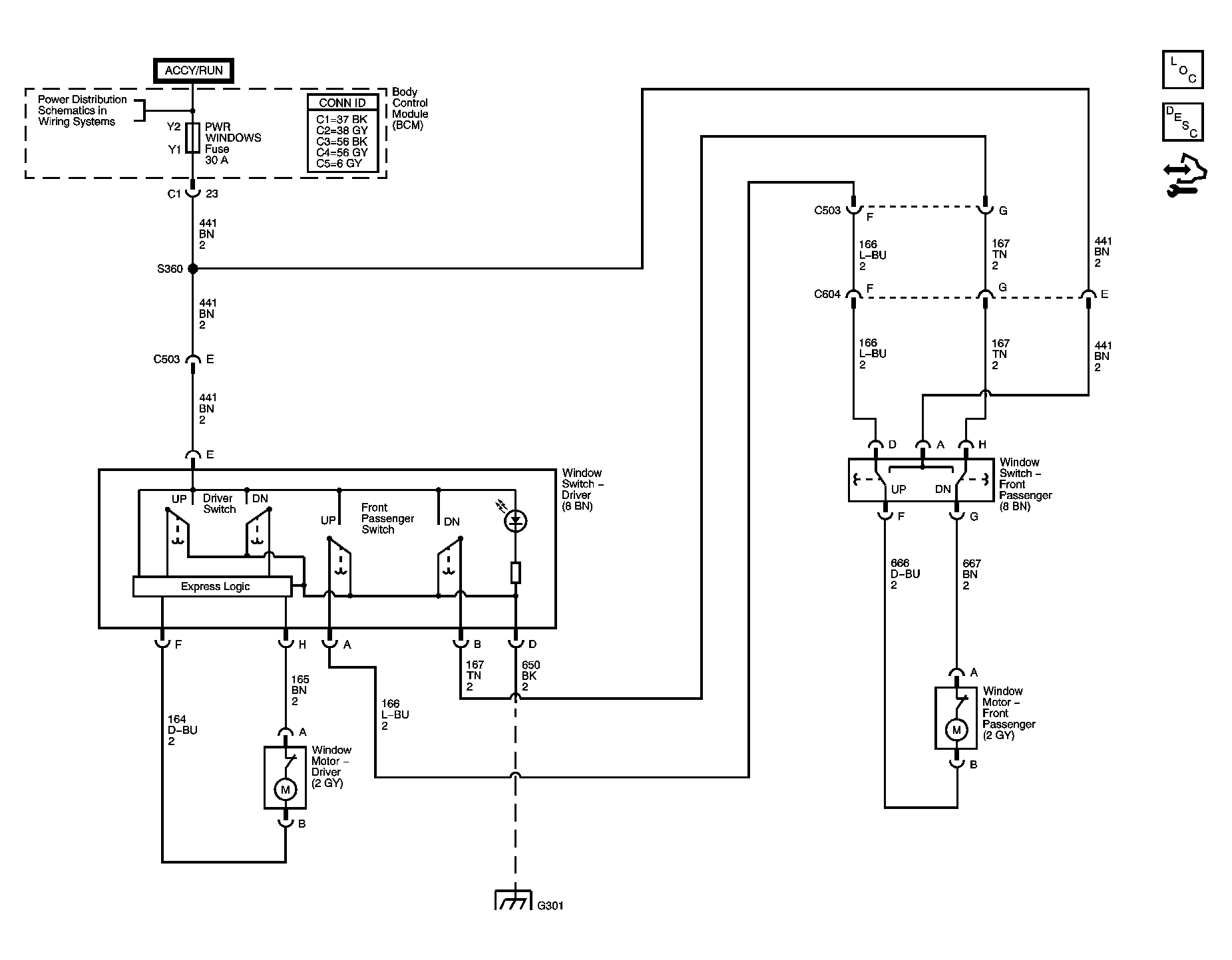

Fig 1: Power Window Schematics (Coupe)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
