ABS Component Views

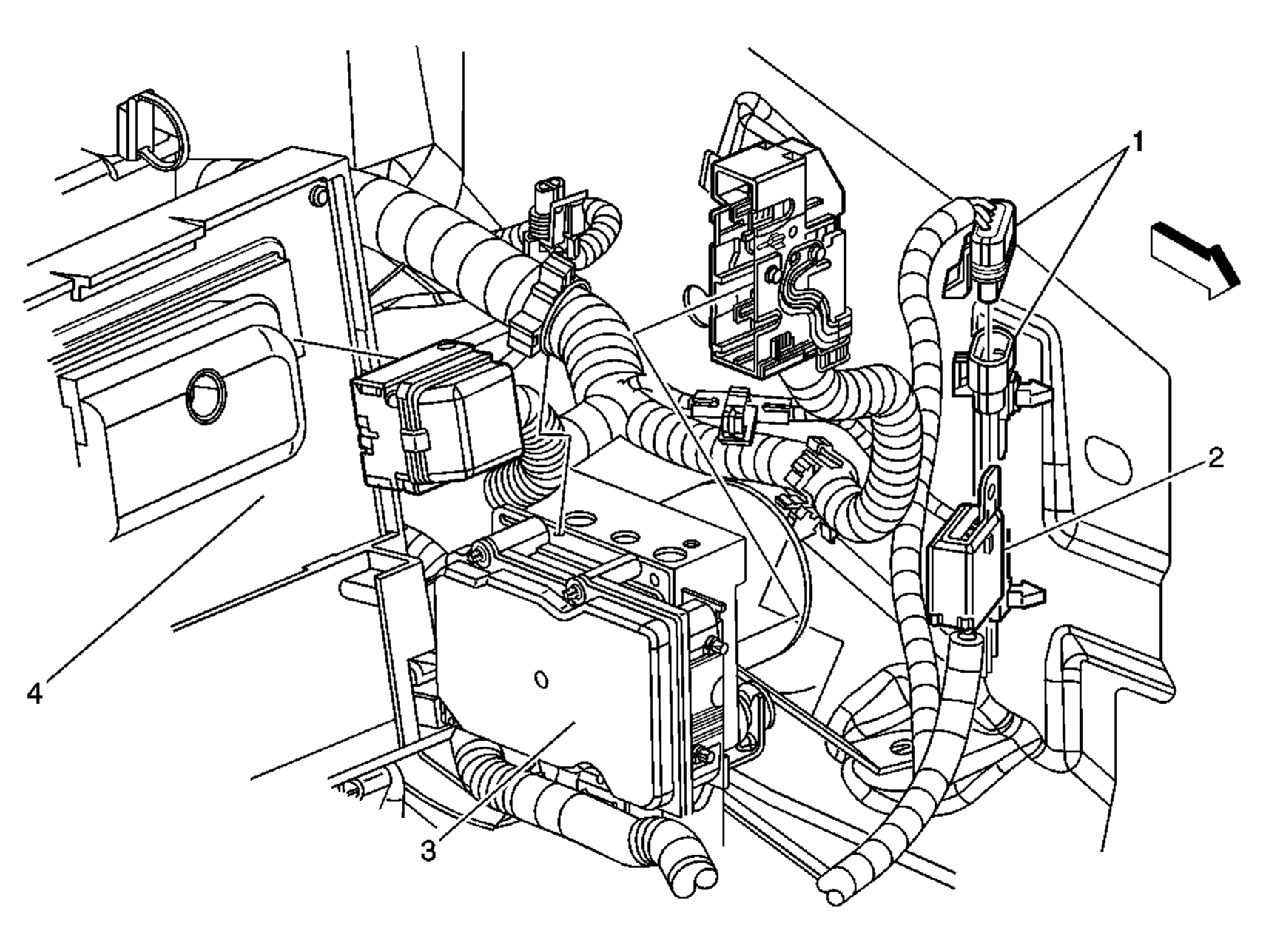

Fig 1: Left Side Of Engine Compartment Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C121 (DF5)
2	G101
3	Electronic Brake Control Module (EBCM) (JM4/JL9)
4	Engine Control Module (ECM) (2.2L)

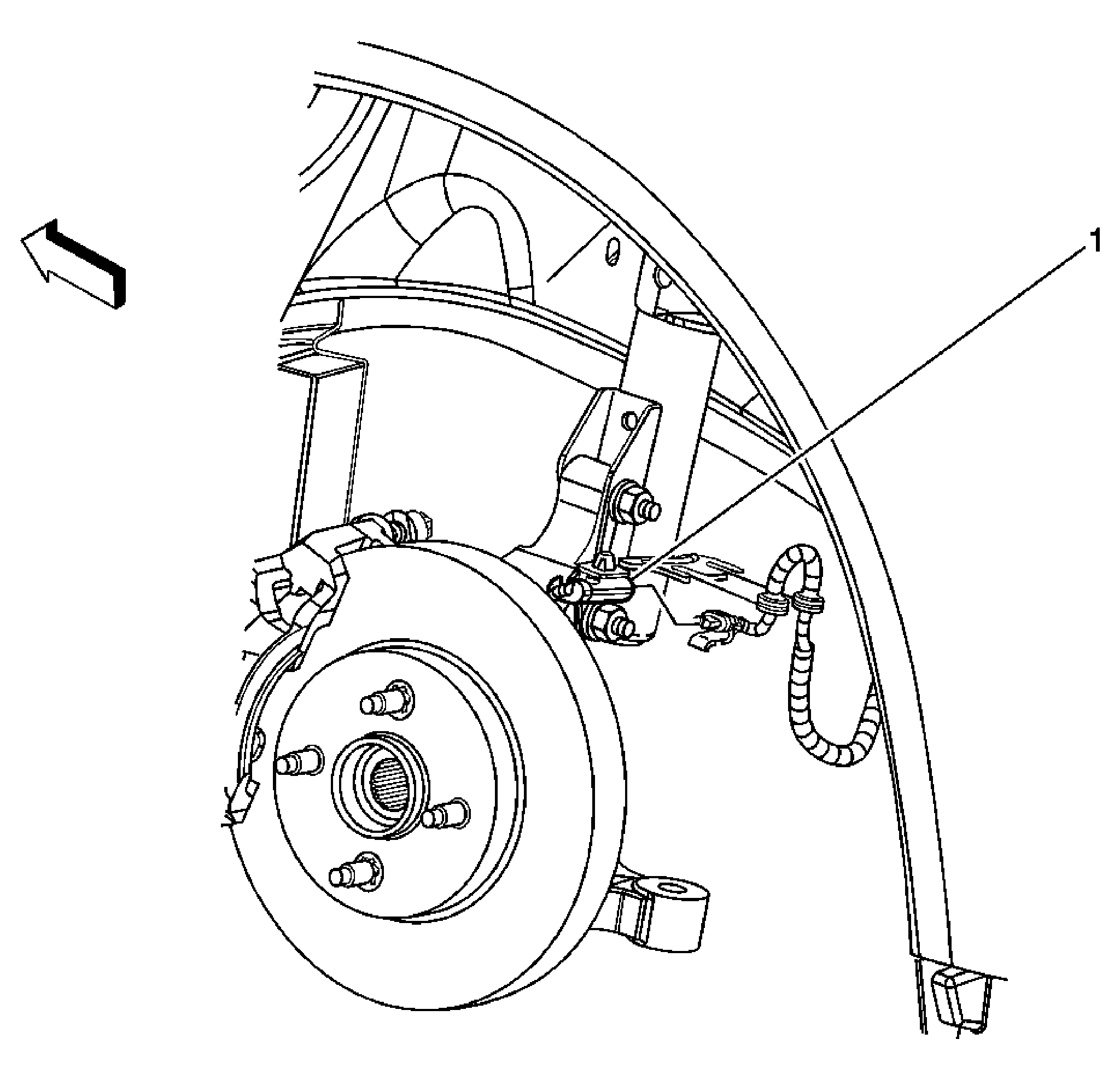

Fig 2: Front Left Side Of Vehicle (JM4/JL9) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor - LF

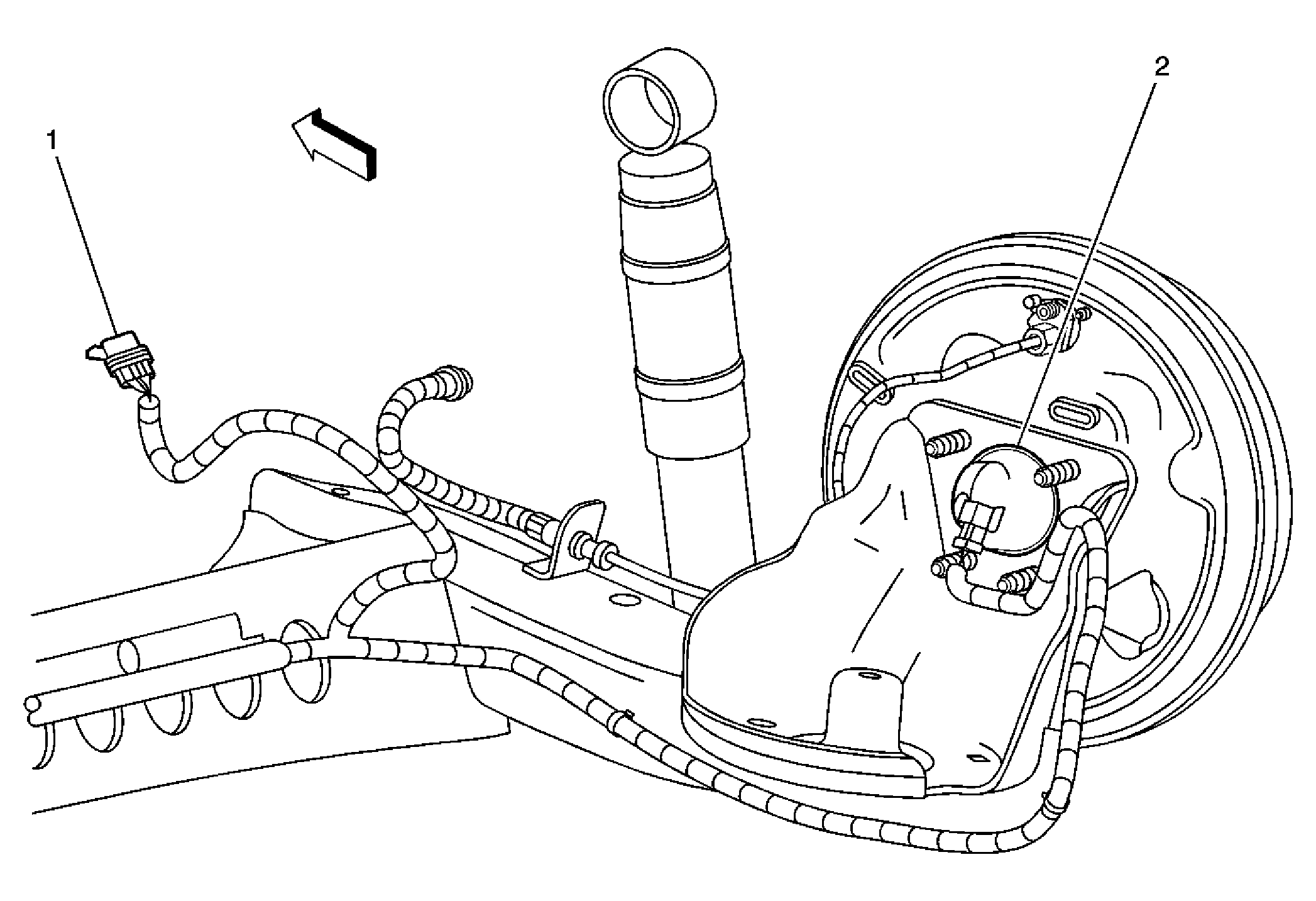

Fig 3: RR Frame & Underbody (JM4/JL9) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C406
2	Wheel Speed Sensor (WSS) - RR, LR Similar

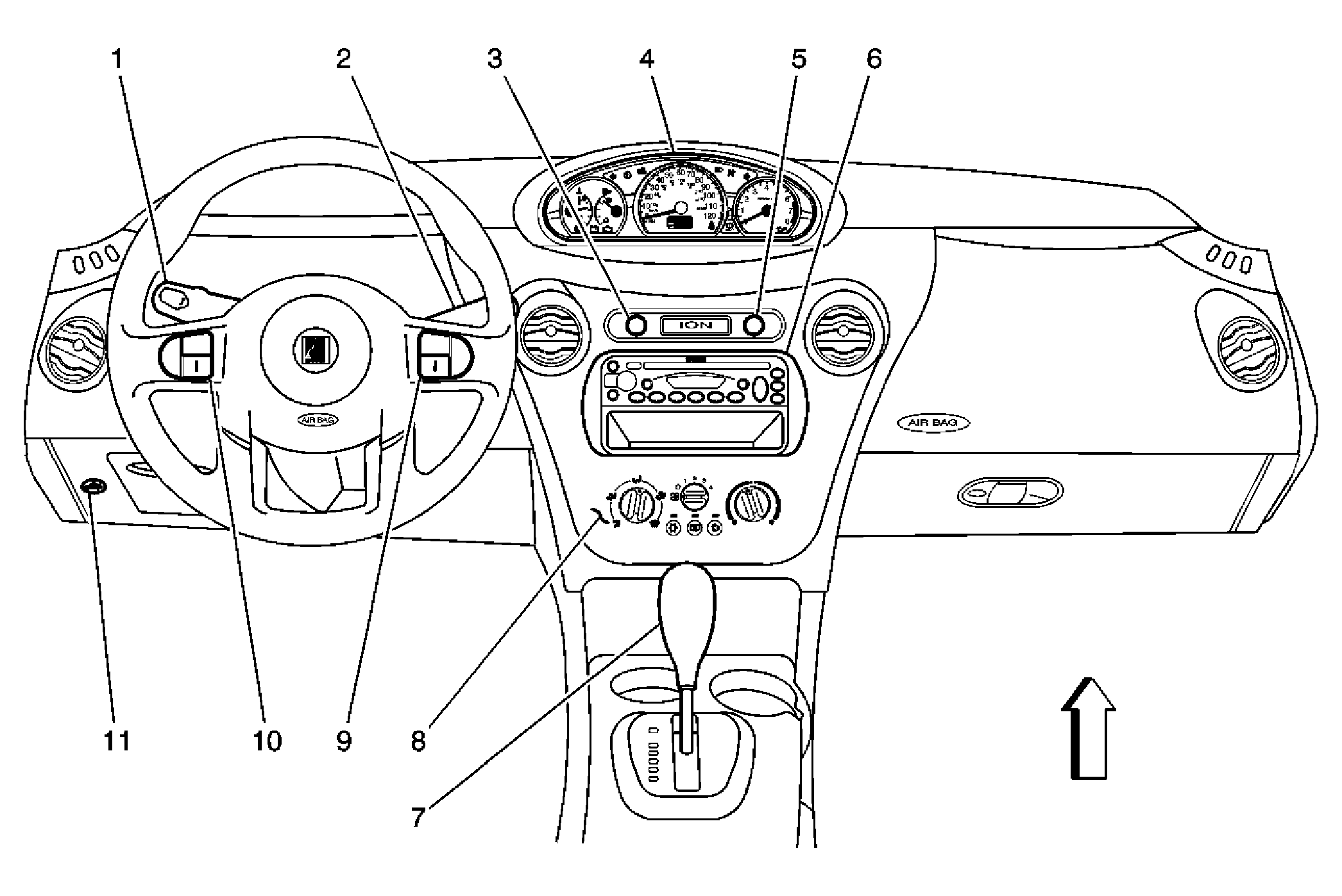

Fig 4: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Windshield Wiper/Washer Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Traction Control Switch (NW7)
6	Radio
7	A/T Shifter (MN5)
8	HVAC Control Assembly
9	Steering Wheel Controls - Right (K34)
10	Steering Wheel Controls - Left (K34)
11	Rear Compartment Lid Release Switch
