Removal Procedure

NOTE: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

Turn the ignition switch to the OFF position.
Clean the electronic brake control module (EBCM) to brake pressure modulator valve (BPMV) area of any accumulated dirt and foreign material.
Disconnect the electrical connector from the EBCM.

Fig 1: View Of EBCM Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the 4 EBCM-to-BPMV retaining bolts (1).

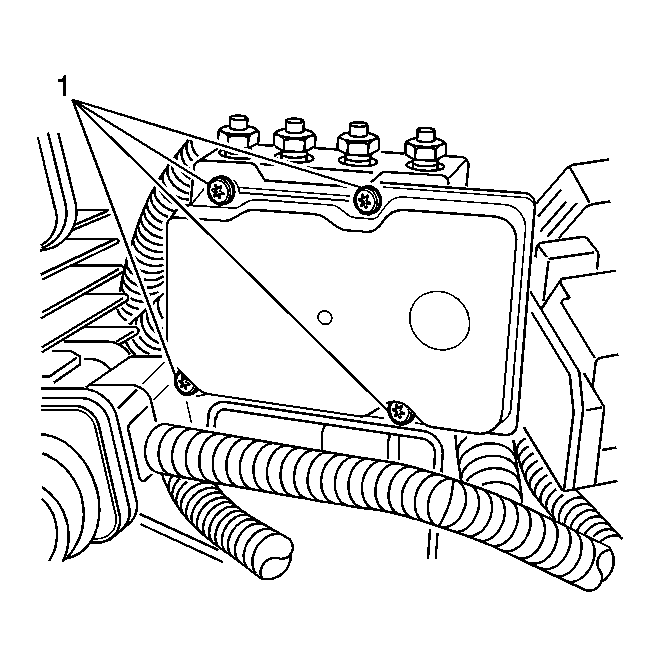

Fig 2: View Of EBCM-To-BPMV Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

Separate the EBCM (1) from the BPMV (2) by carefully pulling apart.

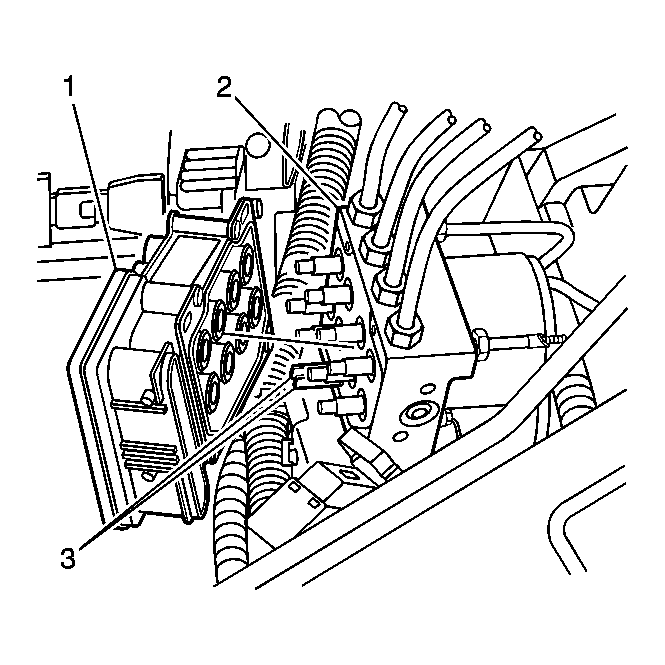

Fig 3: View Of EBCM & BPMV
