Installation Procedure

  1. Install the traction control switch (1) to the accessory trim plate. Ensure that the retaining tabs are fully engaged.

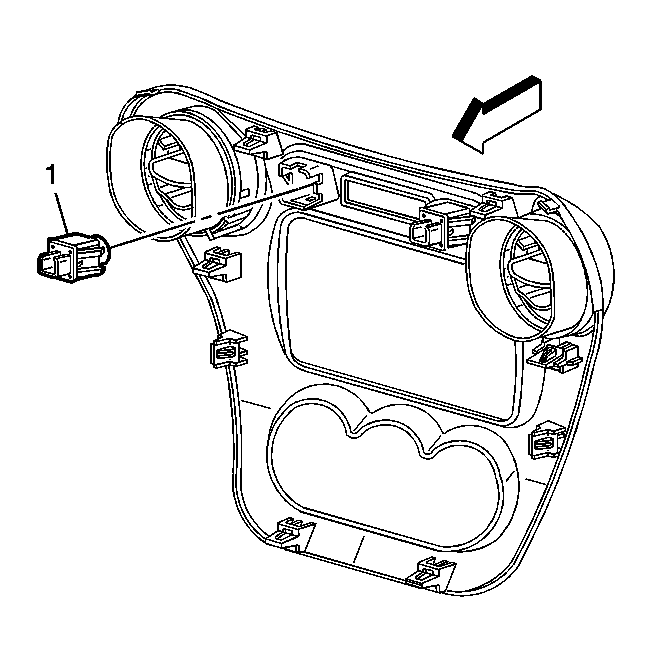

    2. Fig 1: View Of Traction Control Switch
    GM891945Courtesy of GENERAL MOTORS CORP.
  2. Install the instrument panel (I/P) accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory in Instrument Panel, Gages and Console.
