Fuel Rail Assembly

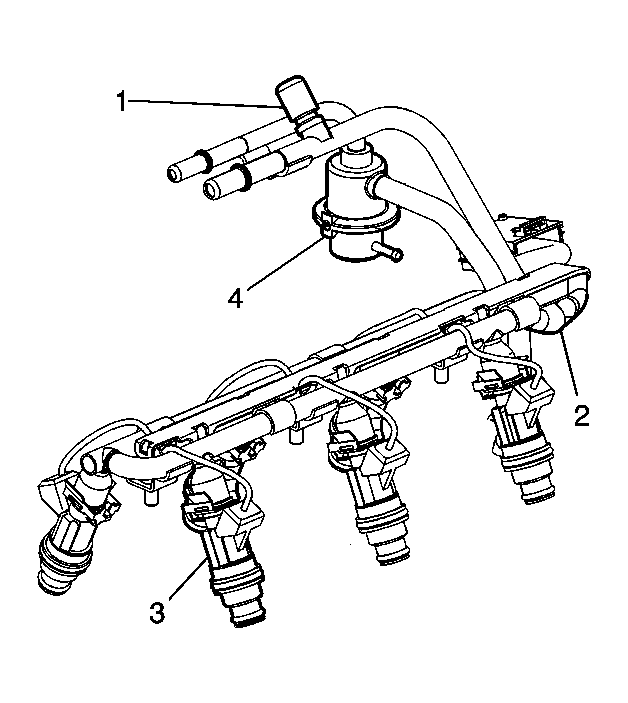

Fig 1: Identifying Fuel Rail Components

Courtesy of GENERAL MOTORS CORP.

The fuel rail assembly (2) attaches to the engine intake manifold. The fuel rail assembly performs the following functions:

• Positions the injectors (3) in the intake manifold
• Distributes fuel evenly to the injectors
• Integrates the fuel pressure regulator (4) into the fuel metering system
