Evaporative Emissions (EVAP) Hose Routing Diagram

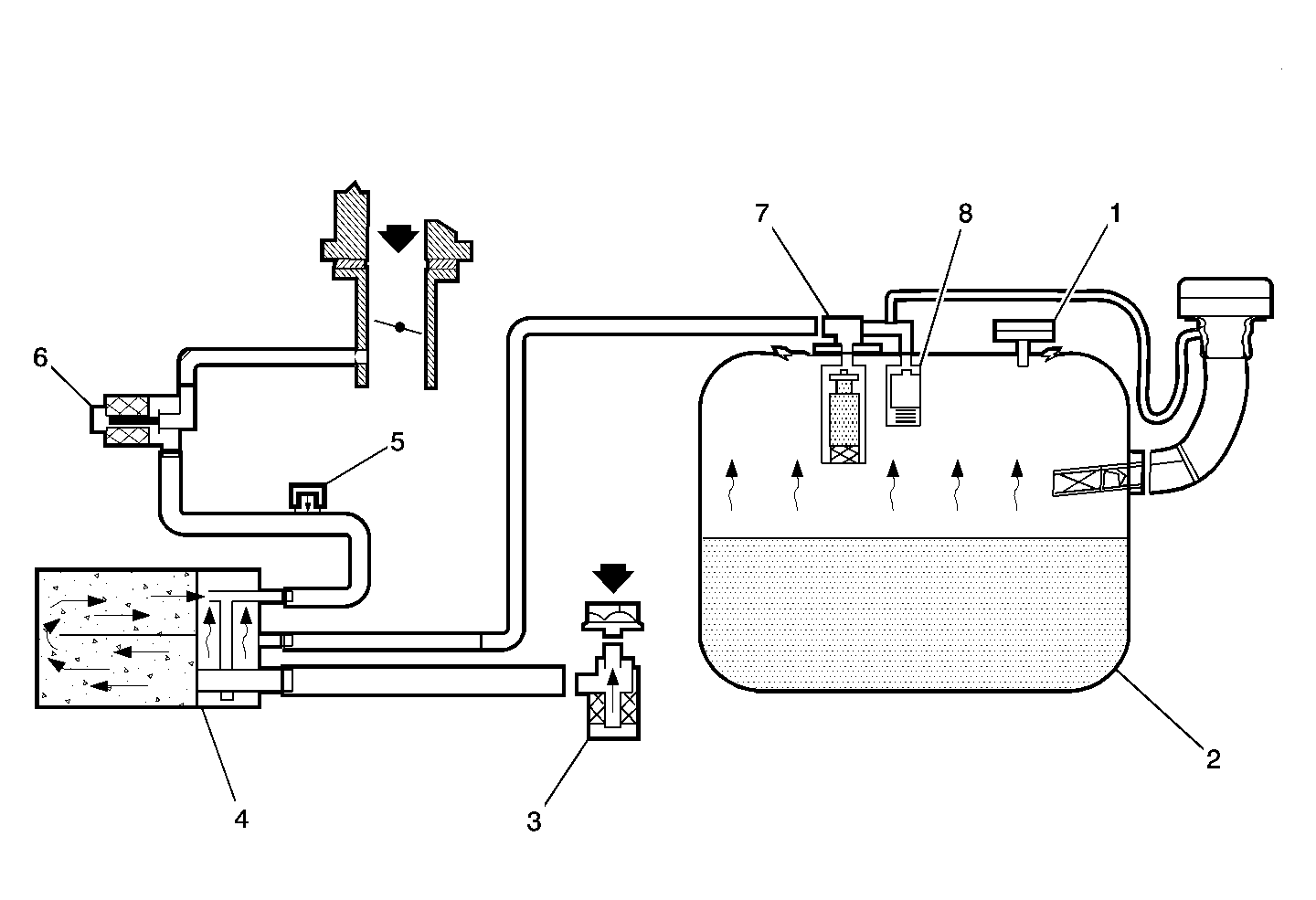

Fig 1: Evaporative Emissions (EVAP) Hose Routing Diagram
GM1199928Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressure (FTP) Sensor
2 Fuel Tank
3 Evaporative Emission (EVAP) Vent Solenoid
4 EVAP Canister
5 EVAP Service Port
6 EVAP Purge Solenoid
7 Fill Limit Vent Valve (FLVV)
8 Grade Vent Valve
