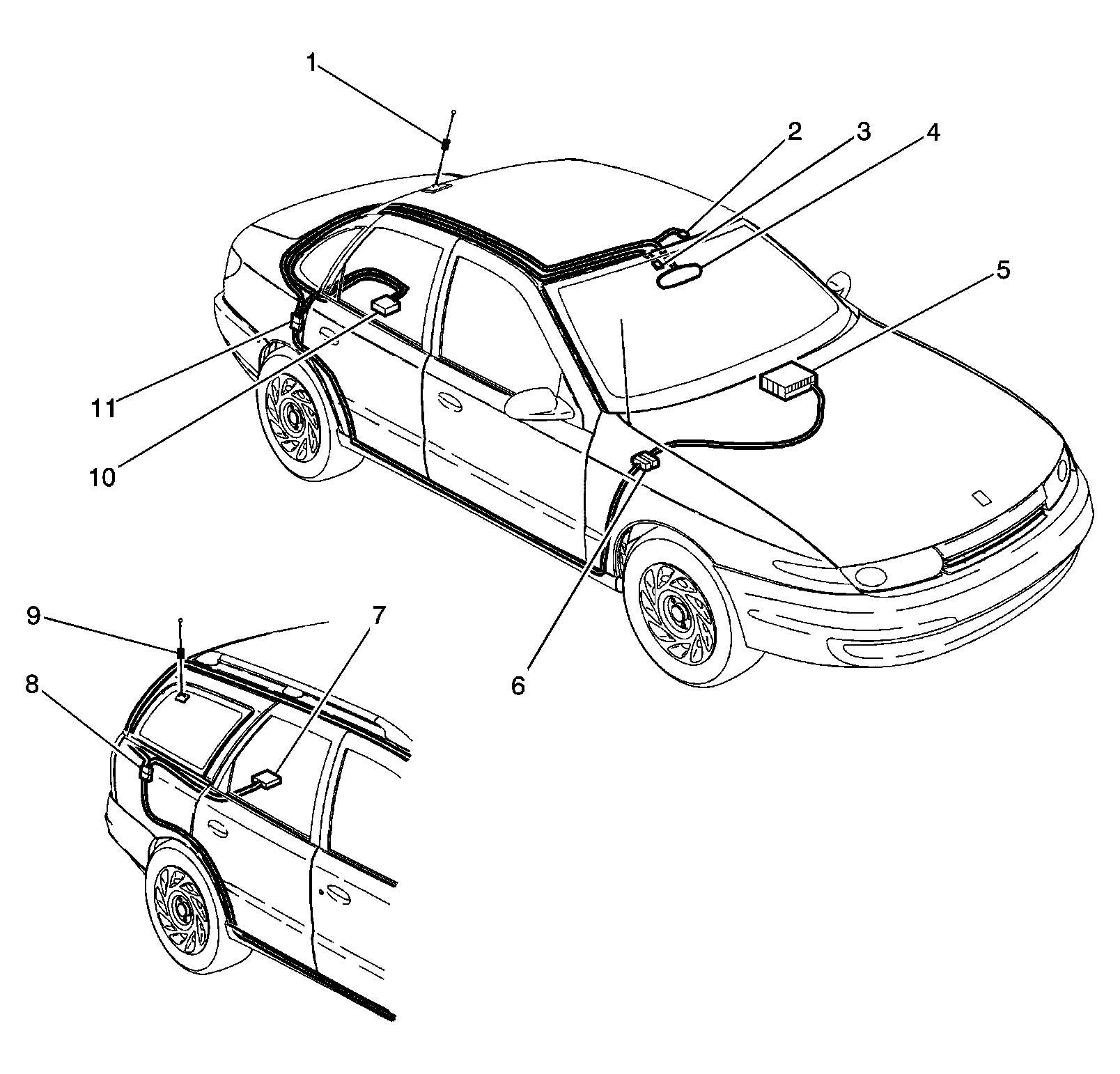

Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Cellular Antenna - Sedan |
| 2 | Microphone |
| 3 | Navigation Antenna |
| 4 | Inside Rearview Mirror (ISRVM) |
| 5 | Radio |
| 6 | C204 |
| 7 | Vehicle Communication Interface Module (VCIM) - Wagon |
| 8 | C408 (Wagon) |
| 9 | Cellular Antenna - Wagon |
| 10 | Vehicle Communication Interface Module (VCIM) - Sedan |
| 11 | C408 (Sedan) |
