Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the VCIM into the bracket.

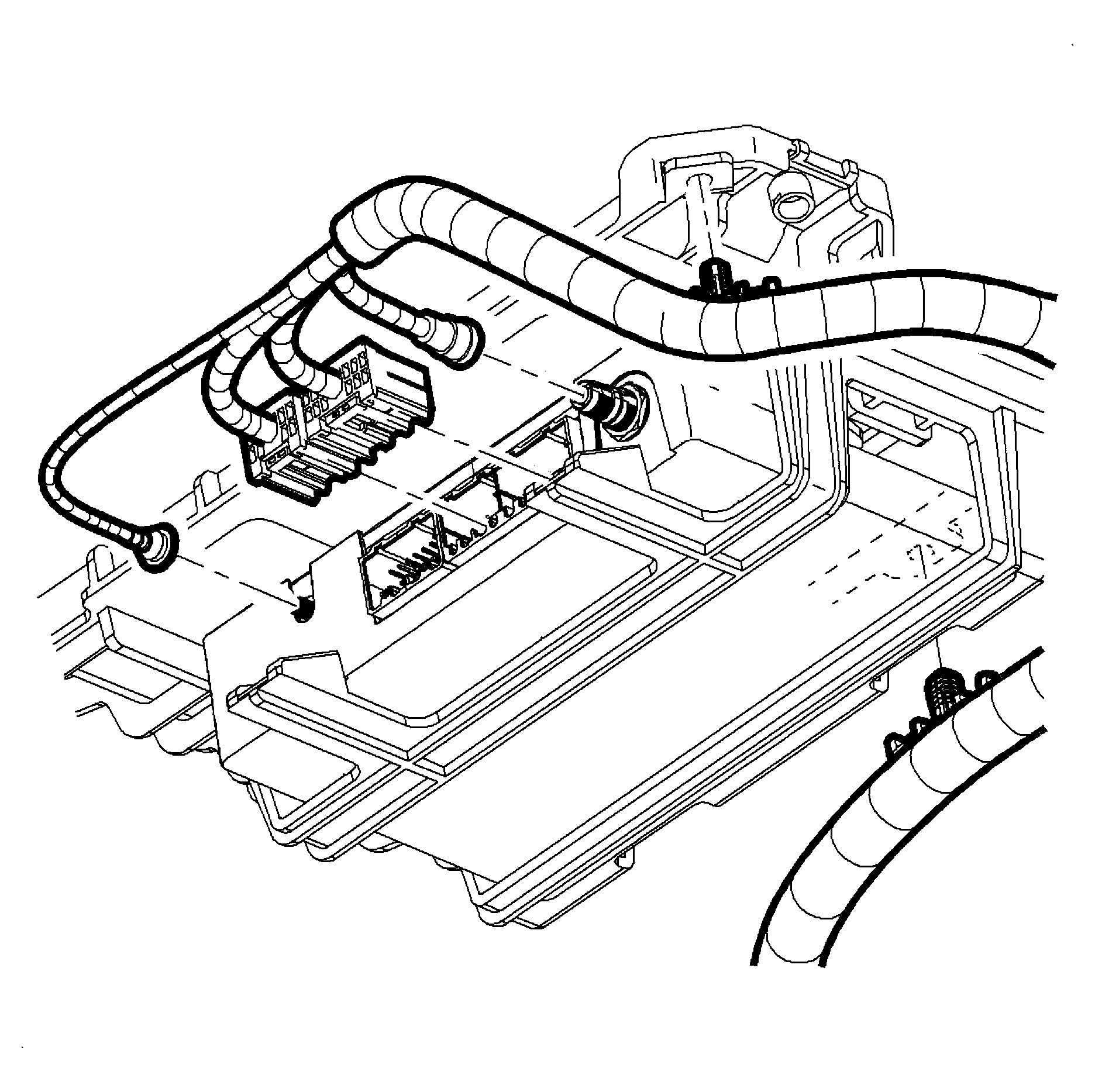

    Fig 1: Installing Vehicle Communication Interface Module - Sedan
    GM892401Courtesy of GENERAL MOTORS CORP.
  2. Connect the GPS antenna coax cable.
  3. Connect the wiring connectors.
  4. Connect the cellular antenna coax cable
    5. IMPORTANT: After replacing the VCIM, you must reconfigure the OnStar® system. Failure to reconfigure the system will result in an additional customer visit for repair. In addition, pressing and holding the white dot button on the keypad will NOT reset this version of the OnStar® system. This action will cause a DTC to set.
  5. Install the scan tool. Use the special functions menu in order to perform the OnStar® setup procedure for this vehicle.
  6. Move the vehicle to an open area that is away from tall buildings and with a clear view of unobstructed sky. Allow the vehicle to run for 10 minutes.
  7. Use the ID information menu on the scan tool to access the new station ID (STID) and the electronic serial number (ESN) for the new VCIM.
  8. Press the blue OnStar® button to connect to the OnStar® Call Center and perform the following procedure:
    1. Tell the advisor that this vehicle has received a new VCIM.
    2. Ask the advisor to add the new STID and the ESN to update the customer account.
    3. Follow any additional instructions from the OnStar® advisor.
    4. Ask the advisor to activate the OnStar® Personal Calling feature, if available.
