Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2004 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
Ambient Light Sensor Connector End View

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN/BK 1137 DRL Ambient Light Sensor Signal
B YE/BK 1138 DRL Ambient Light Low Reference
C BK 476 Low Reference
D L-BU/BK 590 Sunload Sensor Signal
Rear Compartment Lamp Connector End View

GM1282874Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186713
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 RD/BK 744 Rear Compartment Lid Ajar Switch
2 OG 1732 Courtesy Lamps Supply Voltage
Center High Mounted Stop Lamp (CHMSL) Connector End View - Sedan

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-BU 20 Stop Lamp Supply Voltage
B BK 450 Ground
Center High Mounted Stop Lamp (CHMSL) Connector End View - Wagon

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 650 Ground
B L-BU 20 Stop Lamp Supply Voltage
Daytime Running Lamp (DRL) Resistor Connector End View

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15300027
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 545 DRL Supply Voltage
B BK 150 Ground
Dimmer/Rear Compartment Lid Release Switch Connector End View

GM62439Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 1576 Rear Compartment Lid Release Switch
B-C - - Not Used
D OG 2540 Battery Positive Voltage
E GY 8 Instrument Panel Lamp Supply Voltage
F BK 550 Ground
G GY/BK 1381 LCD Dimming Signal
H GY 1359 LCD Backlighting Lamp Control
Door Jamb Switch Connector End View - Driver

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 GY/BK 745 Left Front Door Ajar Switch Signal
Door Jamb Switch Connector End View - Front Passenger

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Door Jamb Switch Connector End View - Left Rear

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Door Jamb Switch Connector End View - Right Rear

GM1341514Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186721
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK/WH 746 Right Front Door Ajar Switch Signal
Dome Lamps Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A WH 156 Courtesy Lamp Low Control
B BK 450 Ground
C OG 1732 Courtesy Lamps Supply Voltage
Fog Lamps Connector End View

GM646148Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020599
  • 2-Way F Metri-Pack-280 Series (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamps Supply Voltage
B BK 150 Ground
I/P Compartment Lamp Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 550 Ground
B OG 1732 Courtesy Lamps Supply Voltage
Hazard Switch Connector End View

GM62464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NA)
Pin Wire Color Circuit No. Function
A BK 550 Ground
B OG 1040 Battery Positive Voltage
C PK 239 Ignition 1 Voltage
D - - Not Used
E GY 8 Instrument Panel Lamps Dimmer Switch Signal
F L-BU 14 Left Turn Signal Lamps Supply Voltage
G D-BU 15 Right Turn Signal Lamps Supply Voltage
H-J - - Not Used
K PU 16 Turn Signal Flasher Signal
Headlamp/Turn Signal Switch Connector End View

GM1283124Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318085
  • 8-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 550 Ground
2 L-BU 14 Left Turn Signal Lamps Supply Voltage
3 GY 691 Headlamp Switch
4 PU 16 Turn Signal Flasher Signal
5 D-BU 1201 Headlamp Low Beam Signal
6 D-BU 15 Right Turn Signal Lamps Supply Voltage
7 PK 1200 Headlamp High Beam Signal
8 L-BU 74 Park Lamp Switch Signal
Headlamp Connector End View - Left High Beam

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336116
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 OG 40 Battery Positive Voltage
2 PK 1200 Headlamp High Beam Signal
Headlamp Connector End View - Right High Beam

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336116
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 OG 140 Battery Positive Voltage
2 PK 1200 Headlamp High Beam Signal
Headlamp Connector End View - Left Low Beam

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336117
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 OG 40 Battery Positive Voltage
2 D-BU 1201 Headlamp Low Beam Signal
Headlamp Connector End View - Right Low Beam

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336117
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 OG 140 Battery Positive Voltage
2 D-BU 1201 Headlamp Low Beam Signal
Left Heated Seat/Fog Lamp Switch Connector End View

GM280767Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186098
  • 8-Way F Metri-Pack 150 Series (L-GY)
Pin Wire Color Circuit No. Function
A PK 1200 Headlamp High Beam Ground
B BN 9 Park Lamp Supply Voltage
C YE 317 Fog Lamp Relay Control Circuit
D GY 8 Instrument Panel Lamp Supply Voltage
E BK 550 Ground
F PK 1501 Driver Heated Seat High/Low Signal
G YE 182 Heated Seat Control Module Inhibit Signal
H BN 641 Ignition 3 Voltage
License Lamps Connector End View - Sedan

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 9 Park Lamp Supply Voltage
B BK 650 Ground

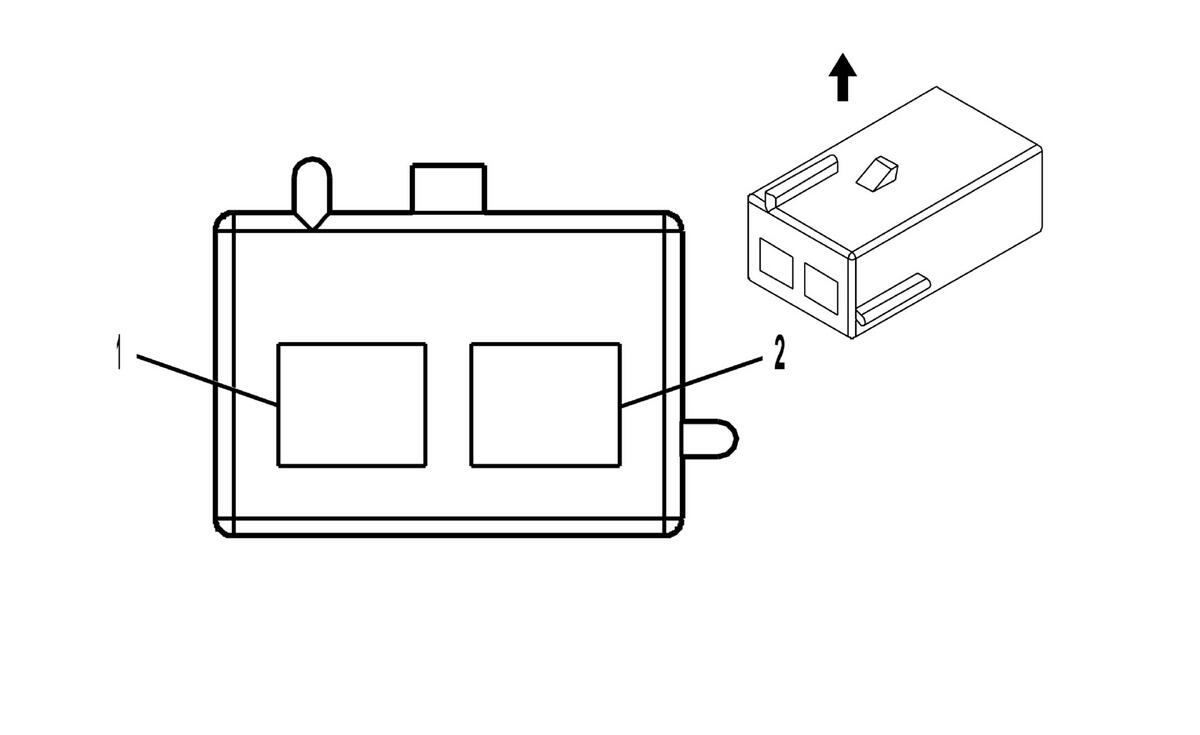

License Lamps Connector End View - Wagon

GM1283895Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15318080
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp Supply Voltage
2 BK 650 Ground
Park/Turn Signal Lamp Connector End View - Left Front

GM1341453Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186704
  • 3-Way F (GY)
Pin Wire Color Circuit No. Function
A BK 150 Ground
B BN 9 Park Lamp Supply Voltage
C L-BU 14 Left Turn Signal Lamps Supply Voltage
Park/Turn Signal Lamp Connector End View - Right Front

GM1341453Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186704
  • 3-Way F (GY)
Pin Wire Color Circuit No. Function
A BK 150 Ground
B BN 9 Park Lamp Supply Voltage
C D-BU 15 Right Turn Signal Lamps Supply Voltage
Marker Lamp Connector End View - Left Front

GM1341452Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186706
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp Supply Voltage
2 BK 150 Ground
Marker Lamp Connector End View - Right Front

GM1341452Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186706
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp Supply Voltage
2 BK 150 Ground
Stop Lamp Switch Connector End View

GM1341509Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317343
  • 4-Way F (BK)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 L-BU 20 Stop Lamp Switch Signal
4 OG 540 Battery Positive Voltage
Tail Lamp Assembly Connector End View - Left (Sedan)

GM1341479Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186717
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 L-GN 24 Backup Lamp Supply Voltage
2 L-BU 14 Left Turn Signal Lamps Supply Voltage
3 BK 650 Ground
4 L-BU 20 Stop Lamp Supply Voltage
5 BN 9 Park Lamp Supply Voltage
6 BK 650 Ground
Tail Lamp Assembly Connector End View - Left (Wagon)

GM1341479Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186717
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BN 9 Park Lamp Supply Voltage
3 BK 650 Ground
4 L-BU 14 Left Turn Signal Lamps Supply Voltage
5 L-GN 24 Backup Lamp Supply Voltage
6 L-BU 20 Stop Lamp Supply Voltage
Tail Lamp Assembly Connector End View - Right (Sedan)

GM1341479Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186717
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 650 Ground
2 L-BU 20 Stop Lamp
3 BN 9 Park Lamp
4 BK 650 Ground
5 D-BU 15 Turn Lamp
6 L-GN 24 Back-up Lamp
Tail Lamp Assembly Connector End View - Right (Wagon)

GM1341479Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186717
  • 6-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 9 Park Lamp
2 L-GN 24 Back-up Lamp
3 D-BU 15 Turn Lamp
4 BK 650 Ground
5 L-BU 20 Stop Lamp
6 - - Not Used
Vanity Lamps Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage
B BK 450 Ground
