Memory Positioning Module

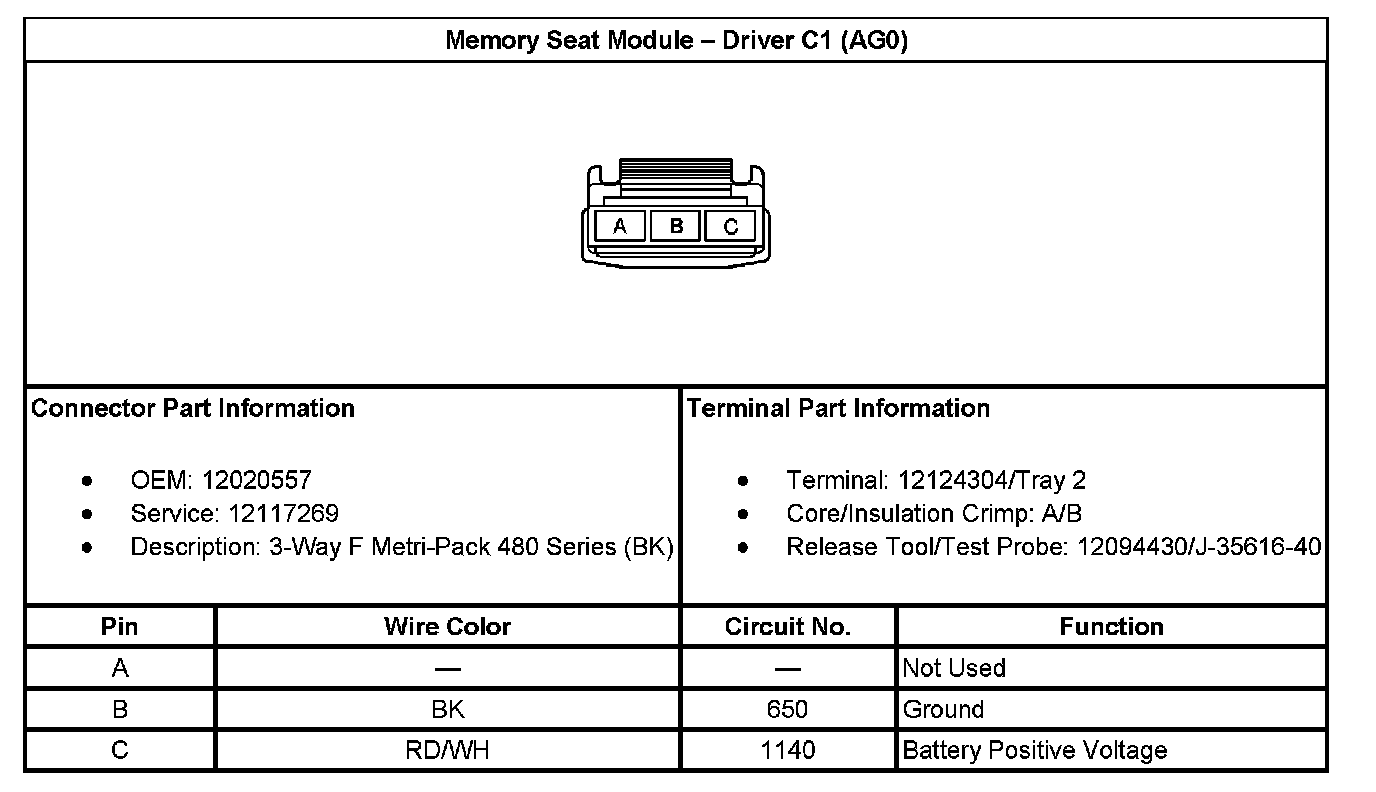

Memory Seat Module - Driver C1 (AG0):

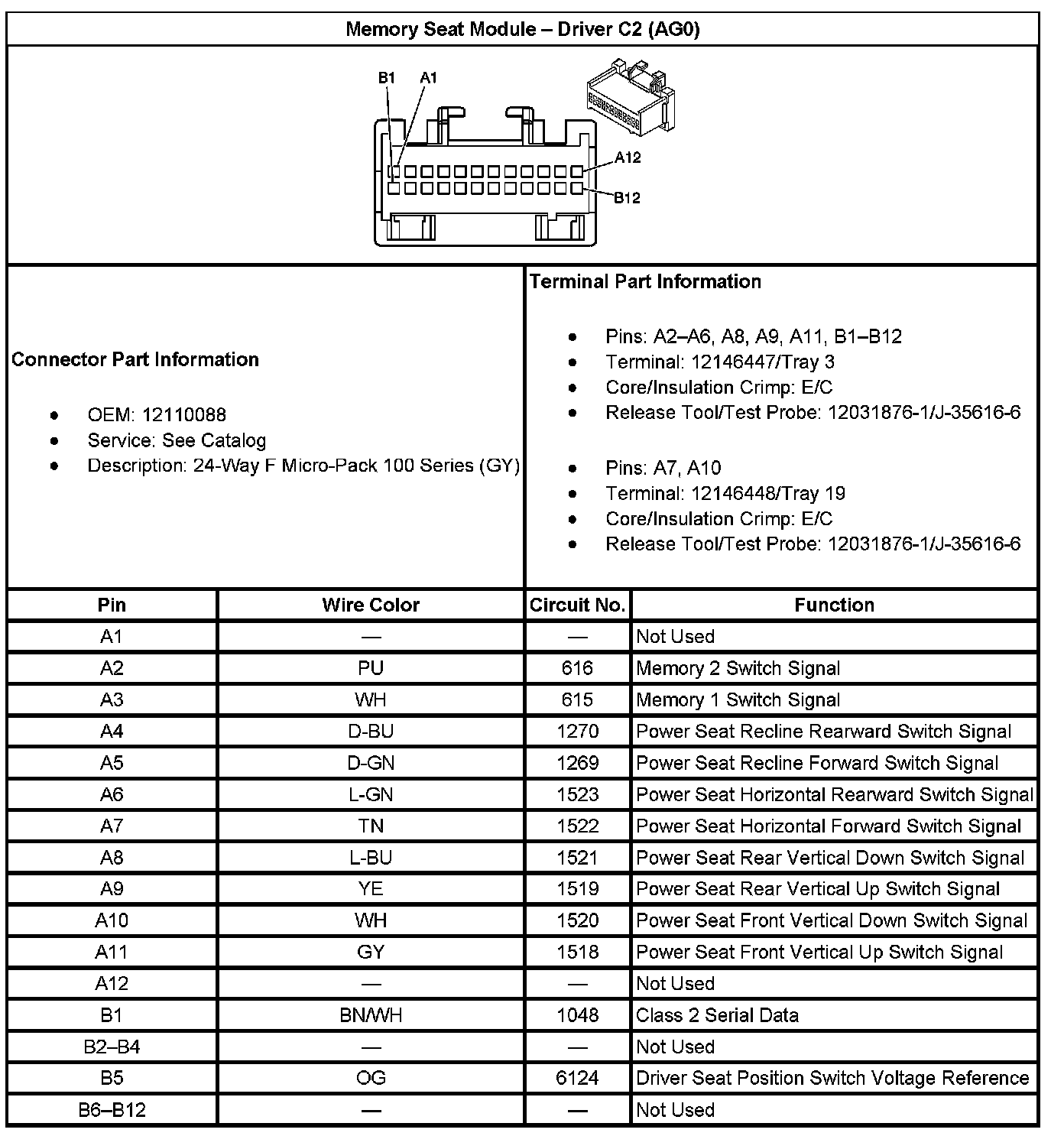

Memory Seat Module - Driver C2 (AG0):

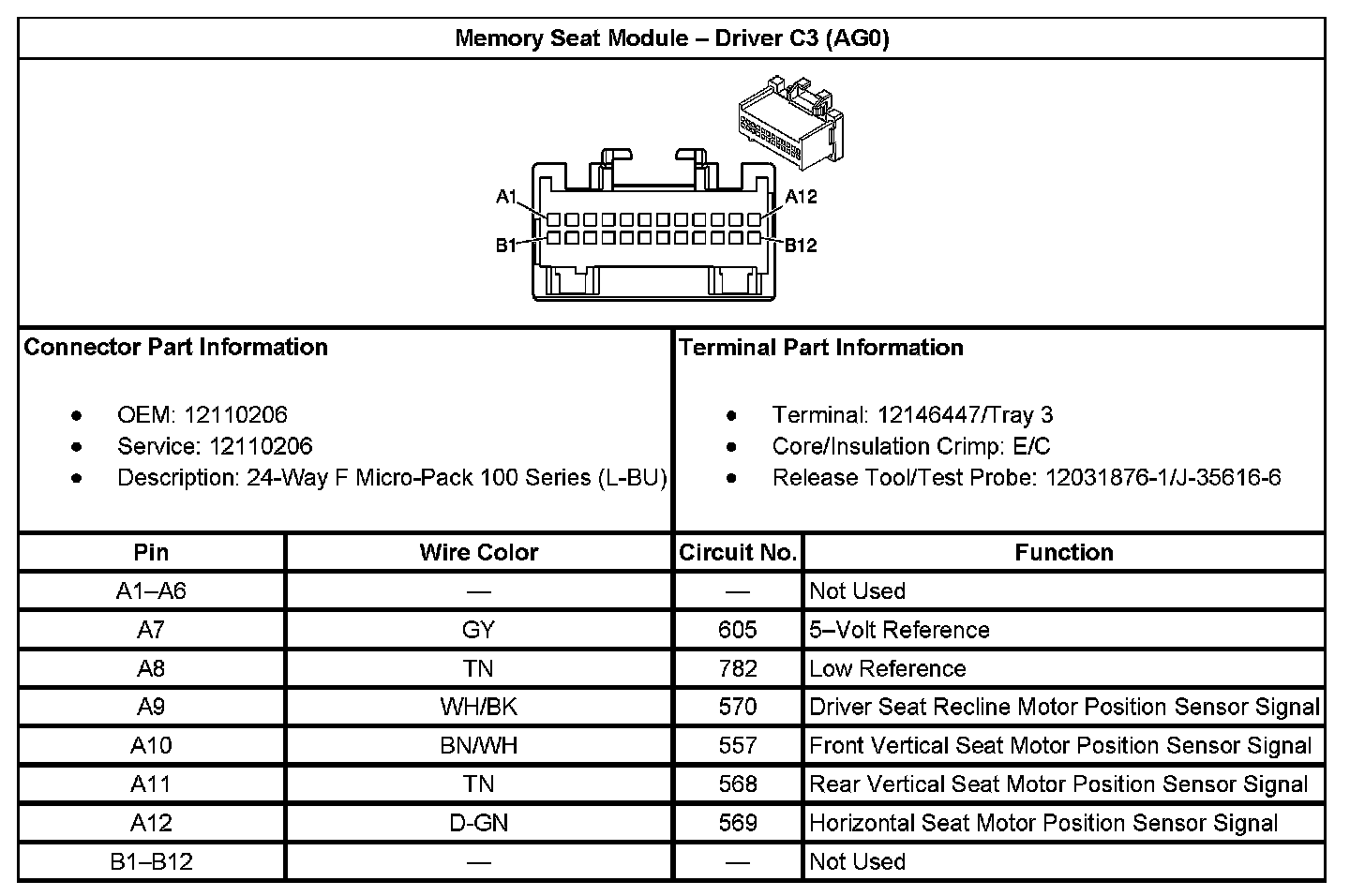

Memory Seat Module - Driver C3 (AG0):

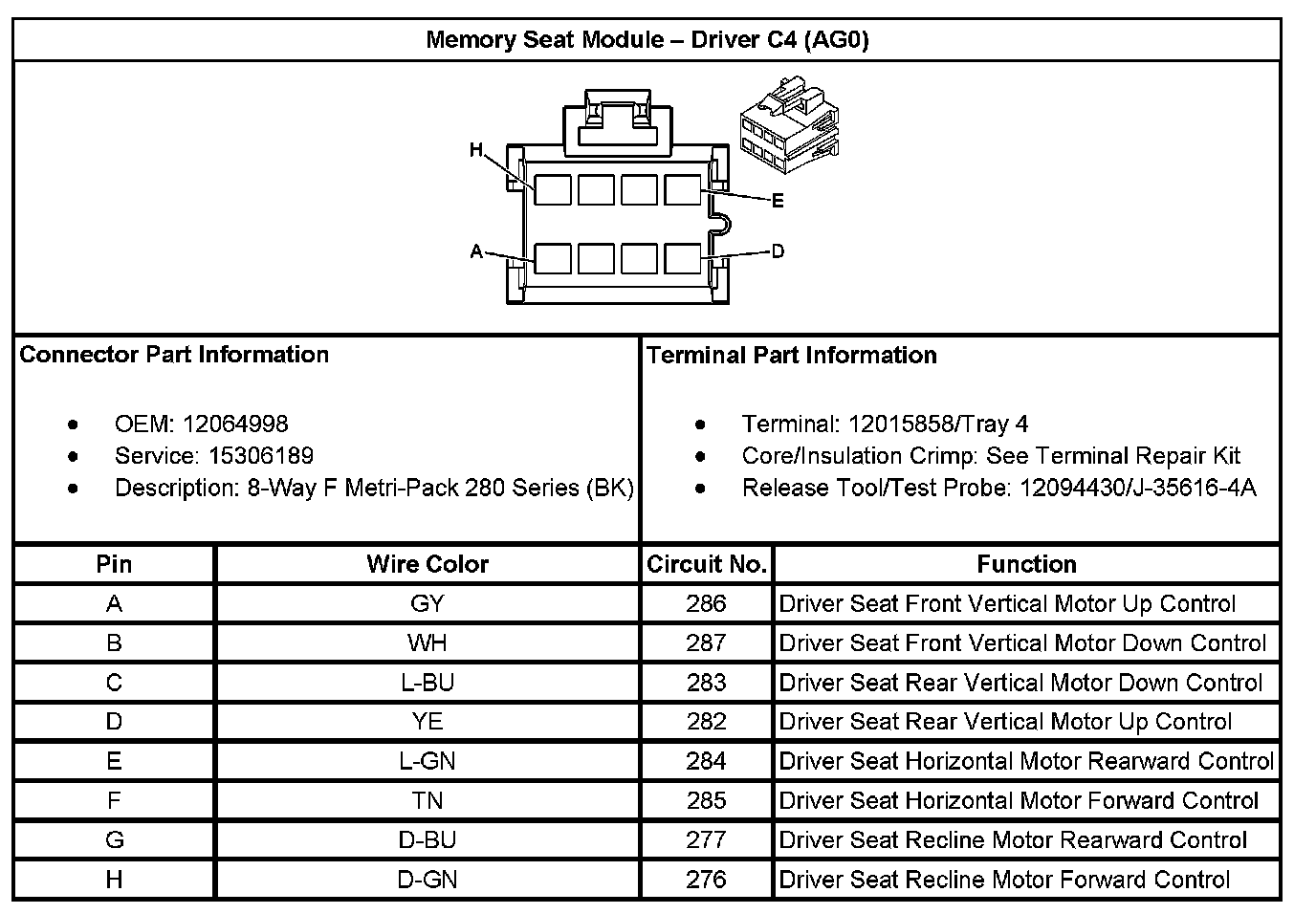

Memory Seat Module - Driver C4 (AG0):
