Installation Procedure

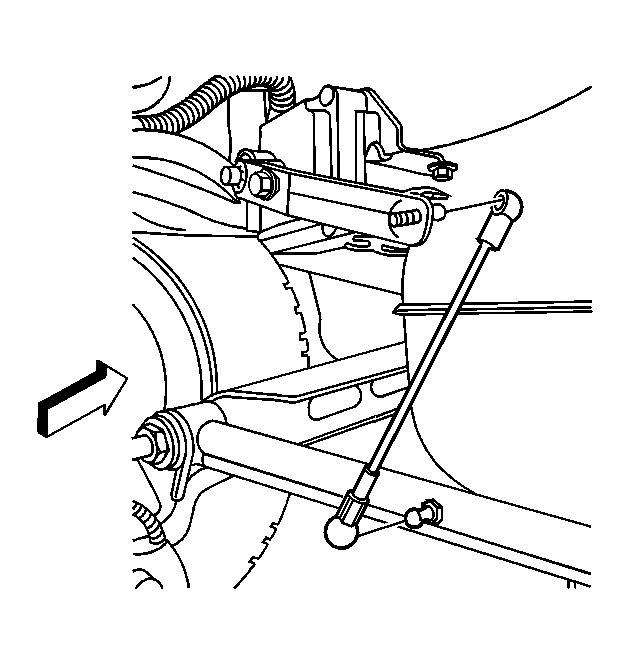

    Fig 1: Automatic Level Control Sensor Link
    GM380526Courtesy of GENERAL MOTORS CORP.
  1. Install the automatic level control sensor link to the rear suspension ball stud
  2. Install the automatic level control sensor link to the sensor arm ball stud.
  3. Lower the vehicle.
  4. Install the ELC/TRAILER fuse.
