Cellular Communication Component Views
WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

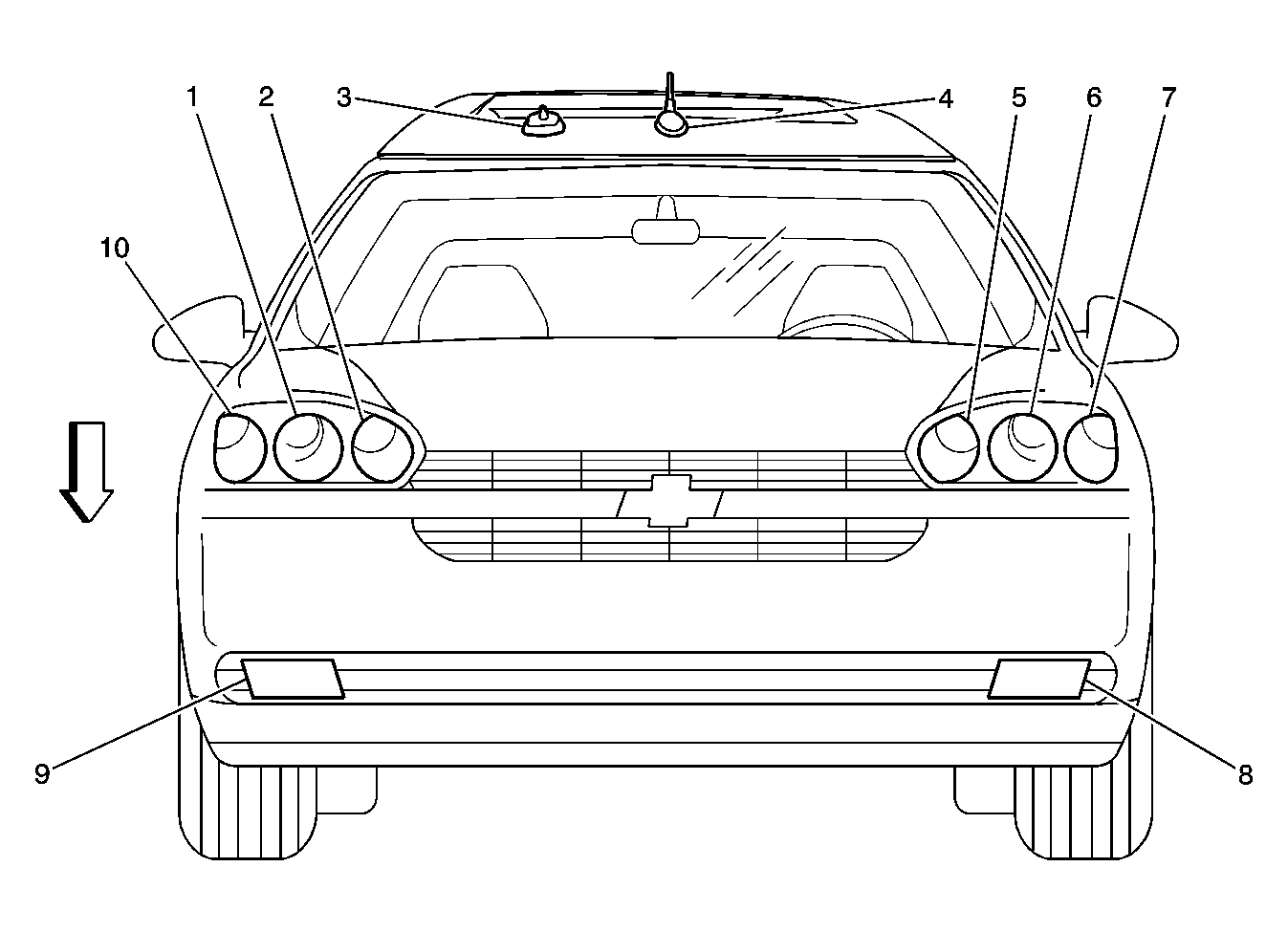

| Callout | Component Name |
|---|---|
| 1 | Headlamp - Low Beam - Right |
| 2 | Headlamp - High Beam - Right |
| 3 | Digital Radio Antenna (U2K) |
| 4 | Cellular and Navigation Antenna (UE1) |
| 5 | Headlamp - High Beam - Left |
| 6 | Headlamp - Low Beam - Left |
| 7 | Park/Turn Signal/DRL Lamp - LF |
| 8 | Fog Lamp - LF (T96) |
| 9 | Fog Lamp - RF (T96) |
| 10 | Park/Turn Signal/DRL Lamp - RF |
| Callout | Component Name |
|---|---|
| 1 | Courtesy/Reading Lamps - Front, Left Reading |
| 2 | Cellular Telephone Microphone (UE1) |
| 3 | Sunroof Switch (CF5) |
| 4 | Garage Door Opener Transmitter (UG1) |
| 5 | Courtesy/Reading Lamps - Front, Right Reading |
| 6 | Dome/Reading Lamp |
| 7 | Sunroof (CF5) |
| 8 | Vanity Mirror Lamp - Right |
| 9 | Inside Rearview Mirror |
| 10 | OnStar Keypad (UE1) |
| 11 | Vanity Mirror Lamp - Left |

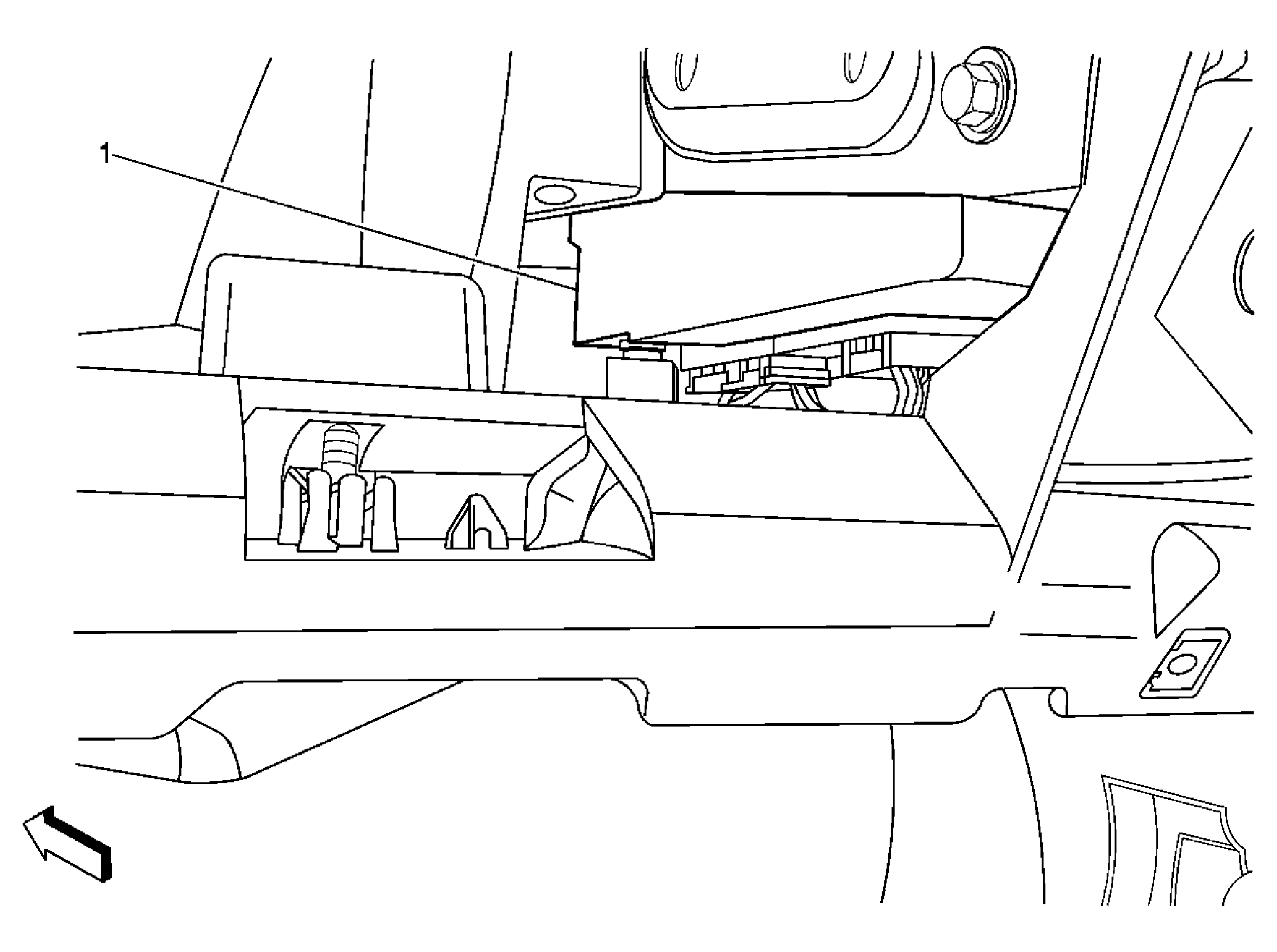

| Callout | Component Name |
|---|---|
| 1 | Vehicle Communication Interface Module (VCIM)(UE1) |
