Horns Component Views
WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Windshield Washer Fluid Level Switch |
| 2 |
Windshield Washer Fluid Pump |
| 3 |
Horn Assembly |

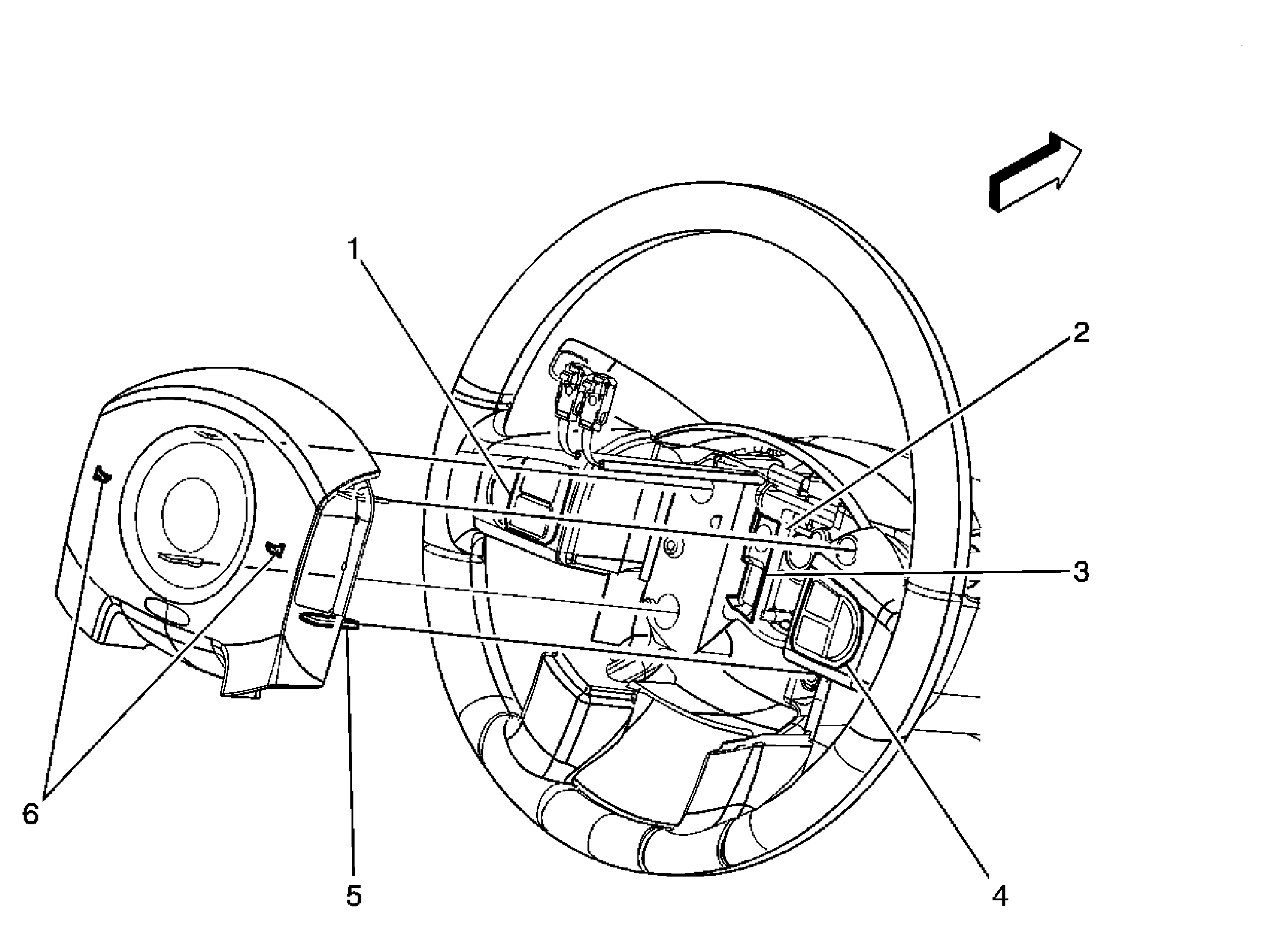

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Steering Wheel Controls - Left |
| 2 |
G216 |
| 3 |
Horn Switch |
| 4 |
Steering Wheel Controls - Right |
| 5 |
Inflatable Restraint Steering Wheel Module |
| 6 |
Horn Buttons |
