Entertainment/Communication Component Views
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

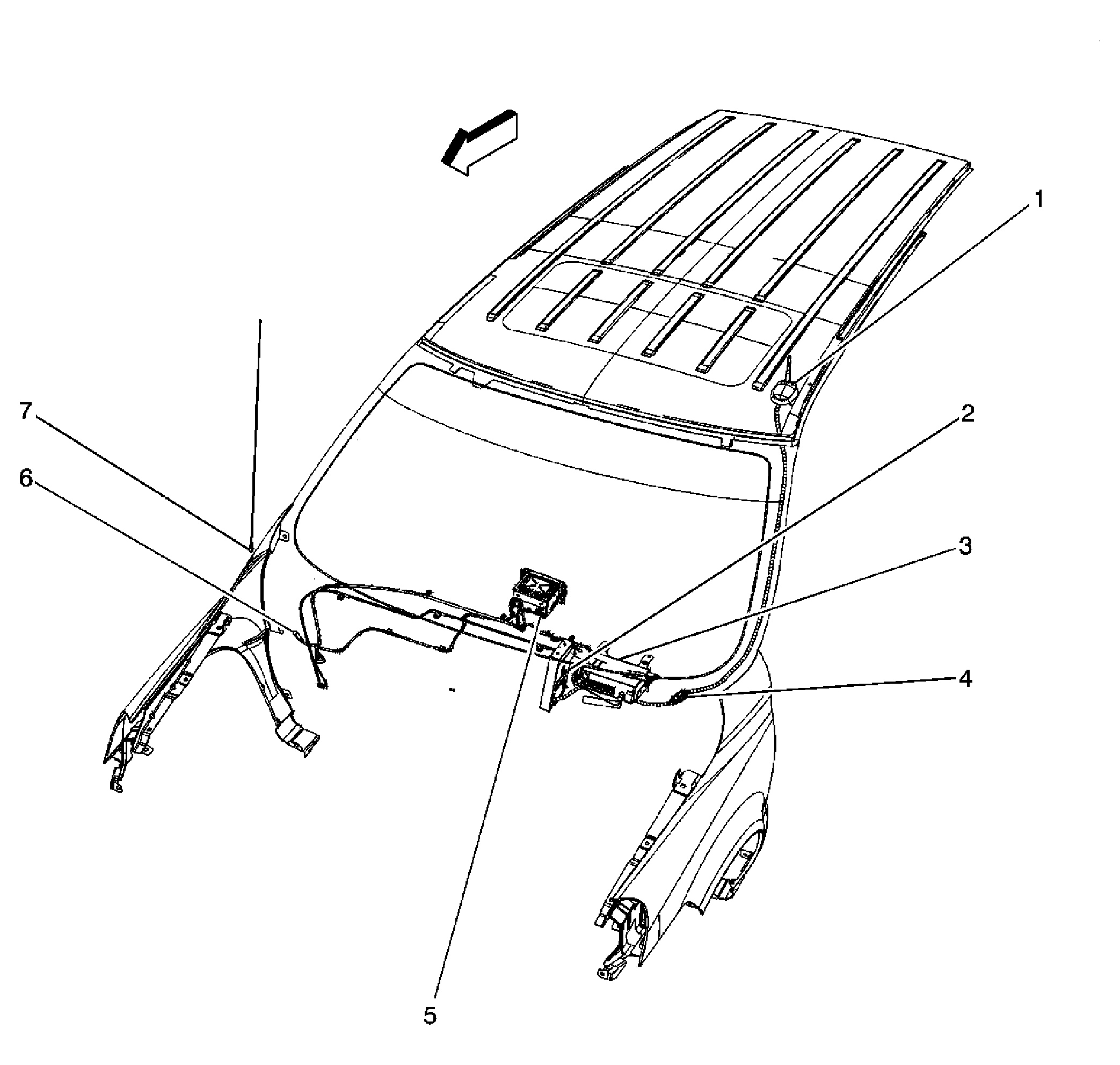

| Callout | Component Name |
|---|---|
| 1 | Digital Radio Antenna (U2K) |
| 2 | Cellular and Navigational Antenna (UE1) |
| 3 | Digital Radio Receiver (U2K) |
| 4 | Vehicle Communication Unit (VCU) (UE1) |
| 5 | Radio |
| 6 | C300 Digital Radio Antenna Coax Connector (U2K) |
| 7 | C304 Cellular and Navigation Antenna Coax Connector (UE1) |
| 8 | C298 Radio Antenna Coax Connector |
| 9 | Radio Antenna |

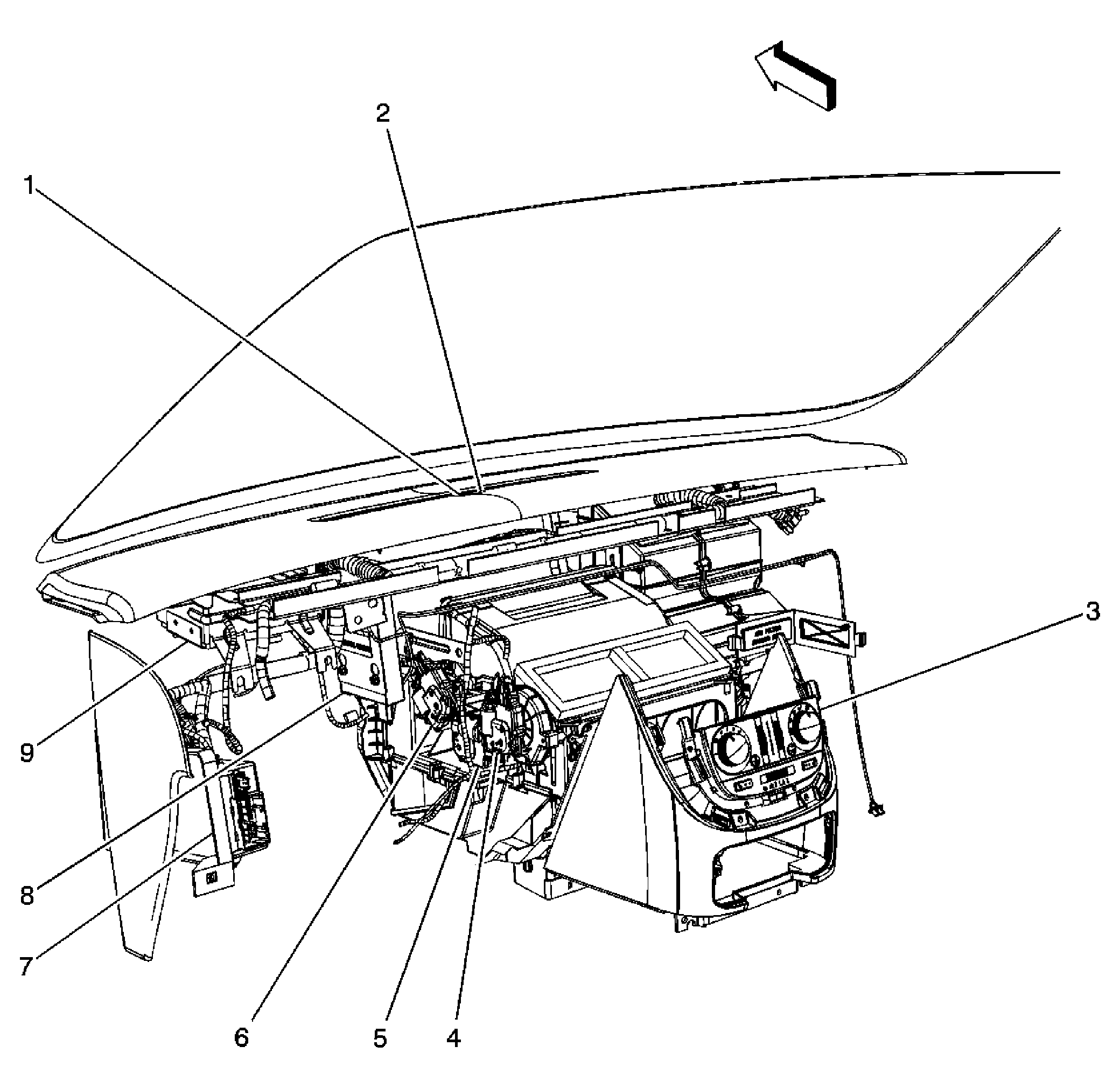

| Callout | Component Name |
|---|---|
| 1 | Theft Light Emitted Diode (LED) (UA6) |
| 2 | Ambient Light Sensor |
| 3 | HVAC Control Module |
| 4 | Vent and Floor Actuator |
| 5 | Air Temperature Actuator (C60) or Air Temperature Actuator - Left (CJ3) |
| 6 | Defrost Actuator |
| 7 | Body Control Module (BCM) |
| 8 | Digital Radio Receiver (U2K) |
| 9 | Vehicle Communication Unit (VCU) (UE1) |

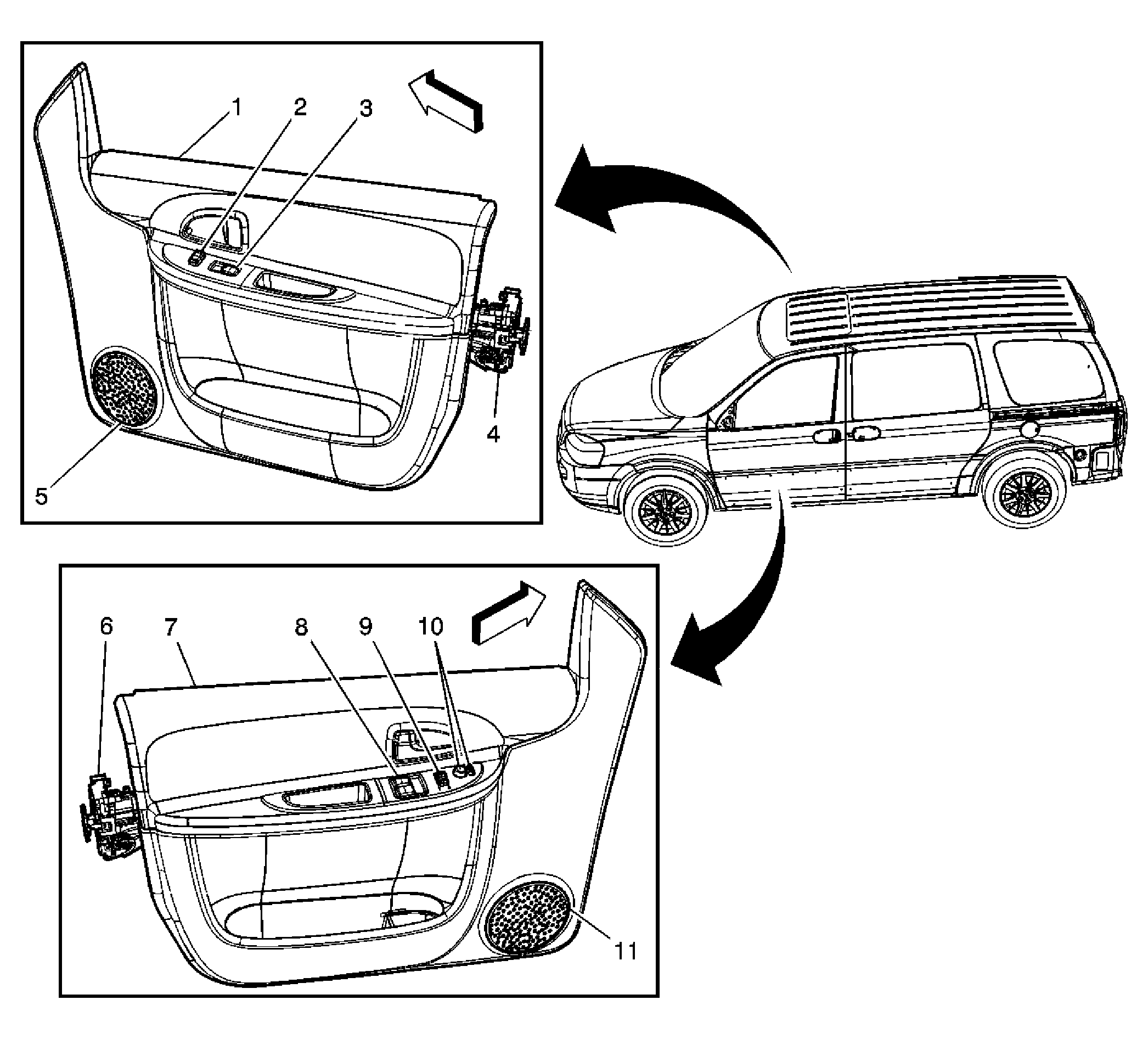

| Callout | Component Name |
|---|---|
| 1 | Passenger Door Trim Panel |
| 2 | Door Lock Switch - Passenger |
| 3 | Window Switch - Passenger |
| 4 | Door Latch Assembly - Passenger |
| 5 | Speaker - RF |
| 6 | Door Latch Assembly - Driver |
| 7 | Driver Door Trim Panel |
| 8 | Window Switch - Driver |
| 9 | Door Lock Switch - Driver |
| 10 | Outside Rearview Mirror Switch |
| 11 | Speaker - LF |

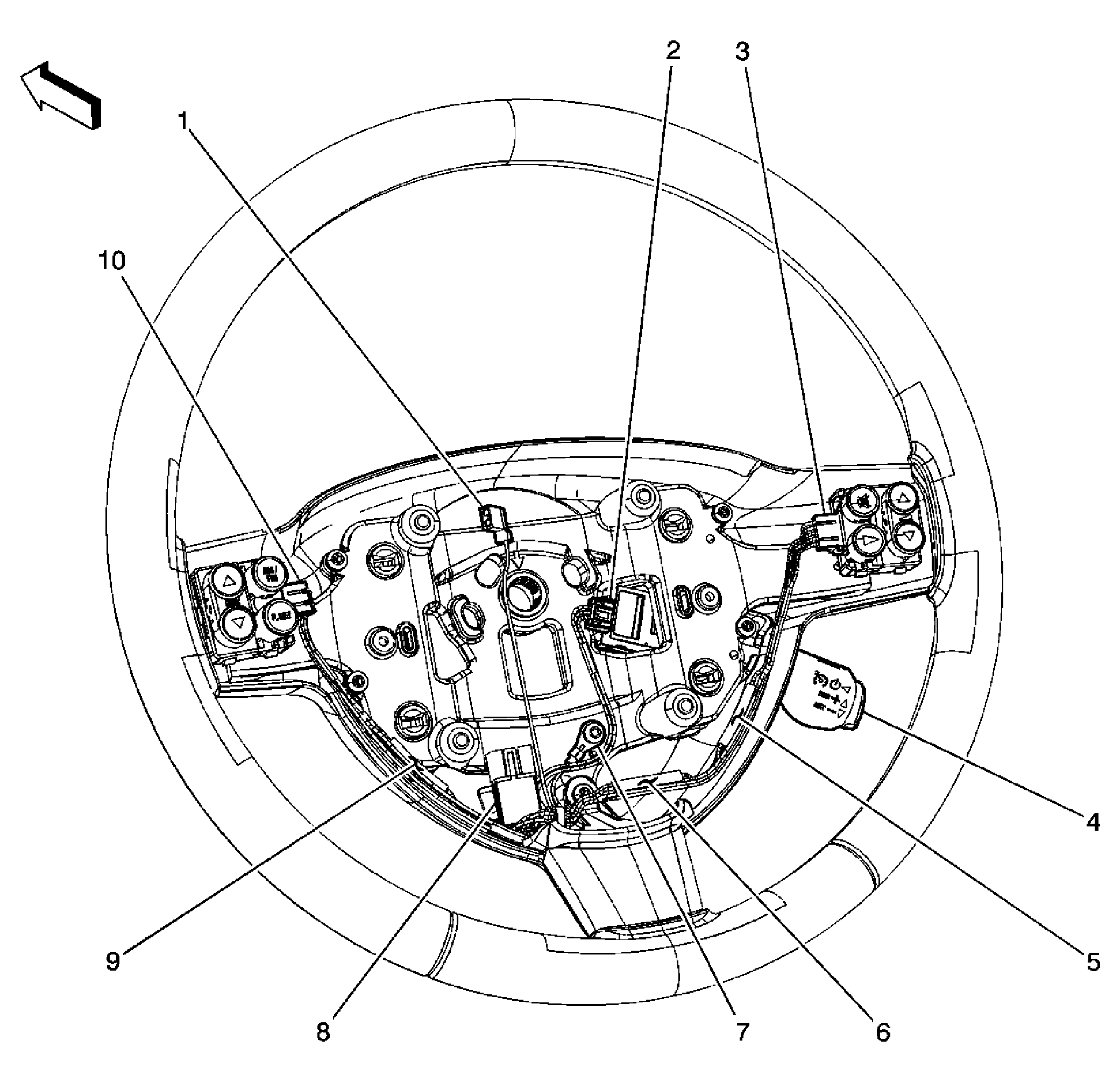

| Callout | Component Name |
|---|---|
| 1 | Horn Switch Connector |
| 2 | Cruise Control Lever Connector (K34) |
| 3 | Steering Wheel Control Switch Assembly - Right (UK3) |
| 4 | Cruise Control Lever (K34) |
| 5 | S293 (UK3) |
| 6 | S297 (UK3) |
| 7 | Steering Wheel Ground |
| 8 | C279 Inflatable Restraint Steering Wheel Module Coil to Steering Wheel Harness |
| 9 | S295 (UK3) |
| 10 | Steering Wheel Control Switch Assembly - Left (UK3) |
| Callout | Component Name |
|---|---|
| 1 | Courtesy/Reading Lamp - Front |
| 2 | Multifunction Switch - Overhead Console |
| 3 | Courtesy/Reading Lamp - Front |
| 4 | OnStar Button Assembly (UE1) |
| 5 | Garage Door Opener (UG1) |
| 6 | Garage Door Opener Buttons (UG1) |
| 7 | Vanity Mirror Lamp - Right (DH6) |
| 8 | Multifunction Switch Overhead Console |
| 9 | Vanity Mirror Lamp - Left (DH6) |
| 10 | Cellular Microphone (UE1) |

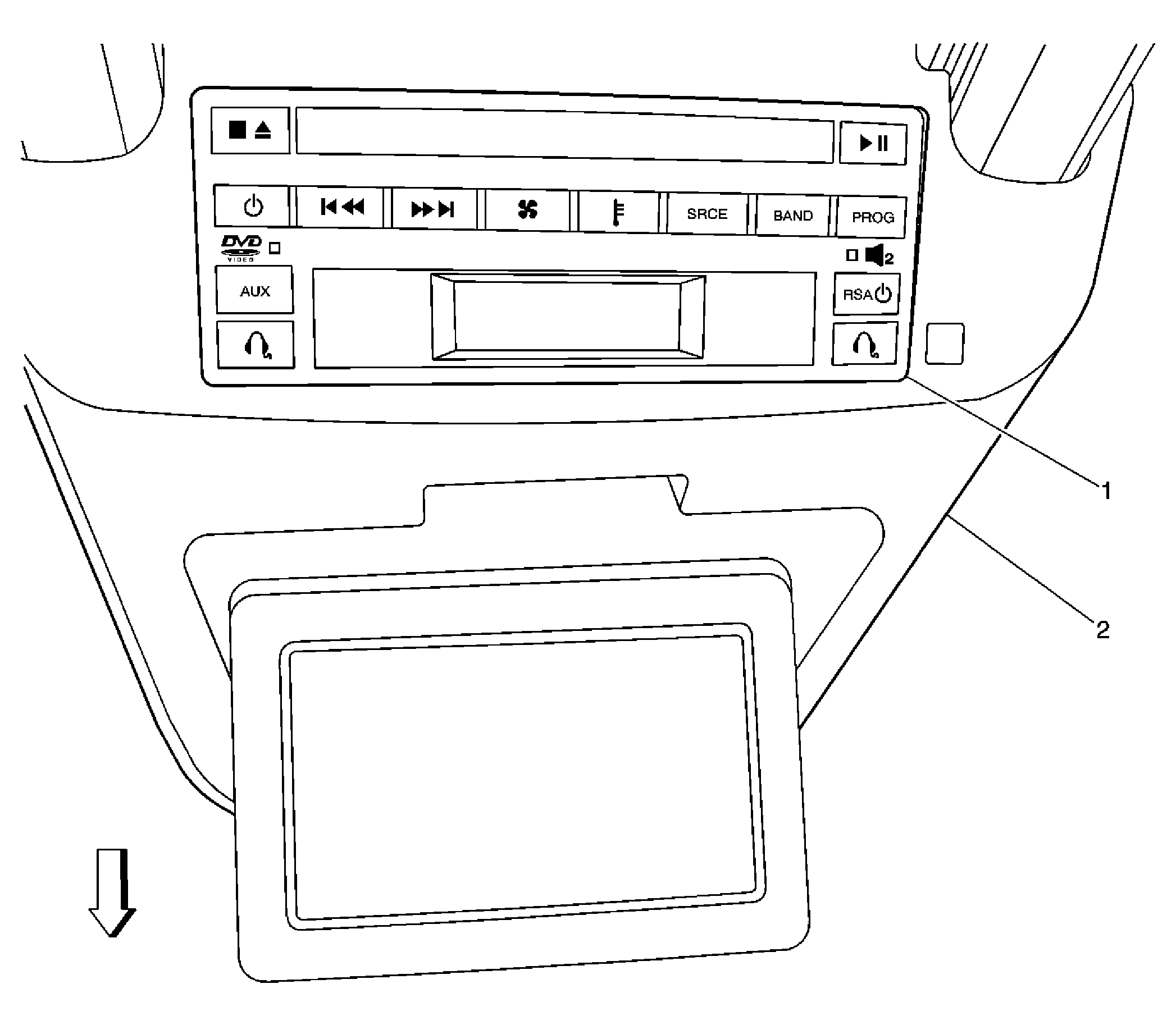

| Callout | Component Name |
|---|---|
| 1 | Digital Video Disc (DVD) Player (U42 or U56) |
| 2 | Overhead Console |
| Callout | Component Name |
|---|---|
| 1 | Blower Motor - Auxiliary (C69) |
| 2 | Blower Motor Control Module - Auxiliary (C69) |
| 3 | Speaker - Rear Tweeter - Left |
| 4 | Mode Actuator - Auxiliary (C69) |
| 5 | Sliding Door Jamb Switch - Left (E59) |
| 6 | Air Temperature Actuator - Auxiliary (C69) |
| 7 | Auxiliary Power Outlet - Rear |
| 8 | G401 |
| 9 | Rear Quarter Window Actuator - Left (A20) |
| Callout | Component Name |
|---|---|
| 1 | Speaker - Rear Tweeter - Right |
| 2 | Accessory AC/DC Power Control Module (KC7) |
| 3 | C420 Rear Parking Assist Display Jumper Harness to Body Harness (UD7) |
| 4 | Rear Quarter Window Actuator - Right (A20) |
| 5 | C402 and C400 Liftgate Harness to Body Harness |
| 6 | Rear Parking Assist (RPA) Display (UD7) |
| 7 | G400 |
| 8 | Auxiliary Power Outlet - 115VAC (KC7) |
| 9 | Sliding Door Jamb Switch - Right |
| 10 | Rear Object Sensor Control Module (UD7) |
| 11 | Rear Parking Assist (RPA) Diagnostic Connector (UD7) |
| Callout | Component Name |
|---|---|
| 1 | Rear Window Wiper Motor |
| 2 | Speakers - LR/RR |
| 3 | Door Jamb Switch - Liftgate |
| 4 | Door Lock Actuator - Liftgate |
| 5 | Liftgate Latch Assembly |
