ABS Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

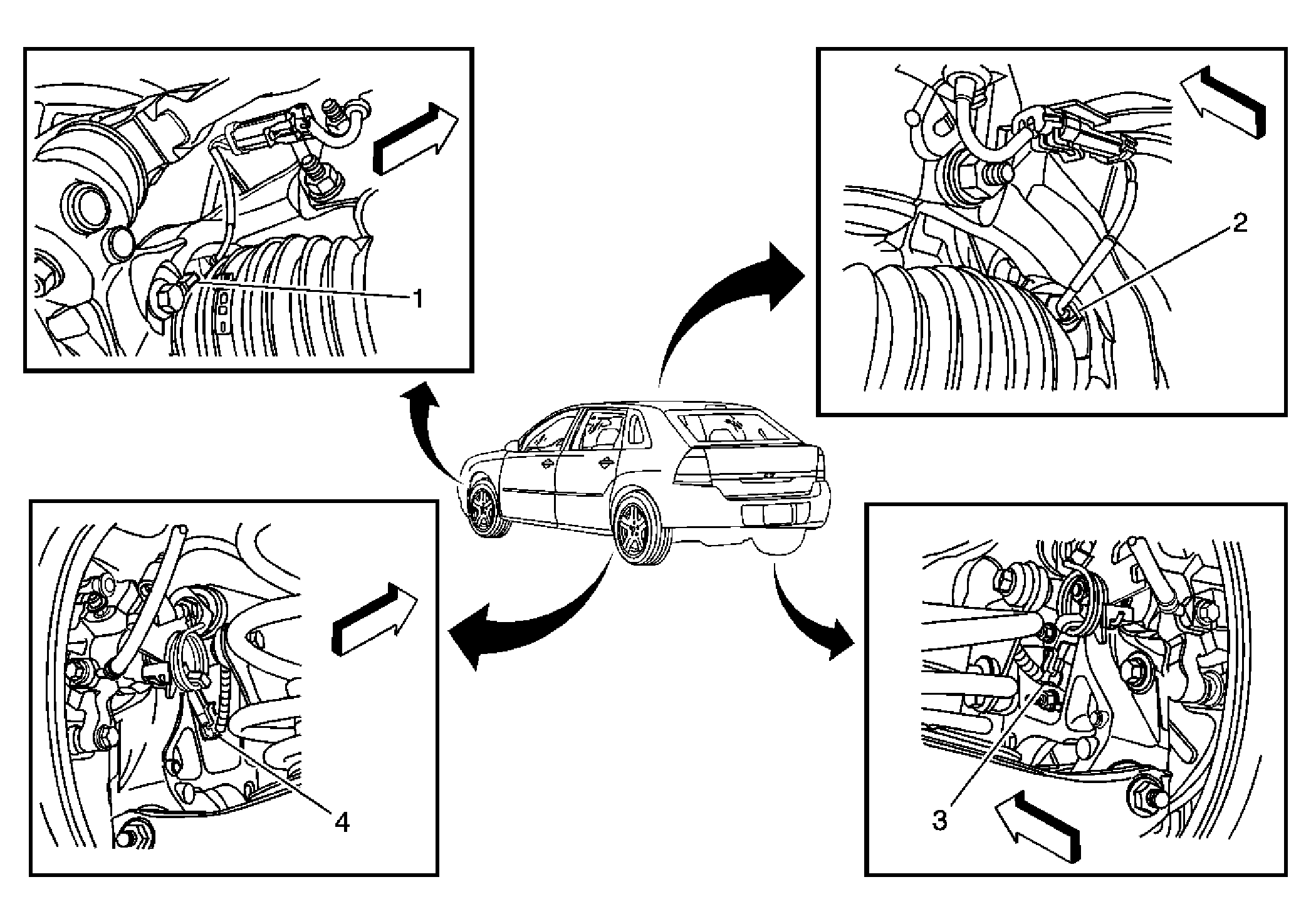

Fig 1: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - LF
2	Wheel Speed Sensor (WSS) - RF
3	Wheel Speed Sensor (WSS) - RR
4	Wheel Speed Sensor (WSS) - LR

Fig 2: Power and Grounding Component Views - Left Rear of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	Battery
3	Electronic Brake Control Module (EBCM)
4	C101
5	G103
6	Fuse Block - Underhood
7	Powertrain Control Module (PCM)
8	Powertrain Control Module (PCM), C3
9	Powertrain Control Module (PCM), C2
10	Powertrain Control Module (PCM), C1

Fig 3: Left Front of Floor Console Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C214
2	Cigar Lighter
3	Traction Control Switch or Auxiliary Power Outlet - Front, w/o NW7, NW9
