29. Input and Output Speed Sensor Assembly Installation



Input and Output Speed Sensor Assembly Installation





Notice: Refer to Fastener Notice in Service Precautions.

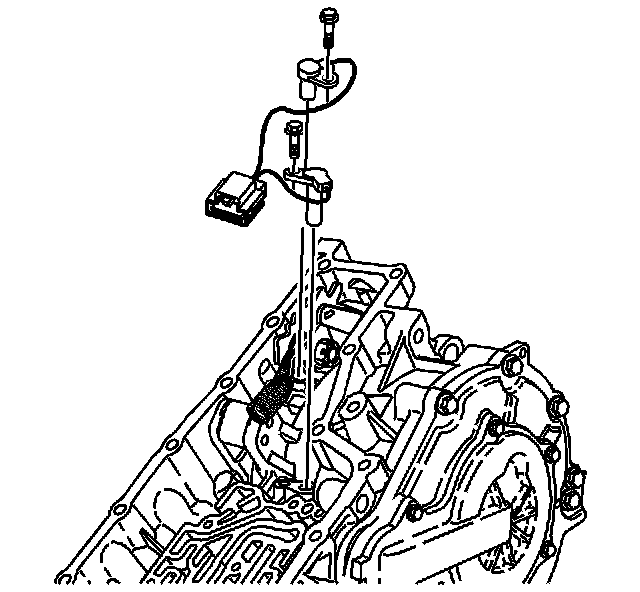

Install the input and output speed sensor assembly and the 2 bolts on the transmission case assembly.
^ Tighten the bolts to 11 Nm (8 ft. lbs.).
