Removal Procedure

  1. Position the front seats rearward.
  2. Reach under the front seats to access the lower console screws.
  3. Remove the console screws.
    Fig 1: Locating Console Screws
    GM1152195Courtesy of GENERAL MOTORS CORP.
  4. Remove the cup holder liner.
  5. Remove the cup holder screw.
    Fig 2: Removing/Installing Cup Holder Liner
    GM1171184Courtesy of GENERAL MOTORS CORP.
  6. Lift the rear of the center floor console.
  7. Disconnect the electrical connector to the auxiliary power outlet.
    Fig 3: View Of Auxiliary Power Outlet Electrical Connector
    GM1194731Courtesy of GENERAL MOTORS CORP.
  8. Slide the center floor console rearward.
  9. Remove the center trim panel by pulling outward.

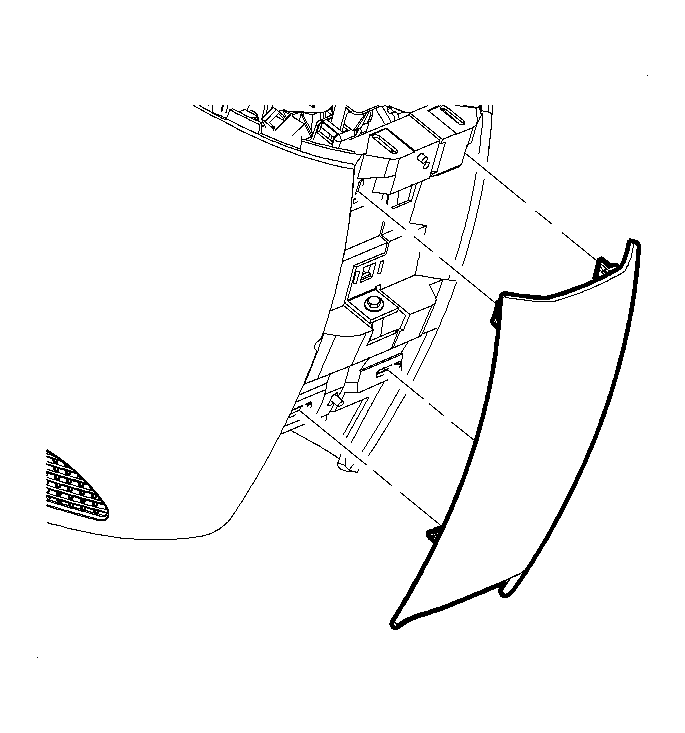

    Fig 4: Removing/Installing Center Trim Plate
    GM939681Courtesy of GENERAL MOTORS CORP.
  10. Remove the center trim bezel from the console. Refer to Trim Bezel Replacement - Center .
  11. Remove the screws from the steering column filler panel.
    Fig 5: View Of Knee Bolster (Filler Panel) & Screws
    GM939650Courtesy of GENERAL MOTORS CORP.
  12. Remove the filler panel by pulling outward.
  13. Remove the screws from the left console trim panel.

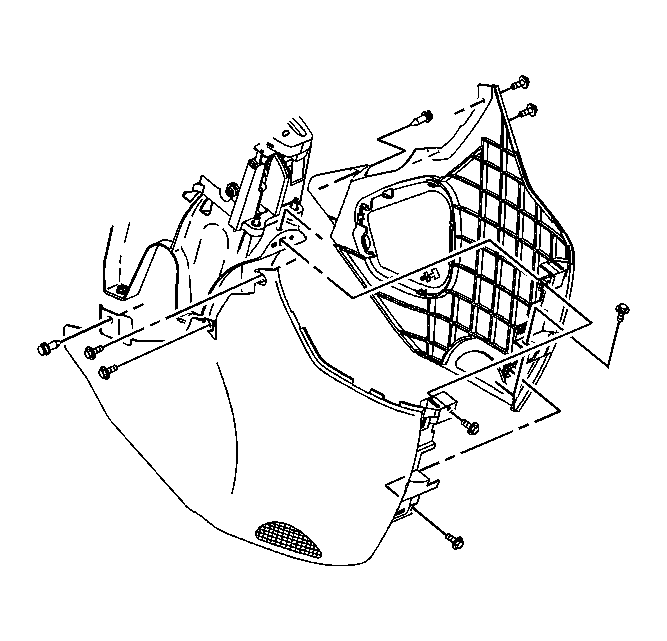

    Fig 6: Removing/Installing Front Console Trim Panels
    GM1152095Courtesy of GENERAL MOTORS CORP.
  14. Remove the push-in fastener from the trim panel.
  15. Remove the trim panel from the vehicle.
