Part 1

Thread Repair Specifications

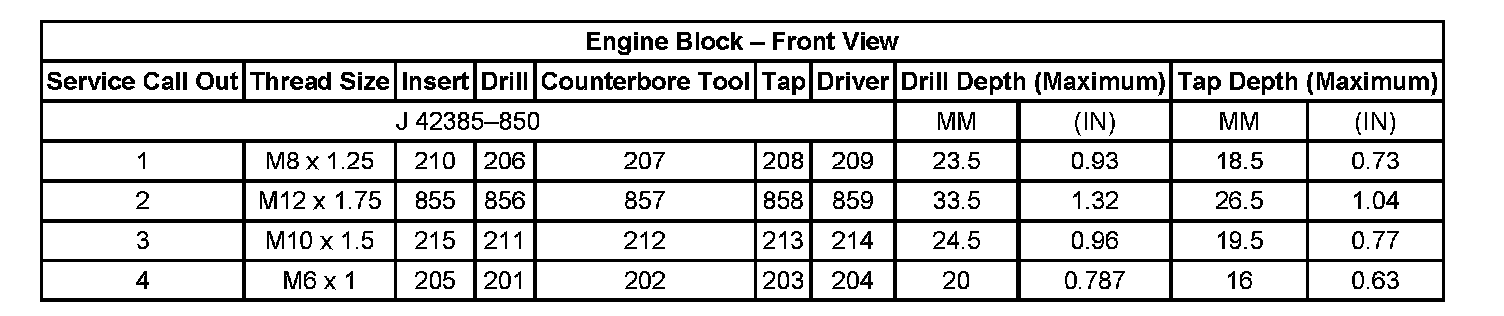

Engine Block - Front View:

Engine Block - Front View:

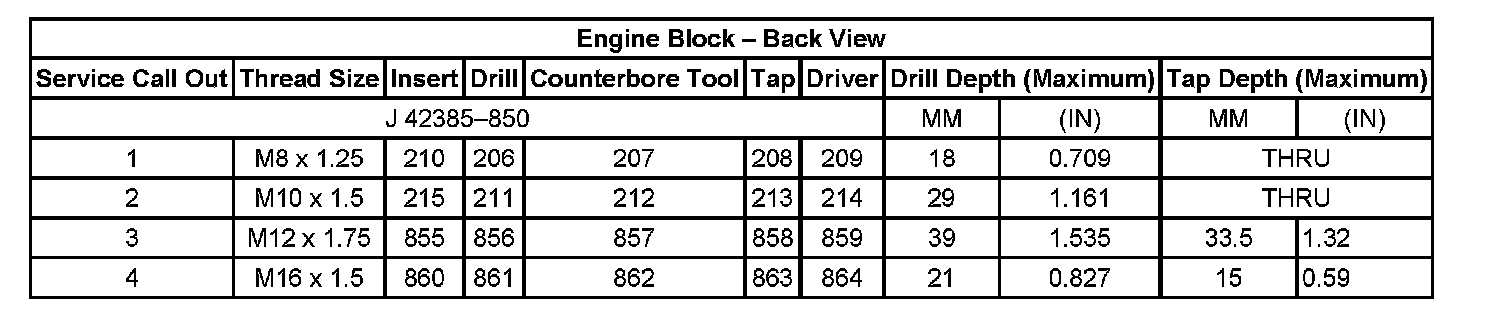

Engine Block - Back View:

Engine Block - Back View:

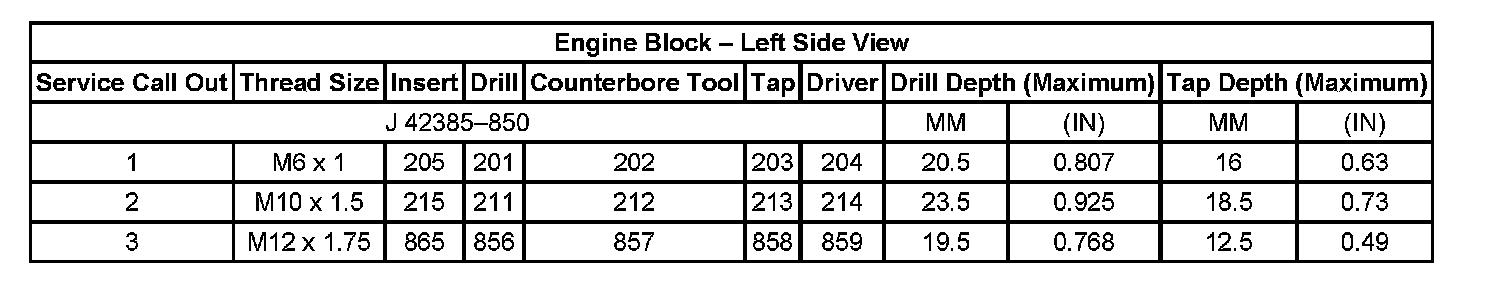

Engine Block - Left Side View:

Engine Block - Left Side View:

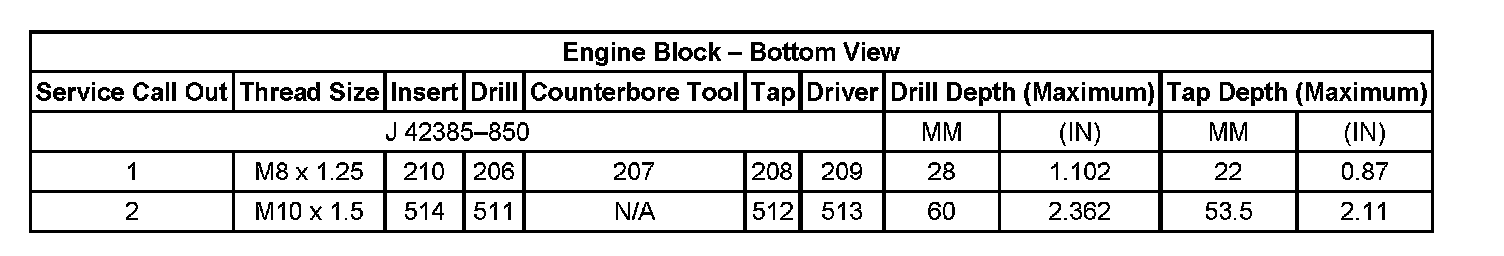

Engine Block - Bottom View:

Engine Block - Bottom View:

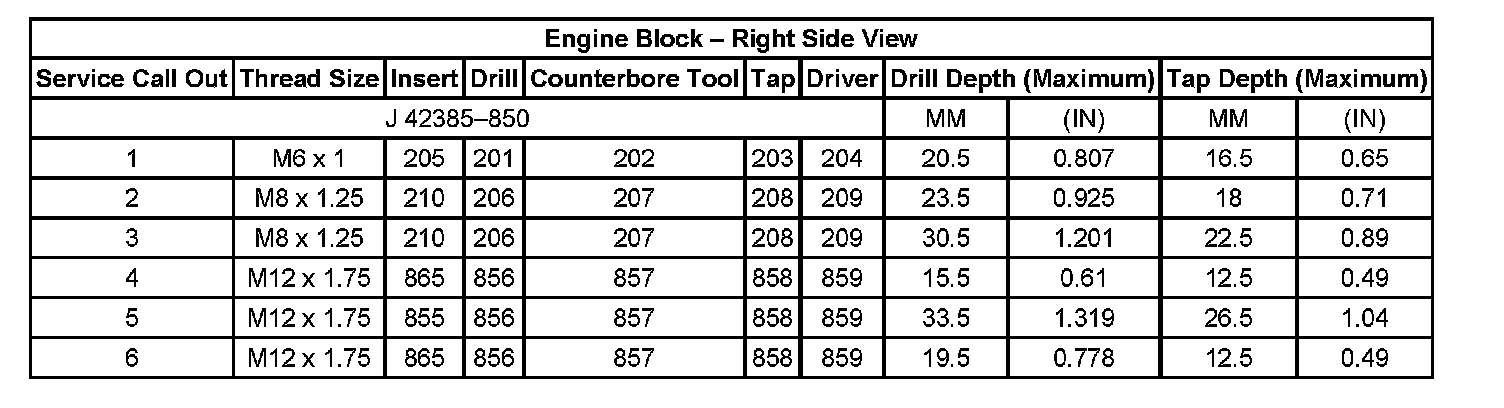

Engine Block - Right Side View:

Engine Block - Right Side View:

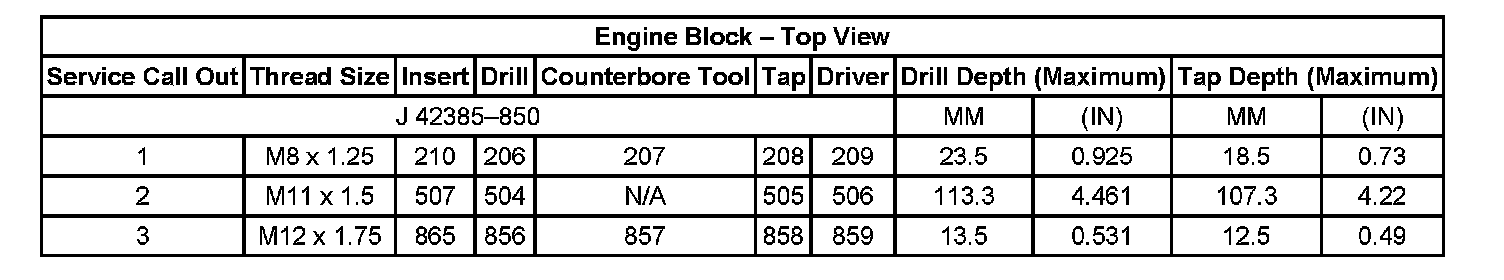

Engine Block - Top View:

Engine Block - Top View:

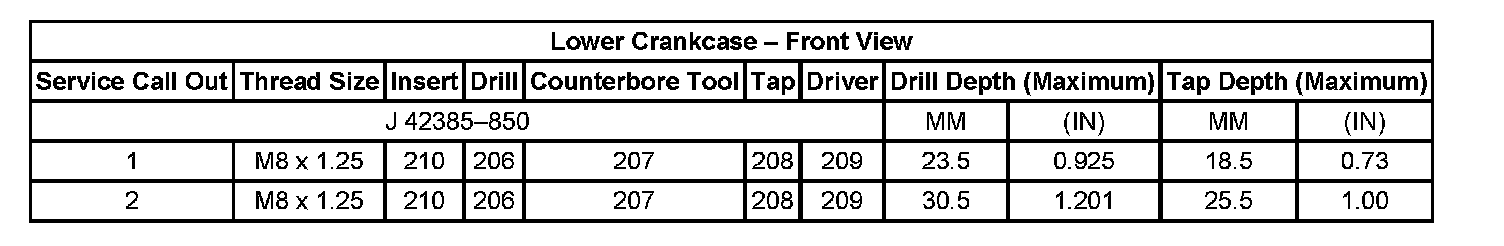

Lower Crankcase - Front View:

Lower Crankcase - Front View:

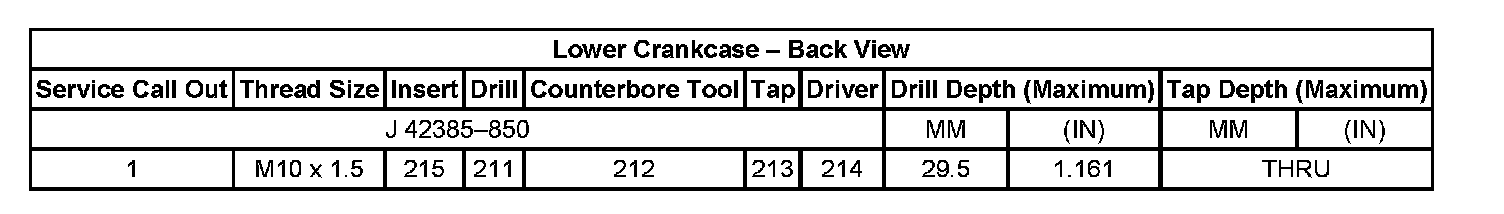

Lower Crankcase - Back View:

Lower Crankcase - Back View:

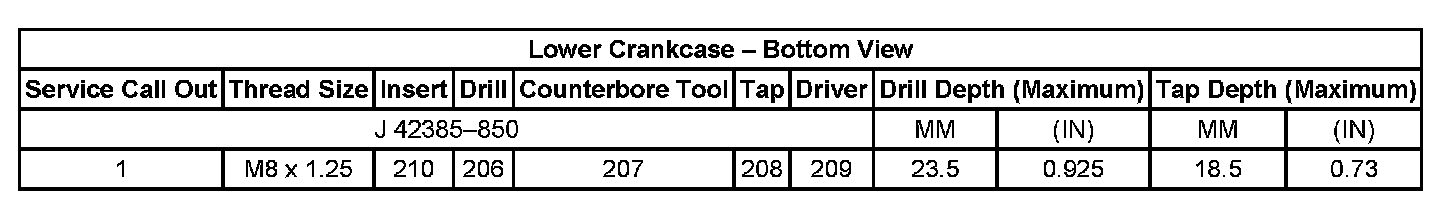

Lower Crankcase - Bottom View:

Lower Crankcase - Bottom View:

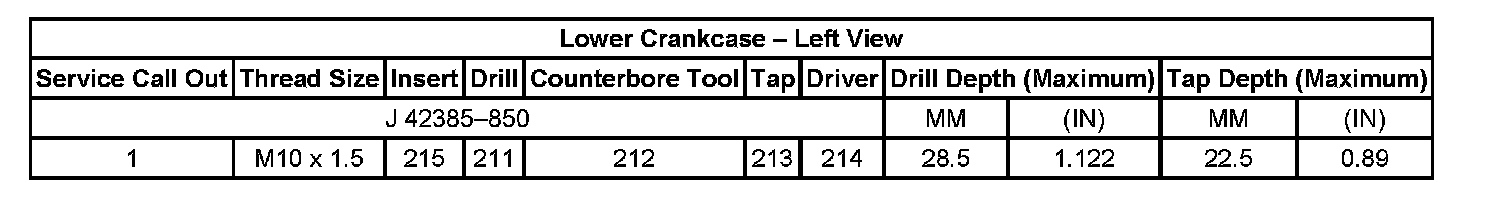

Lower Crankcase - Left View:

Lower Crankcase - Left View:

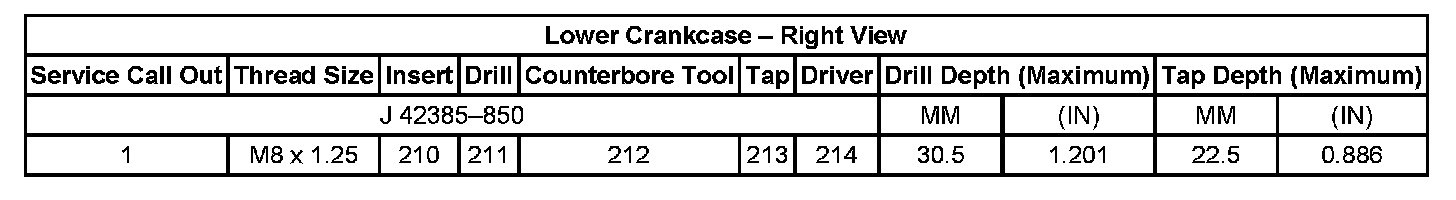

Lower Crankcase - Right View:

Lower Crankcase - Right View:
