Part 2



Thread Repair Specifications

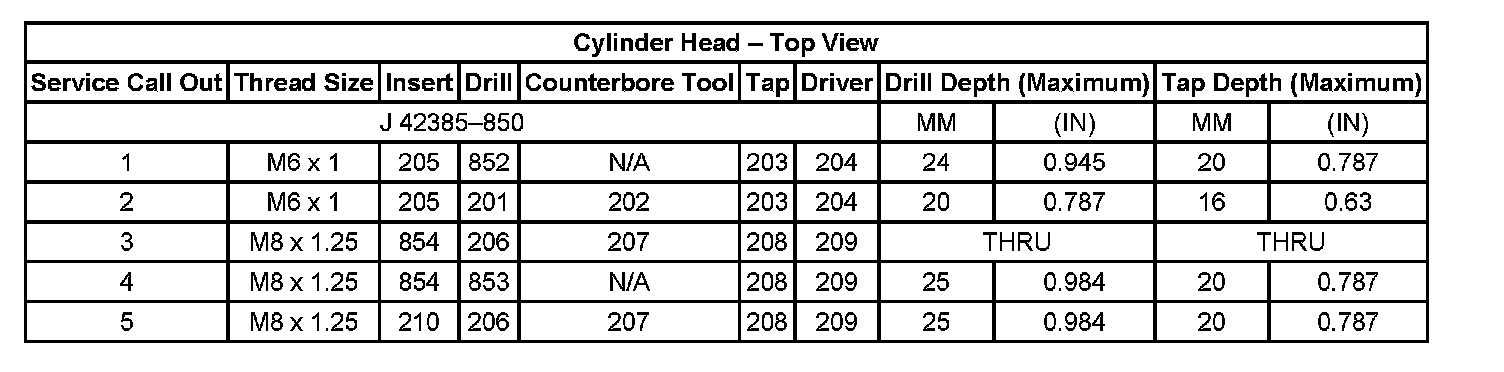

Cylinder Head - Top View:




Cylinder Head - Top View:

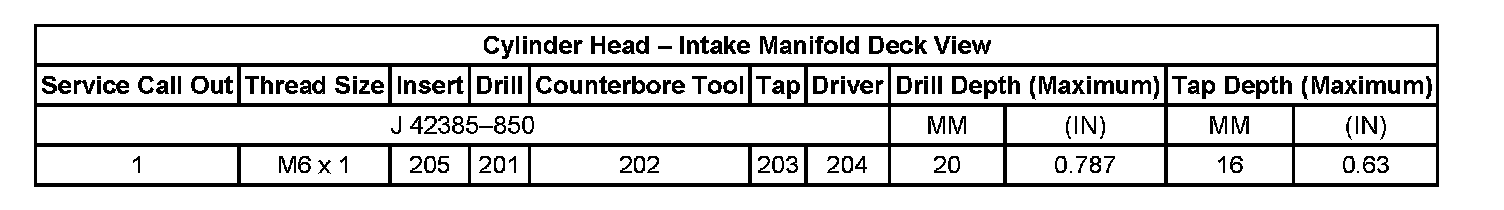

Cylinder Head - Intake Manifold Deck View:




Cylinder Head - Intake Manifold Deck View:

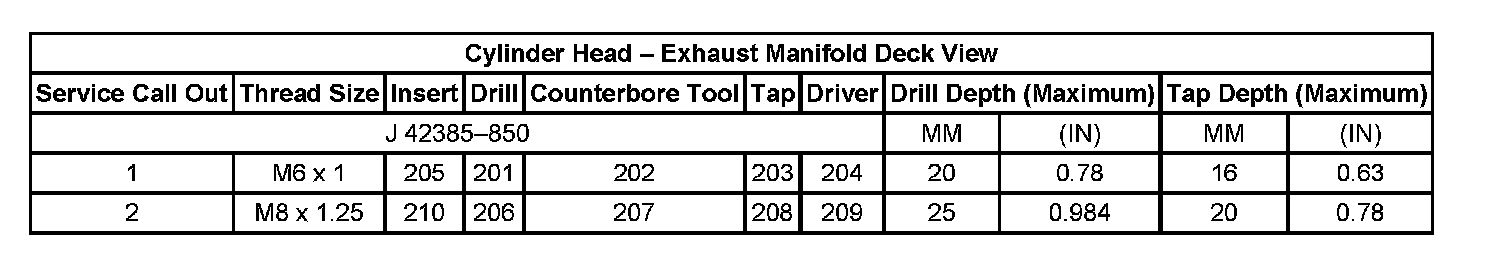

Cylinder Head - Exhaust Manifold Deck View:




Cylinder Head - Exhaust Manifold Deck View:

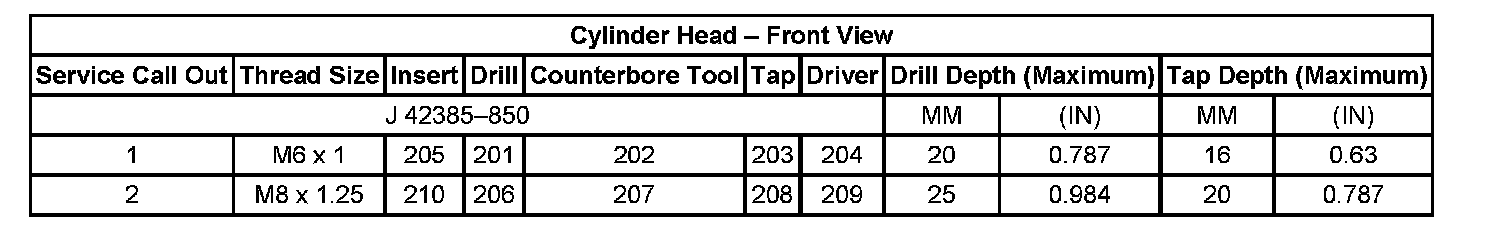

Cylinder Head - Front View:




Cylinder Head - Front View:

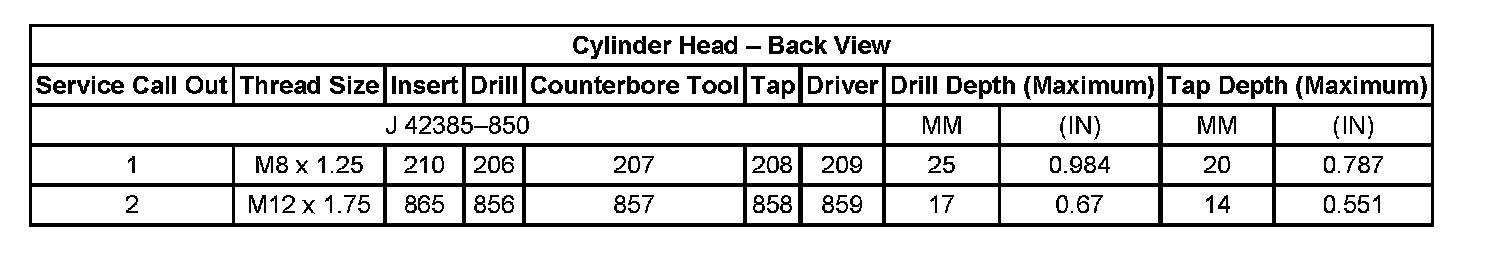

Cylinder Head - Back View:




Cylinder Head - Back View:

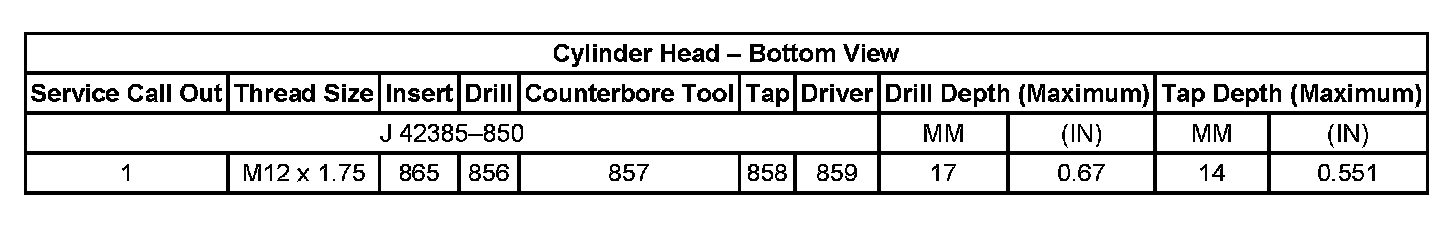

Cylinder Head - Bottom View:




Cylinder Head - Bottom View:
