Power and Grounding Component Views

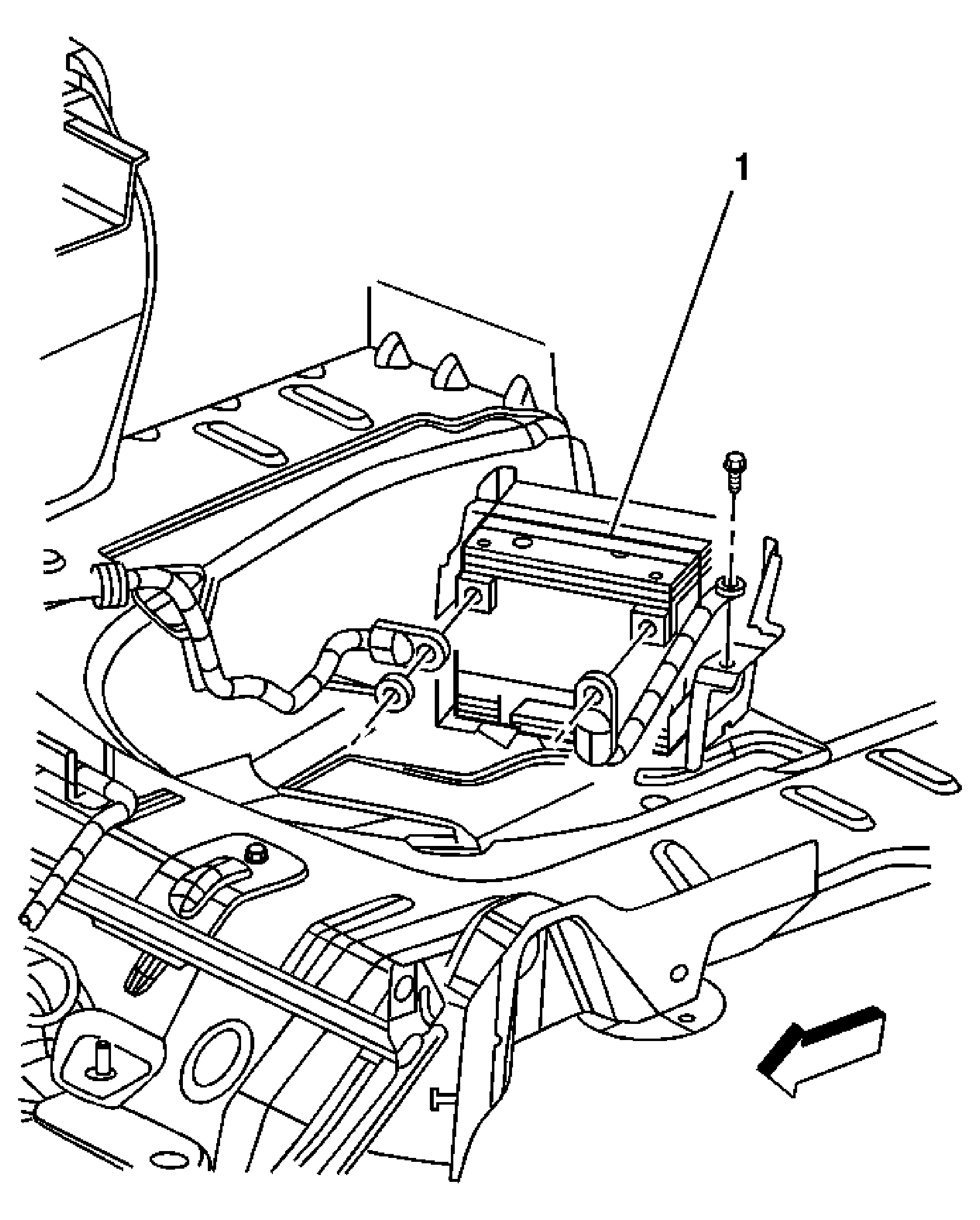

Fig 1: Body Rear End Component View
GM898616Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery

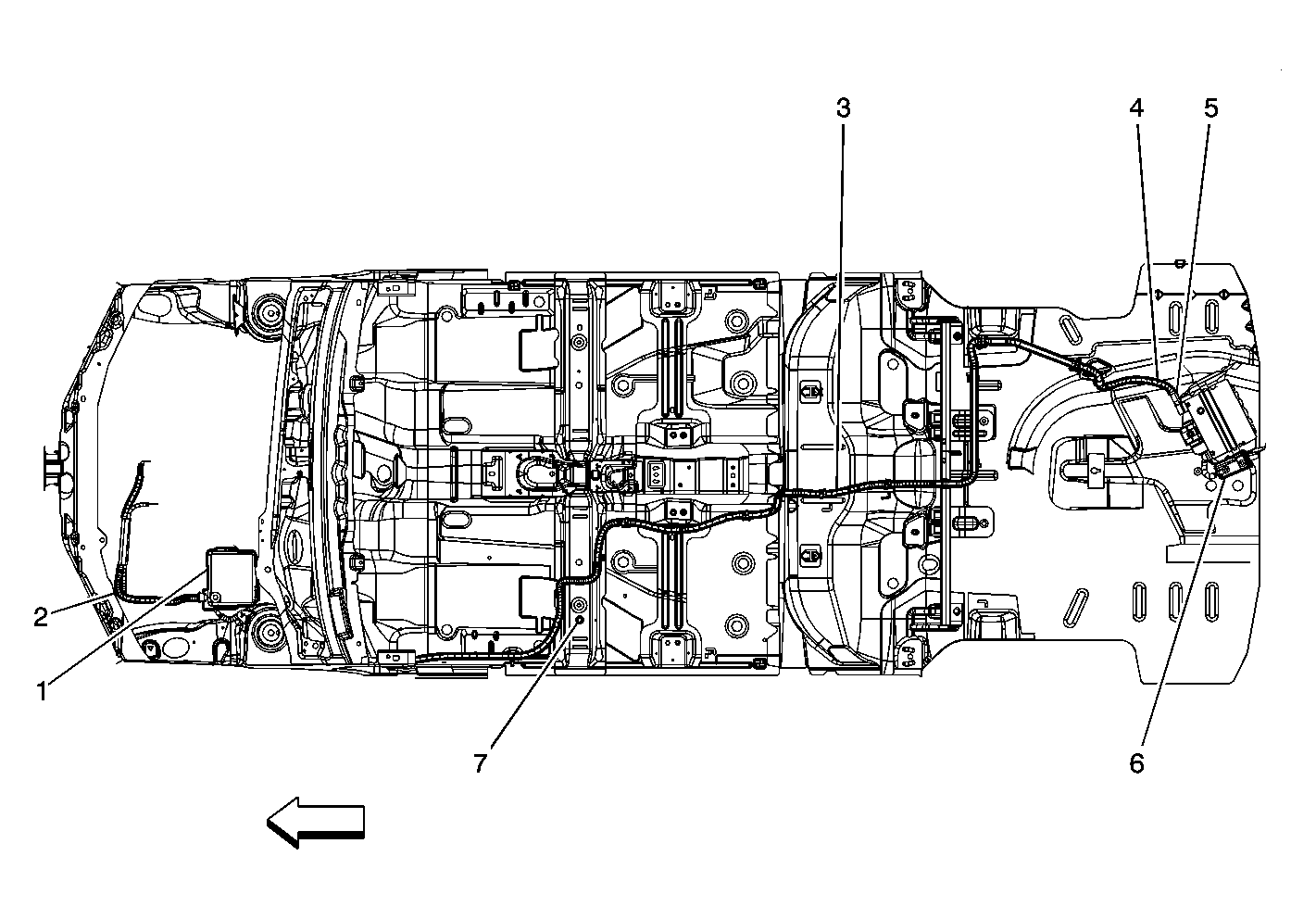

Fig 2: Battery Cable Routing Component View
GM1506952Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 G103
3 Battery Cable - Positive
4 C410 (2.2L)
5 ECM Inline Fuse (2.2L)
6 G502
7 G301
Fig 3: Lower Center Of I/P Component View
GM897600Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
Fig 4: Front Left Side Of Engine Component View (2.2L)
GM1504314Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injectors Rail
2 Throttle Body
3 Manifold Absolute Pressure (MAP) Sensor
4 Ignition Control (IC) Module
5 Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
6 G105 (2.0L Similar)
7 Crankshaft Position (CKP) Sensor
8 Knock Sensor (KS)
9 C150
Fig 5: Rear Shelf Of Vehicle Component View
GM898034Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RR
2 Speaker - LR
3 G401
4 G403

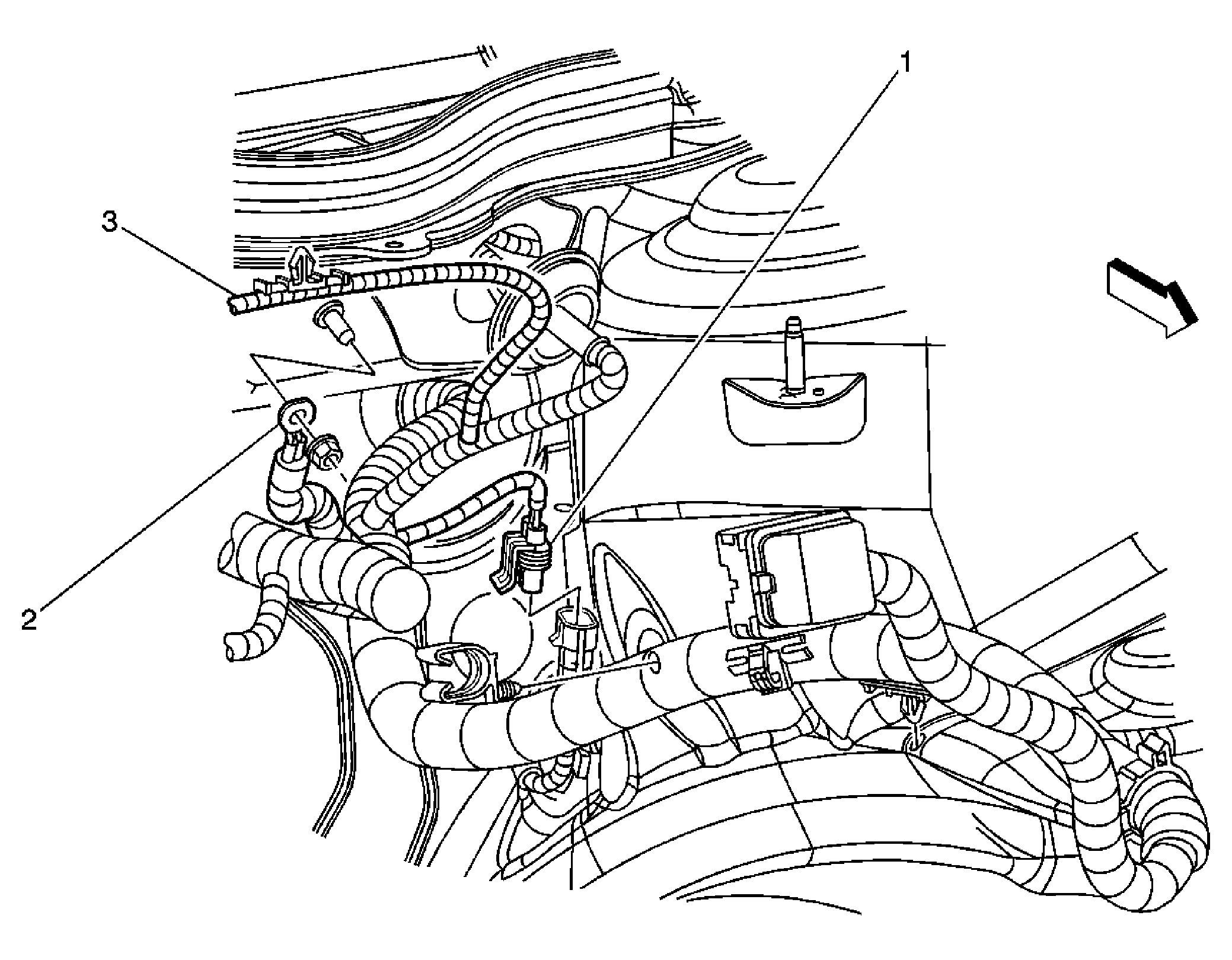

Fig 6: Left Side Of Engine Compartment (JM4/JL9) Routing View
GM897639Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C161
2 G109
3 Body Harness
Fig 7: Left Side Of Engine Compartment Routing View
GM897622Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C121 (DF5)
2 G101
3 Electronic Brake Control Module (EBCM) (JM4/JL9)
4 Engine Control Module (ECM) (2.2L)

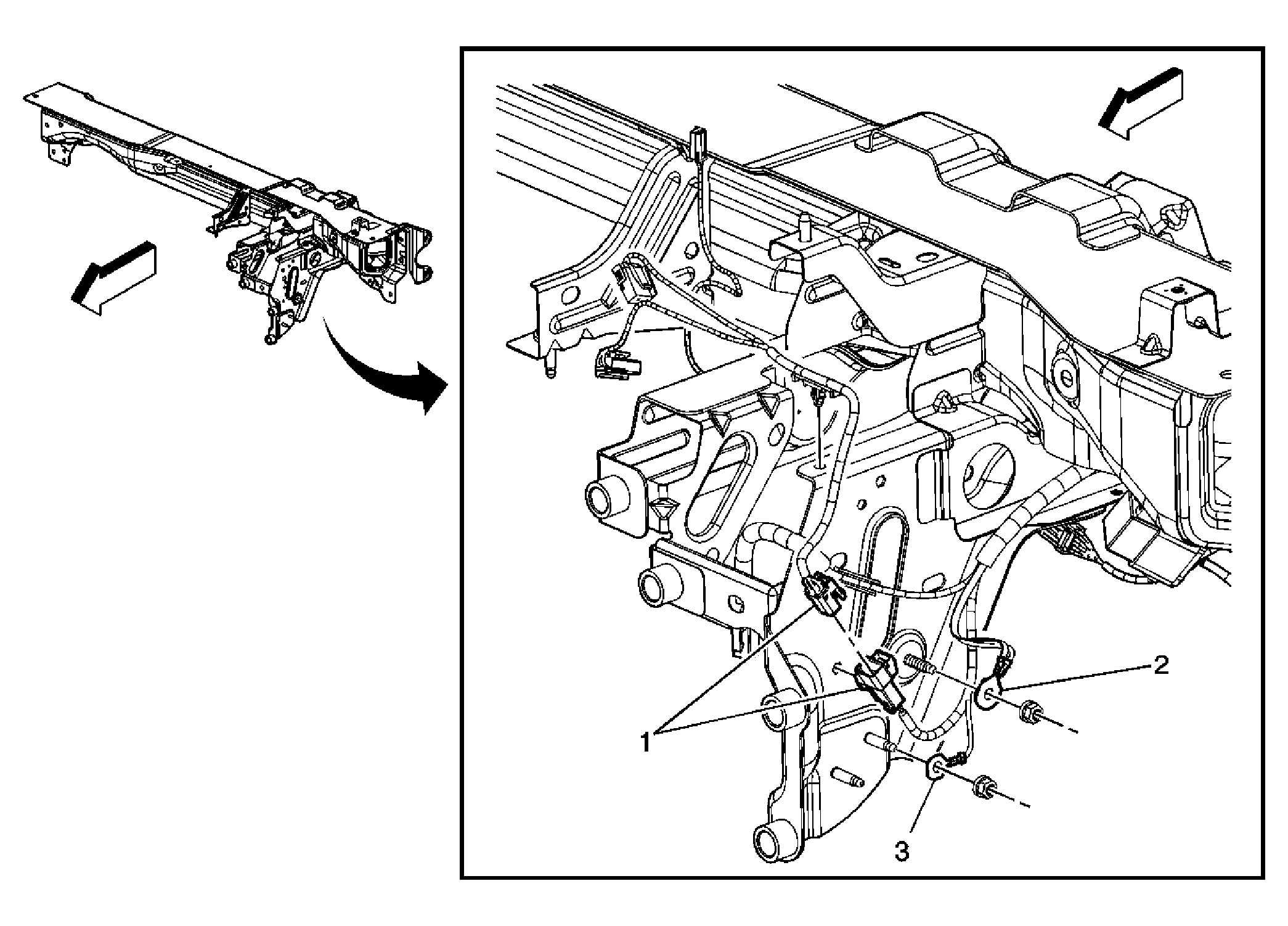

Fig 8: Behind Left Side Of I/P Component View
GM1506982Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C225
2 G201
3 G203
Fig 9: Under Left Side Of I/P Component View
GM1540725Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Steering Wheel Module Coil
2 Ignition Lock Cylinder Control Actuator (MN5)
3 Power Steering Control Module (PSCM)
4 Ignition Switch

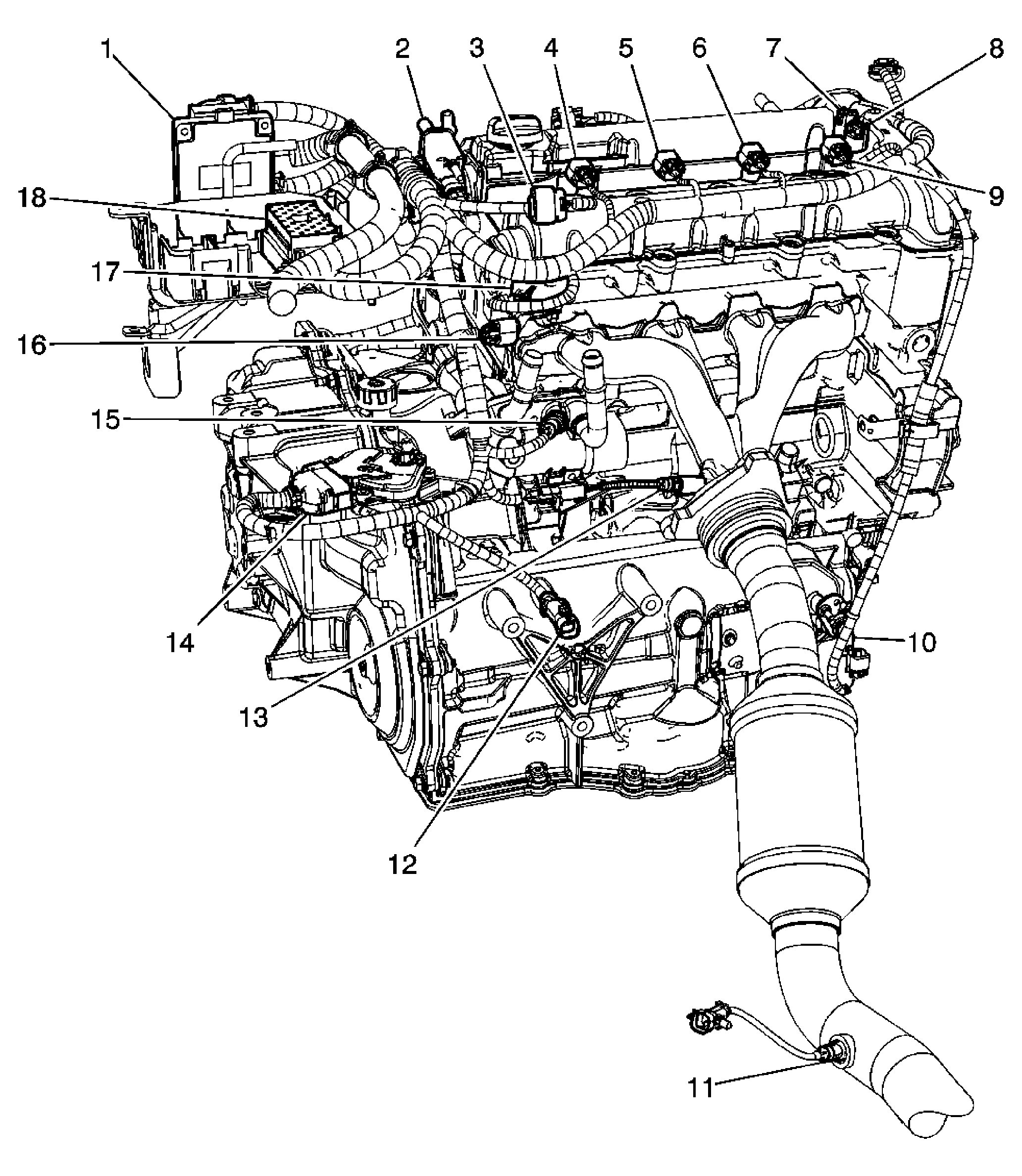

Fig 10: Rear View Automatic Transmission
GM1614836Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Control Module (ECM) Connector/Transmission Control Module (TCM)
2 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
3 C171 Engine Harness to Body Harness
4 Ignition Coil 4
5 Ignition Coil 3
6 Ignition Coil 2
7 Camshaft Position (CMP) Actuator Solenoid - Intake
8 Camshaft Position (CMP) Actuator Solenoid - Exhaust
9 Ignition Coil 1
10 Vehicle Speed Sensor (VSS) - Automatic Transmission
11 Heated Oxygen Sensor (HO2S) 2
12 Heated Oxygen Sensor (HO2S) 2 Connector
13 Heated Oxygen Sensor (HO2S) 1
14 Park/Neutral Position (PNP) Switch
15 Engine Coolant Temperature (ECT) Sensor
16 Camshaft Position (CMP) Actuator Solenoid - Exhaust
17 G107
18 Fuse Block - Underhood C1
