Ground Distribution Schematics

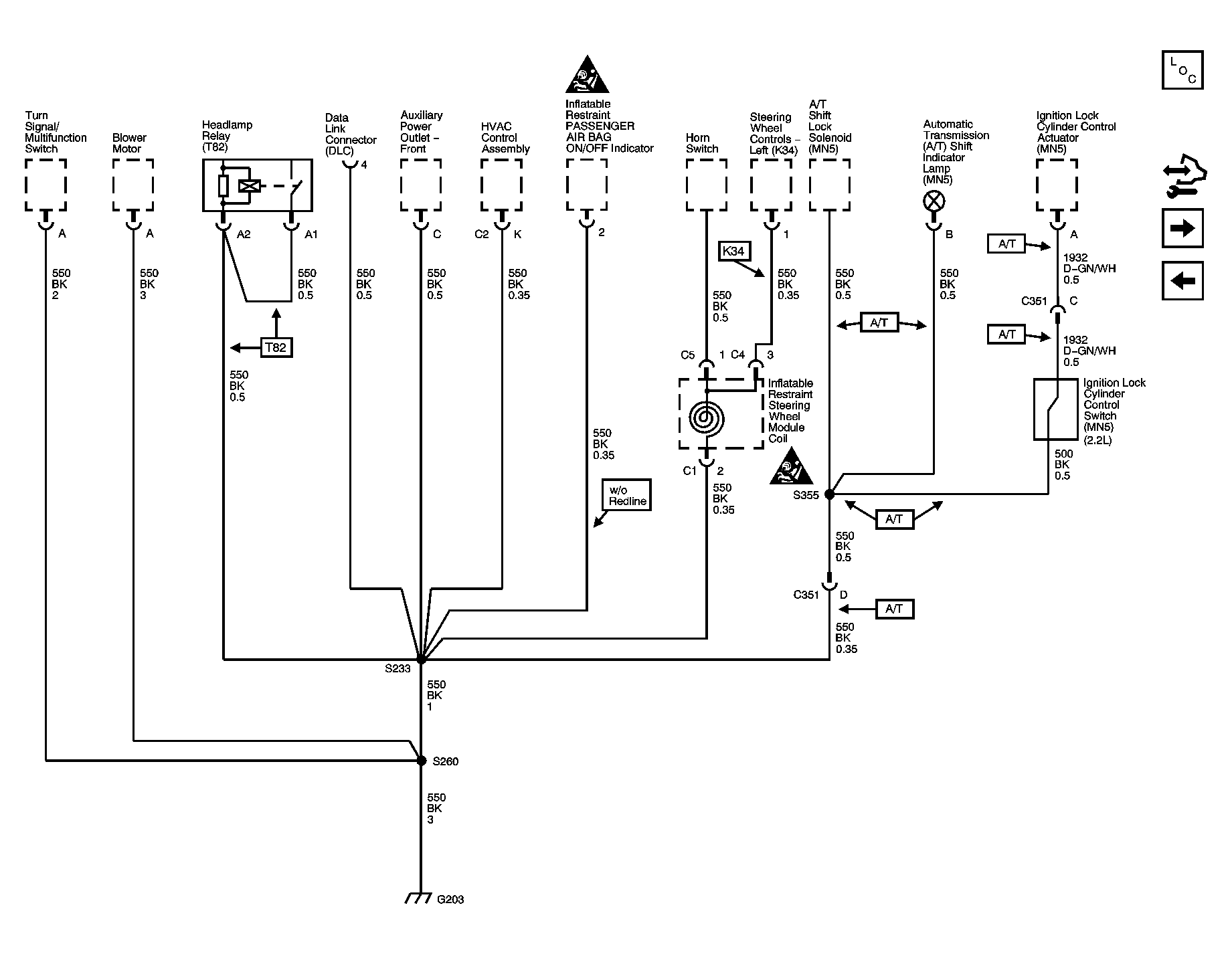

Fig 1: G101 Schematics

Courtesy of GENERAL MOTORS CORP.

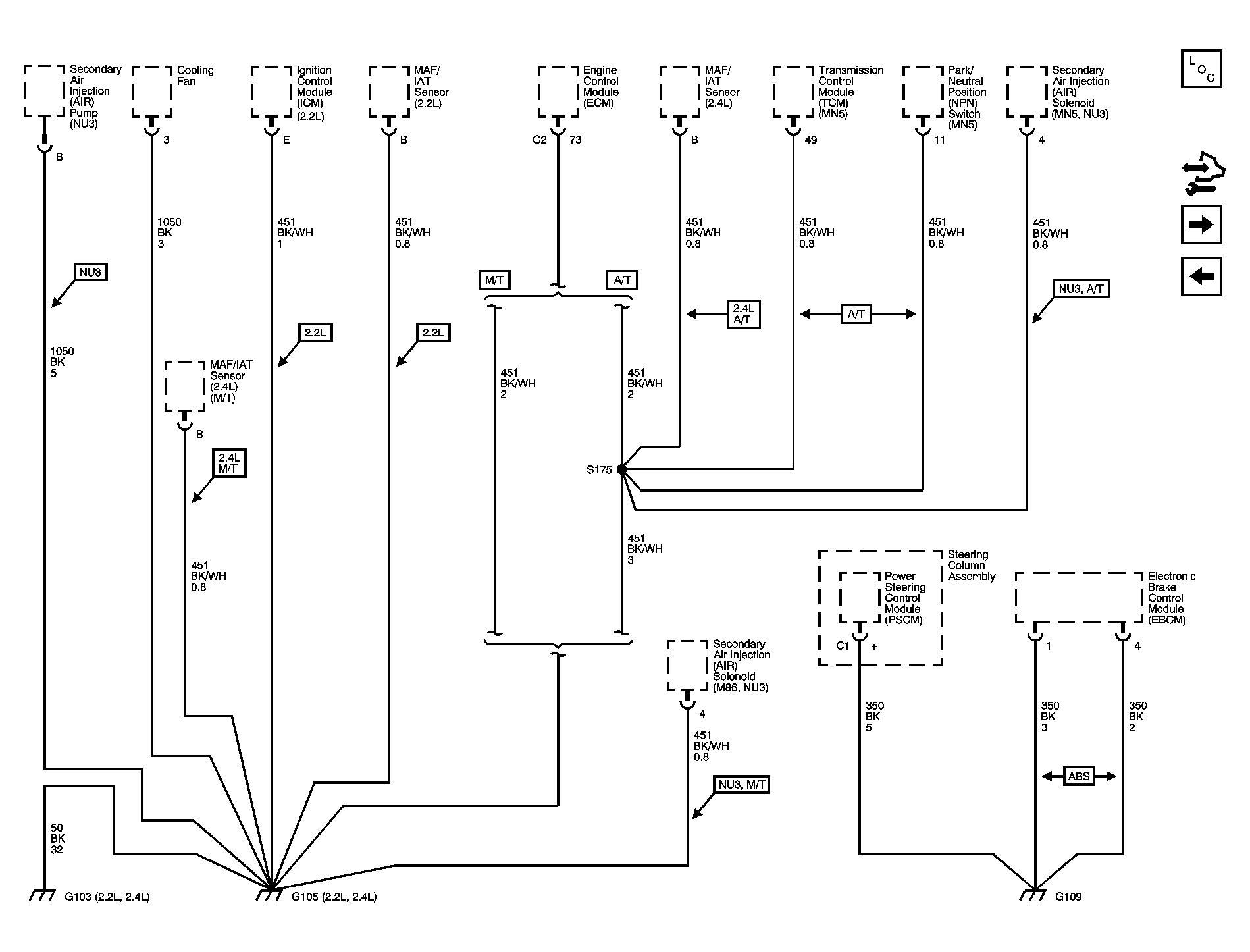

Fig 2: G103 and G105 - 2.0L, and G107 - 2.4L Schematics

Courtesy of GENERAL MOTORS CORP.

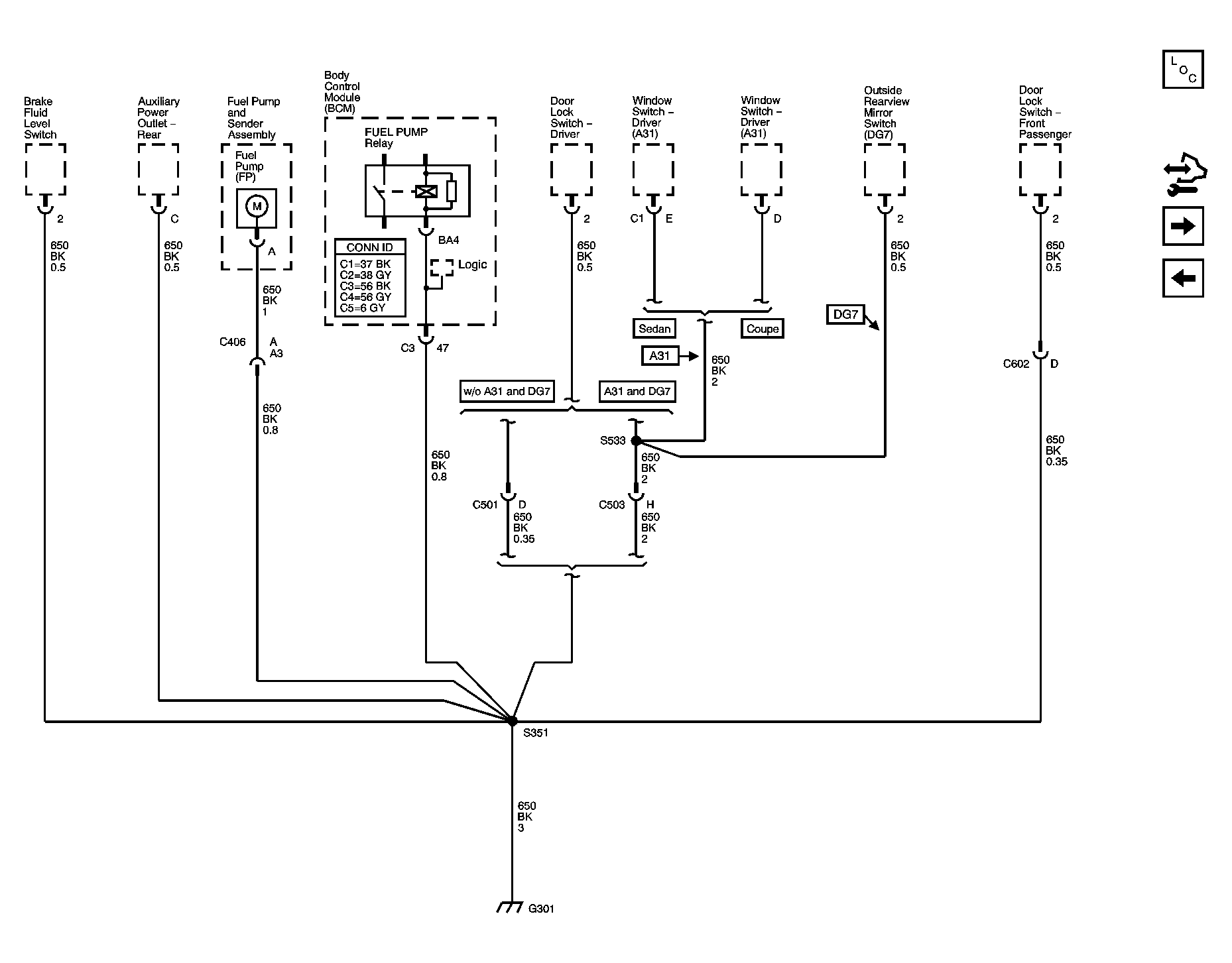

Fig 3: G103, G105 (2.2L, 2.4L) and G109 Schematics

Courtesy of GENERAL MOTORS CORP.

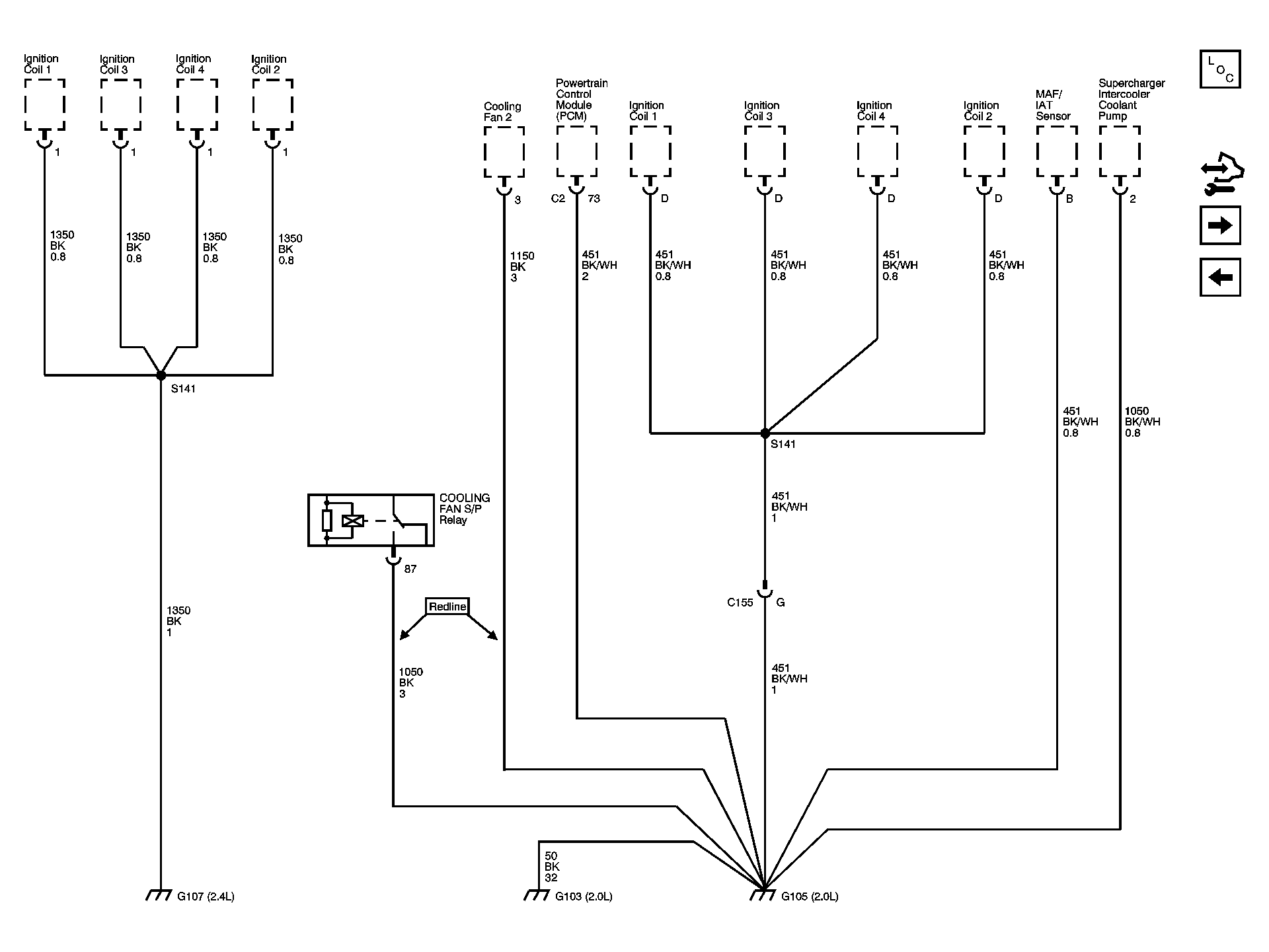

Fig 4: G201 Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 5: G203 Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 6: G301 Schematics

Courtesy of GENERAL MOTORS CORP.

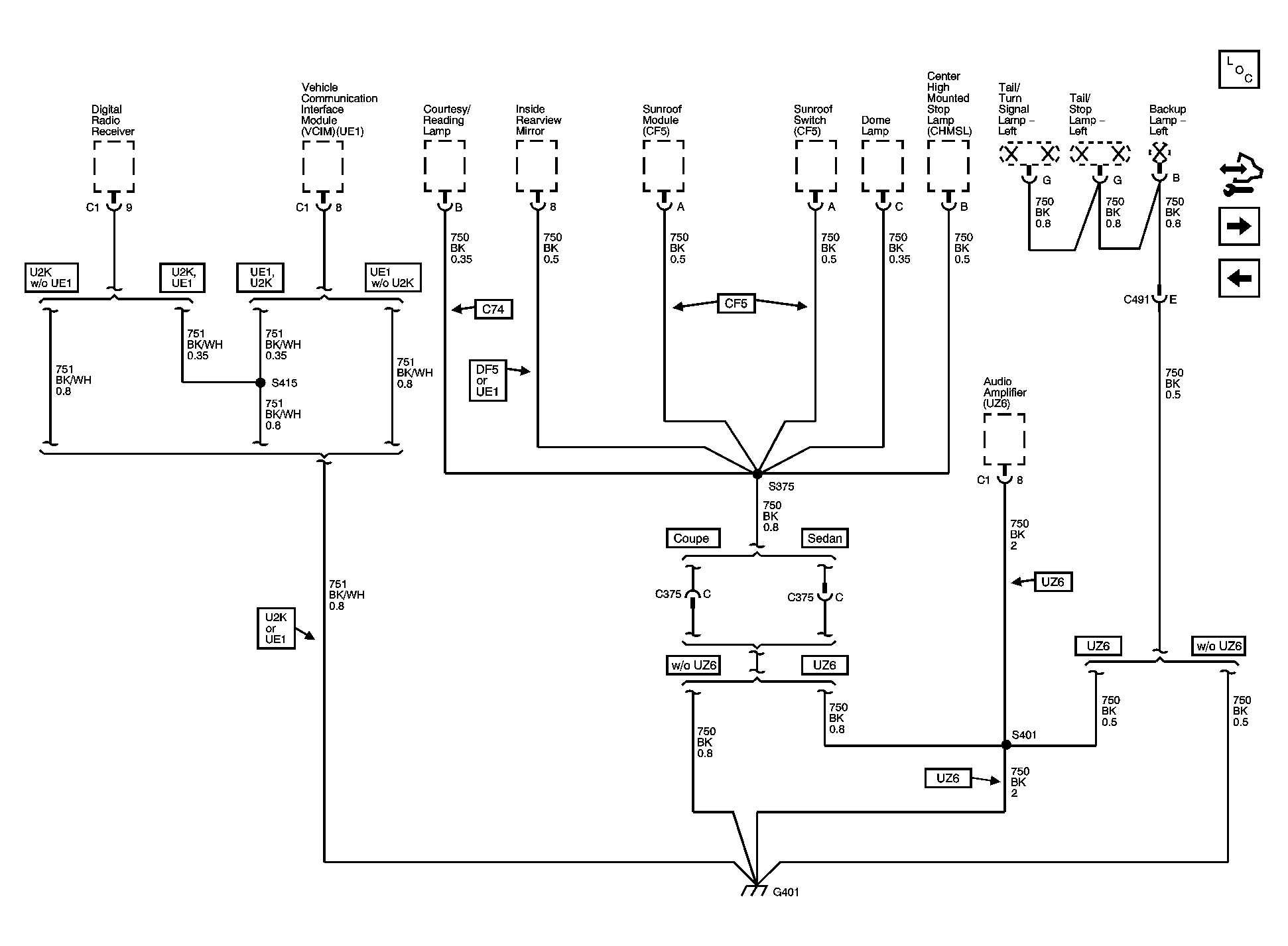

Fig 7: G401 Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 8: G403 and G502 Schematics

Courtesy of GENERAL MOTORS CORP.
