Body Control Module

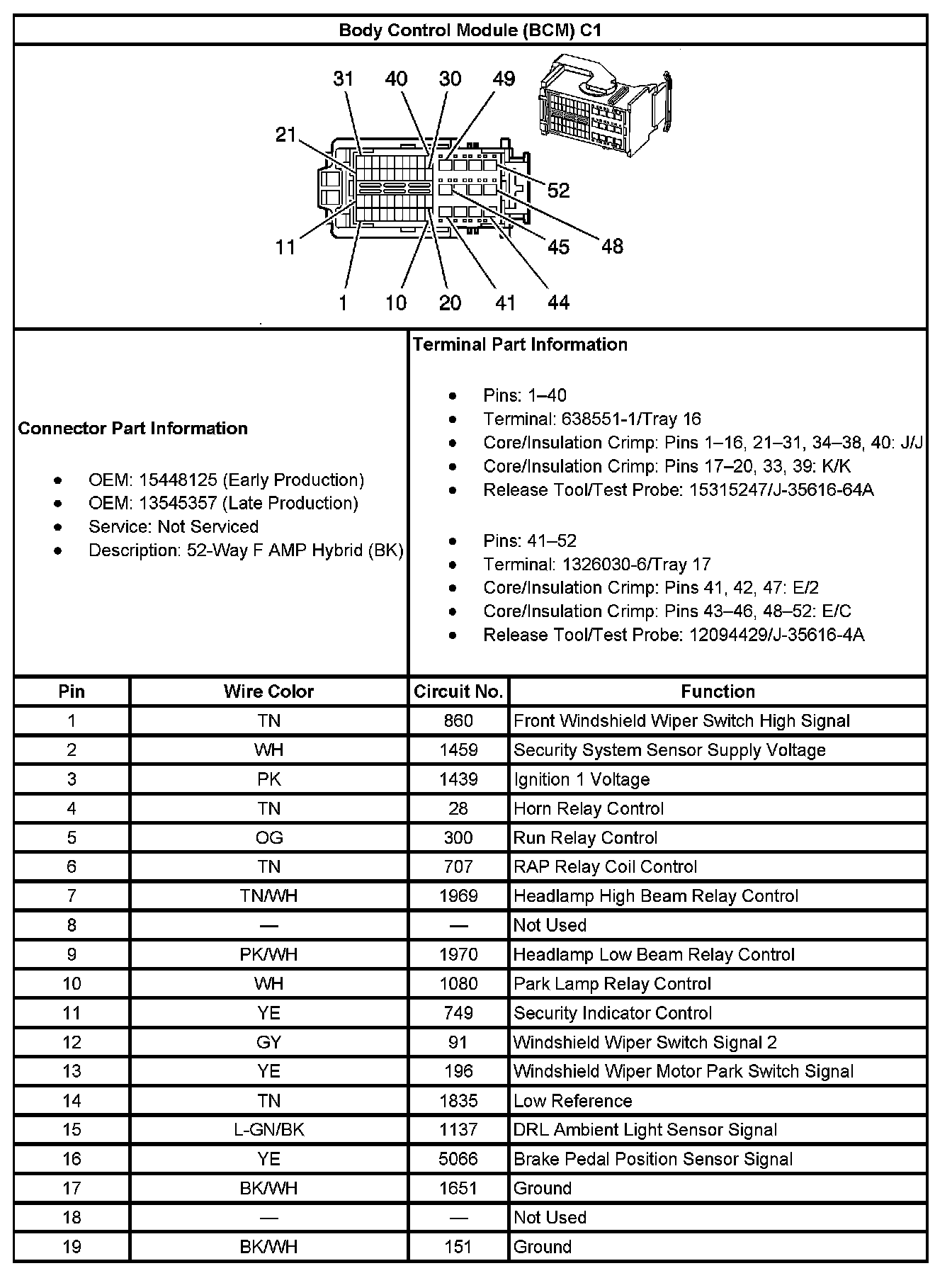

Body Control Module (BCM) C1 (Part 1):

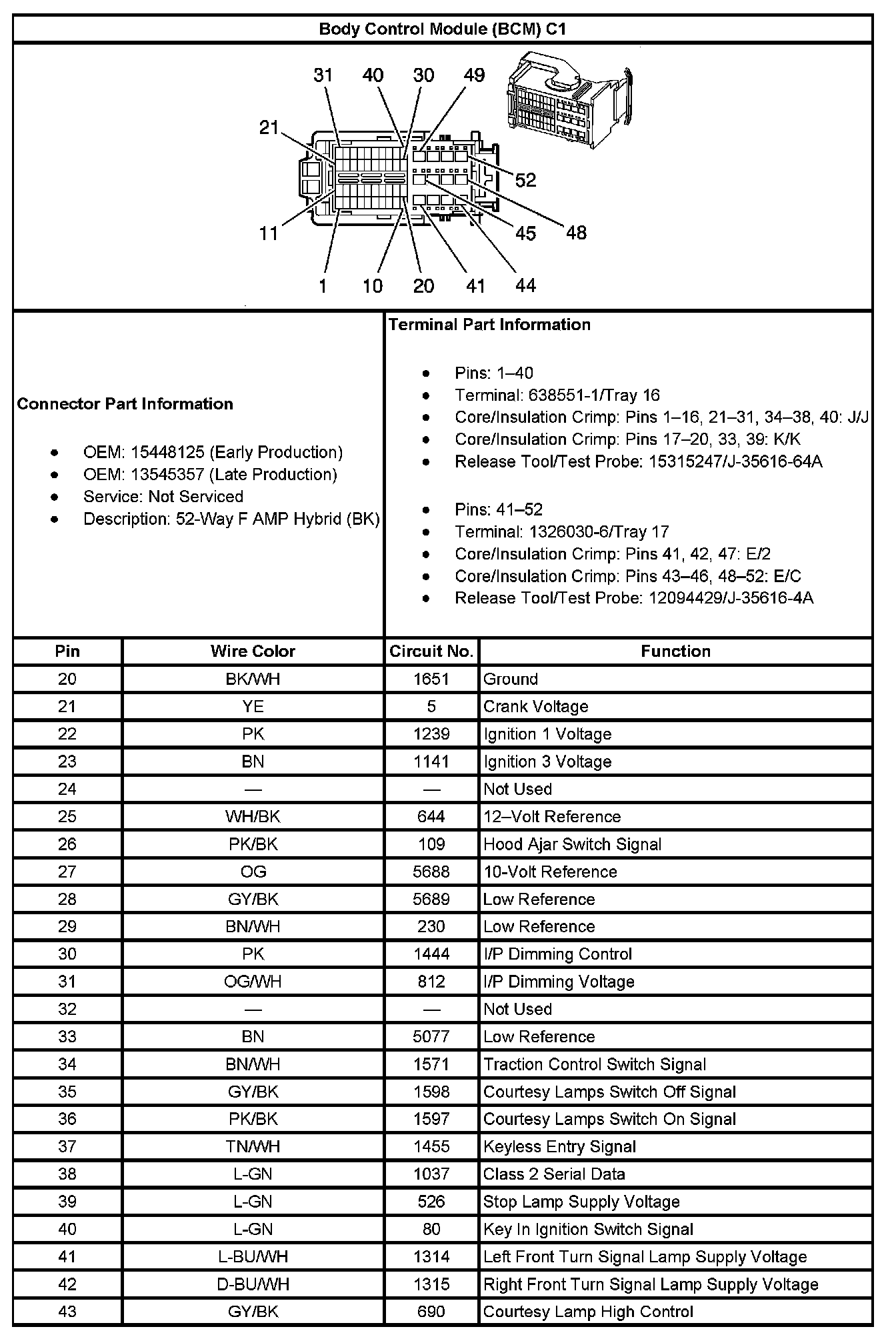

Body Control Module (BCM) C1 (Part 2):

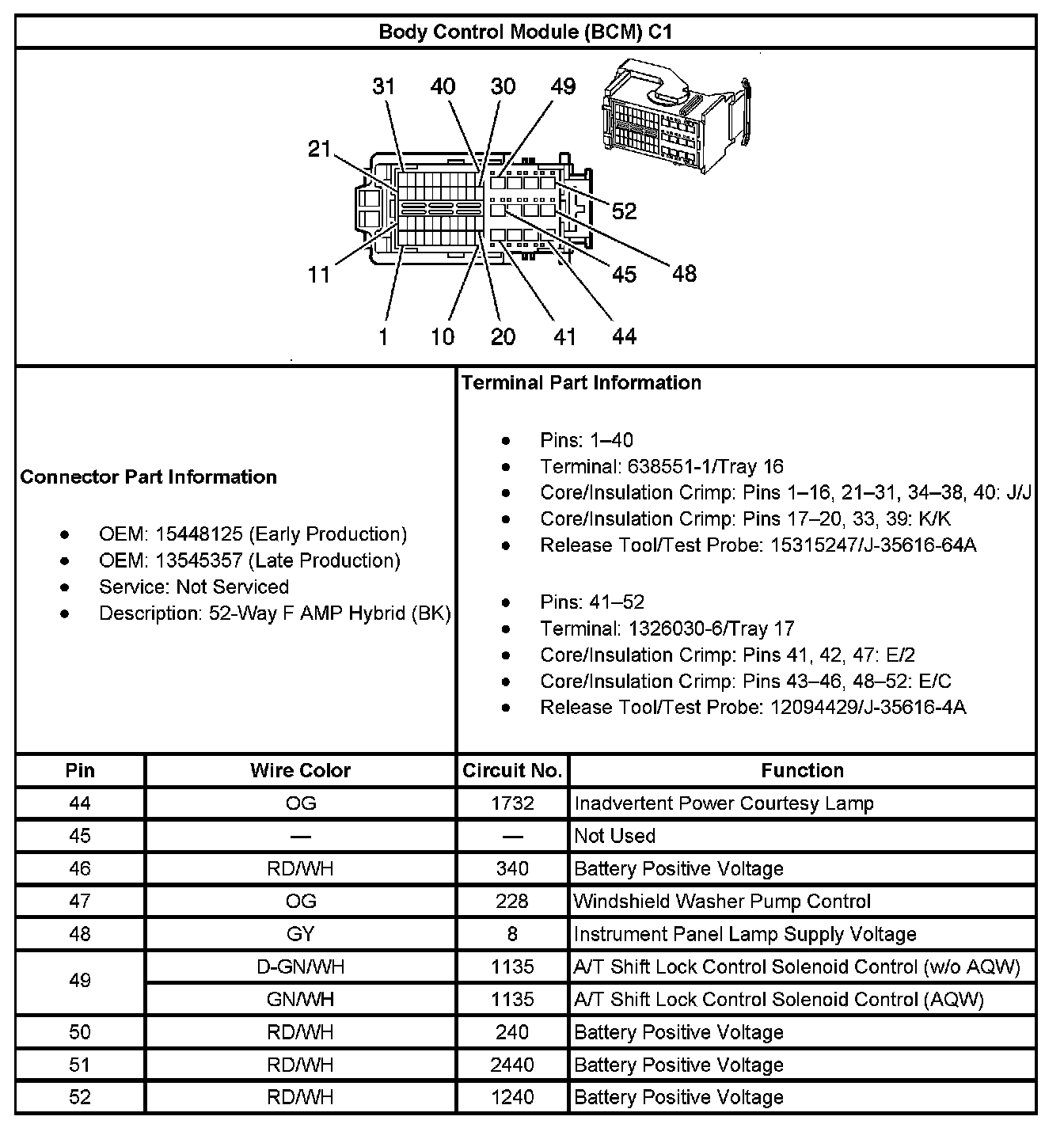

Body Control Module (BCM) C1 (Part 3):

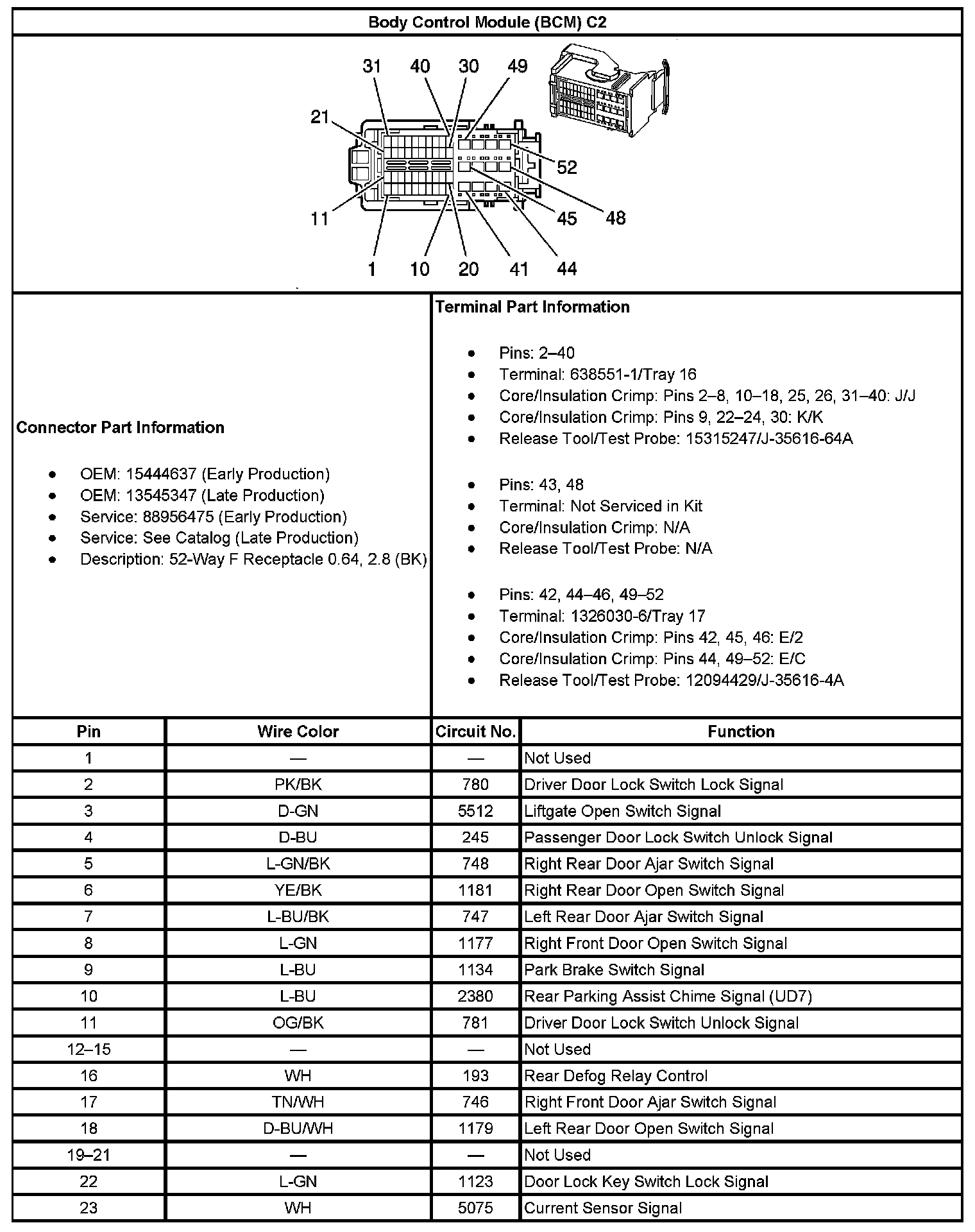

Body Control Module (BCM) C2 (Part 1):

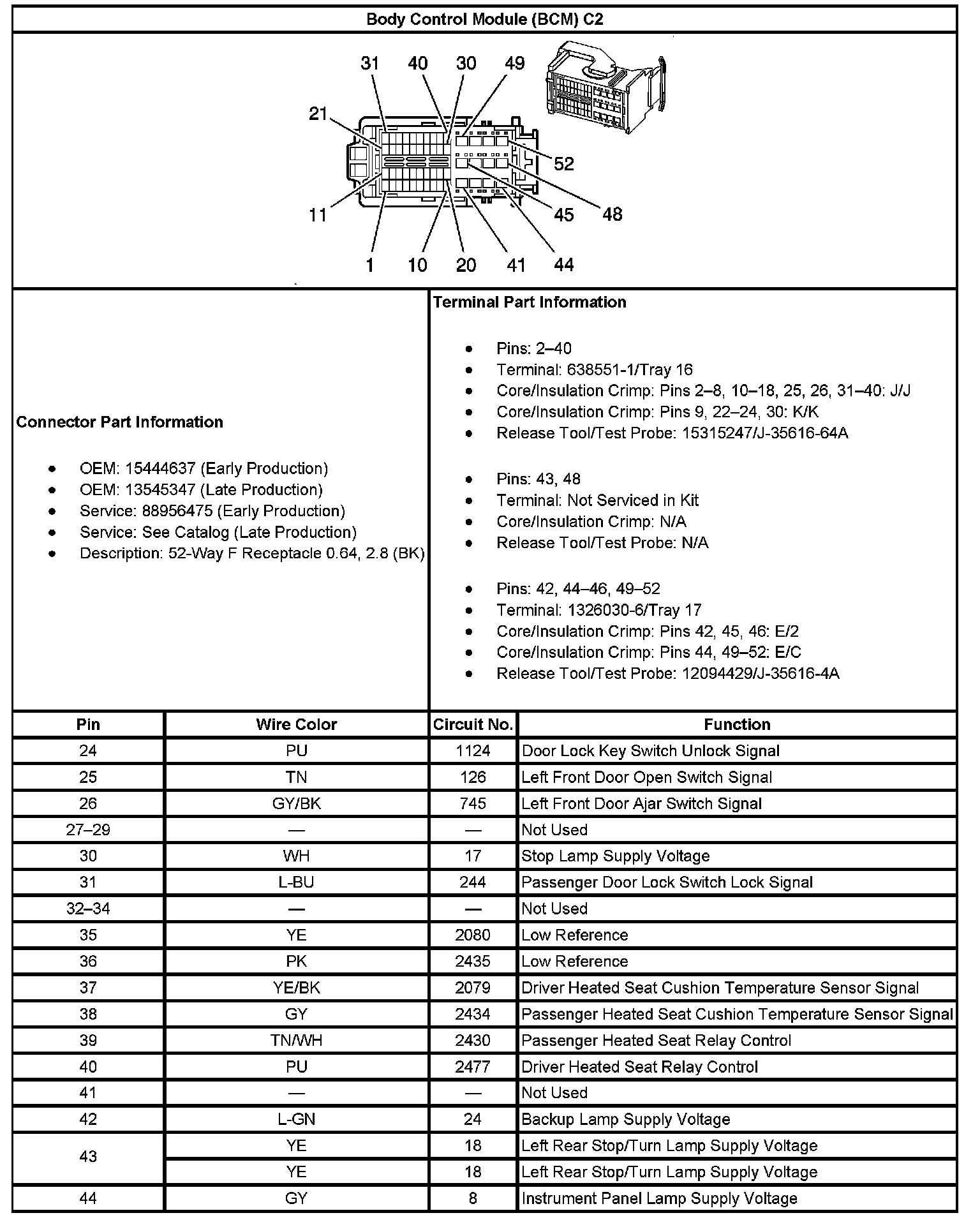

Body Control Module (BCM) C2 (Part 2):

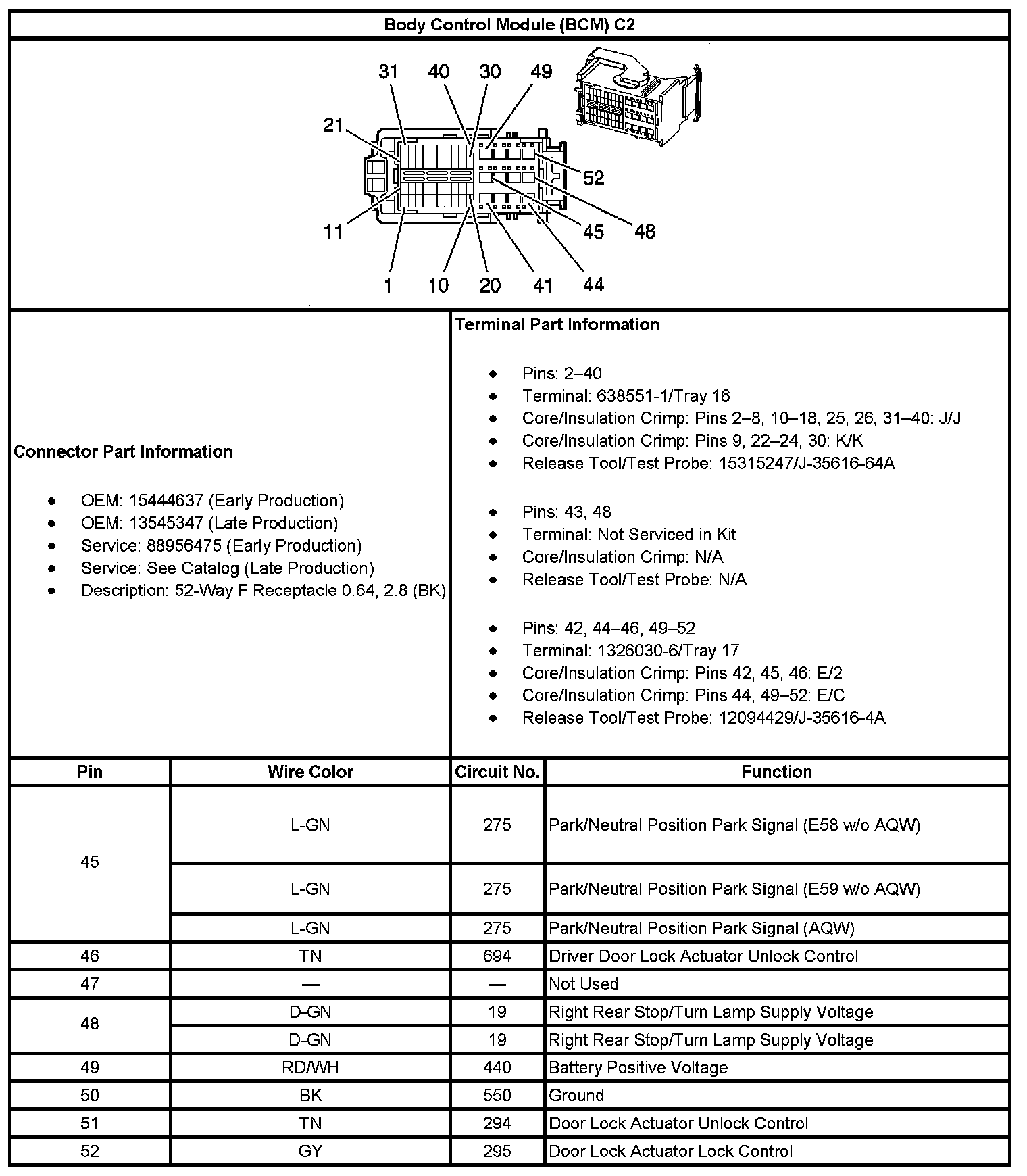

Body Control Module (BCM) C2 (Part 3):

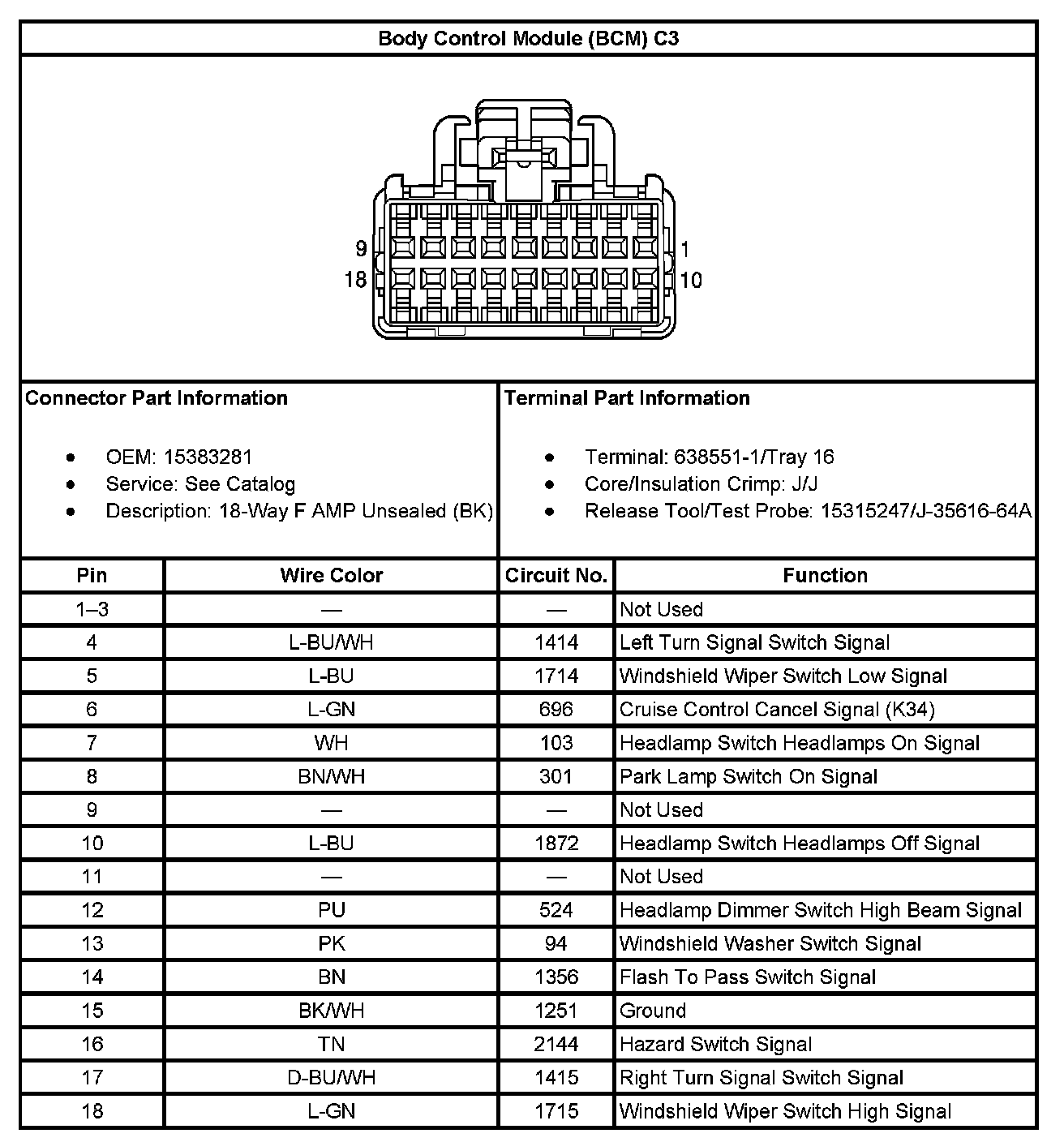

Body Control Module (BCM) C3:
