Multifunction Switch - Overhead Console

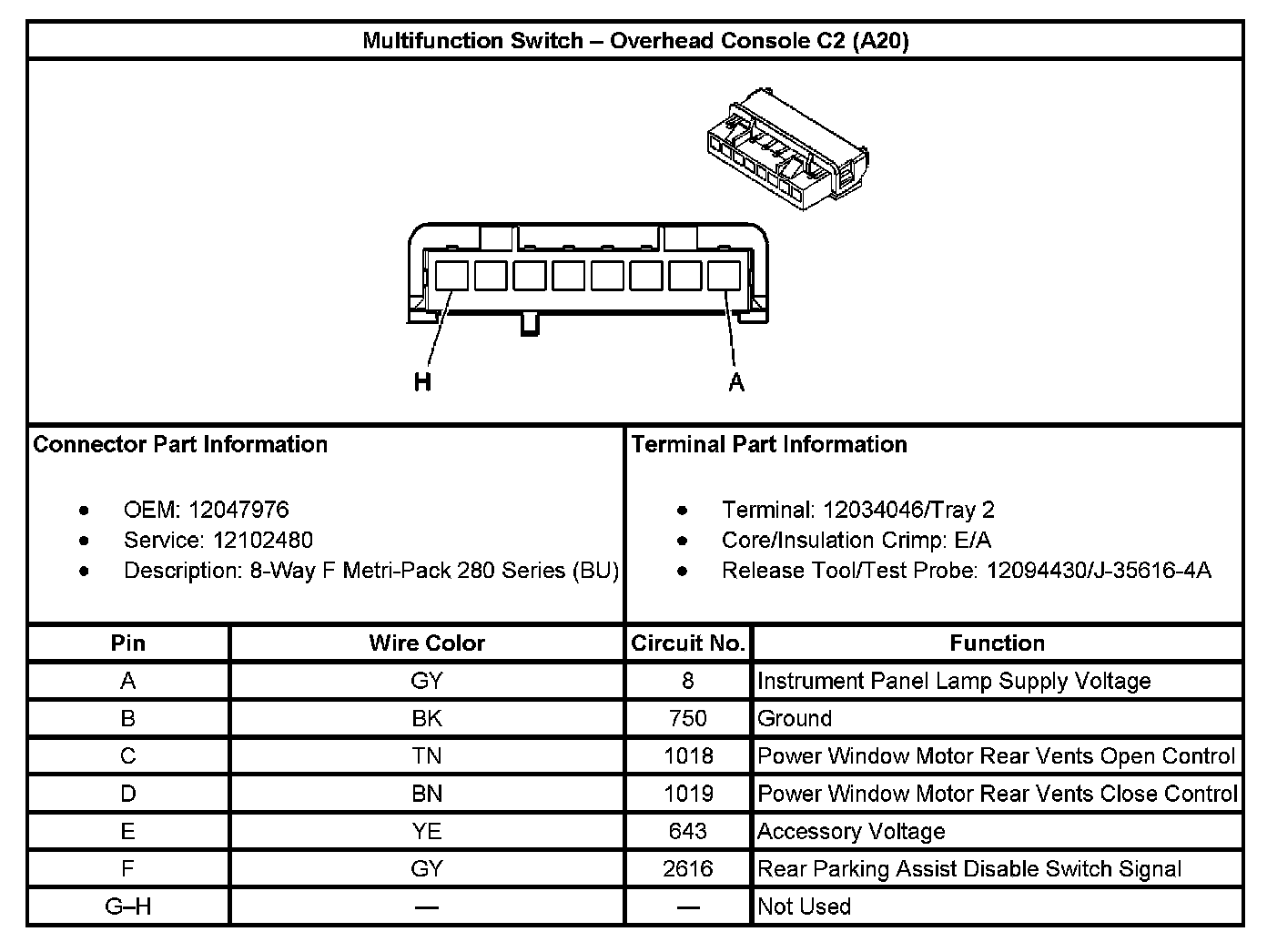

Multifunction Switch - Overhead Console C2 (With RPO Code A20):

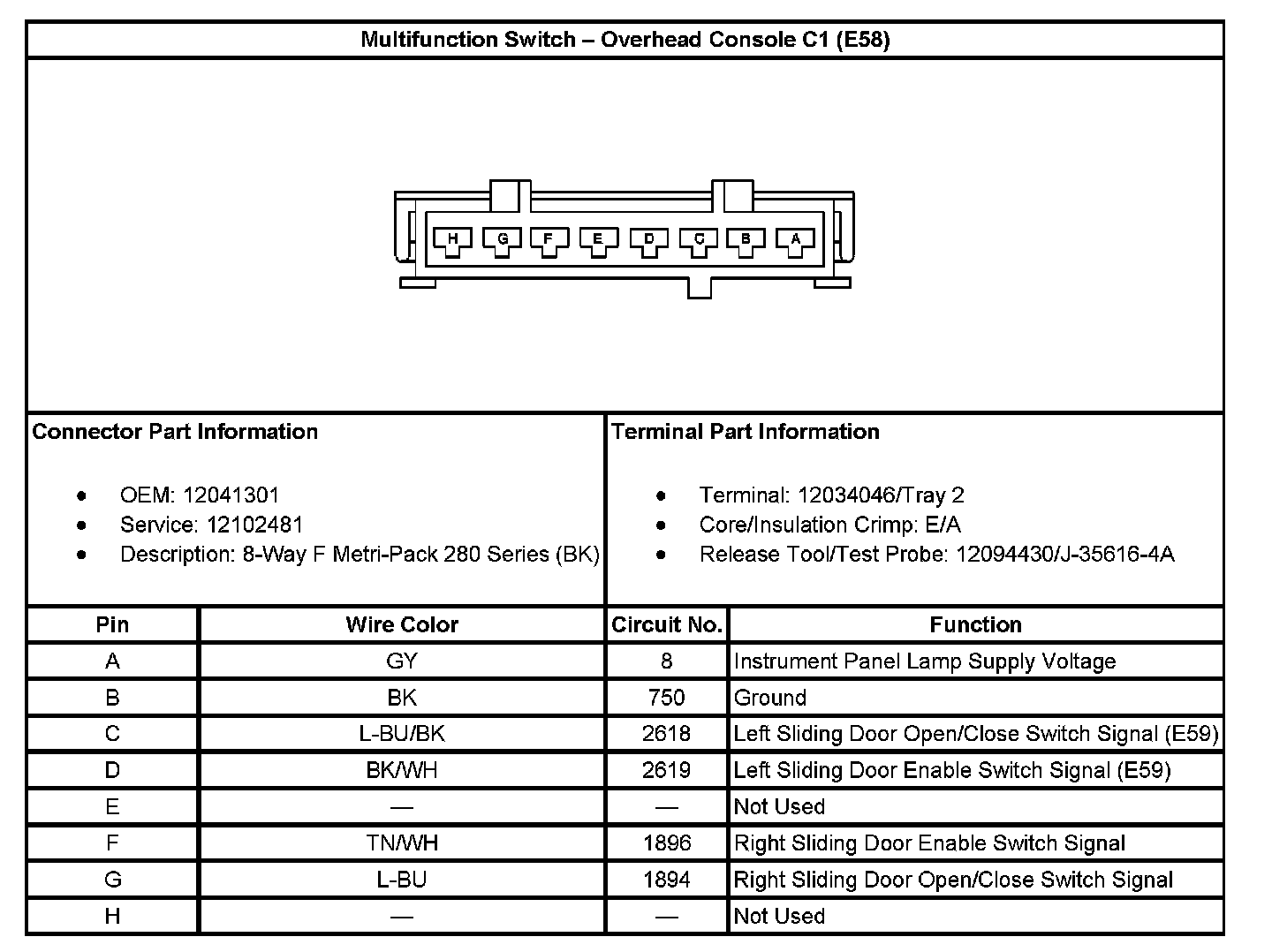

Multifunction Switch - Overhead Console C1 (With RPO Code E58):
