System Specifications

Crankshaft Balancer Bolt 160 Nm (118 ft. lbs.)

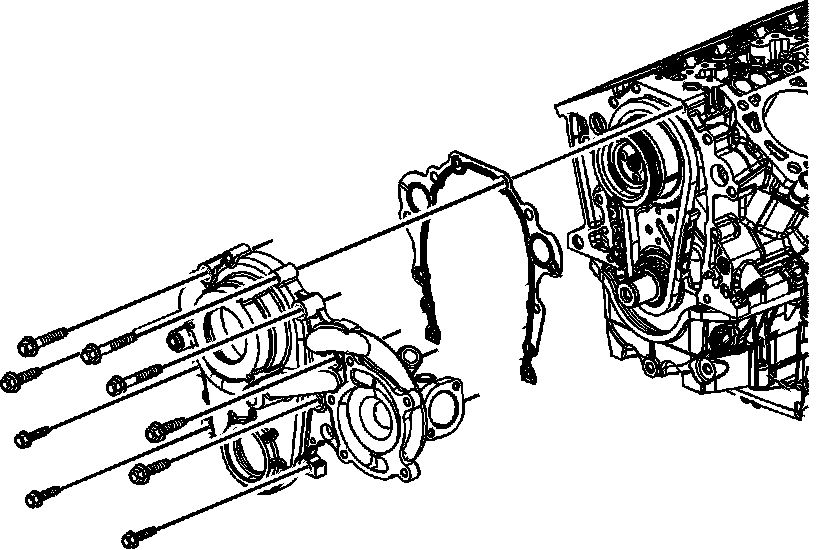

Engine Front Cover Bolt
Large Bolt 55 Nm (41 ft. lbs.)
Medium Bolt 55 Nm (41 ft. lbs.)
Small Bolt 27 Nm (20 ft. lbs.)
