Installation Procedure

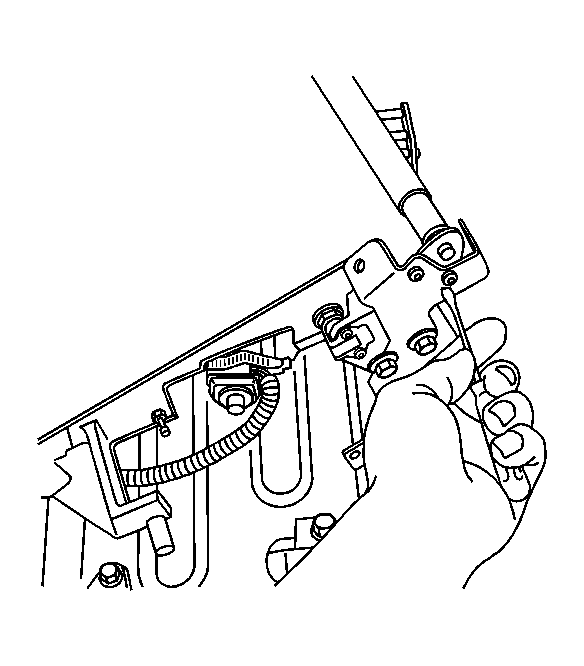

Fig 1: Locating Screws For Roll-Up Chain Cover

Courtesy of GENERAL MOTORS CORP.

Install the roll-up chain cover.

NOTE: Refer to Fastener Notice .

Install the screws to the chain cover.
Tighten: Tighten the screws to 2 N.m (18 lb in).

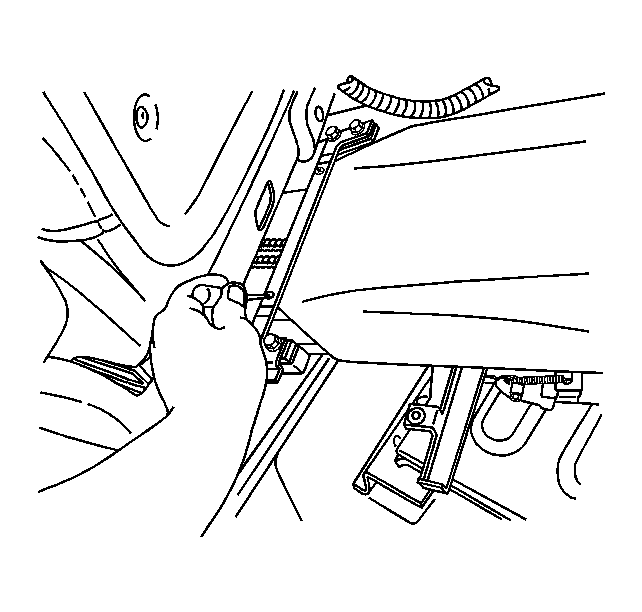

Fig 2: Locating Fasteners For Rear Of Seat

Courtesy of GENERAL MOTORS CORP.

Install the fasteners to the rear of the seat.
Return the seat to the vehicle.
Test the seat for proper operation.
