Transmission Control Module (TCM) C1
Automatic Transmission Internal Connector End Views

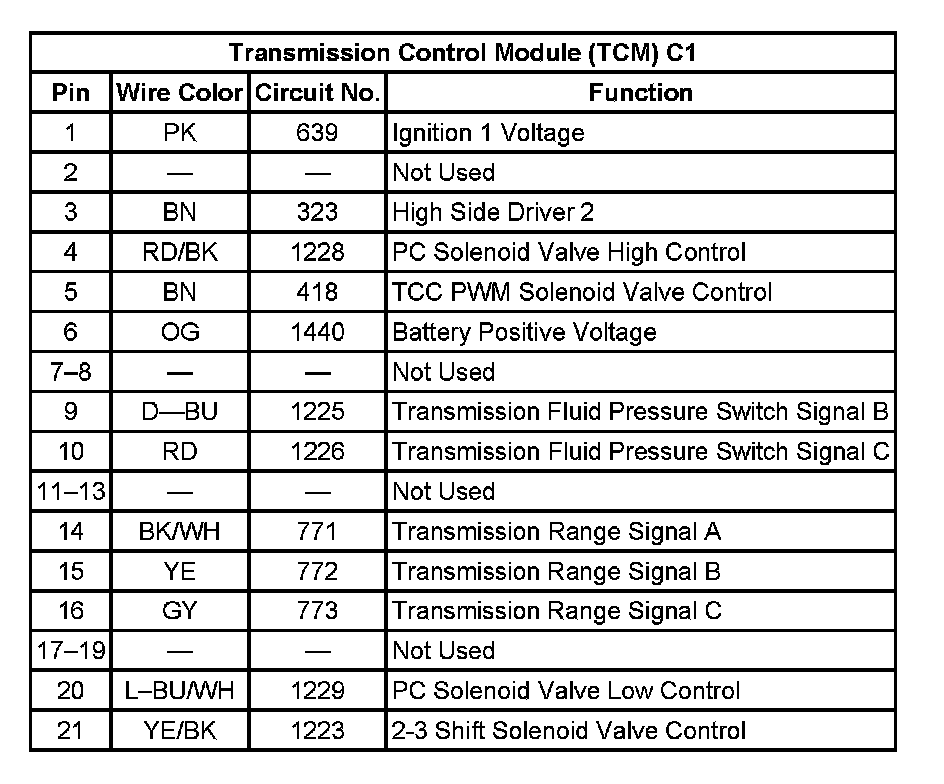

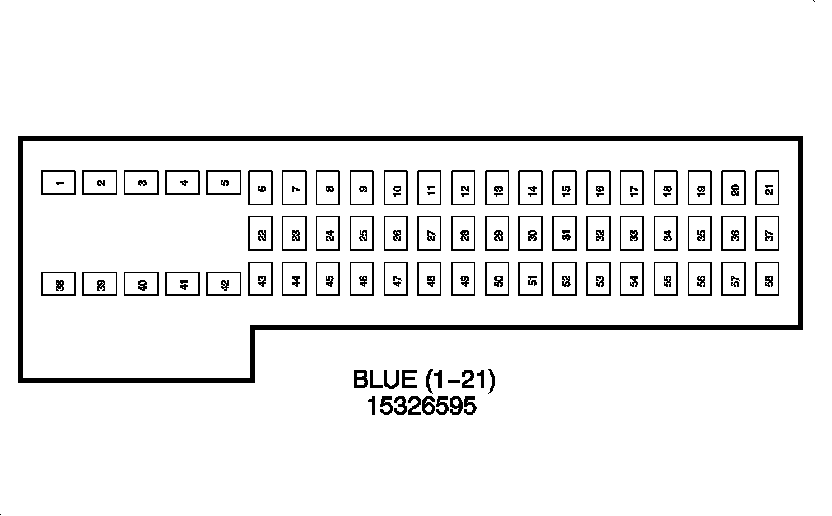

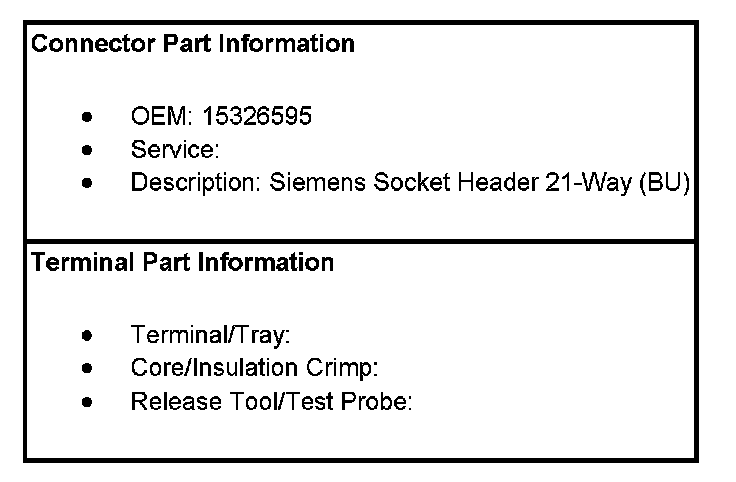

Transmission Control Module (TCM) C1:
